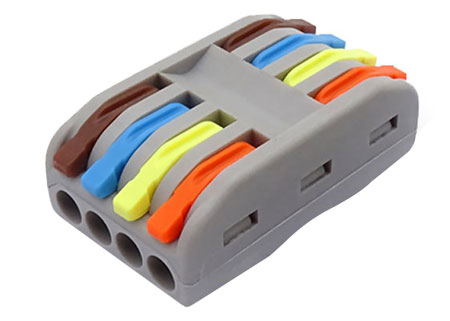

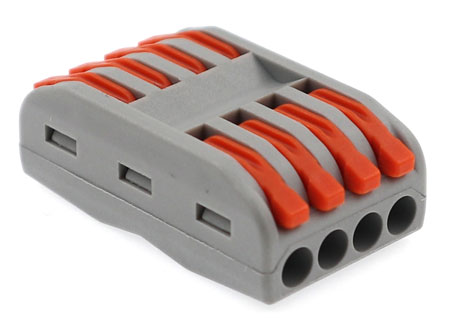

8 way SPL-4 push in electrical connector wire to wire

SPL-4 wire to wire connectors are widely used in lamps lighting, motors, electrical control, power supplies, home appliances, machinery, home improvement, etc.


  • Brand:

    OLINK
  • Item no.:

    PCT-2-4
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue Orange yellow level
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

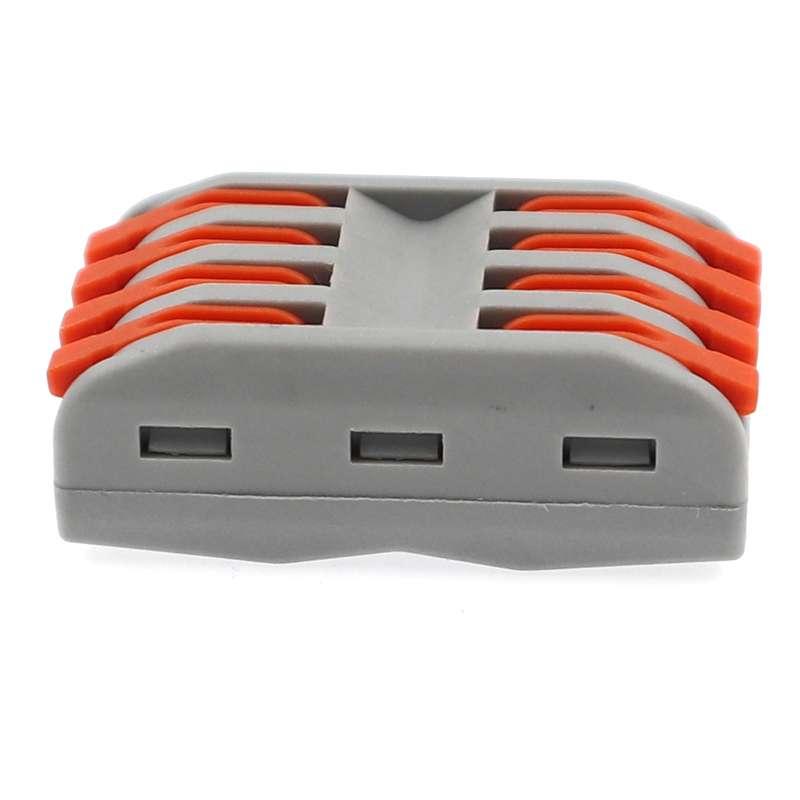

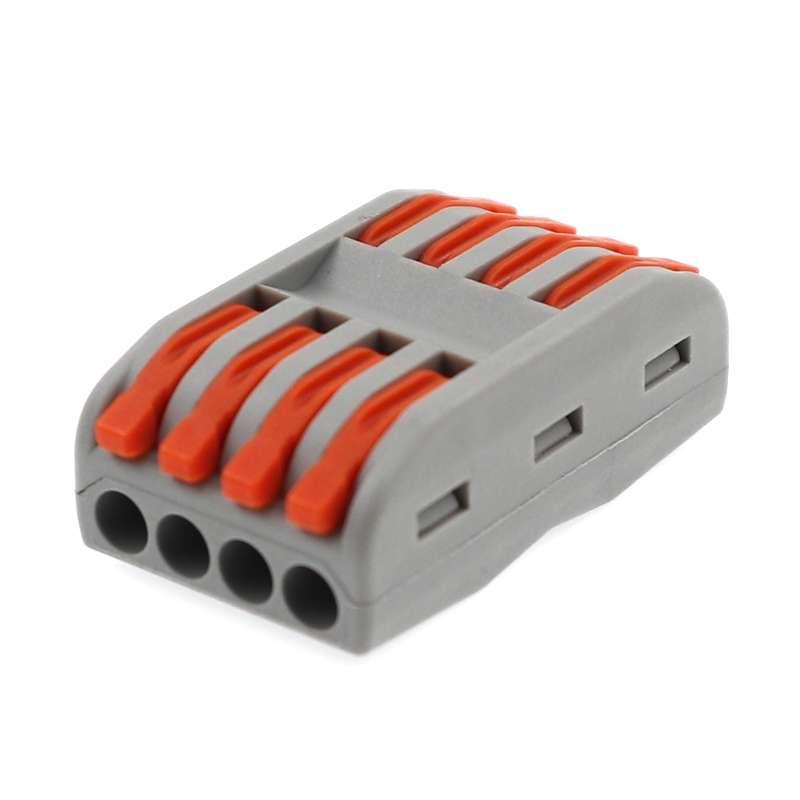

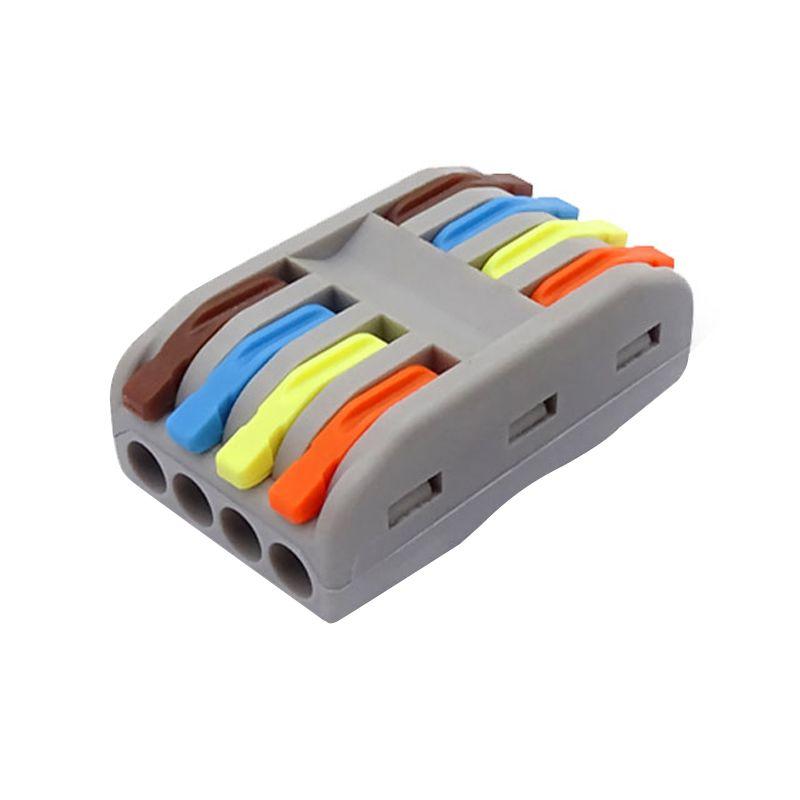

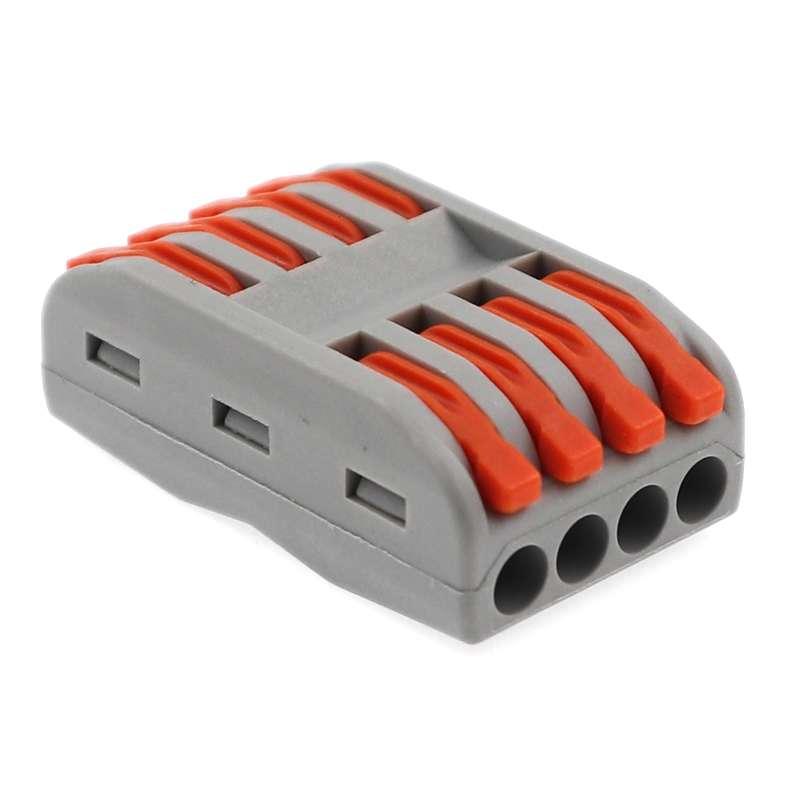

8 way SPL-4 push in electrical connector wire to wire





PCT-2-4  PCT-2-4C

Features of Push in electrical connectors


  • Can replace traditional electrical tape when connecting wires;
  • Use compact splicing connector can make the wire connection stronger and more reliable;
  • Fast crimping function, suitable for all types of wires with a cross section of 0.08 mm to 4 mm, convenient and fast to use;
  • The wrench is available in orange and multi-color, and the color can be customized;
  • The shell is made by PA or PC, there are grey and transparent can be choosen.


Size and Number of electrodes for wire to wire connector


  • push-in wire connector size is 40.3mm*23.6mm*14.5mm
  • There are three electrodes, 4 in 4 out
  • The color of the handle can be customized to better distinguish the electrode polarity


Specification of Compact splicing connector


Product name:  push in electrical wire connectors
Wire range:

 Solid wire: 0.08-4.0mm2

 Stranded wire:0.08-2.5mm

Material:

 Housing: PA66 UL94V-0

 Conductor: Brass with tin-plated

 Spring: Stainless steel

Voltage:  400 V
Current:  32 A


application of wire to wire connector


Mainly used in indoor LED light power wiring, wire connection of junction box, electrical control, power supplies, home appliances, machinery, etc.


More similar wire connectors



*For more information, please contact us by email or through any contact information on the webpage.

Related products
wire connector types
Building junction box electrical wiring connectors
A professional wire connector provider with large supply capacity, short delivery time and favorable prices.
wago 222 connectors
Wire to wire connectors type Chinese manufacturer
Can replace 222 series connector, easy to use, handle color can be customized.
222-413 wire connector
Equivalent 222-413 Series 3 Pin Lever Small Wire Connector
Can replace 222 series connector, easy to use, handle color can be customized.They are used for junction box
Electrical crimp connectors
Push In Fast Terminal Block 222-415 Wire Connectors
222-415 Wire Connectors is durable, insulated, safe, reusable. Widely used in a variety of electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring wiring equipment and other fields.
Wire to wire connector
SPL-2 wire to wire connector PCT-2-2 compact connecting terminal
SPL-2 wire to wire connector are widely used in lighting fixtures. With fast connect and disconnection solution
Wire to wire connector

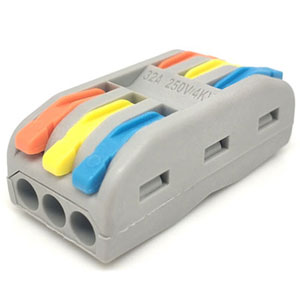

SPL-3 two way 6 ports quick push-in wire connector
