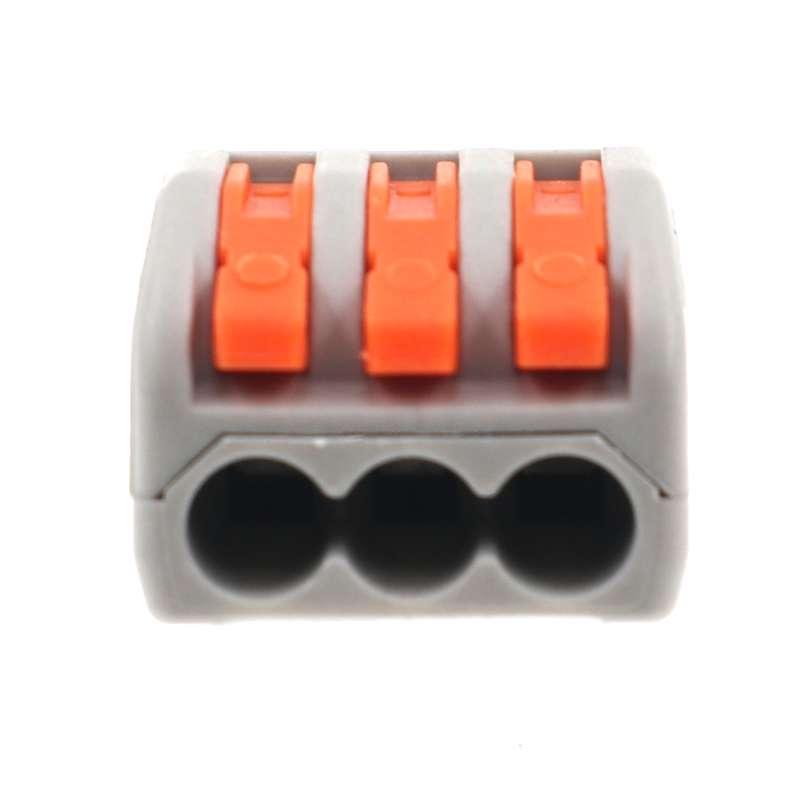

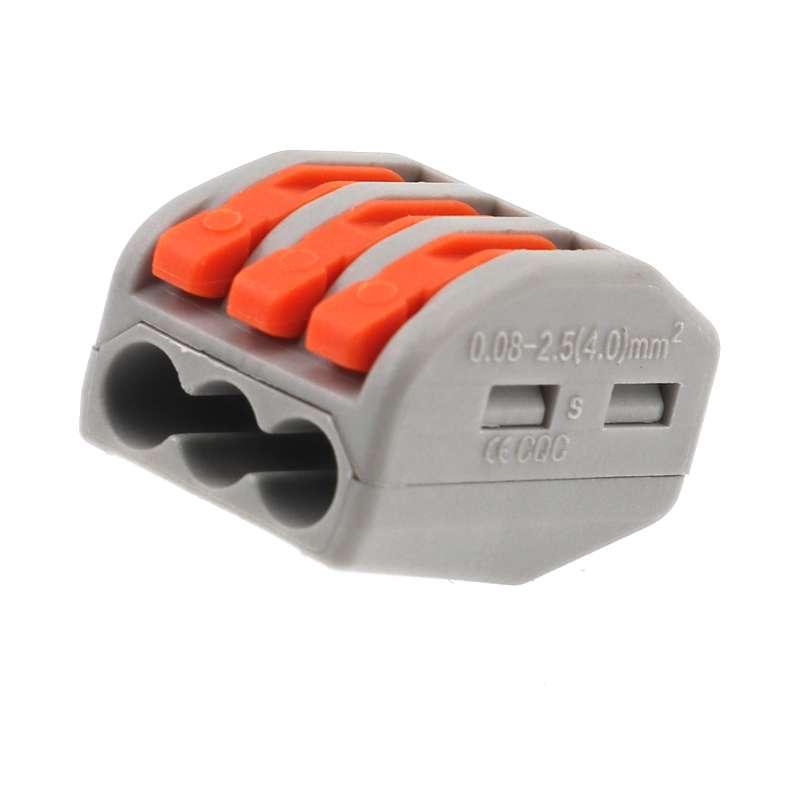

Equivalent 222-413 Series 3 Pin Lever Small Wire Connector

Can replace 222 series connector, easy to use, handle color can be customized.They are used for junction box


  • Brand:

    OLINK
  • Item no.:

    PCT-213
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Equivalent 222-413 Series 3 Pin Lever Small Wire Connector

Wago 222 connector

  Description of Wire Terminal Connectors

The wire terminal connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。


  Features of Push Wire Connector

  • Small size and reusable;
  • Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
  • The shell is made of nylon or PC, and the flame retardant grade is UL94 V-0;
  • The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
  • The color of the handle of this wire-to-wire connector can be customized to distinguish incoming wires.


  Specifications of Wire Crimp Connectors

Product Name:   wire terminal connectors
Application:   Junction box/electric power
Wiring method:   Insert Crimp
Wire type:   Hard/Flexible wire
Strip length:   9-11mm/0.39in
Cross section:   0.75 - 2.5(4.0) mm2
voltage(max.):   400V
Rated Current:   20A
shell material:   Nylon/PC
Conductive material:   Tinned phosphor bronze


  More Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
