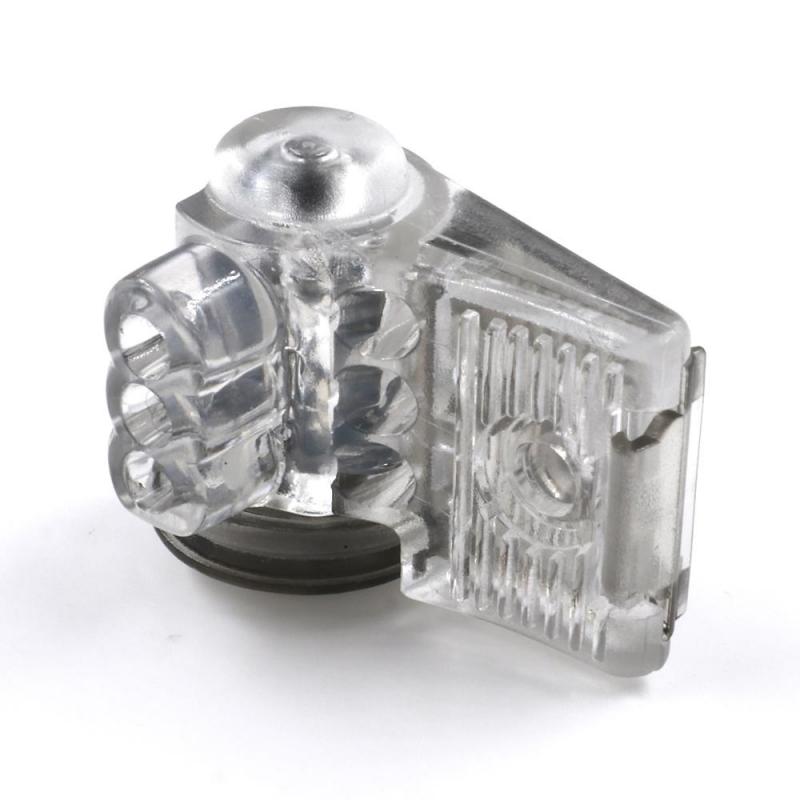

3 pin ip68 waterproof gel connector free-stripping wire

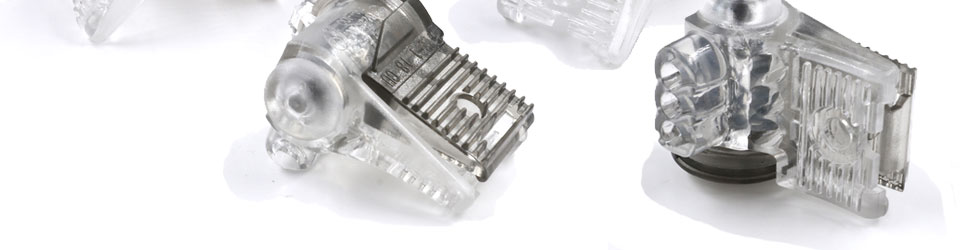

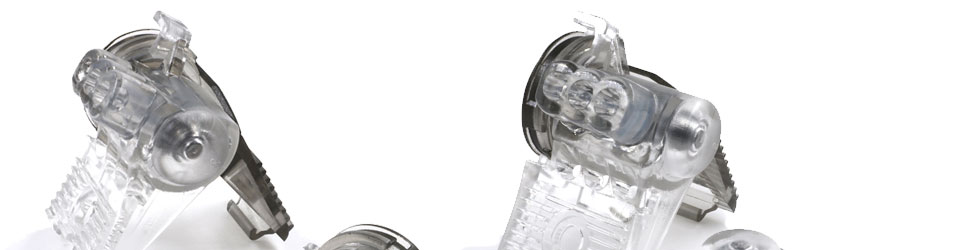

Waterproof gel connector- CDF-R3 is our new design. Inner part is silicone filled, can reach IP68, and used for wiring of water projects. And easy operation, do not need tools, no wire nut and also no wire stripping.

Brand:
OLINK
Item no.:
CDF-R3
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Grey, transparent
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

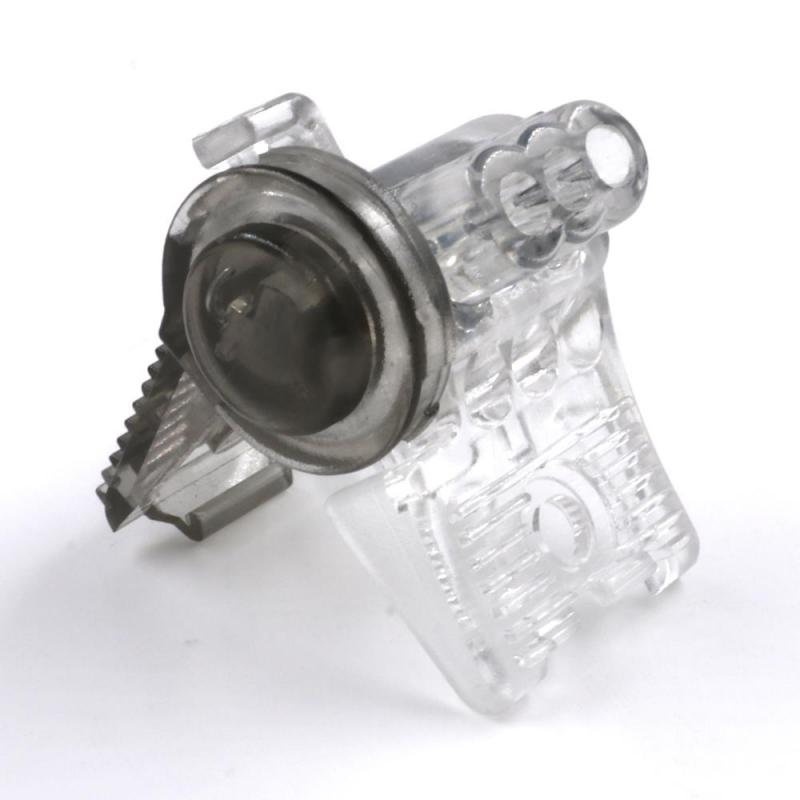

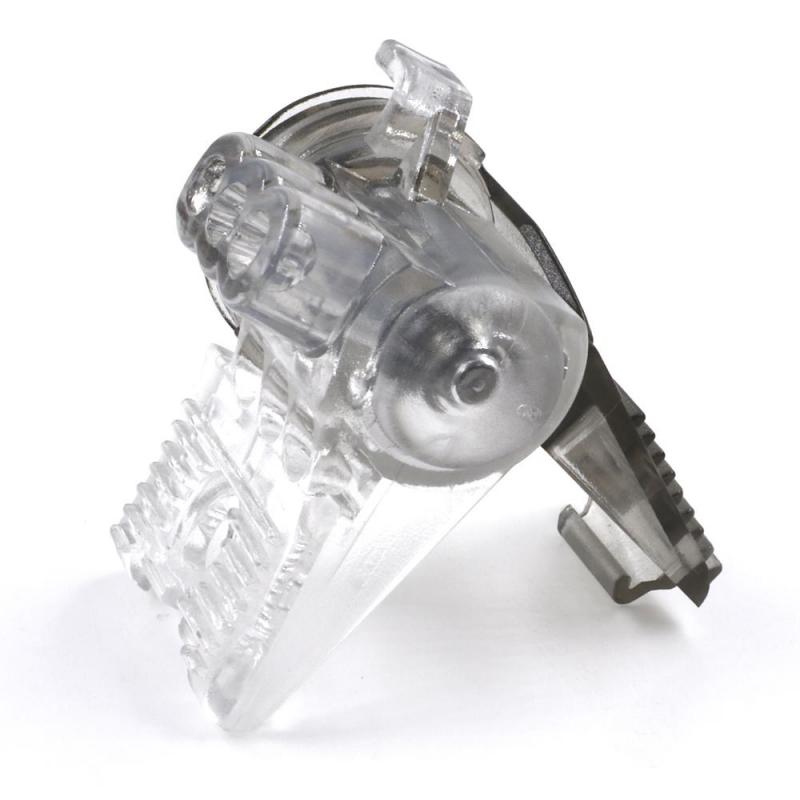

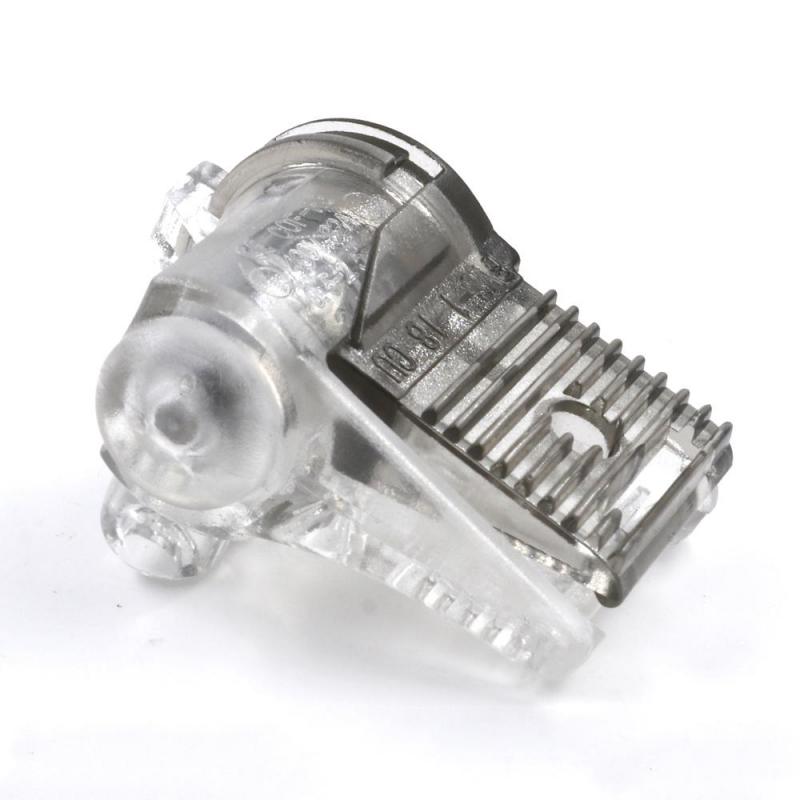

3 pin ip68 waterproof gel connector free-stripping wire

Features of Waterproof gel connector:

Stripping-free design, connection can be made without tools
The product is filled with gel-like waterproof glue, which has good adhesion;
Waterproof glue can adapt to external temperature changes, and can maintain the gel state from -40°C to 105°C;
The waterproof glue can be automatically fused after being cracked by external force, which can maintain good waterproof and moisture-proof ability.

Specification:

Product name:	Waterproof gel connector	Product model:	CDF-R3
Rated voltage:	400V	Rated current:	24A
Wire range:	0.5-2.5 mm²/20-14AWG	Waterproof level:	IP68
Conductor material:	Zinc alloy	Housing material:	PC
Application:	Used for wiring of water projects, such as wiring of household fish tanks, etc., as well as waterproof and moisture-proof lighting such as lamps and lanterns

application of Small waterproof wire connectors:

3 pin waterproof connector Mainly used in places where wire connectors are needed for waterproofing or underwater, such as fish tanks, outdoor power connections, outdoor lighting, etc.
