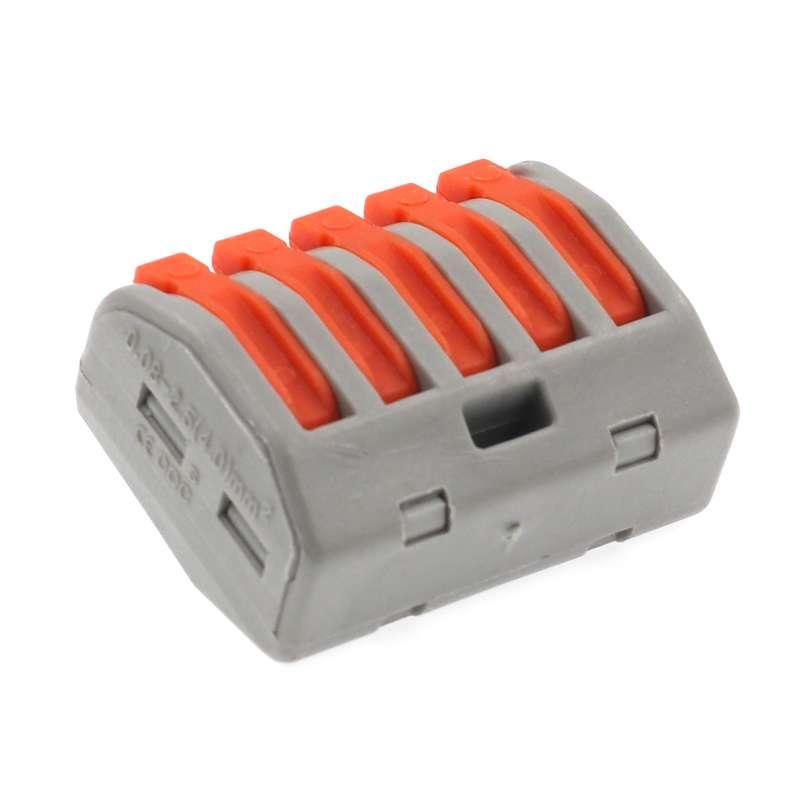

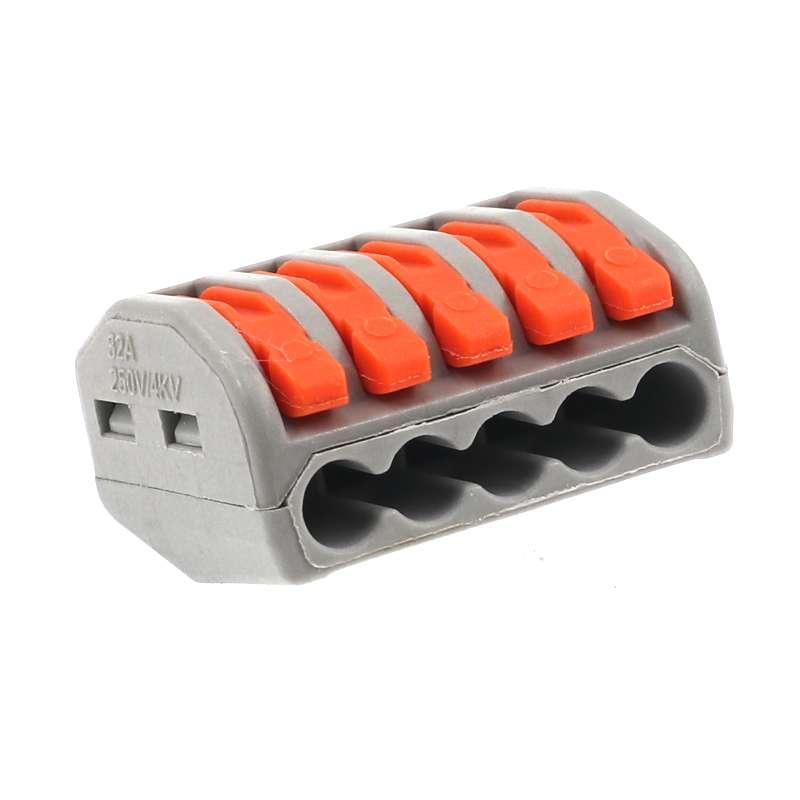

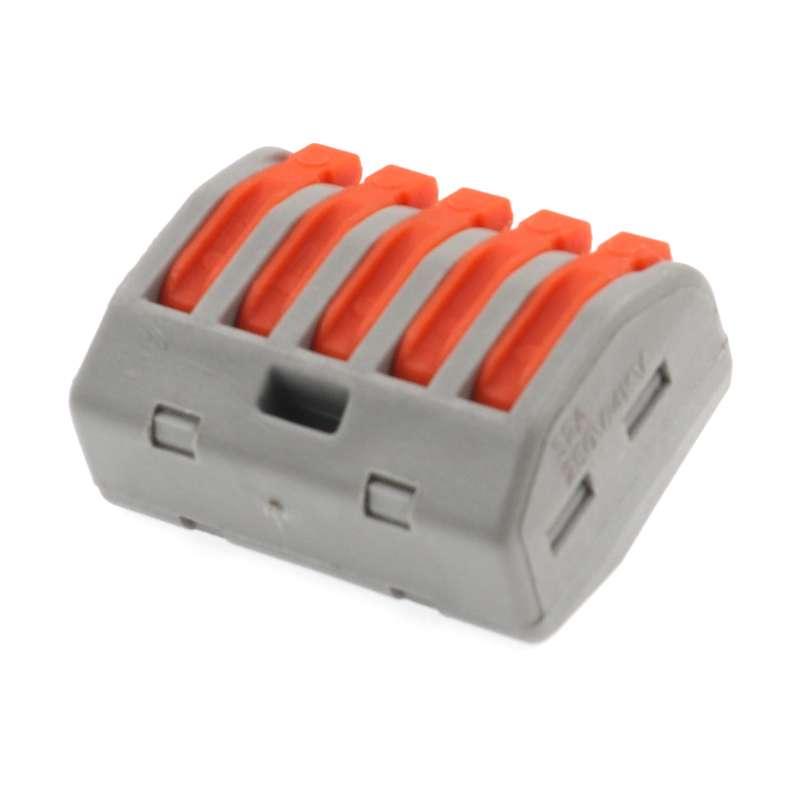

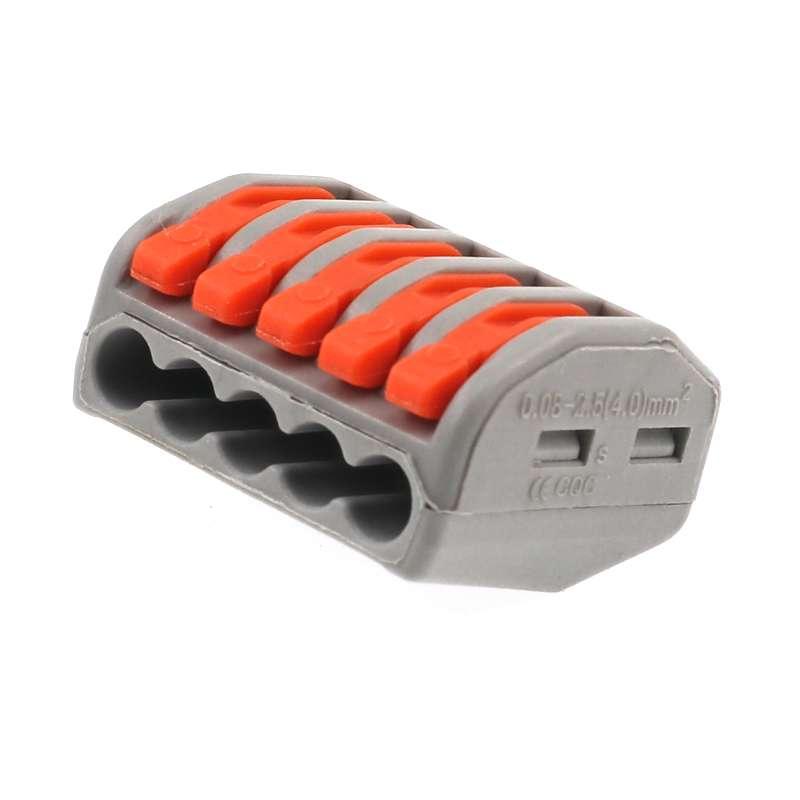

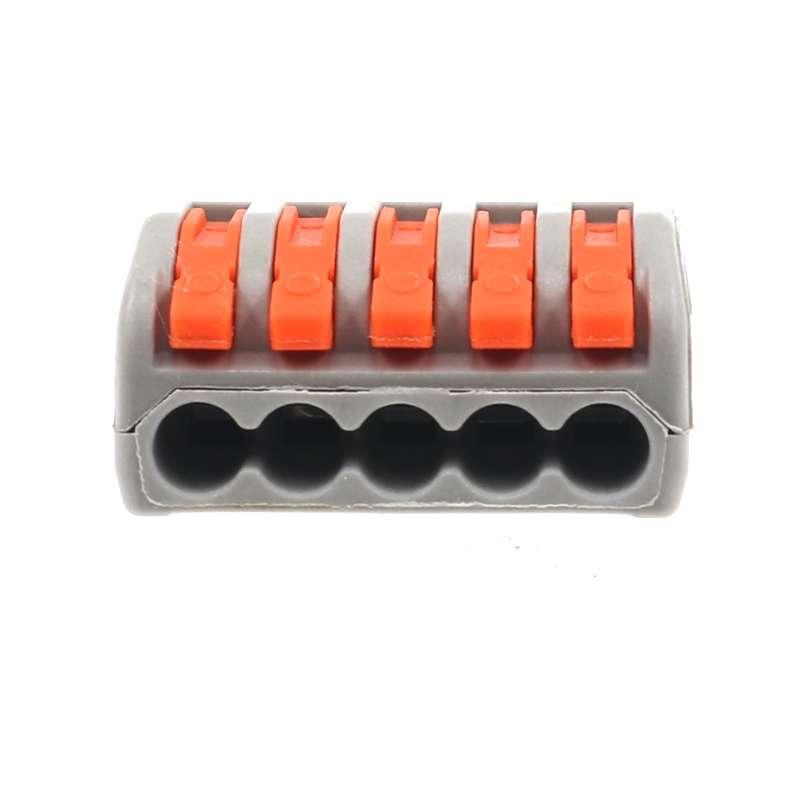

Push In Fast Terminal Block 222-415 Wire Connectors

222-415 Wire Connectors is durable, insulated, safe, reusable. Widely used in a variety of electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring wiring equipment and other fields.


  • Brand:

    OLINK
  • Item no.:

    PCT-215
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Push In Fast Terminal Block 222-415 Wire Connectors


electrical crimp connectors


Description of wire terminal connectors



The wire terminal connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity.


Features of 415 Wire Connectors

• Suitable for use in high temperature applications up to 250°C

• Secure fixed design.

• Panel Mounting or free floating. Mounting holes are furnished at each end of the block.

• Marking paper strips and protective covers are available.

• Excellent for switchboard panel, control consoles, small motors, transformers, air conditioners, power distribution and similar applications.


Specifications of Electric cable connectors



Product Name:   wire terminal connectors
Application:   Junction box/electric power
Wiring method:   Insert Crimp
Wire type:   Hard/Flexible wire
Strip length:   9-11mm/0.39in
Cross section:   0.75 - 2.5(4.0) mm2
Voltage(max.):   400V
Rated Current:   20A
Shell material:   Nylon/PC
Conductive material:   Tinned phosphor bronze

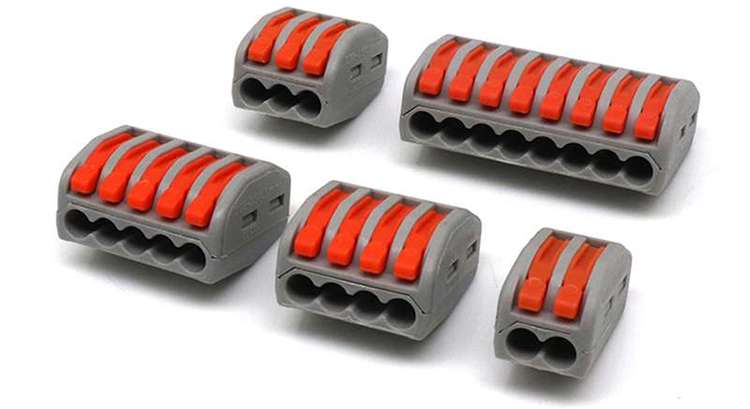

More wire connectors




*For more information, please contact us by email or through any contact information on the webpage.
