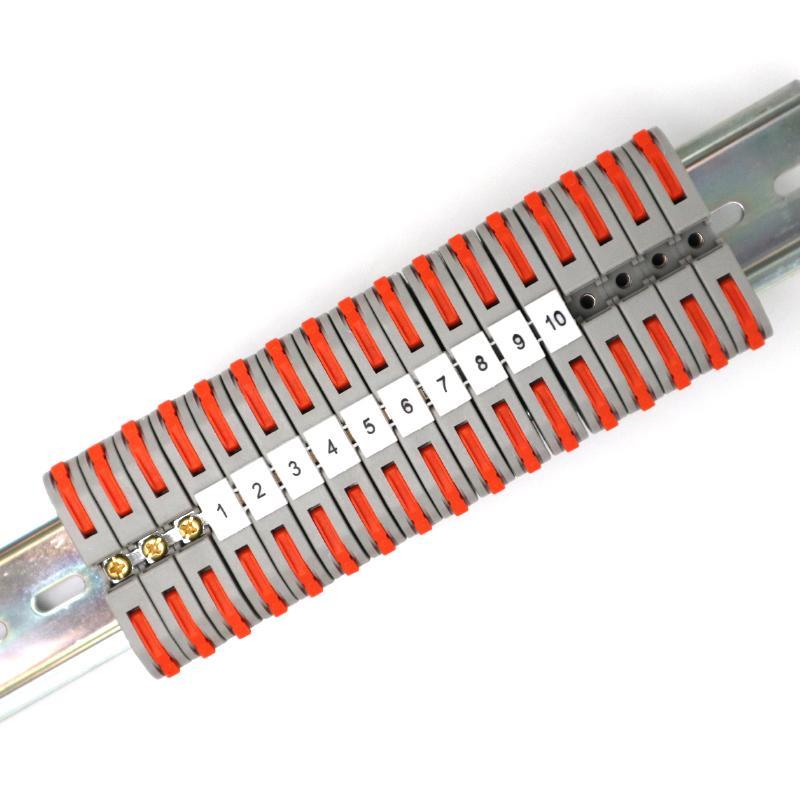

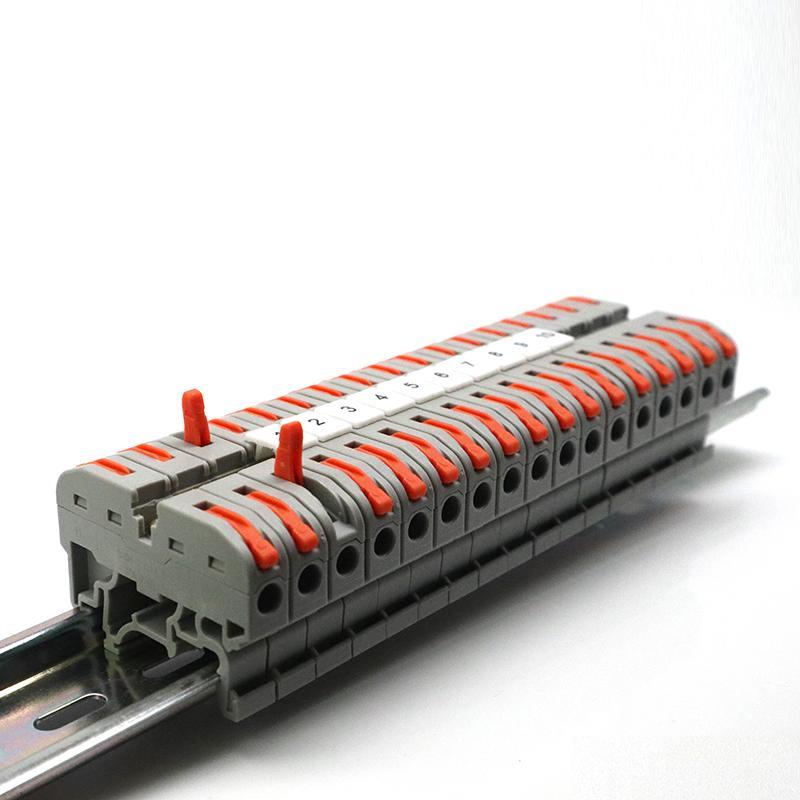

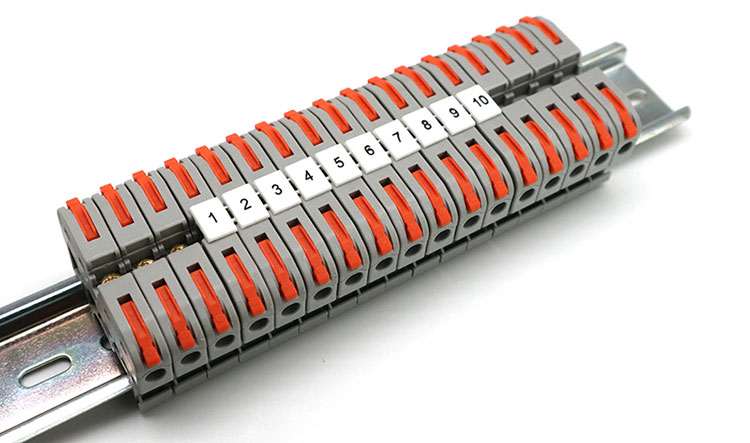

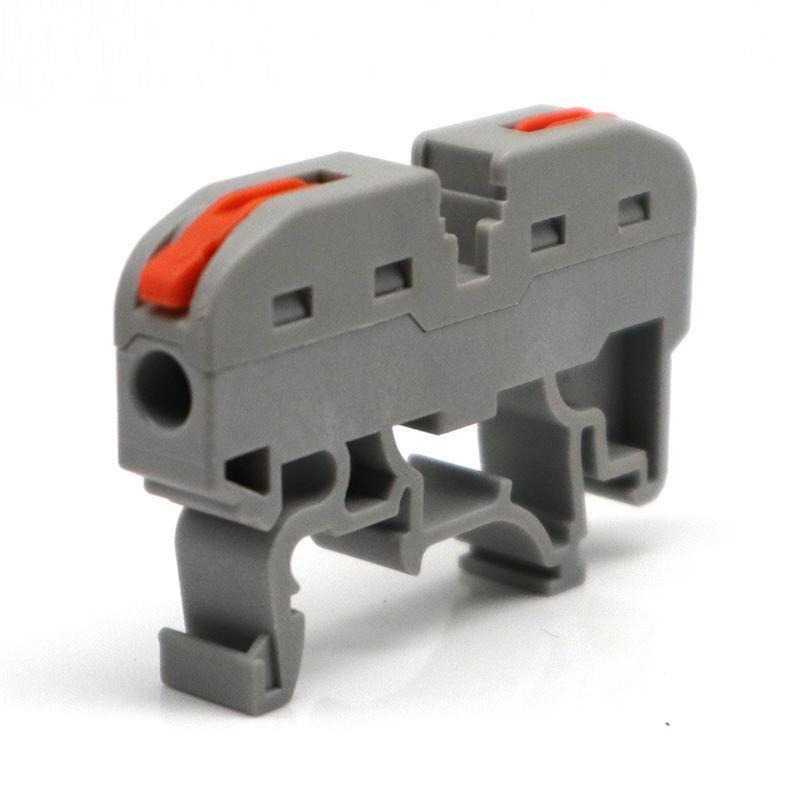

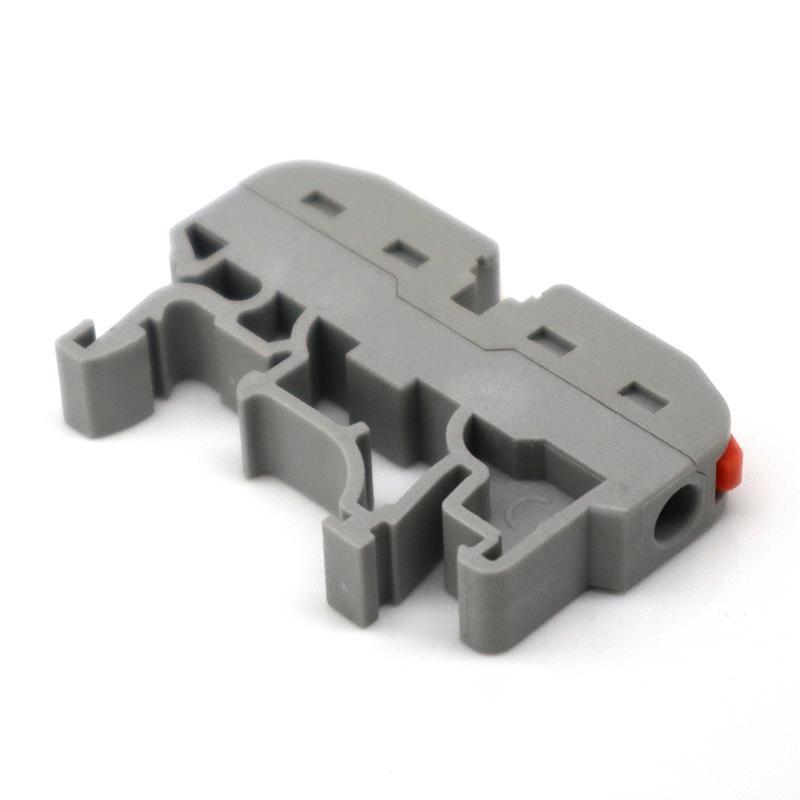

Push in wire to wire connector din rail types PCT-211

Din rail connector: PCT-211 can replace uk series, screwless design. There are accessories- metal bar, rubber button and screws, can be use with the connector make it into multi-pole.
  • Brand:

    OLINK
  • Item no.:

    PCT-211
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Black
  • Goods stock:

    500000
  • Min order:

    100
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Push in wire to wire connector din rail types PCT-211


Features of din rail connectors

  • Can replace UK rail connector
  • Use standard 3.5mm (1.38 inch) width guide rail
  • Parallel bars can be used for multi-wire single-potential parallel connection
  • Handle color can be customized
  • Optional digital adhesive strips (numbers 1~10), wiring and line checking are not easy to make mistakes

Specifications:

Product Name:   wire to wire connectors
Product model:    PCT-211
Wiring method:   Insert Crimp
Wire type:   Hard/Flexible wire
Strip length:   9-10mm/0.39in
Cross section:   0.08 - 2.5(4.0) mm2
Voltage:   250V-600V
Rated Current:   20A
Shell material:   nylon PA
Conductive material:   Copper Nickel plated/Tinned
Spring:   301 steel Application:   Controller/electric power


Application of din rail connector

  • Electrical cabinet junction box
  • Power equipment wiring device
  • There are circuits that require fast wire connections

More wire connectors


wago 222 connectorswago 222 connectors

Q&A:

Q: I have multiple wires that need to be connected to the same potential, is this product okay?

A: Yes, PCT-211 is designed with a single wire connector and a connector that can be connected in parallel.

Q: How long does it take to hand over after placing an order?

A: Products in stock can usually be shipped the next day; if you need to arrange production, it will be shipped within 5-7 days;
