221 series wire connector 6mm 4way 221-614 terminal block connector

6mm² 221 series connector, easy to use, handle color can be customized.solid wire accepts 10AWG or 6mm² wire, ideal for branching off building power wires.

Brand:
OLINK
Item no.:
221-614
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Gray/Orange (handle color can be customized)
Goods stock:
500000
Min order:
100
Product weight:
3
Shipping port:
Xiamen, Ningbo,shenzhen,shanghai
Lead Time:
7

Inquiry now

product introduction

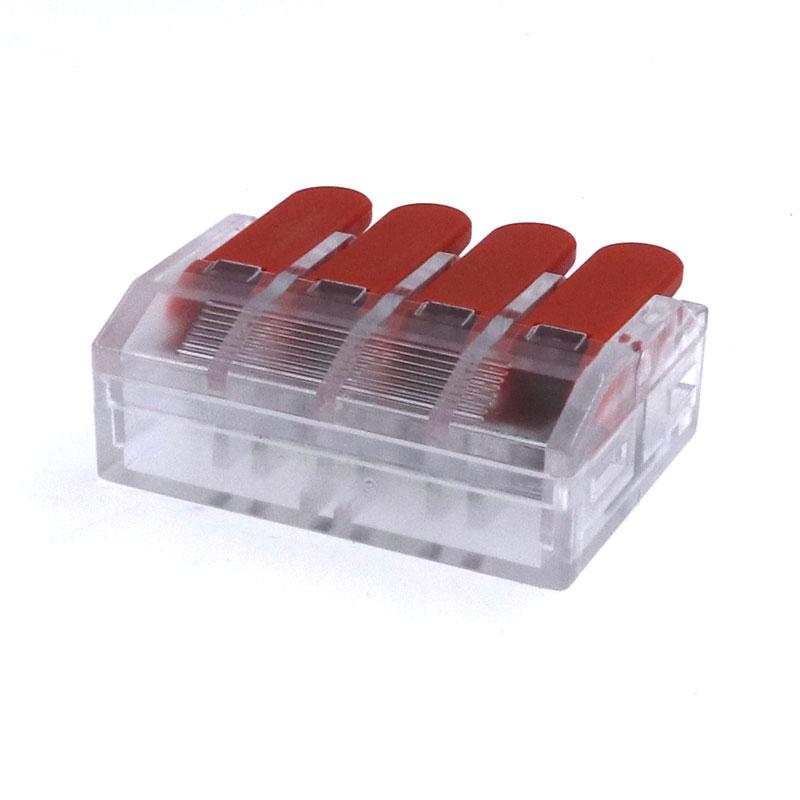

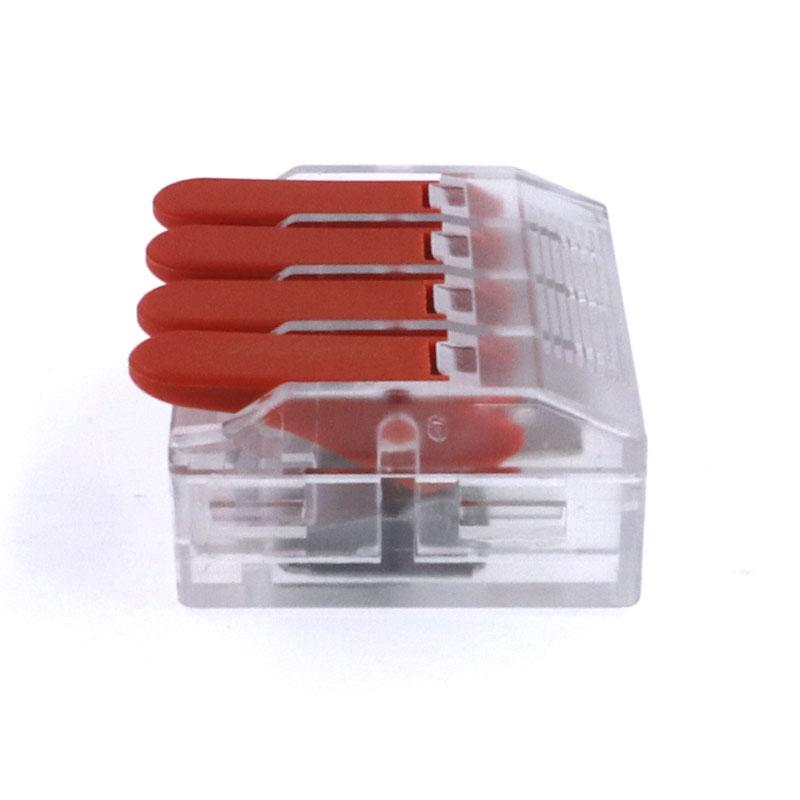

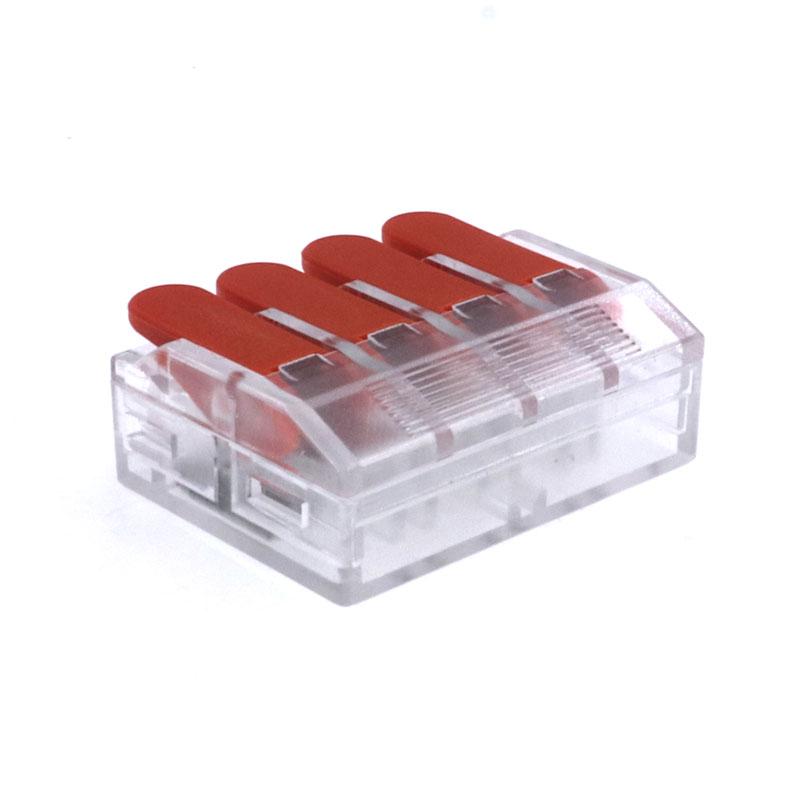

221 series wire connector 6mm 4way 221-614 terminal block connector

Features of 221 terminal block connectors

Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
The shell is made of PC, and the flame retardant grade is UL94 V-0;
The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
The color of the handle of this wire-to-wire connector can be customized to distinguish incoming wires.

Specifications of 6mm electrical crimp connectors

Model	221-614	Rated Voltage	450V
Rated Current	40A	Strip Length	13-15mm/0.59in
Wiring Size	Solid Wire: 0.5-6mm² Stand Wire: 0.4-4.0mm²
Wiring Method	Lever Crimp	Shell	PC
Contact	Copper	Sping	High-Perfomance Spring Steel
Temperature	-25℃~85℃	Applications	Building Wire Branch and Connection

Size and Description
	The lever crimp wire connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。

How To Use
Easy Operation,Easy To Insert,Convenient, Fast,Safe And Reliable

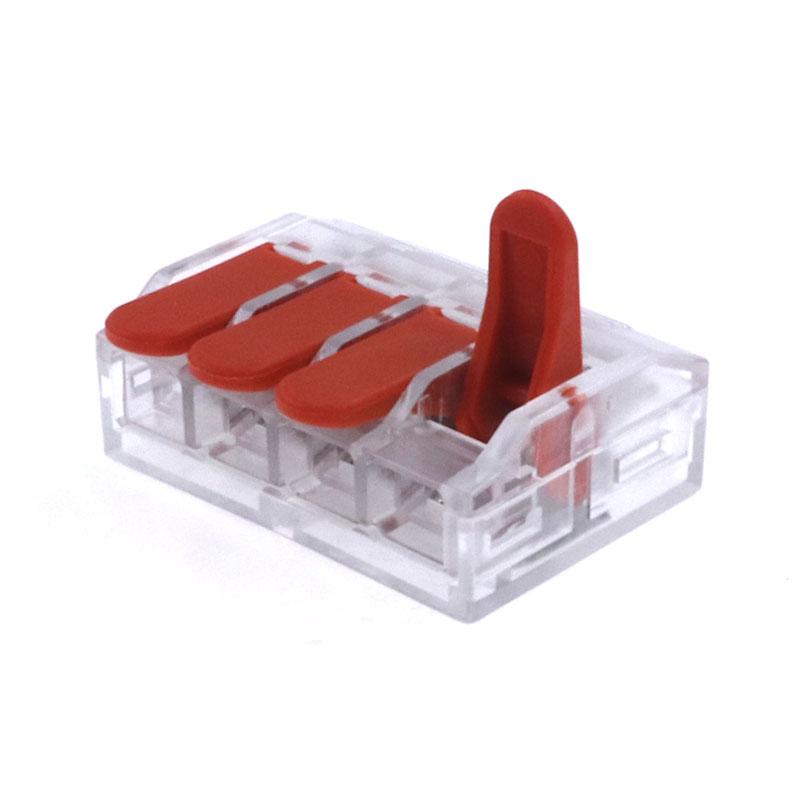

1)Stip The Wire Length 13-15mm/0.59in		2)Open The Connectors Handle

3)Insert The Wire Hole and Close The Handle		4)Installation Is Complete

Other needle count products

221-612	221-613	221-615

More Push In Wire Connector

*For more information, please contact us by email or through any contact information on the webpage.
