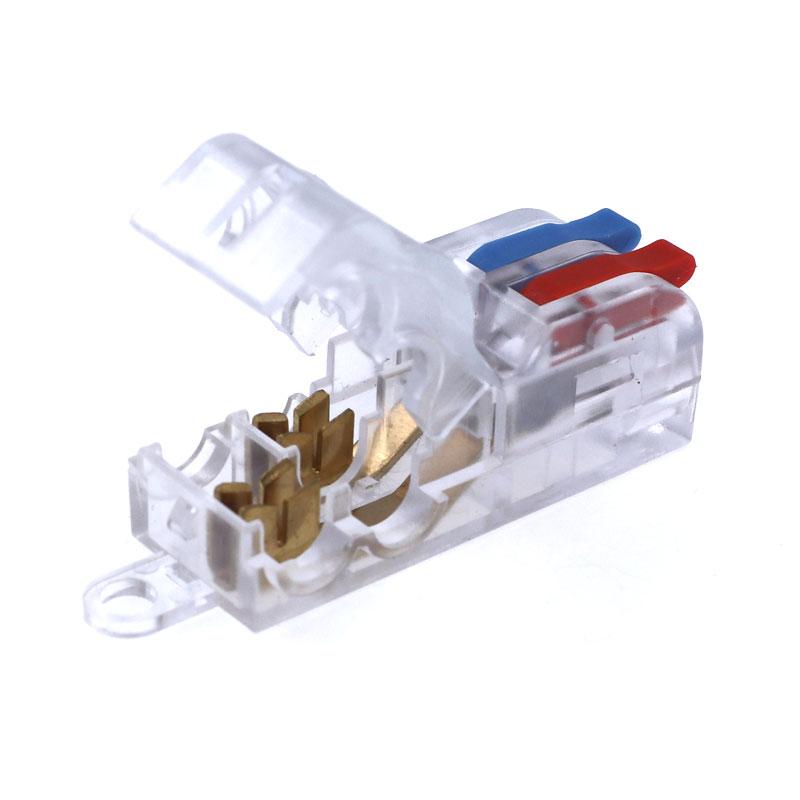

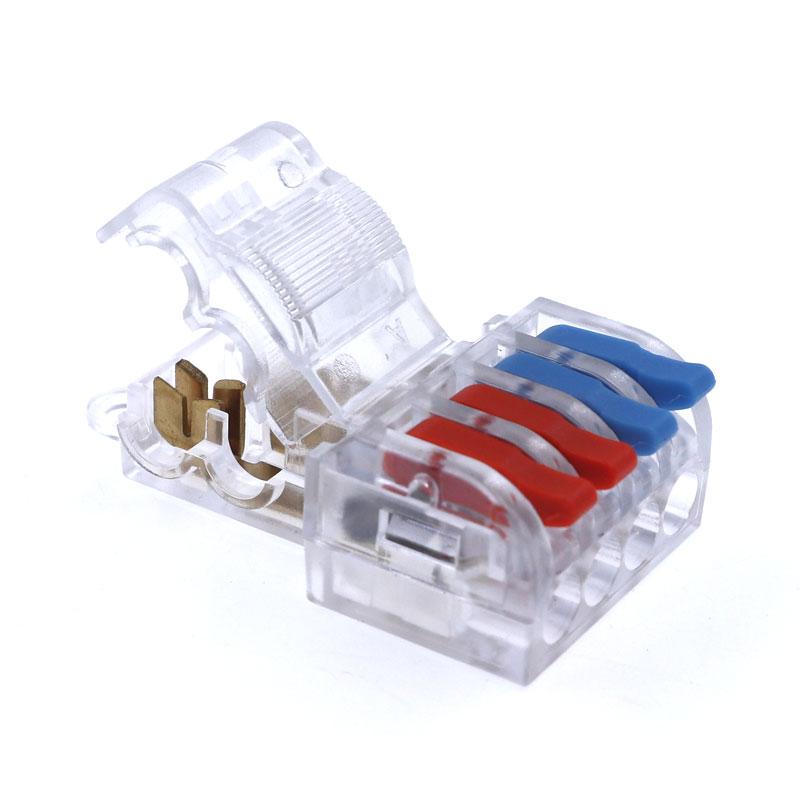

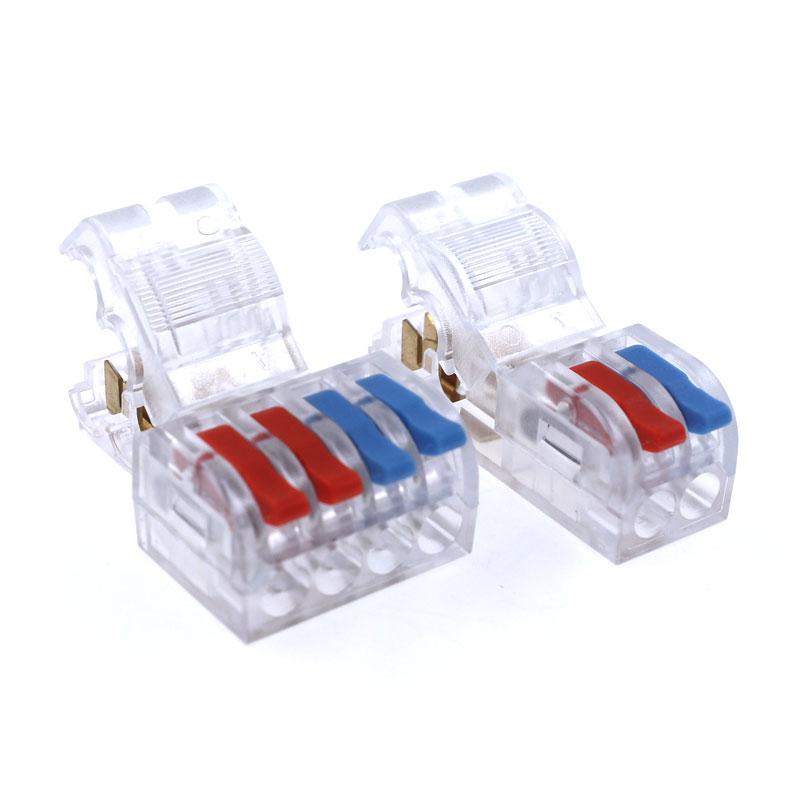

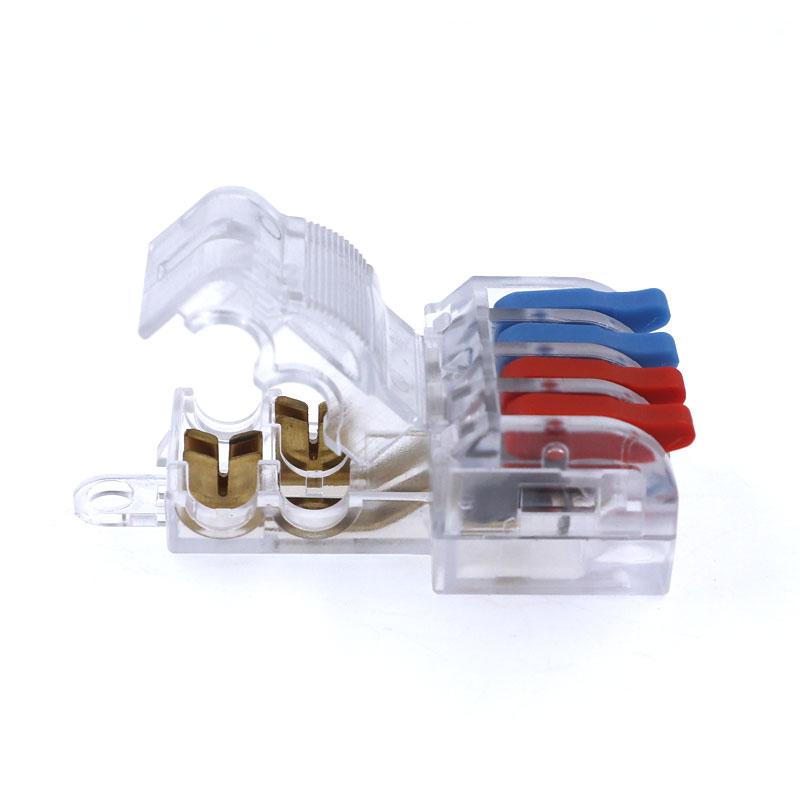

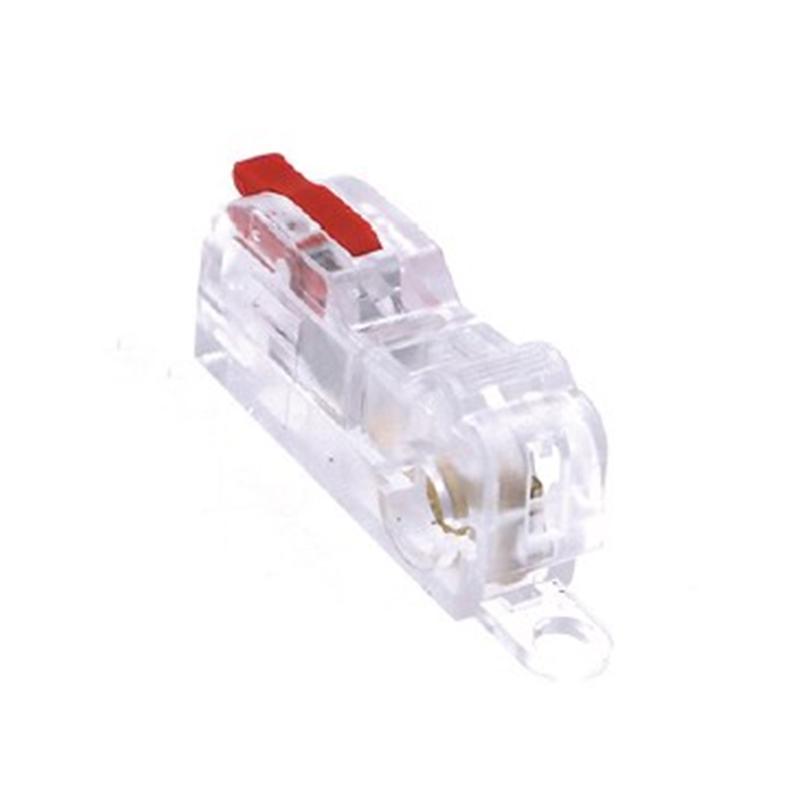

t tab branch circuit multiwire quick electrical wire connectors

T-type main line stripless quick connection terminal, there are 1 to 1, 2 to 2 and 2 to 4.



  • Brand:

    OLINK
  • Item no.:

    T11/T22/T24
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue, Orange lever
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

t tab branch circuit multiwire quick electrical wire connectors





T11 T22 T24

  Features of T tap electrical connectors

  • The design of the main line without disconnection, the buckle of the presser is tighter

  • Two wiring methods, convenient wiring

  • Simple operation, main line split line pressing design

  • Insulated flame retardant shell

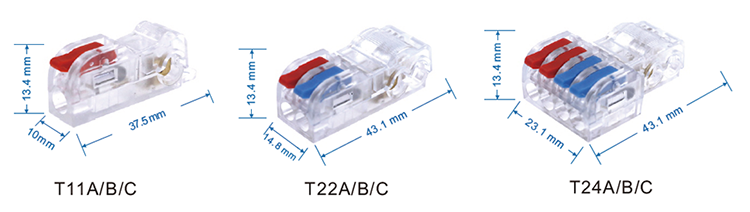

 Dimensions

  Specification of Electrical Wire To Wire Connector

Product Name:
 T tap electrical connectors
Pole:  1 to 1, 2 to 2, 2 to 4
Strip Length:

 Input: no stripping

 Output: 8-10mm/0.37in

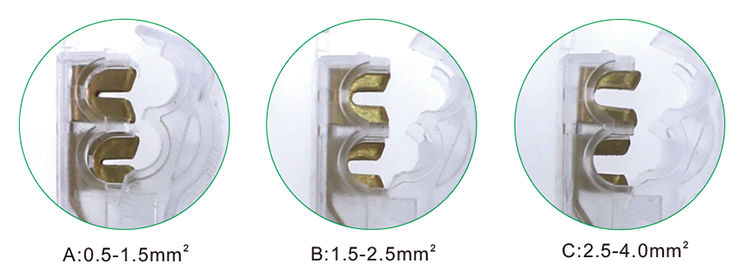

Wire Range:

 Input: A- 0.5-1.5mm²

           B- 1.5-2.5mm²

           C- 2.5- 4mm²

 Output: 0.08-2.5(4.0)mm²

Material:

 Housing: PC

 Conductor: Copper

 Spring: High-Performance spring steel

Rated Voltage:   250V Rated Current:   32A

 Input wire size: A/B/C


  Application Of Mini Wire To Wire Connectors

Mainly used in indoor LED light power wiring, wire connection of junction box, etc.


 More Similar Wire Connectors


*For more information, please contact us by email or through any contact information on the webpage.
