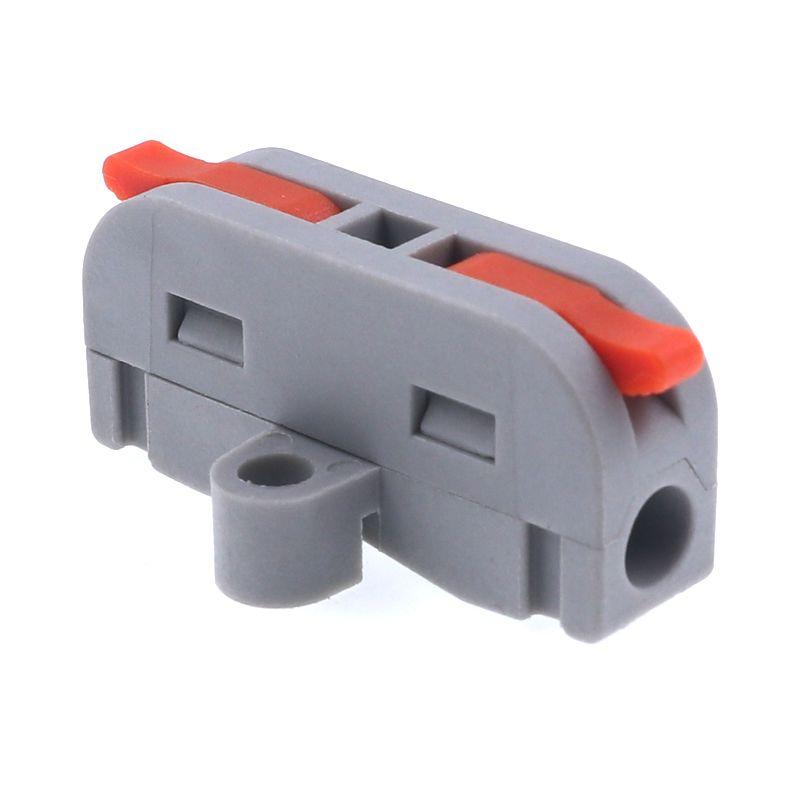

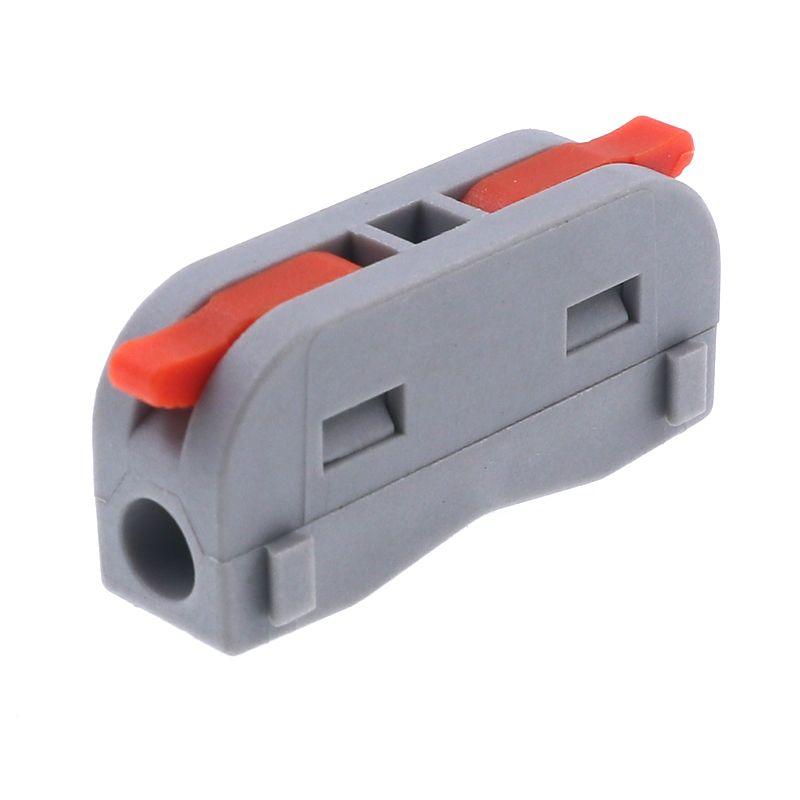

32 amp 2 hole mini compact splicing connector

PCT-2-1M compact splicing connector with fix hole, can be easy to fix in the place, and it can randomly splice into the number of poles you want.


  • Brand:

    OLINK
  • Item no.:

    PCT-2-1M
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue, Orange, Yellow, Red, Brown lever
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

32 amp 2 hole mini compact splicing connector

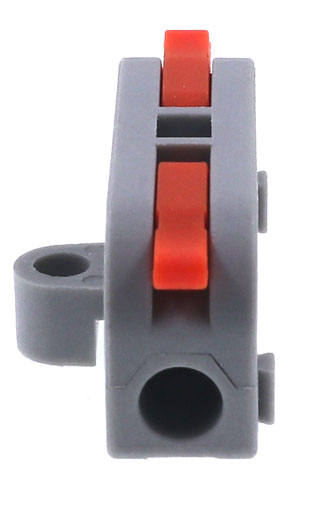

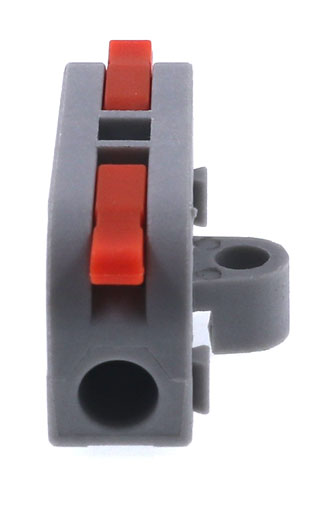

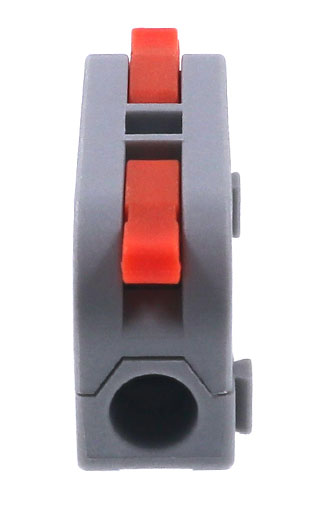

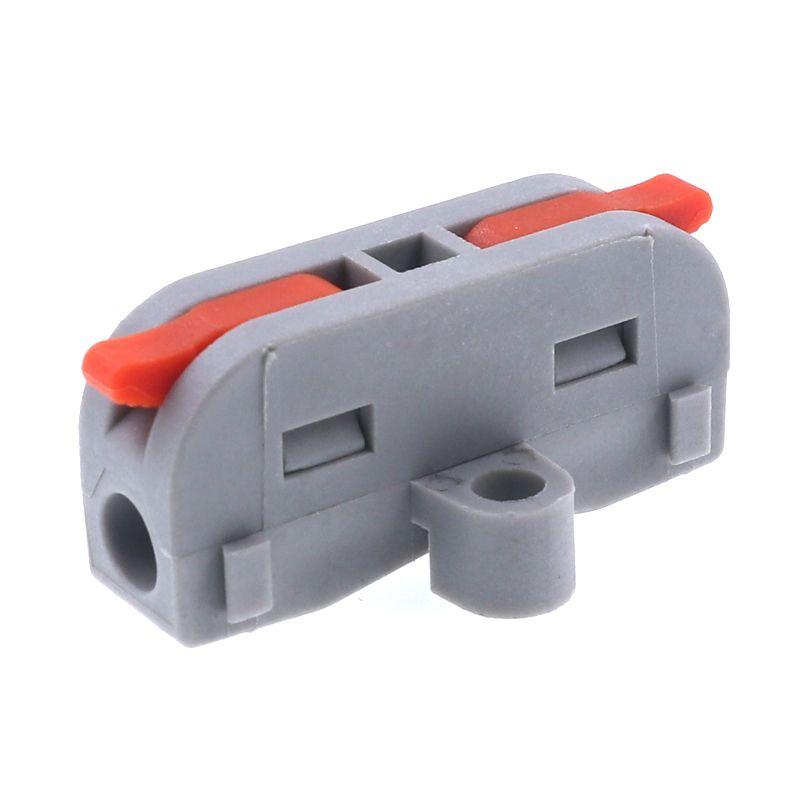

PCT-2-1ML PCT-2-1M PCT-2-1MR


Features of splicing connector


  • Mini design, compact size, can adapt to a narrower wiring space

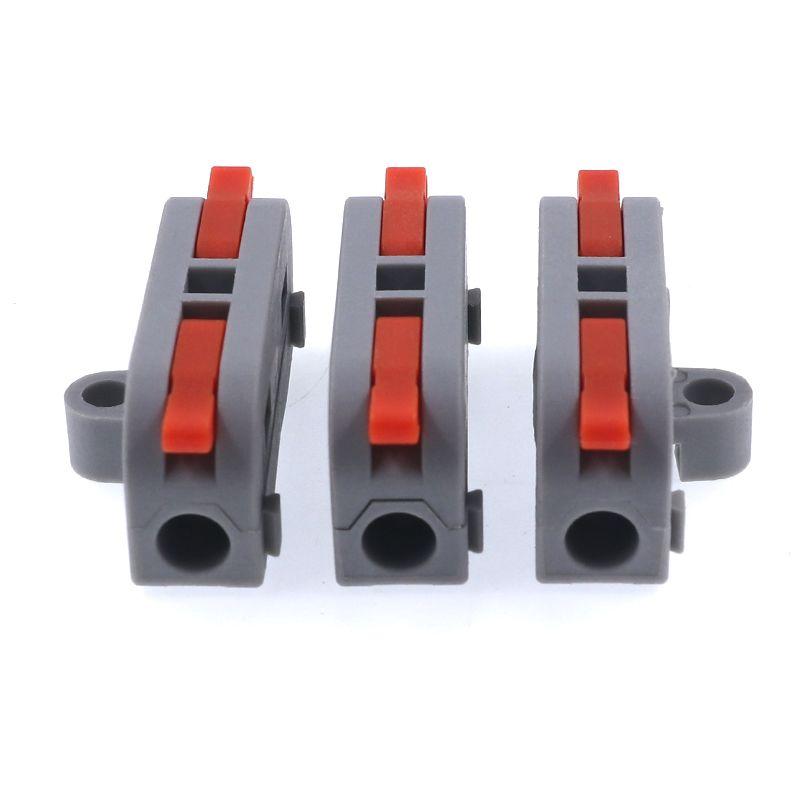

  • Card slot design: vertical up and down, assembly and disassembly, can be spliced at will, single pole can change to multi-poles

  • Fixed design: can be matched with left and right ears to achieve unilateral/bilateral fixation

  • Flame-retardant plastic: It is not easy to be corroded, is resistant to aging, and is resistant to high pressure and flame retardant.

  • Color handle: multi-color handle, quickly distinguish lines, support color customization


Size and Number of electrodes for Compact splicing connector


  • lever nuts connector size is 31.5*8*13.5mm
  • There are one electrodes, 1 in 1 out
  • The color of the handle can be customized to better distinguish the electrode polarity

Specification of Electrical wire to wire connector


Product Name:
 Compact Splicing Connectors
Wire Range:

 Solid Wire: 0.08-4.0mm2

 Stranded Wire: 0.08-2.5mm2

Material:

 Housing: PA66 UL94-V0

 Conductor: Brass With Tin-Plated

 Spring: Stainless Steel

Rated Voltage:   250V Rated Current:   32A

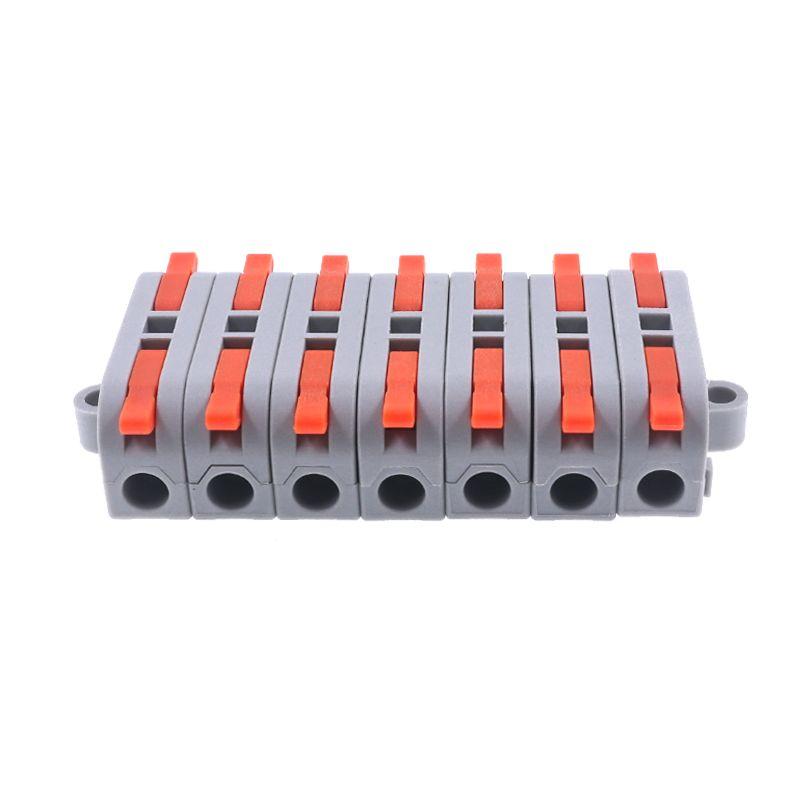

PCT-2-1M There Are Many Styles Stitching Regular
Color Lever Stitching
Transparent Stitching

Application of Mini wire to wire connectors


Mainly used in indoor LED light power wiring, wire connection of junction box, etc.
