Overview

Quick Details

Model Number:

FKCN2210-N/

Type:

Capacitive Proximity Sensor

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Level Sensor

Theory:

Capacitance Sensor

Output:

Switching Transducer

Description:

Capacitance Sensor

Amplifier Type:

Standard

Interface:

Not Applicable

Application:

Industrial Automation

Scanning distance:

10mm

Sensing object:

Non-metallic, plastic

Voltage:

12-24VDC 10%

Frequency:

200HZ

Entry cable:

dia4*2m/3 wires

Material:

ABS or PBT

Name:

NPN PNP Square type DC Capacitive Sensors for Plastic dete

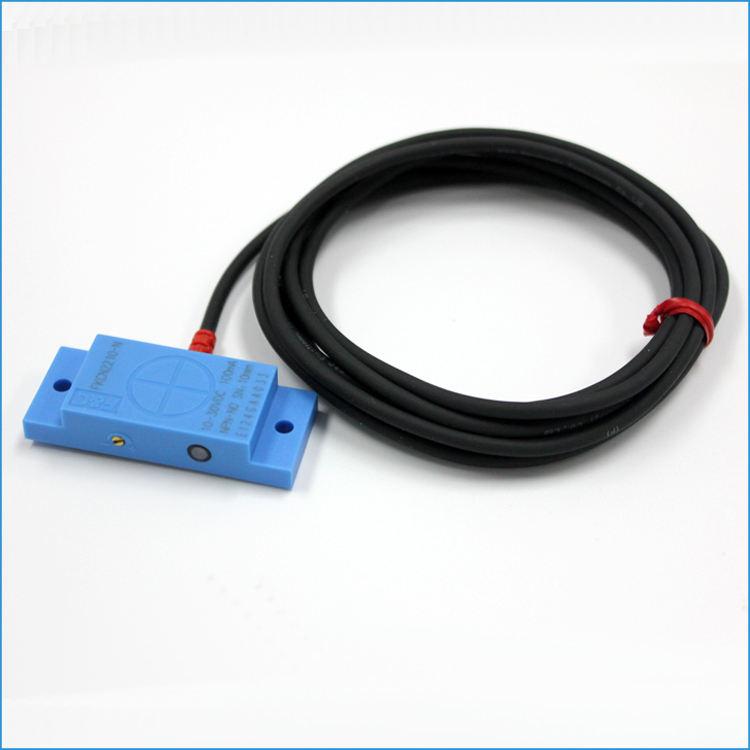

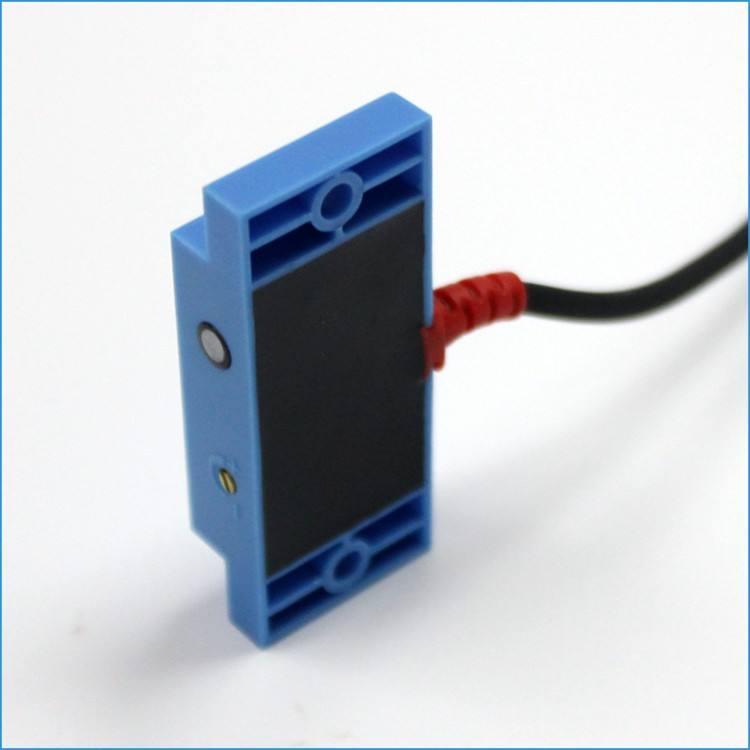

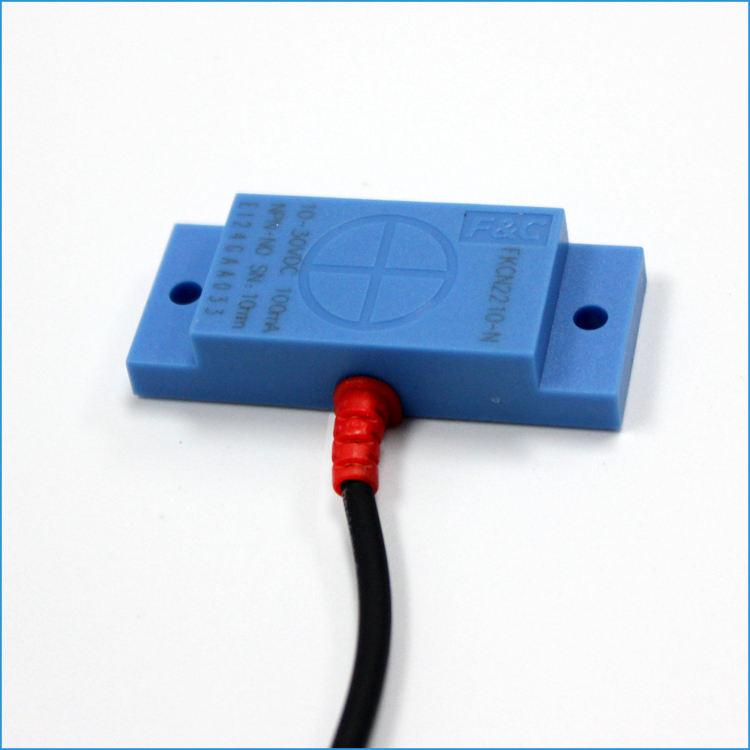

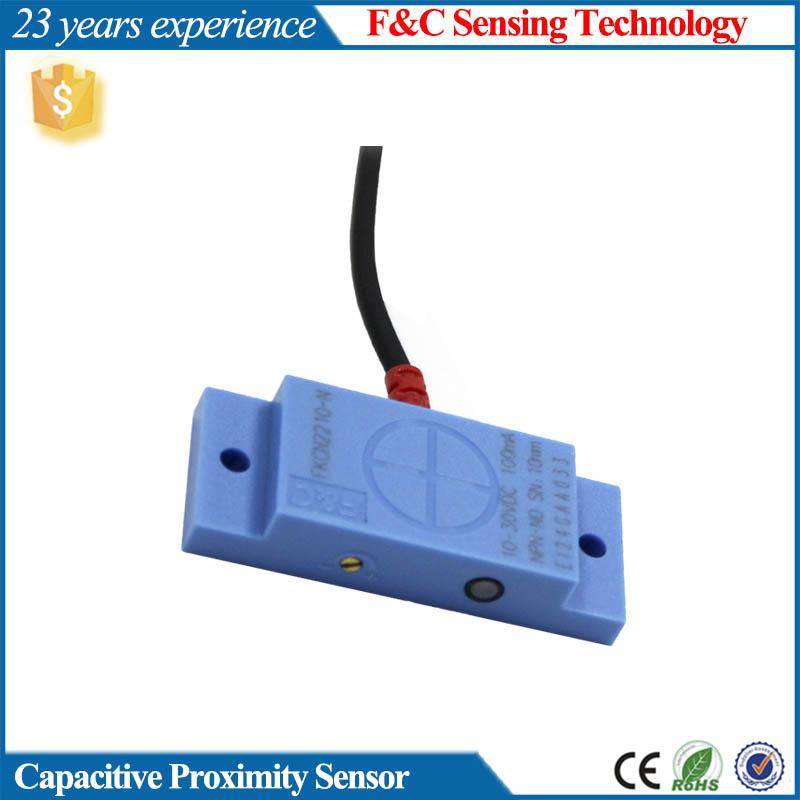

FKCN2210 NPN PNP Square type DC Capacitive Sensors for Plastic detector

• Capacitive Sensors

• Square Capacitive sensors

• Plastic  Detector Sensors

Product Description

Specifications for capacitance proximity switch:

F&C FKCN2210-N 10mm 12-24V dc capacitive proximity sensor
Model	FKCN2210-N
Detection Distances	10mm
Standard Sensing Object	Non-Metal
Response Frequency	200HZ
Hysteresis	Less than 10% of sensing distance
Detection Method	NPN NO
Operating Voltage	12-24 VDC
Current Consumption	Less than 10mA (No Load)
Load current	100mA Max at 24 VDC
Residual Voltage	Less than 1.0VDC
Leakage Current	Less than 0.01mA( No Load)
Protection Degree	IP66
Operating Temperature	-25℃-70℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	diameter 4mm*2M/-3wires , -4wires,-2wires

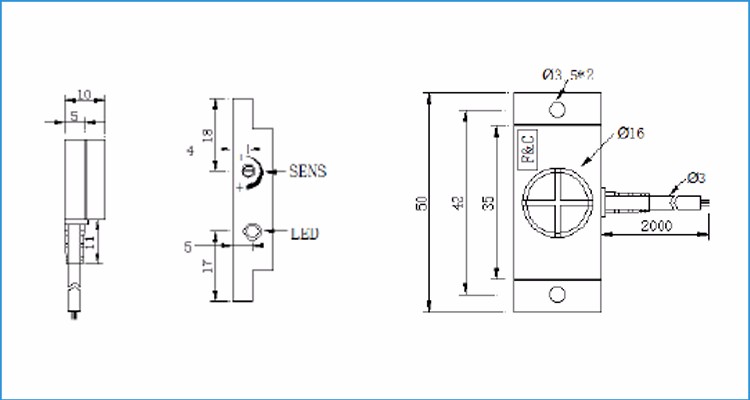

Dimension for capacitance proximity switch:
