Brand:
F&CItem no.:
F3N-17TN05-N/P/N2/P2Product origin:
China

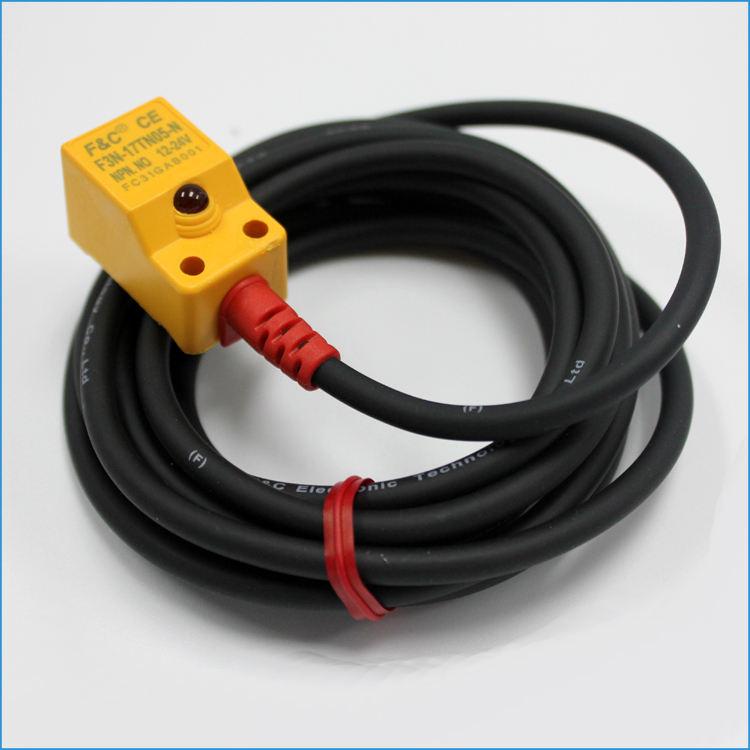

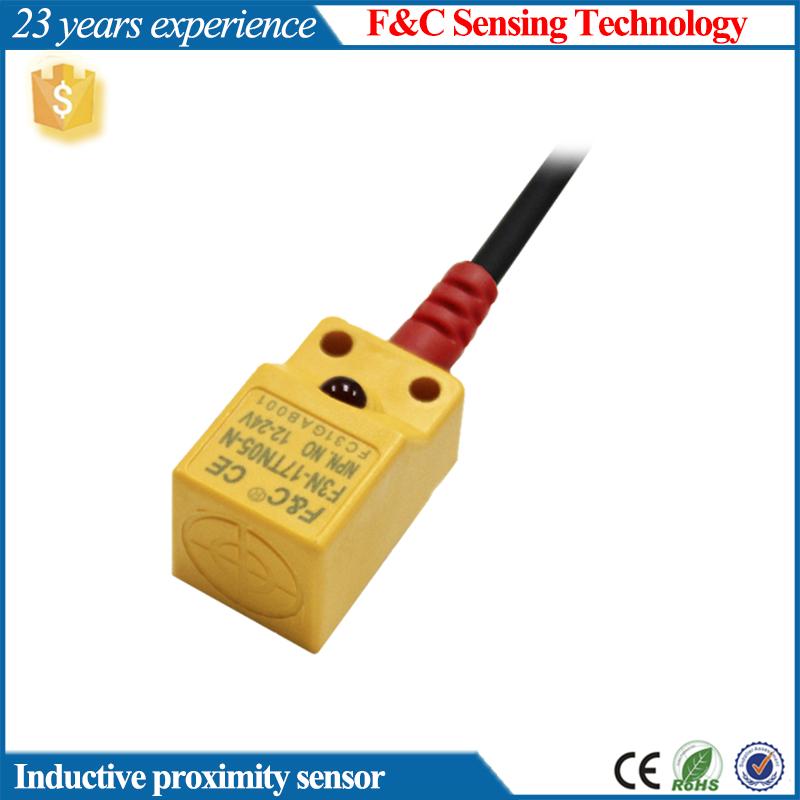

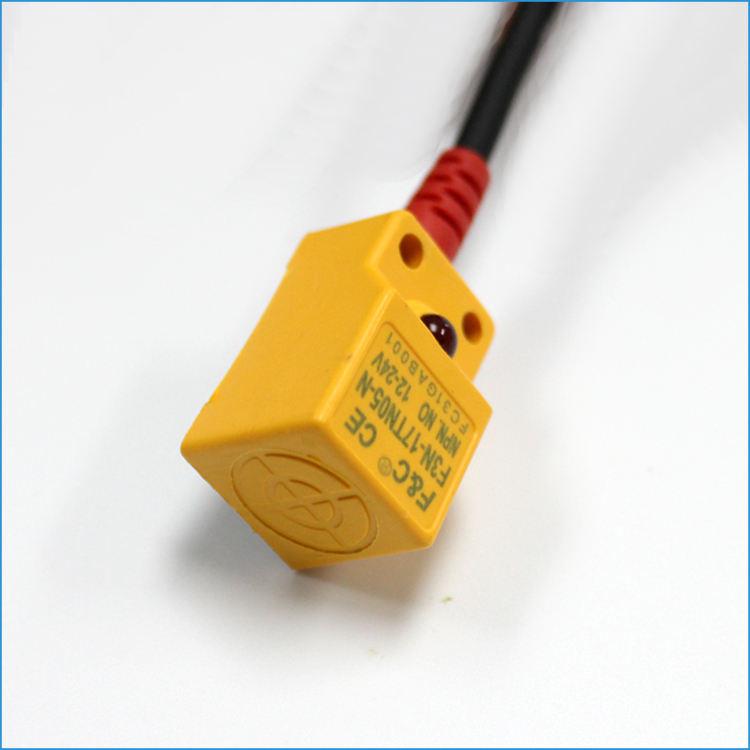

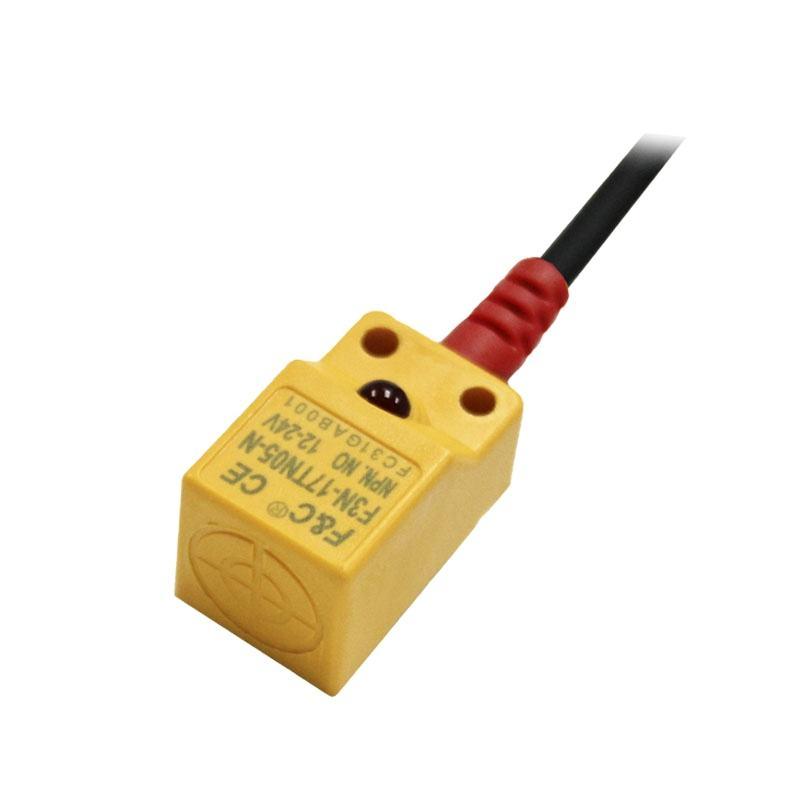

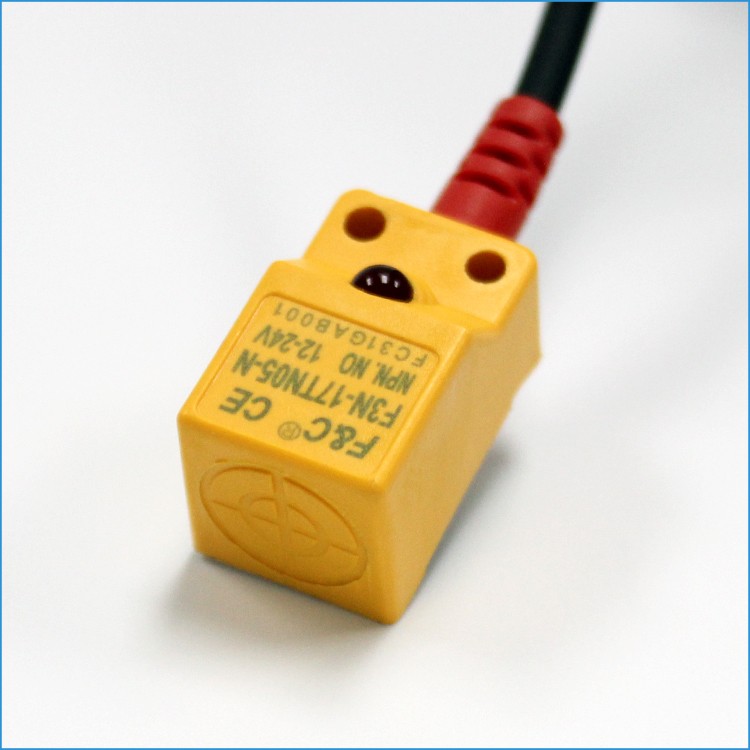

F3N-17 series F3N-17TN05-N Square proximity sensor Front induction
|
F3N-17TN05-N R2M F3N-17TN05-N/D R2M |
NPN.NO | ▆▆▆▆ 5mm | 17×17×1(iron) |
φ3×2M, 3-wires or M8 3cores connector |
|
F3N-17TN05-N2 R2M F3N-17TN05-N2/D R2M |
NPN.NC | |||
|
F3N-17TN05-P R2M F3N-17TN05-P/D R2M |
PNP.NO | |||
|
F3N-17TN05-P R2M F3N-17TN05-P/D R2M |
PNP.NC |
| Small square proximity switch inductance | |
| Induction Direction | Model |
| Front induction |
F3N-17TN05-N R2M F3N-17TN05-N2 R2M F3N-17TN05-P R2M F3N-17TN05-P2 R2M F3N-17TN05-B R2M F3N-17TN05-B2 R2M |
| Detection distance | 5mm |
| Recommand distance | 4mm |
| Standard sensing object | 17*1t*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | no more than 10% Detection distance |
| Operating voltage | 12-24VDC 10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS/PBT |
| Wiring method |
φ4×2M/3-wires φ4×2M/2-wires |
Features and advantages for inductance proximity switch:
1. Easy to install with limited space.
2. Many models for choice like top sensing, front sensing.
3. High quality usage to resistant oil, water,dust.
4. OEM order accepted.
