Brand:
F&CItem no.:
FSNA03-N/06N/10N/12NProduct origin:
China|
Category |
Models |
Detection mode |
Detection distance |
Detected objects |
Entry cable |
3D files |
|

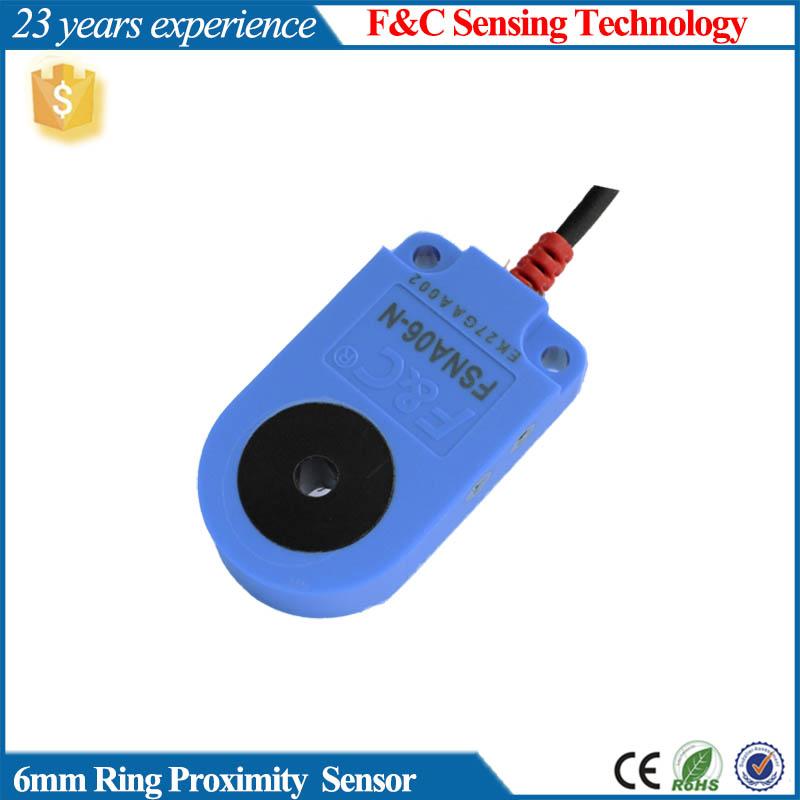

FSNA06-ND | NPN.NO | ▆ 6mm | φ3*2 cone |
M12 connector 2M cable/4 pins |
|
| FSNA06-PD | PNP.NO | |||||
|

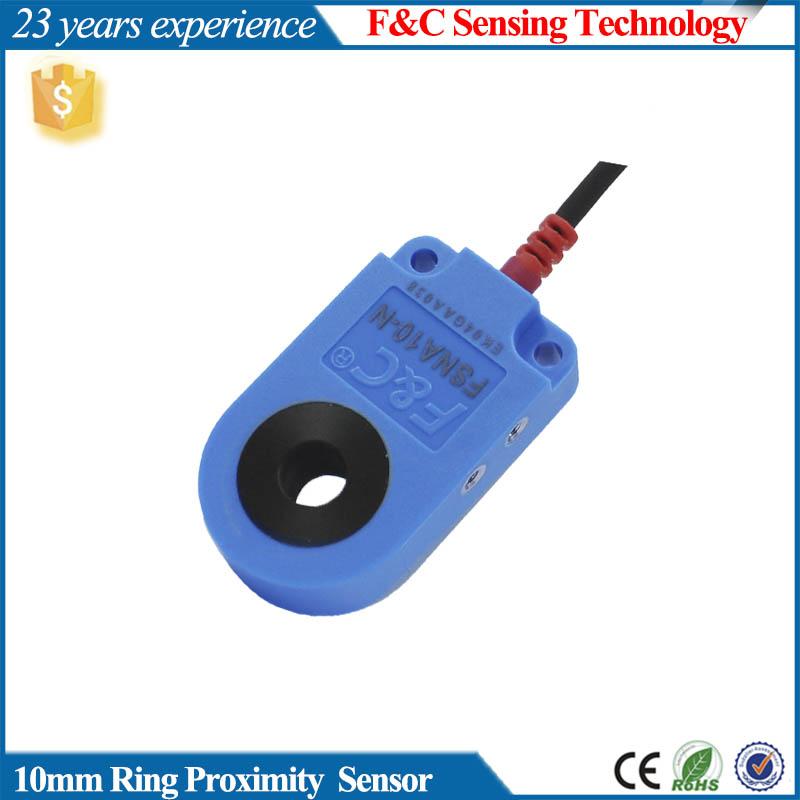

FSNA10-ND | NPN.NO | ▆▆ 10mm | φ4*3 cone |
M12 connector 2M cable/4 pins |
|
| FSNA10-PD | PNP.NO | |||||
|

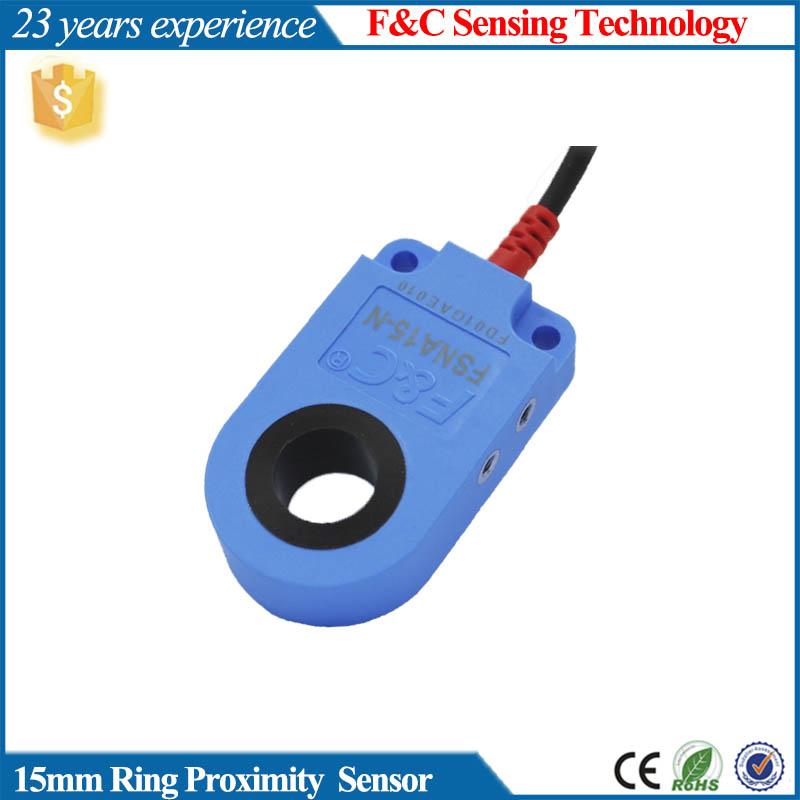

FSNA15-ND | NPN.NO | ▆▆ 15mm | φ5*4 cone |
M12 connector 2M cable/4 pins |
|
| FSNA15-PD | PNP.NO | |||||
|

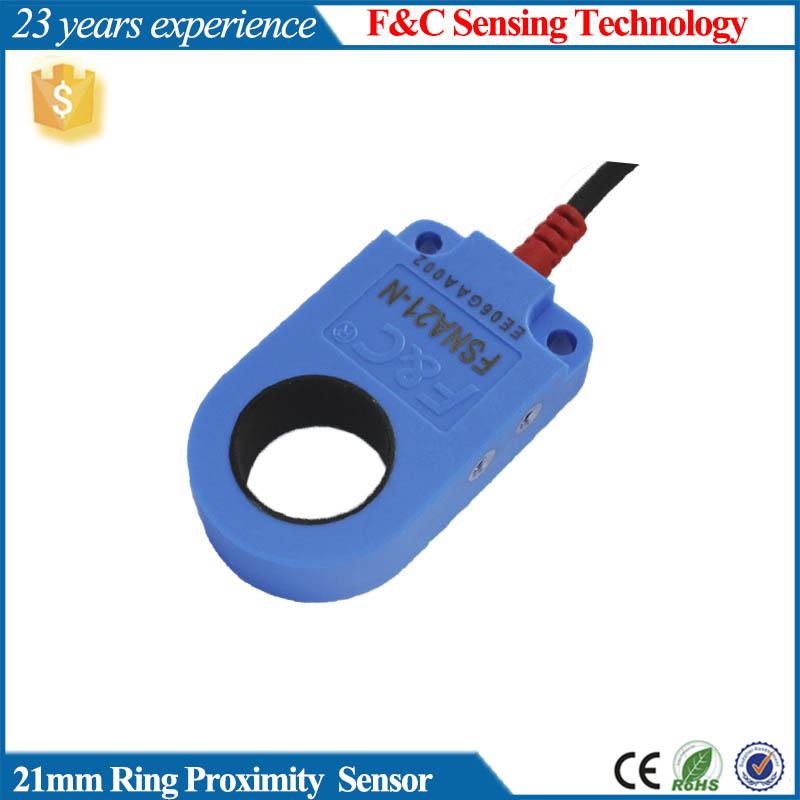

FSNA21-ND | NPN.NO | ▆▆▆ 21mm | φ6*12 cone |
M12 connector 2M cable/4 pins |
|
| FSNA21-ND | PNP.NO |
| Detection distance | 21mm |
| Standard detectable object | 5mm*6 |
| Material | PBT |
| Waterproof degree | IP67 |
| Detection object material | iron,steel |
| Product | Circular Proximity switch |
| Application | Dropping counter |
| Feature | FSNA Series Metal Detection Ring Inductive Proximity Switch |
| Entry cable | dia3*2m/3 wires |
| Frequency | 600Hz |
| Product Keywords | buy inductive proximity sensor,buy proximity sensor,capacitance proximity sensor switch |
Specification
;
| Model |

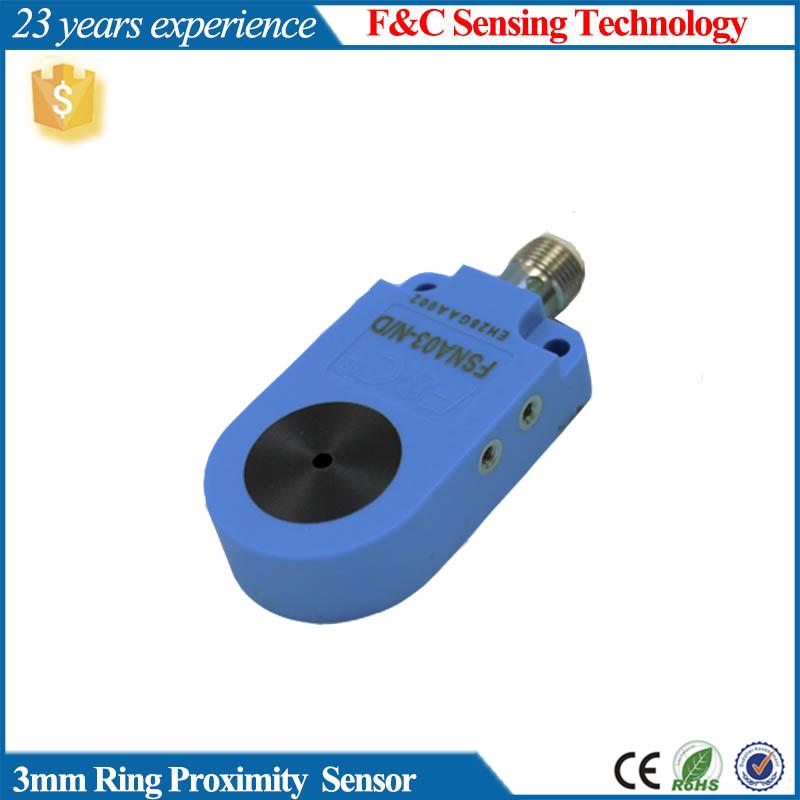

FANA03 series |
FSNA06 series | FSNA10 series | FSNA15-N;series | FSNA21;series |
| Detection;distance | 3mm | 6mm | 10mm | 15mm | 21mm |
| Response;frequency | 1KHz | ||||
| Detectable;object;material | iron,steel | ||||
| Hysteresis; | 2% | ||||
| Operating;voltage | 12-24VDC;10% | ||||
| Current;consumption | <10mA | ||||
| Load;current | <100mA | ||||
| Leakage;current | ≤0.01mA; | ||||
| Protection;circuit | Power;anti-received;protection;and;short;;circuit;protection | ||||
| Residual;voltage | <1.0V;at;100mA | ||||
| Operating;Temperature | ;-25°C-+70°C | ||||
| Waterproof;degree | IP67 | ||||
| Material | PBT | ||||
| Wiring;method |
φ4.0×2M/3-wires |
||||
