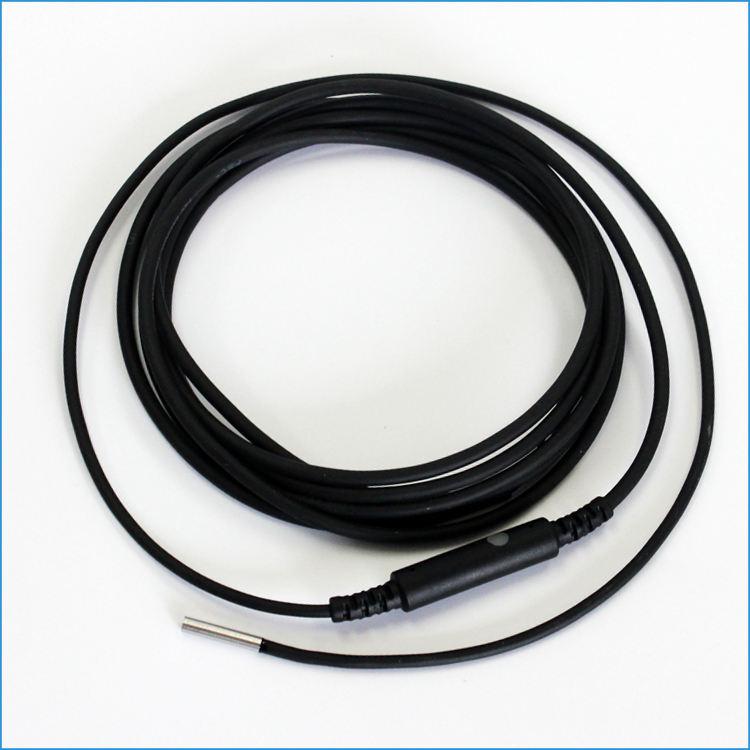

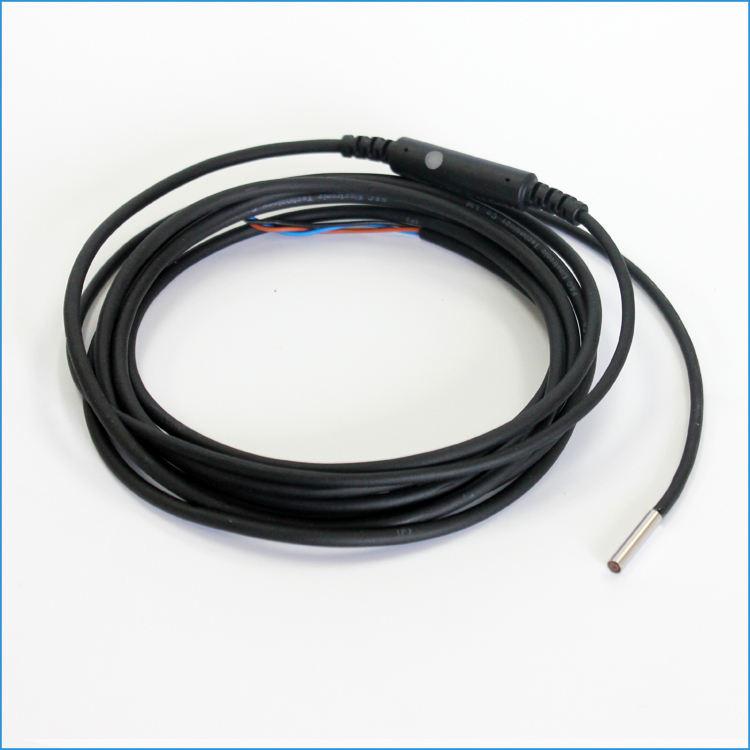

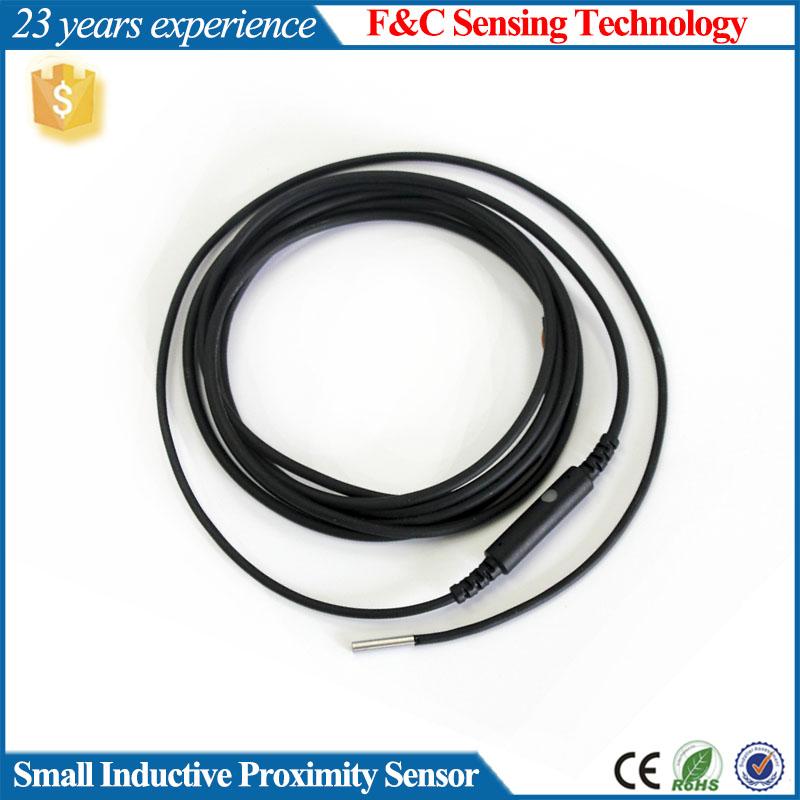

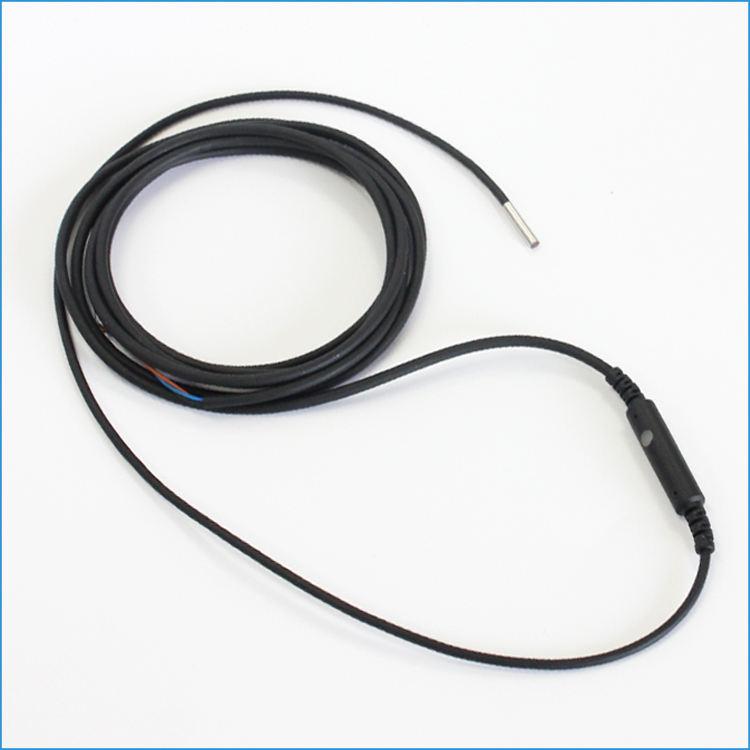

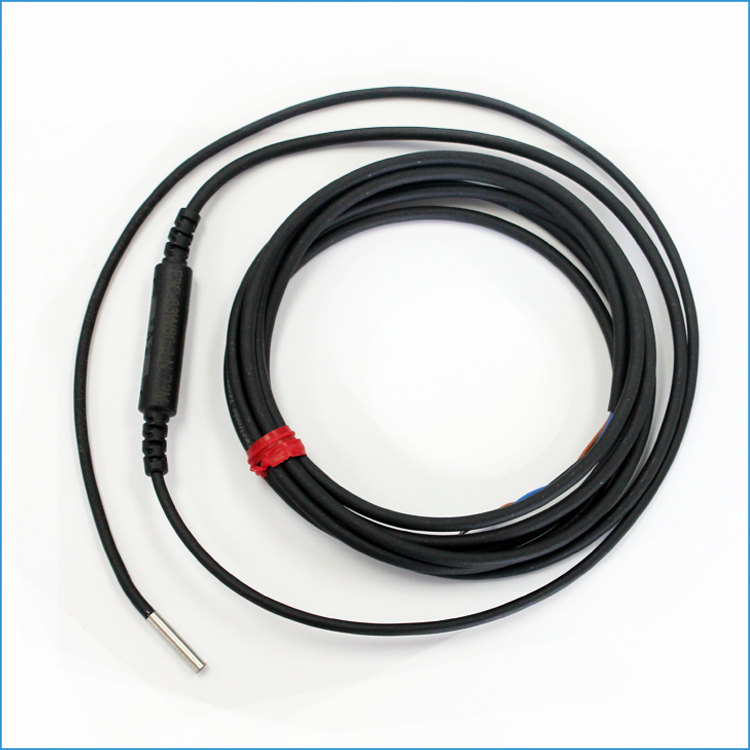

F3C-03WSQ0.8-N/P Micro Proximity Sensor

Position Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DC

  • Brand:

    F&C
  • Item no.:

    F3C-03WSQ0.8-N/P/N2/
  • Product origin:

    China
  • Color:

    black

Overview
Quick Details
Model Number:
F3C-03WSQ0.8-P/N R2M
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Position Sensor
Theory:
Inductance Sensor
Output:
Switching Transducer
Head Size:
3*15mm Micro Proximity Sensor
Standard Sensing Object:
Iron, Stainless steel
Sensing Distance:
0.8mm detection sensor
Detection mode:
PNP NO position usage sensor
Voltage:
12V to 24V DC Proximity sensor
Detection distance:
0.8mm Iron detection Sensor
Frequency:
800Hz inductive sensor
Certificate:
CE,RoHS
Install:
Shielded proximity sensor Amplifier ouside
Material:
PBT & SUS304
Category Models Detection mode Detection distance

Deteted objects

Entry cable
 F3C-03WSQ0.8 F3C-03WSQ0.8-N R2M NPN.NO  0.8mm 3×3×1(iron) φ2.5× 0.4M+φ3×2M
3-wires
F3C-03WSQ0.8-N2 R2M NPN.NC
F3C-03WSQ0.8-P R2M PNP.NO
F3C-03WSQ0.8-P2 R2M PNP.NC
Position Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DC
Model  F3C-03WSQ0.8-P
Output Method  PNP NO ; PNP NC
Maximum detection 0.8mm
Repeat accuracy 0.005mm
Body Size 3*15mm
Response Frenquency standard 800Hz
Opearting voltage 12-24VDC, 5V customizable
Loard current 24V 100mA max
operating temperature -25 to +70 degree
Material PBT and SUS304
Protection degree IP67
Position Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DCPosition Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DCPosition Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DC



 inductive proximity sensors with amplifier outside
F3C-03WSQ0.8 3*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-3.8WSQ0.8 3.8*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-04WSM0.8 4*15mm  Screw thread head NPN/PNP  SN 0.8mm
F3C-05WSM01 5*16mm  Screw thread head NPN/PNP  SN 1mm
F3C-5.4WSQ1.2 5.5*16mm  Smooth head NPN/PNP  SN 1.2mm
F3C-08WSM02 8*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-08WSQ02 8*18mm  Smooth head NPN/PNP  SN 2mm
F3C-10WSM02 10*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-14WSM04 14*18mm  Screw thread head NPN/PNP  SN 4mm





Position Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DCPosition Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DC
