XIAMEN OLINK IMPORT & EXPORT CO.,LTD
Specially Develops, Produces and sells connectors / Terminals / wire harness / switches.
-
Give us a call 8618030214605
-
Email us sophia@fzolink.com
Brand:
F&CItem no.:
F3N-40TN/DN20-N /N2/Payment:
Wire transer, West Union, PaypalProduct origin:
ChinaColor:
YellowGoods stock:
2000Shipping port:
XiamenLead Time:
3 days
|
F3N-40TN20-N R2M F3N-40TN20-N/D R2M |
NPN.NO | ▆▆ ▆ 20mm Max | 60×60×1(iron) | φ4.2×2M/3-wires |
|
F3N-40TN20-N2 R2M F3N-40TN20-N2/D R2M |
NPN.NC | ||||
|
F3N-40TN20-P R2M F3N-40TN20-P/D R2M |
PNP.NO | ||||
|
F3N-40TN20-P2 R2M F3N-40TN20-P2/D R2M |
PNP.NC |

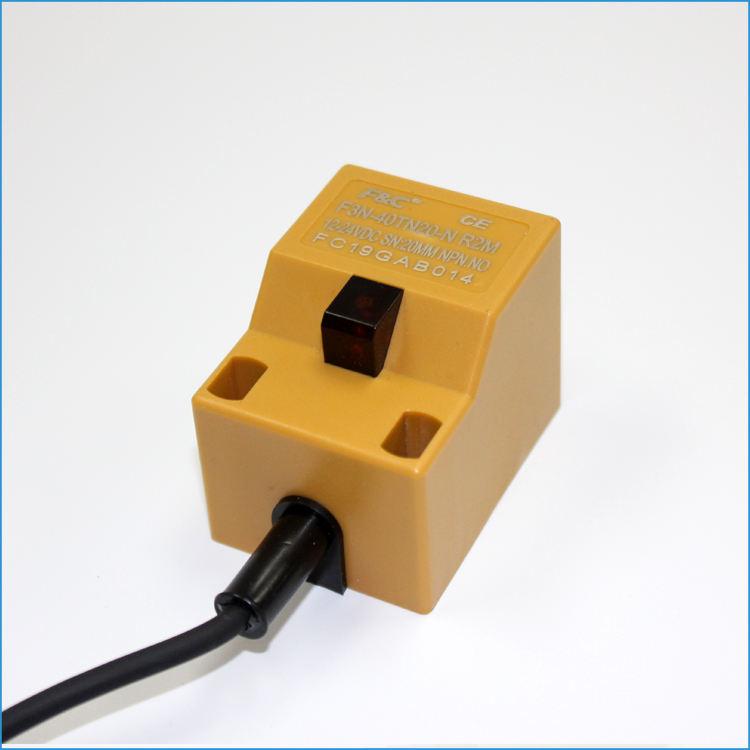

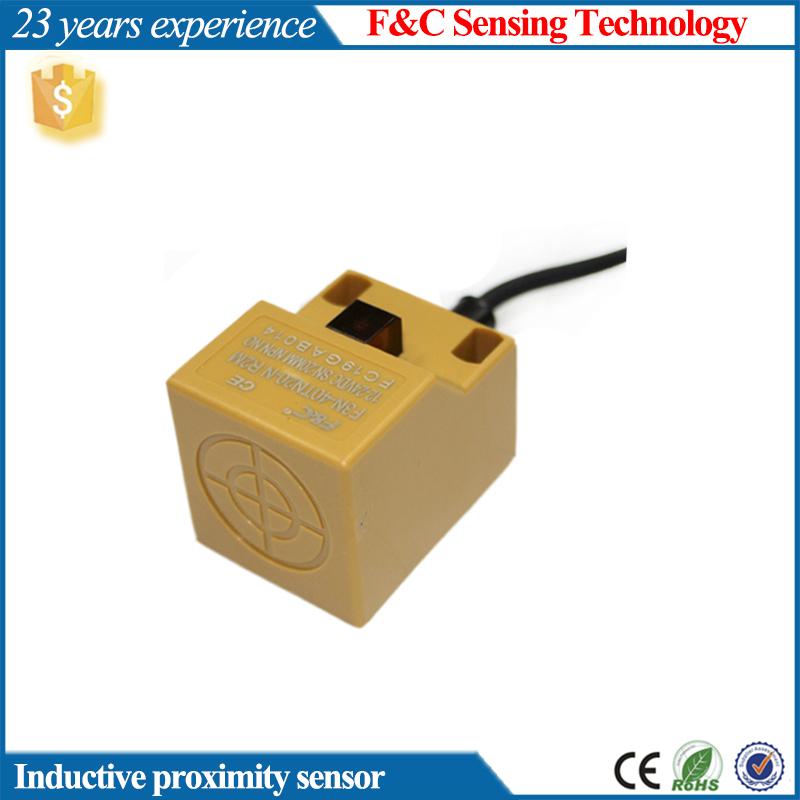

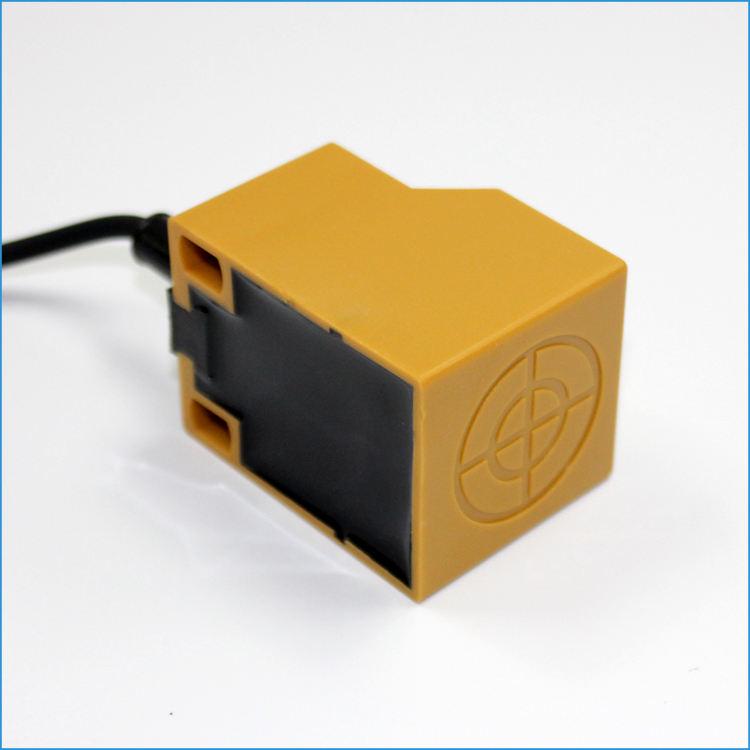

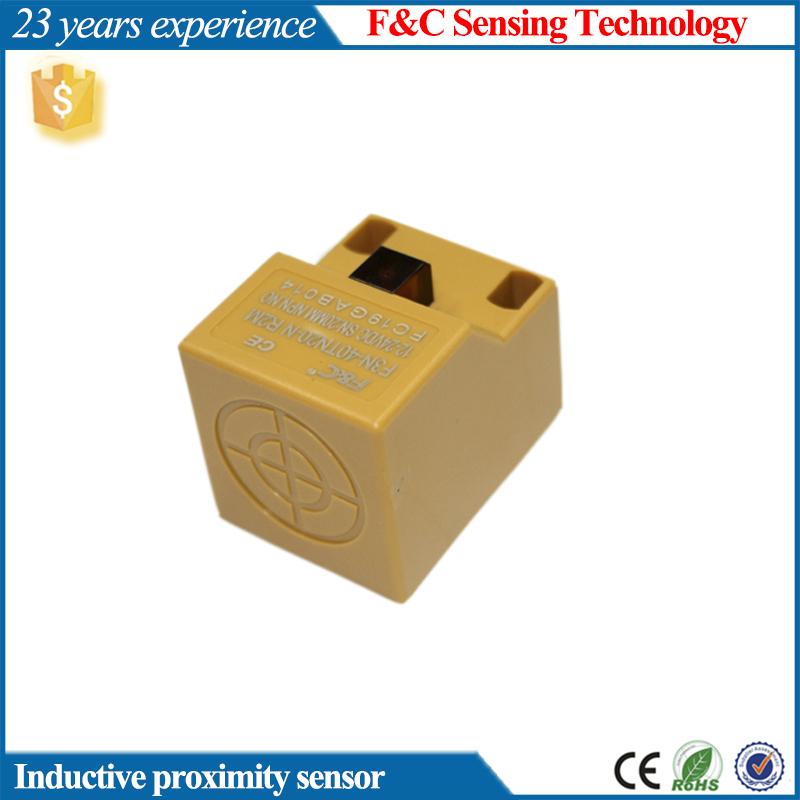

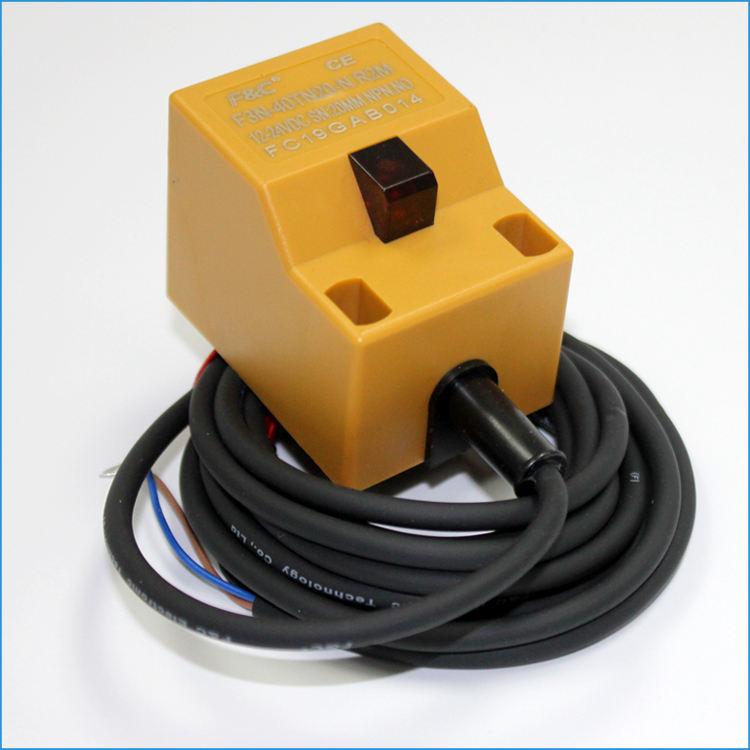

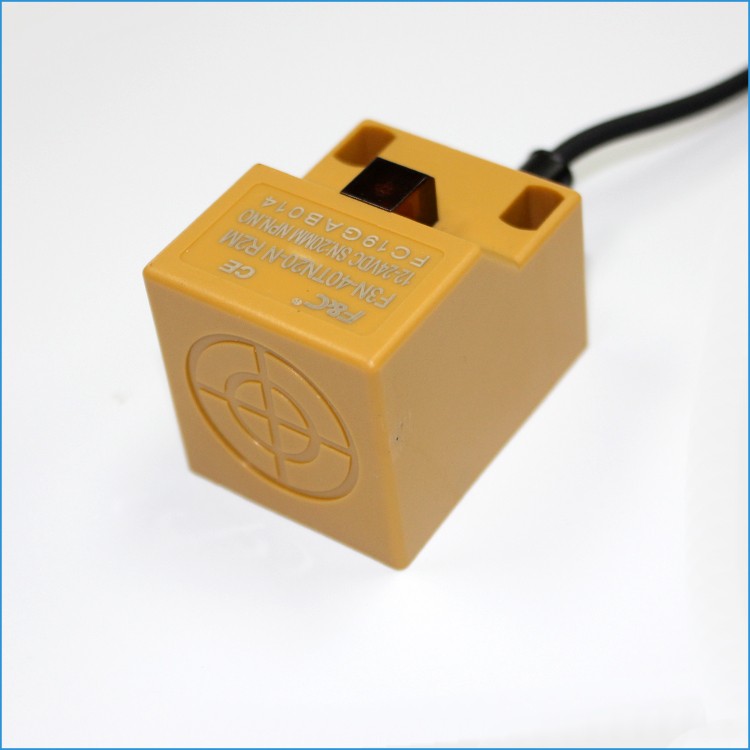

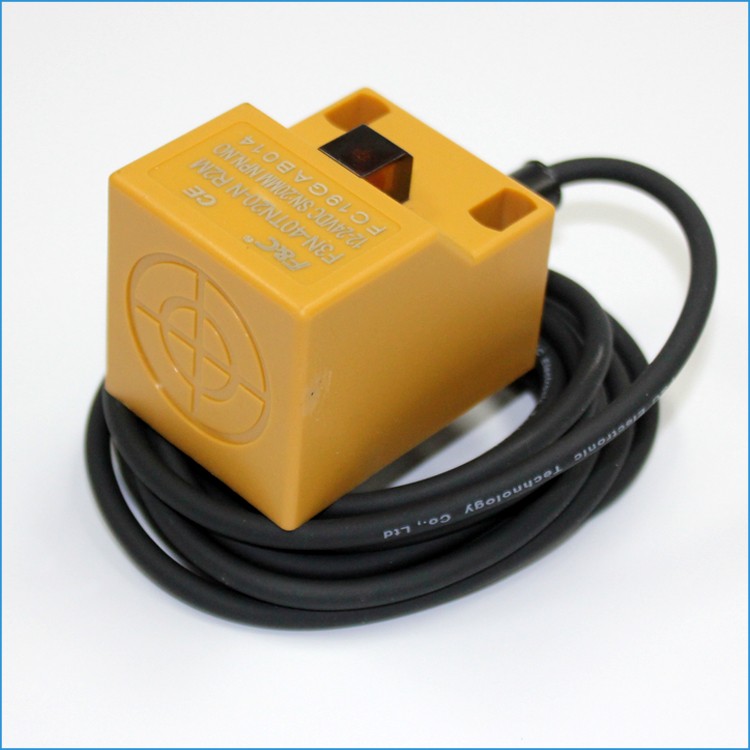

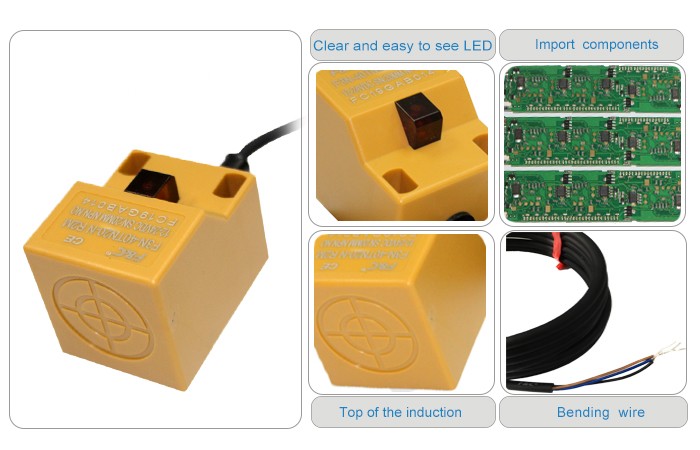

| Small metal inductive switch | |
| Induction Direction | Model |
| Front induction |
F3N-40TN20-N R2M F3N-40TN20-N2 R2M F3N-40TN20-P R2M F3N-40TN20-P2 R2M F3N-40TN20-B R2M F3N-40TN20-B2 R2M |
| Detection distance | 20mm |
| Recommand distance | 16mm |
| Standard sensing object | 60*60*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | no more than 10% Detection distance |
| Operating voltage | 12-24VDC 10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS/PBT |
| Wiring method |
φ4×2M/3-wires φ4×2M/2-wires |
F3N-40DN20-N
