Brand:
F&CItem no.:
F3N-08TN/DN02-NProduct origin:
ChinaColor:
blueShipping port:
Xiamen
Specifications for NPN proximity switch:
|

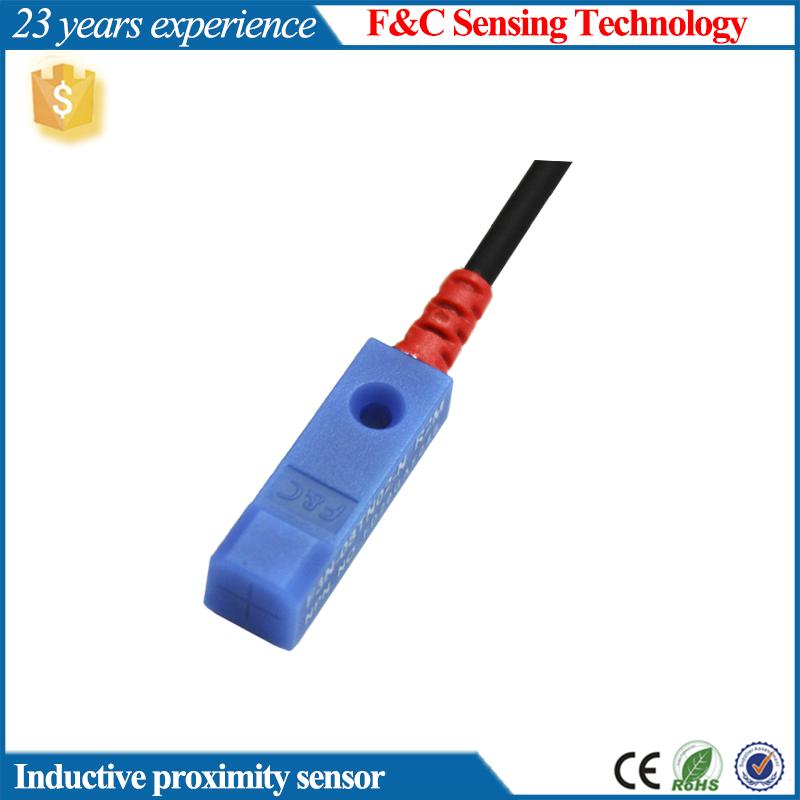

Small square inductive proximity sensor |
|
| Induction Direction | Model |

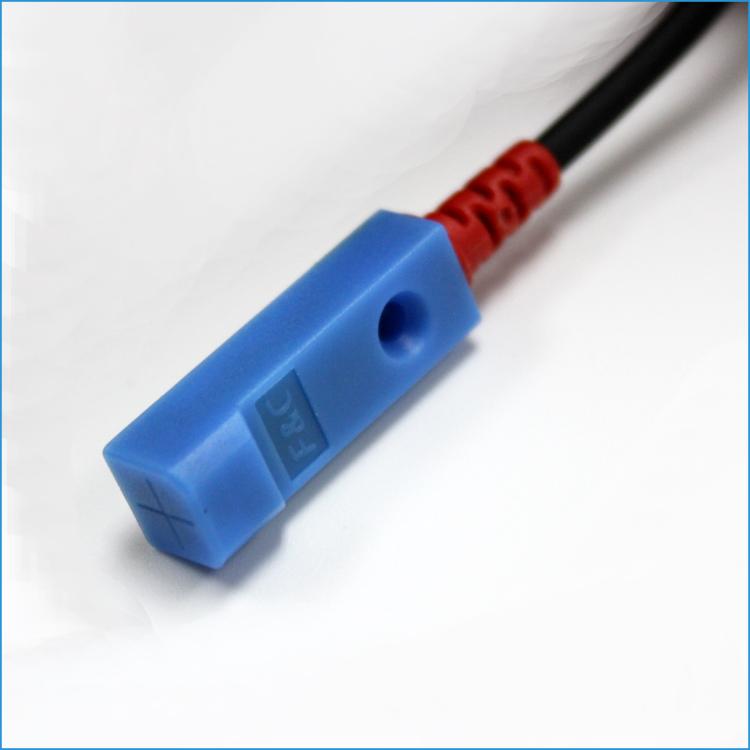

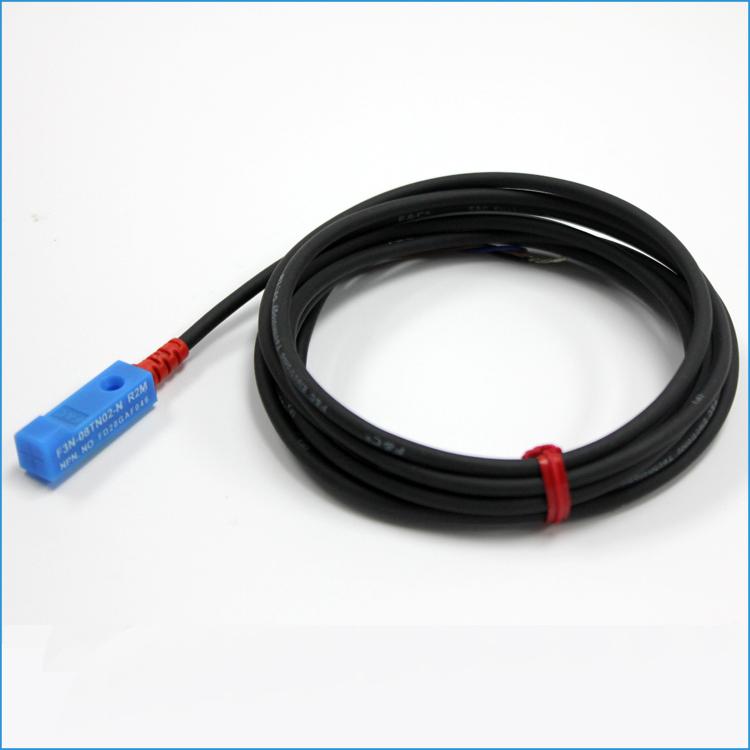

| Front induction |
F3N-08TN02-N R2M F3N-08TN02-N2 R2M F3N-08TN02-P R2M F3N-08TN02-P2 R2M F3N-08TN02-B R2M F3N-08TN02-B2 R2M |

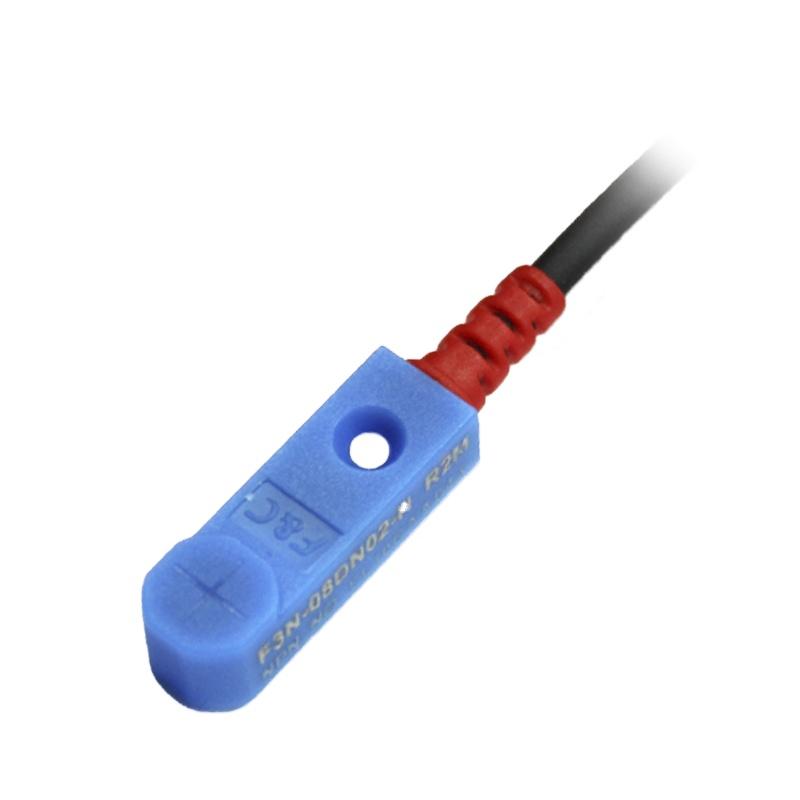

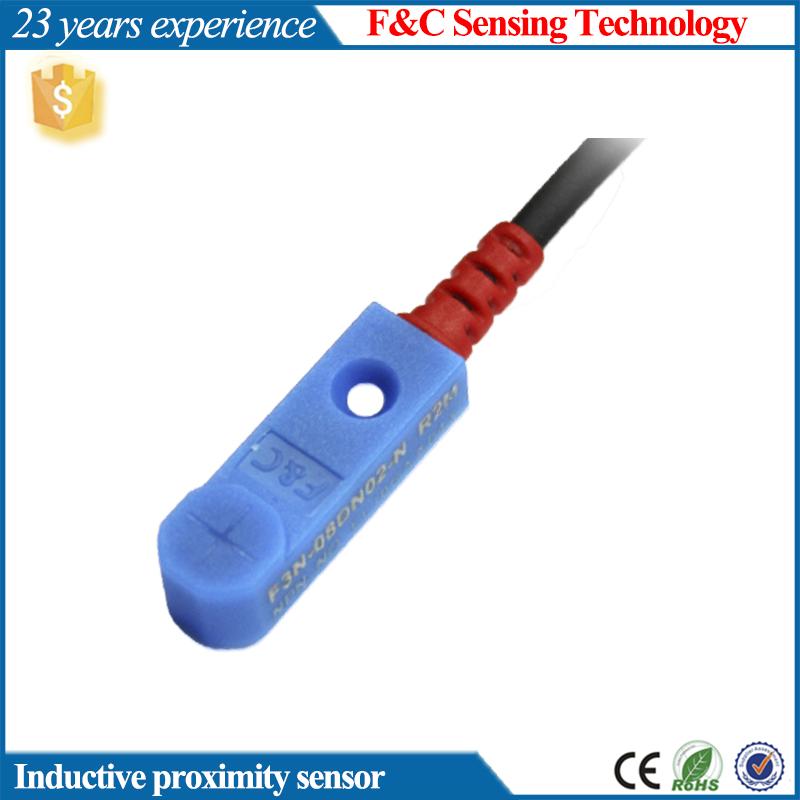

| Above induction |
F3N-08DN02-N R2M F3N-08DN02-N2 R2M F3N-08DN02-P R2M F3N-08DN02-P2 R2M F3N-08DN02-B R2M F3N-08DN02-B2 R2M |
| Detection distance | 2mm |
| Recommand distance | 1.6mm |
| Standard sensing object | 8*8*1(iron) |
| Response frequency | 600Hz |
| Hysteresis | no more than 10%& Detection distance |
| Operating voltage | 12-24VDC 10%/(customize 5V) |
| Current consumption | less than 10mA |
| Load current | 24V 100mA Max |
| Leakage current | less than 0.01mA No-load |
| Residual voltage | less than 1.0VDC |
| Operating Temperature | -25 TO +70 |
| Waterproof degree | IP67 |
| Material | ABS |

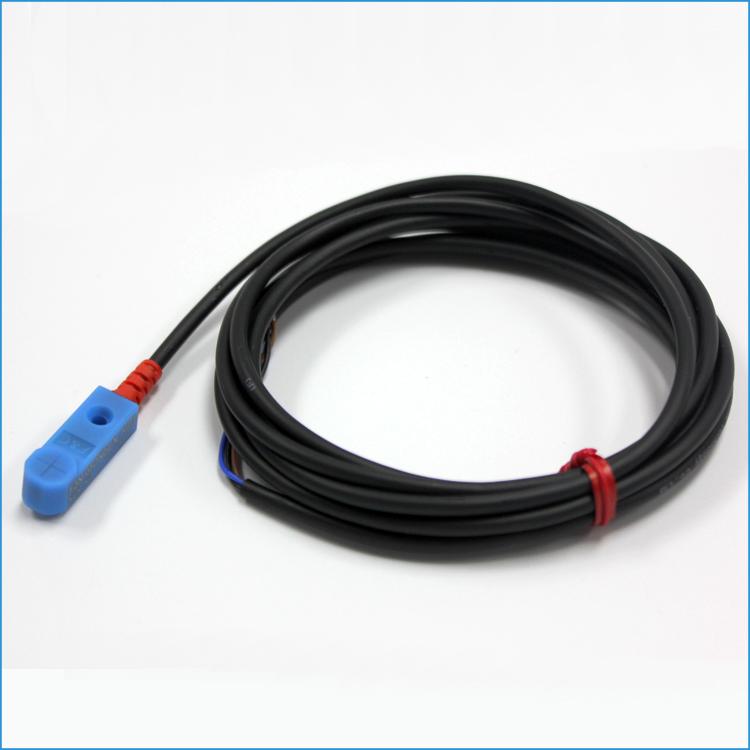

| Wiring method |
φ2.8×2M/3-wires φ3×2M/3-wires φ3×2M/2-wires |
F3N-08DN-02 series
