XIAMEN OLINK IMPORT & EXPORT CO.,LTD
Specially Develops, Produces and sells connectors / Terminals / wire harness / switches.
-
Give us a call 0592 6536915
-
Email us sophia@fzolink.com
Brand:
F&CItem no.:
F3C-3.8WSQ0.8-N/P/N2Product origin:
ChinaColor:
black
|
F3C-03WSQ0.8-N R2M | NPN.NO | ▆ 0.8mm | 3×3×1(iron) |
φ2.5× 0.4M+φ3×2M 3-wires |
| F3C-03WSQ0.8-N2 R2M | NPN.NC | ||||
| F3C-03WSQ0.8-P R2M | PNP.NO | ||||
| F3C-03WSQ0.8-P2 R2M | PNP.NC | ||||
|
|
F3C-3.8WSQ0.8-N R2M | NPN.NO | 4×4×1(iron) | ||
| F3C-3.8WSQ0.8-N2 R2M | NPN.NC | ||||
| F3C-3.8WSQ0.8-P R2M | PNP.NO | ||||
| F3C-3.8WSQ0.8-P2 R2M | PNP.NC |
| Model | F3C-3.8WSQ0.8-P R2M |
| Output Method | PNP NO ; PNP NC |
| Maximum detection | 0.8mm |
| Repeat accuracy | 0.005mm |
| Body Size | 3.8*15mm |
| Response Frenquency | standard 800Hz |
| Opearting voltage | 12-24VDC, 5V customizable |
| Loard current | 24V 100mA max |
| operating temperature | -25 to +70 degree |
| Material | PBT and SUS304 |
| Protection degree | IP67 |

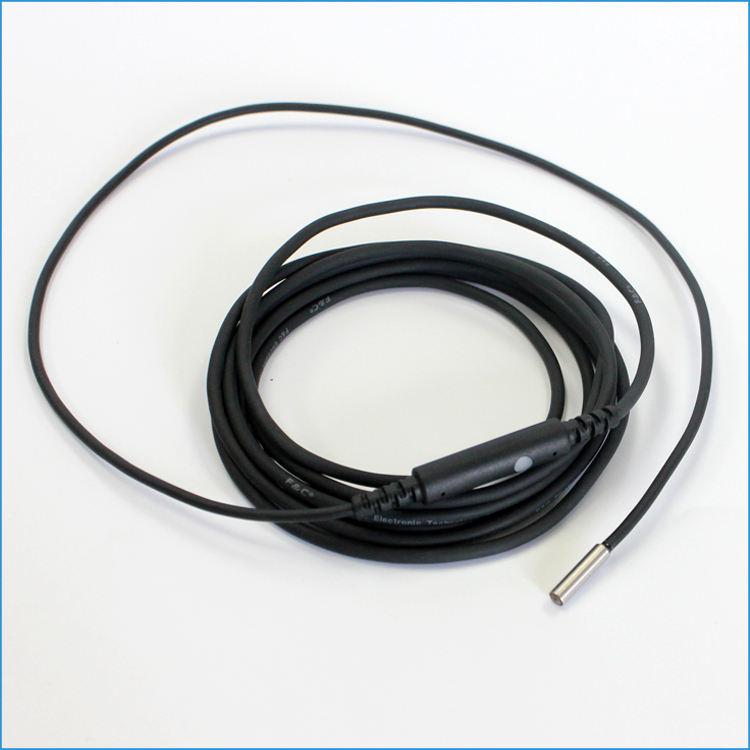

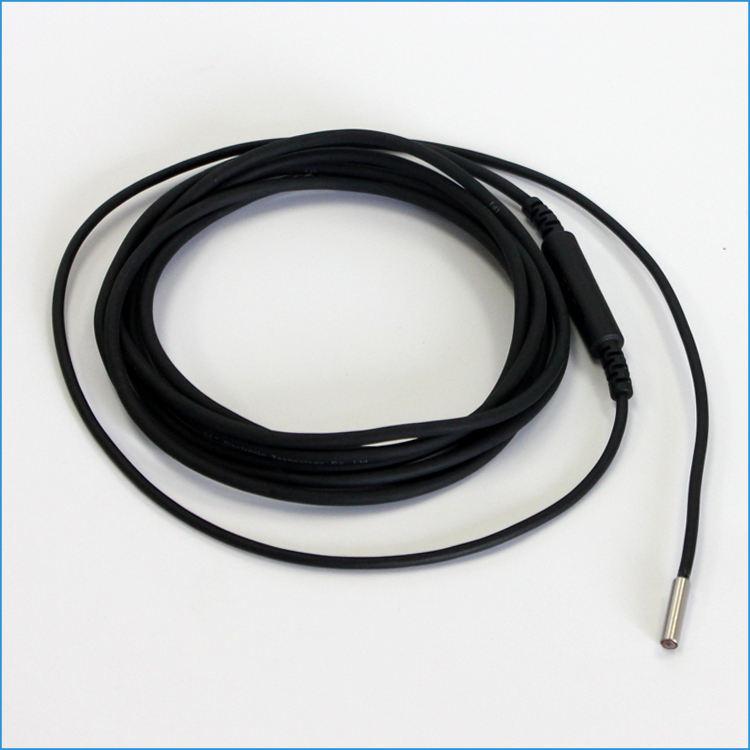

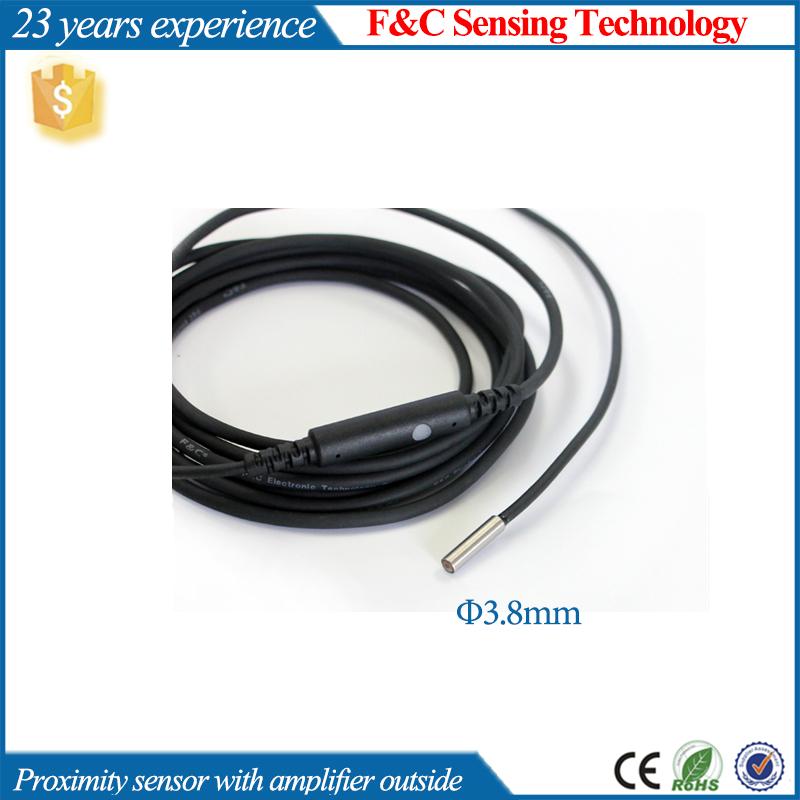

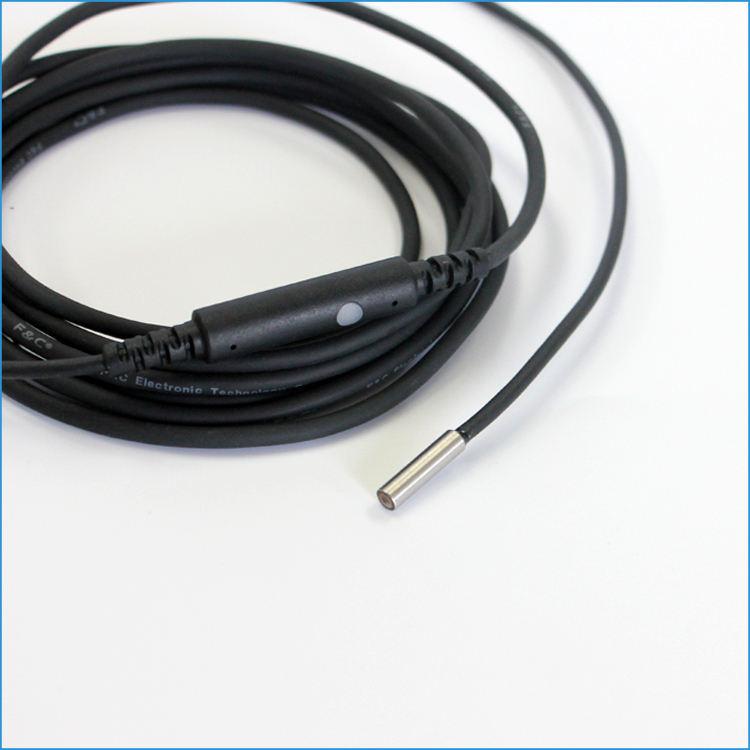

| inductive proximity sensors with amplifier outside | |||
| F3C-03WSQ0.8 | 3*15mm Smooth head | NPN/PNP | SN 0.8mm |
| F3C-3.8WSQ0.8 | 3.8*15mm Smooth head | NPN/PNP | SN 0.8mm |
| F3C-04WSM0.8 | 4*15mm Screw thread head | NPN/PNP | SN 0.8mm |
| F3C-05WSM01 | 5*16mm Screw thread head | NPN/PNP | SN 1mm |
| F3C-5.4WSQ1.2 | 5.5*16mm Smooth head | NPN/PNP | SN 1.2mm |
| F3C-08WSM02 | 8*18mm Screw thread head | NPN/PNP | SN 2mm |
| F3C-08WSQ02 | 8*18mm Smooth head | NPN/PNP | SN 2mm |
| F3C-10WSM02 | 10*18mm Screw thread head | NPN/PNP | SN 2mm |
| F3C-14WSM04 | 14*18mm Screw thread head | NPN/PNP | SN 4mm |
