 /FKC1810-N/P/15D M18 Capacitive proximity switch sensor With 3 wires

Proximity switch sensor
Proximity switch sensor Proximity switch sensor Proximity switch sensor Proximity switch sensor

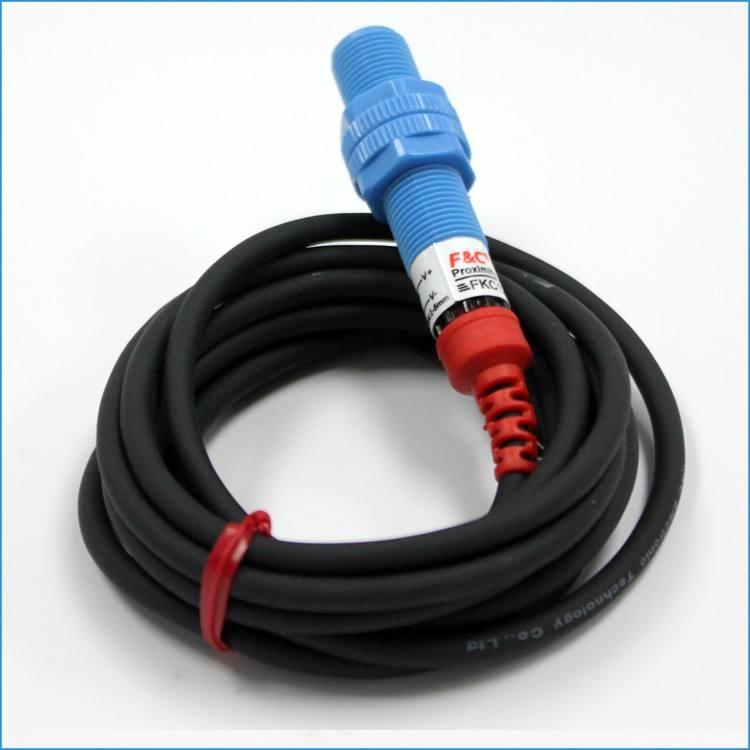

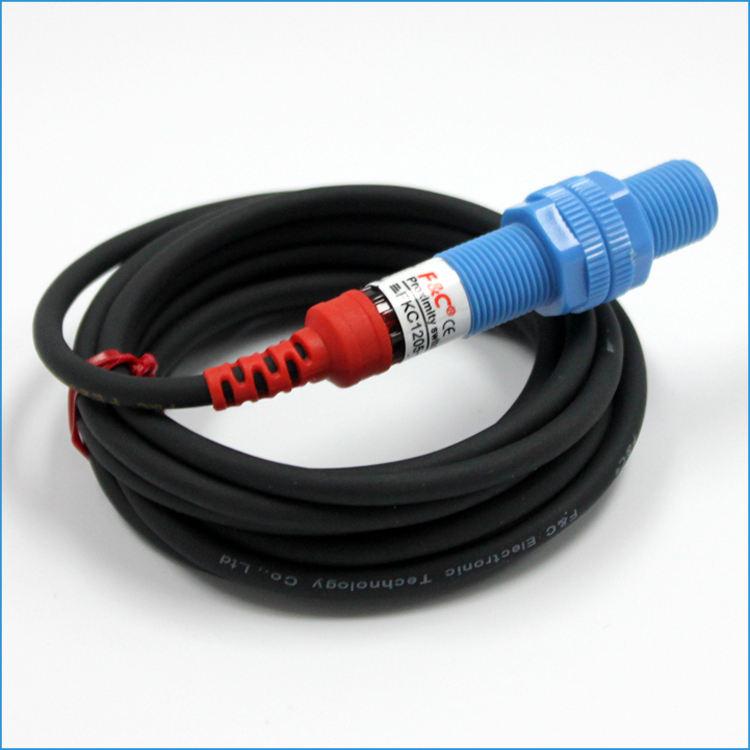

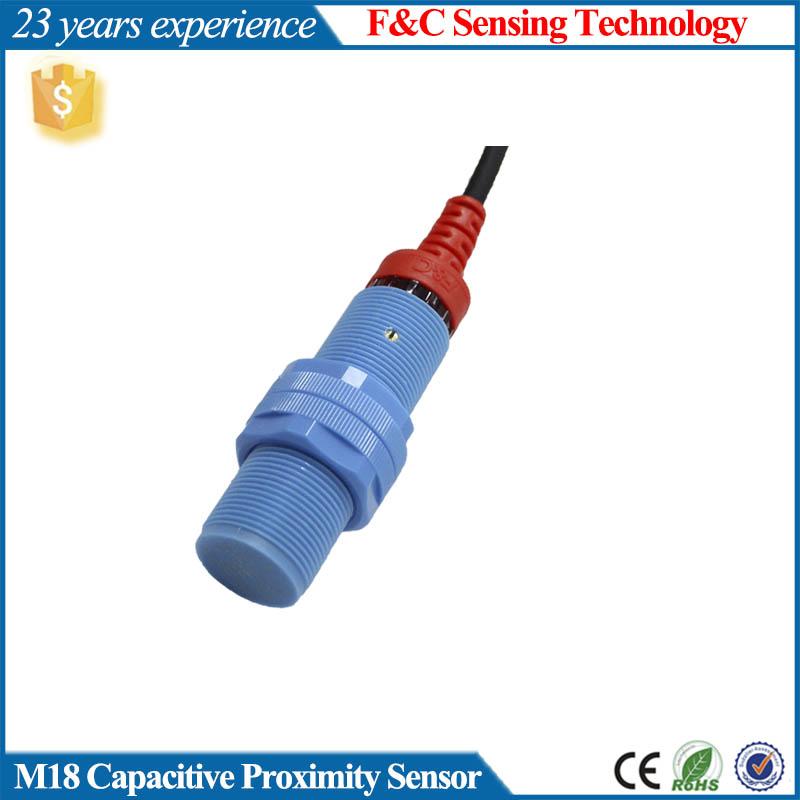

FKC1810-N/P/15D M18 Capacitive proximity switch sensor With 3 wires

Liquid Detection M18 Capacitive Proximity Sensor 12VDC 10mm Sensing NPN

  • Brand:

    F&C

  • Item no.:

    FKC1810-N/P/15D N2/P

  • Payment:

    Wire transer, West Union, Paypal

  • Product origin:

    China

  • Color:

    blue

  • Goods stock:

    2000

  • Shipping port:

    Xiamen

  • Lead Time:

    3days
Inquiry now



Overview
Quick Details
Model Number:
FKC-1810-N
Type:
Capacitive Proximity Sensor
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Non-metals and metals detection, Position Sensor
Theory:
capacitive sensor, Capacitive Sensor
Output:
NPN or PNP, 24-240V DC±10%
Description:
M18 FKC Capacitive proximity switch
Detection distance:
10mm
Material:
PBT/ABS
Protection Grade:
IP66
Output Method:
NPN, PNP
Reaction time:
0.5ms
Operating Temperature:
-25℃-70℃
Amplifier Type:
Capacitive Proximity Sensor

M18 FKC1810 Capacitive proximity switch sensor With 3 wires





Model FKC1810-N  FKC1810-N2  FKC1810-P  FKC1810-P2
Detectiondistance 10mm 10mm 10mm 10mm
Response frequency 300Hz
Detectable object iron
Hysteresis 2%
Operating voltage 24-240VAC±10%
Current consumption <1.8mA
Load current 300mA
Leakage;current ≤1.8mA
Protection short-circuit protection
Residual voltage <8V AC
Operating;Temperature -25°C-+70°C
Waterproof IP66
Material ABS/BT
Wiring method φ4.0×2M/2-wires
Reverse polarity protectiom Yes

 Short circuit protection

Yes

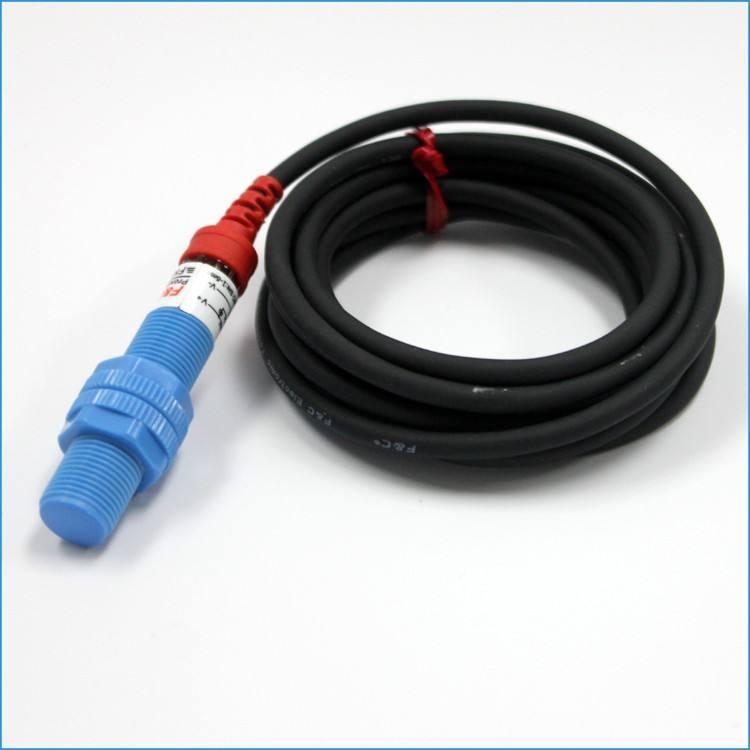

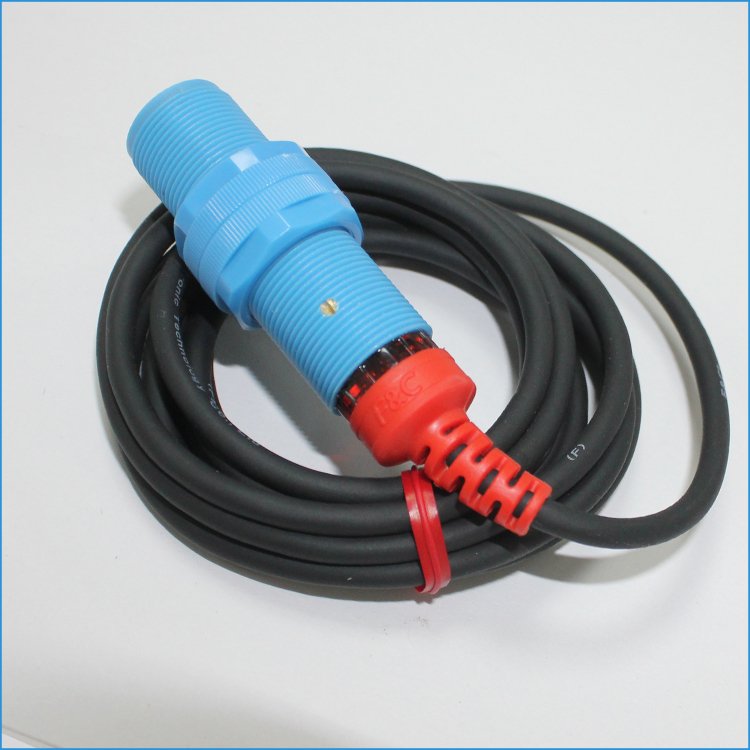

Photos of FM12 240V AC Inductive Proximity Sensorproximity Sensor:

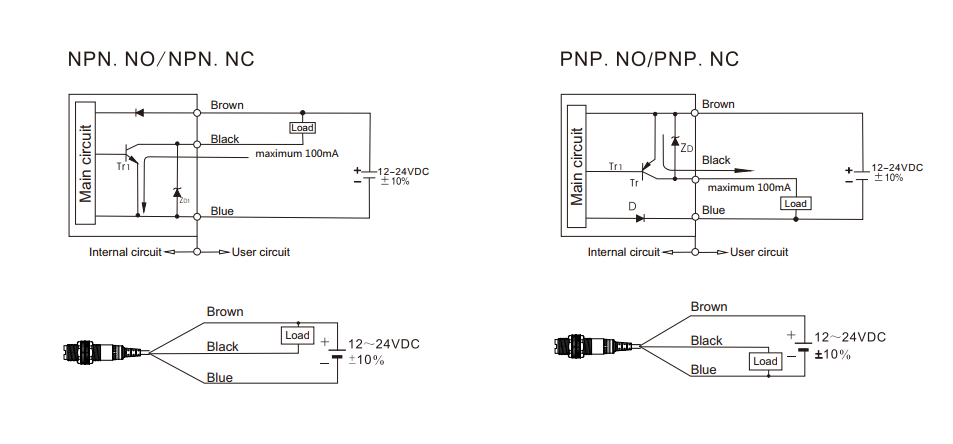

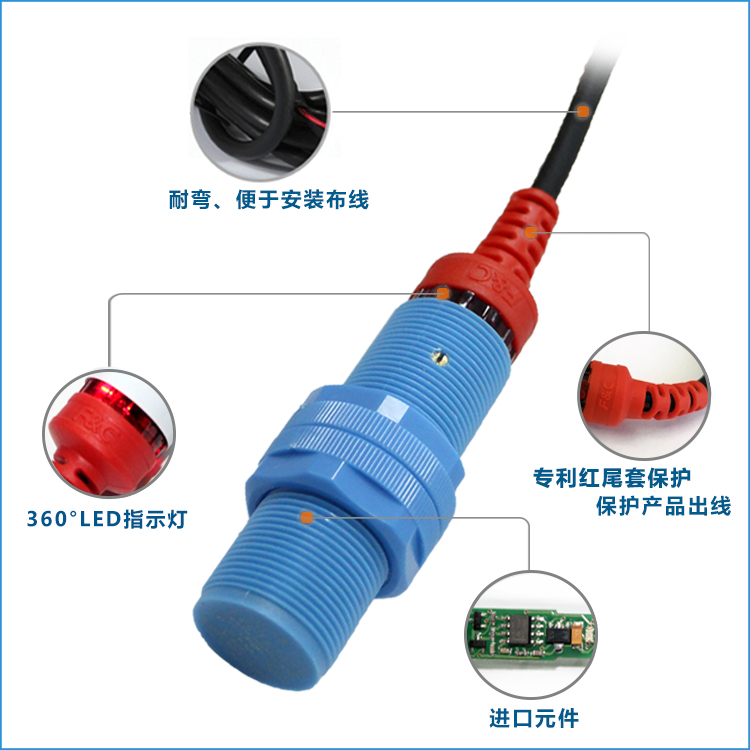

Details of Capacitive Proximity Sensor:

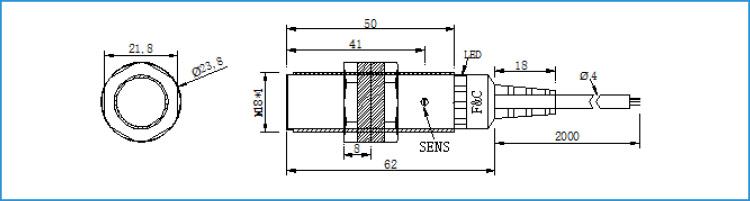

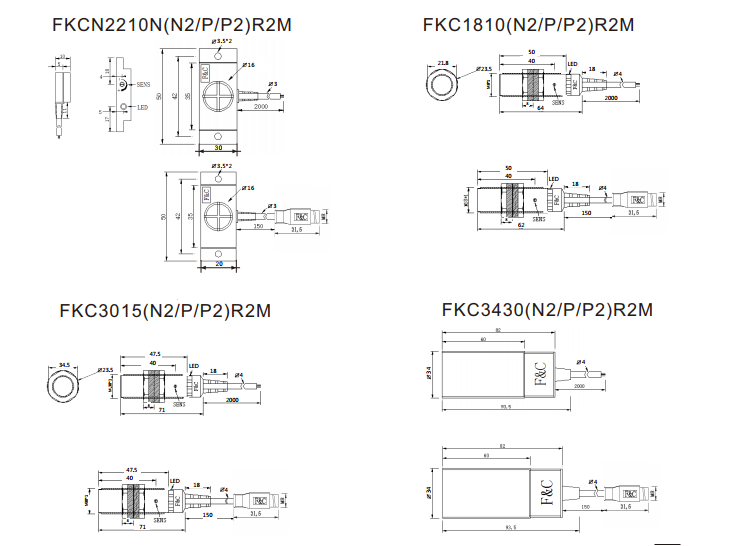

Dimension Drawing
