XIAMEN OLINK IMPORT & EXPORT CO.,LTD
Specially Develops, Produces and sells connectors / Terminals / wire harness / switches.
-
Give us a call 8618030214605
-
Email us sophia@fzolink.com
Brand:
F&CItem no.:
FKCT10-N/P/15DPayment:
Wire transer, West Union, PaypalProduct origin:
ChinaColor:
blueGoods stock:
2000Shipping port:
XiamenLead Time:
3days
|
FKCT10-N FKCT10-N/15D |
NPN.NO | ▆▆ 13mm | 8~12mm pipe | φ4×2M/3-wires or M8 connector |
|
|
FKCT10-N2 FKCT10-N215D |
NPN.NC | |||||
|
FKCT10-P FKCT10-P/15D |
PNP.NO | |||||
|
FKCT10-P2 FKCT10-P2/15D |
PNP.NC |

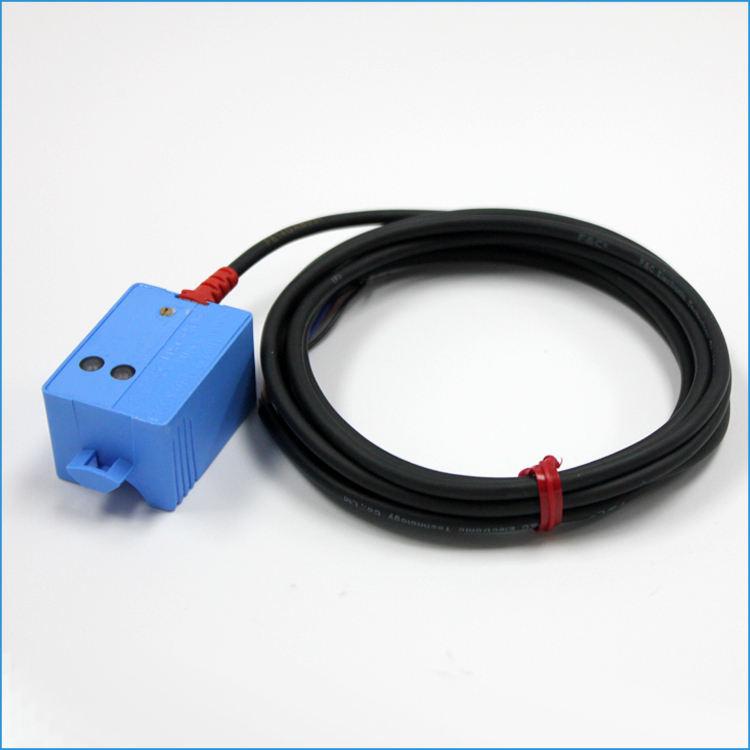

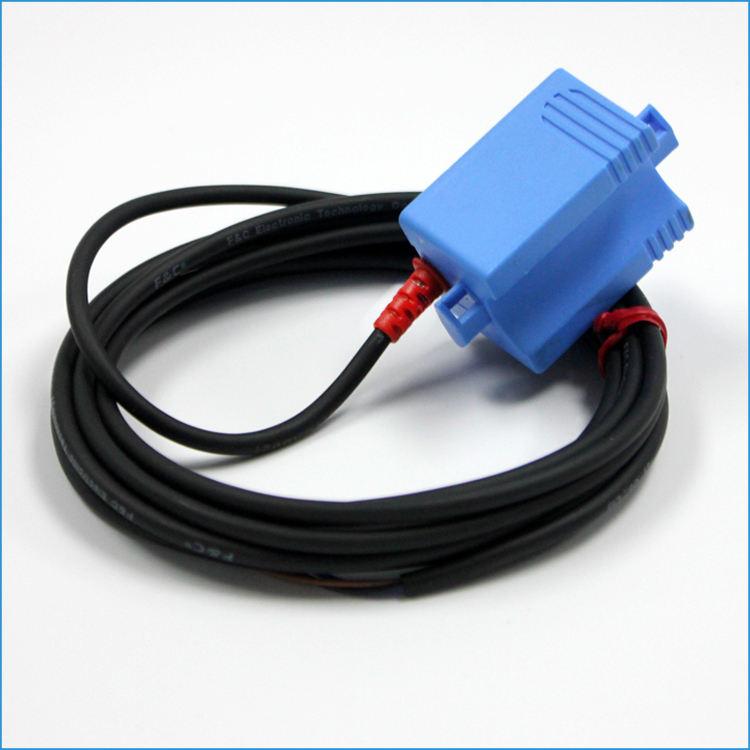

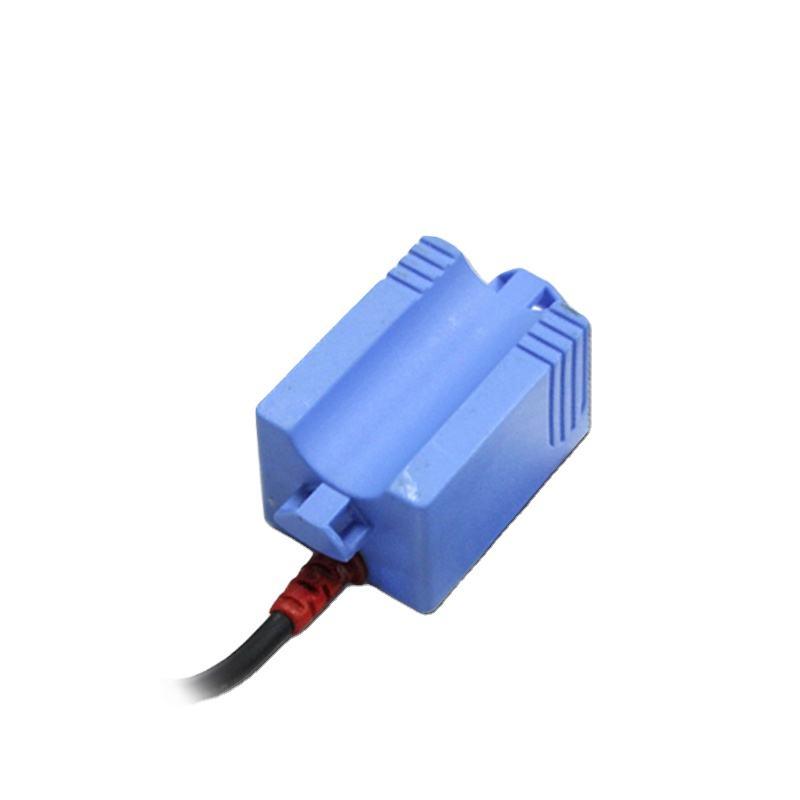

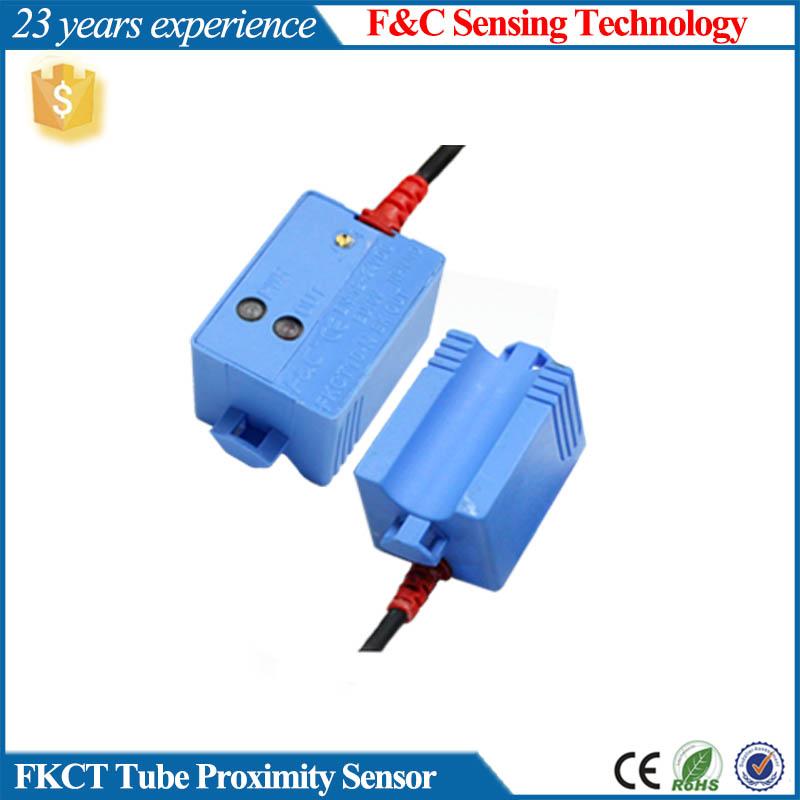

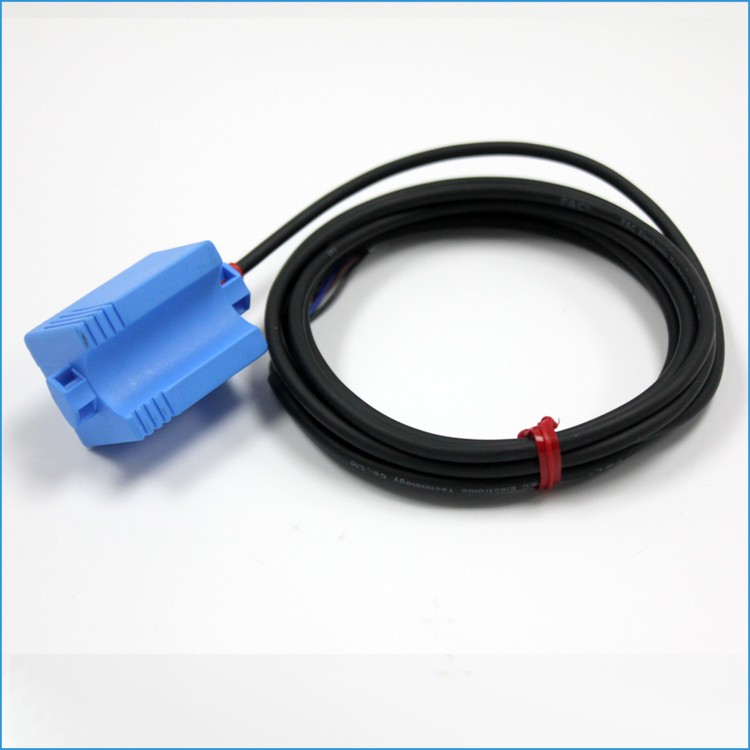

| F&C FKCT10-N 13mm 12-24V dc capacitive proximity sensor | |
| Model | FKCT10-N |
| Detection Distances | 13mm |
| Standard Sensing Object | Non-Metal |
| Response Frequency | 200HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | NPN NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP66 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT |
| Wire Method | diameter 4mm*2M/-3wires |
*** Please note that all the sensors can pre-wired with 2 meter cables***
