2 way quick connect wire junction connector 773 series

We are a professional wire connector supplier. There are many types of wire connectors, with large supply capacity, short delivery time and favorable prices.

  • Brand:

    OLINK
  • Item no.:

    PCT-102/602
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Transparent/yellow/red
  • Goods stock:

    500000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

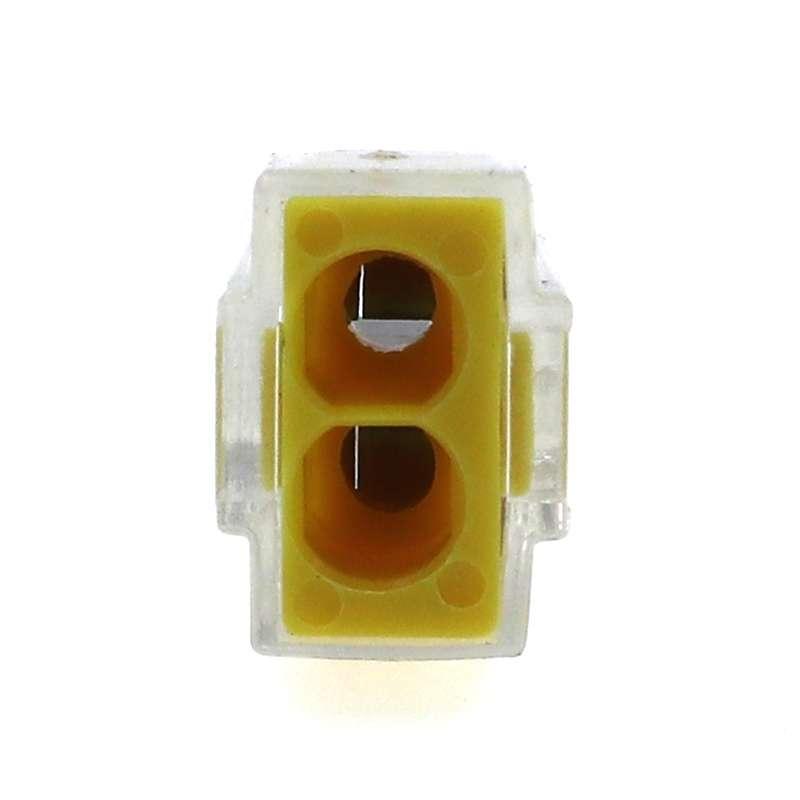

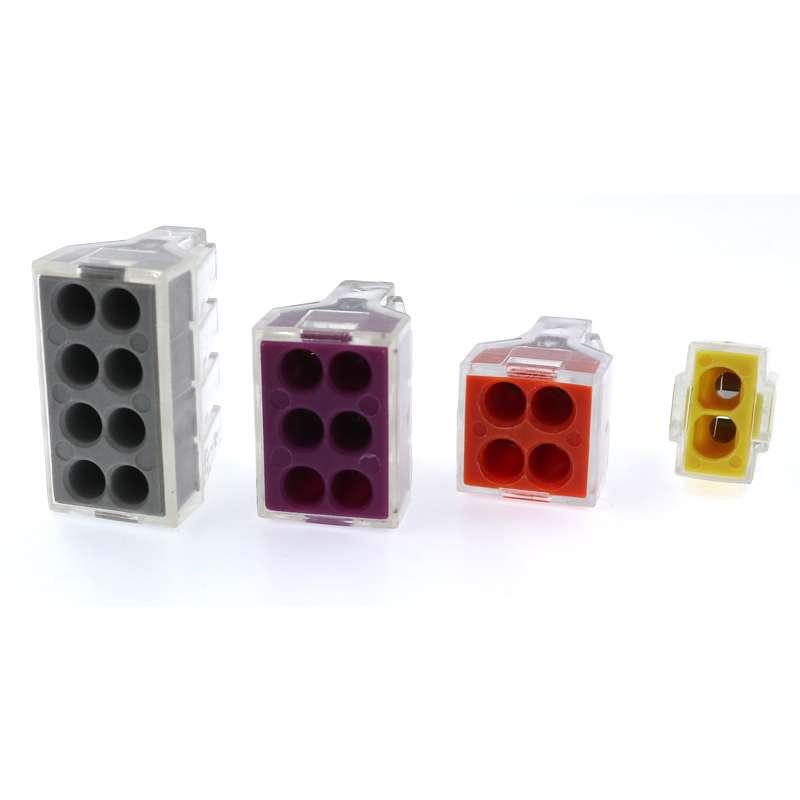

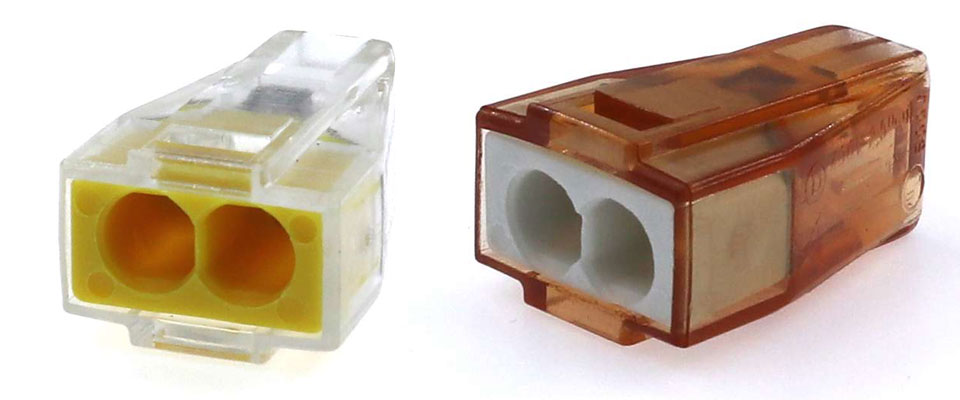

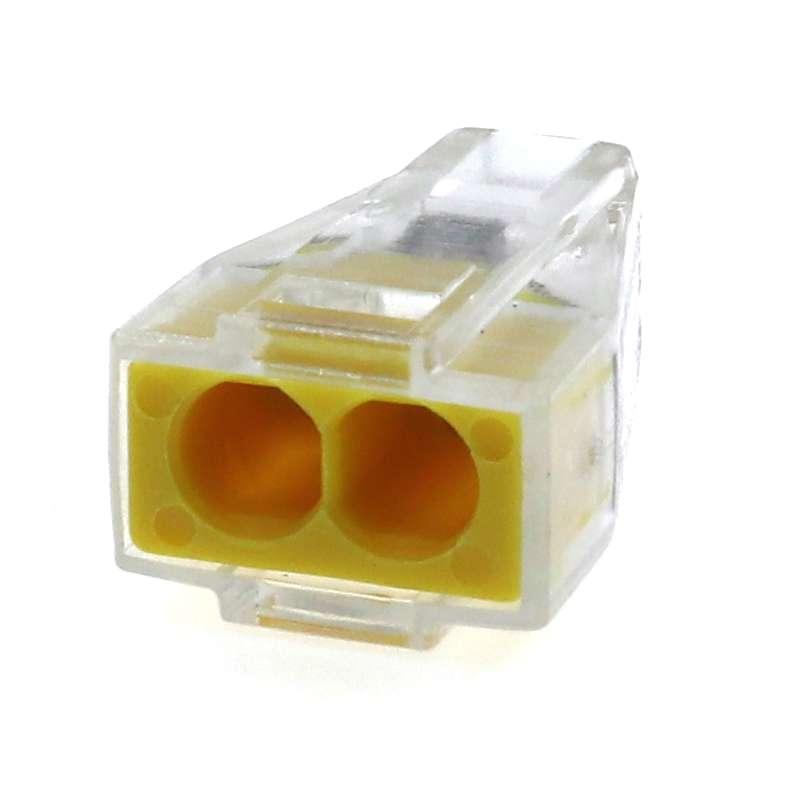

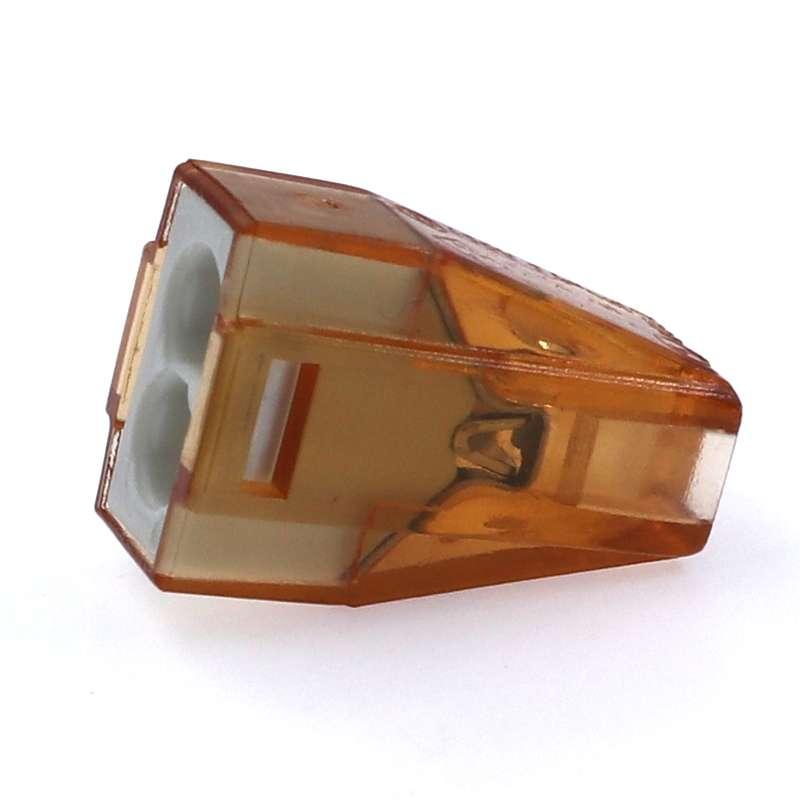

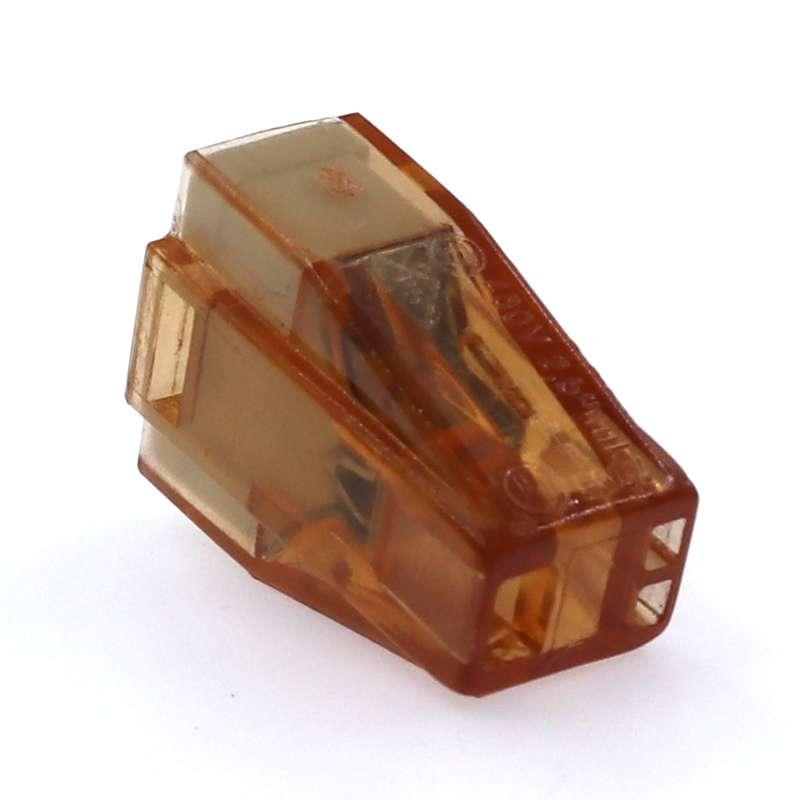

2 way quick connect wire junction connector 773 series


Description of wiring connectors


The plug-in spring clamp connector of our company is easy to plug in during use. It is very popular in the construction and decoration industries for its safety, reliability, convenient operation and no need of tools.


Features


  • Plug-in installation, convenient and time-saving;
  • It is small in size and can be installed even in a small space;
  • The shell is made of flame-retardant material, which is resistant to high pressure, anti-aging, and has good flame retardant;
  • Tinned copper (nickel-plated) conductive strips have better conductivity;
  • The solid parts are nickel-chromium spring steel, which has strong elasticity and good wire fastening ability;
  • There are 2.5 mm2 and 4 mm2 apertures to choose from.


Specifications



Product Name:   wire junction connectors 773 series
Application:   Junction box/electric power
Wiring method:   Insert
Wire type:   Hard/flexible wire
Strip length:   12 mm/0.47in
Cross section:   0.75 - 2.5 mm2
voltage(max.):   250V
Rated Current:   24A
shell material:   nylon/PC
Conductive material:   Tinned phosphor bronze


Instructions





Remove the insulation part,

and the bare wire is straight

Align the holes and insert

-the wires into the wiring holes





Insert the bare wire part to the end
Wiring completed

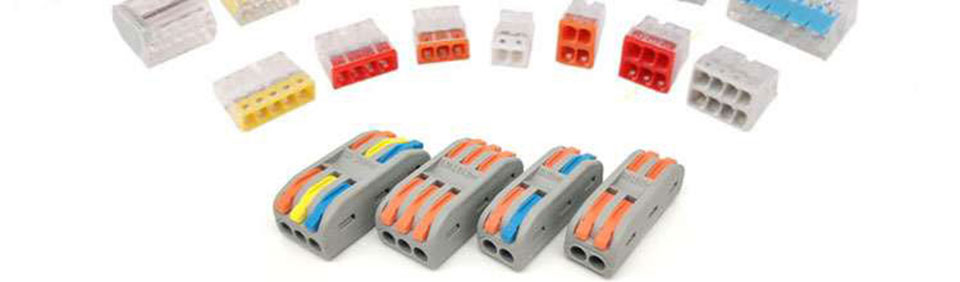

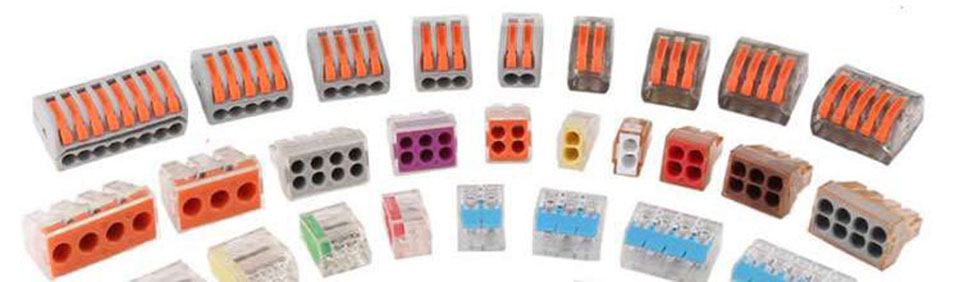

More push wire connectors



*For more information, please contact us by email or through any contact information on the webpage.


FAQ

What are the different types of wire connectors?

There are many types of wire connectors. According to the connection method, they are divided into screw connection, crimp connection, and snap connection; according to the connection method, they can be divided into wire-to-wire connector type and wire-to-board connection type, with 1 to 1 and 1 to multiple out. Type etc.
