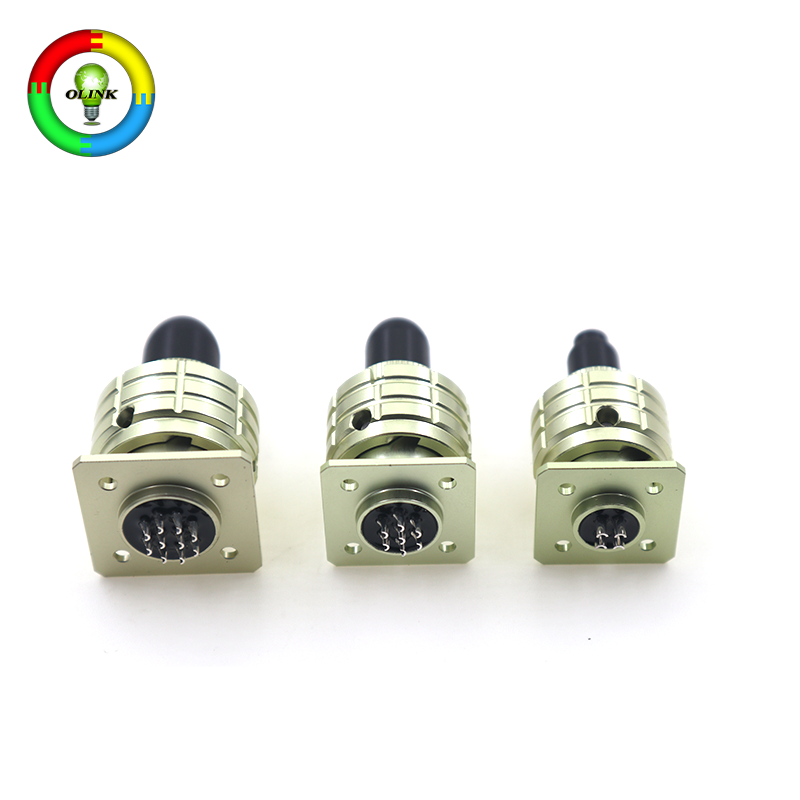

Quick-Connect Bayonet Connector - For Russian Industrial AC/DC Wiring, Miniature Power Connections

OHS Series Russian Mil 4Pin Bayonet Power Connector

OHS Russian‑standard aviation military‑grade female connector is specially designed for 24V power and signal transmission, with high stability and durability for harsh working conditions. It adopts a precision locking structure for secure connection and anti‑vibration, effectively preventing loosening during use. Built with high‑conductivity contacts and rugged housing, it features excellent oxidation resistance, waterproof and dustproof performance, ensuring long‑term reliable use. Widely used in automotive, machinery, industrial control, aerospace equipment, military devices and Russian‑standard electrical systems. With standard size and easy installation, it is an ideal choice for professional 24V power connection projects.

Item no.:
OHS
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	1.5A-3.7A
Rated Voltage:	250V
Pin Count:	4P/7P/10P/19P/32P/50P
Contact Material:	Silver-plated
Shell Material:	aluminum alloy
IP Rating:	IP55
Vibration:	1-5000Hz 20g
Contact Resistance:	≤5mΩ
Insulation Resistance:	≥1000MΩ
Ambient Temperature:	-60℃~85℃
Contact Diameter:	Dia.1.0mm
Anti-misplug:	Multi-keyway design
Technical Support:	7*24h Online Service

Product selling points

· Extreme Environmental Adaptability: Operates at -60℃~+85℃, shock-resistant (1000g single/100g multiple) and vibration-resistant (1-5000Hz 20g), IP55 dust/water protection.
· Superior Electrical Performance: Silver-plated contacts (≤5mΩ contact resistance, ≥1000MΩ insulation resistance), 250V rated voltage, 1.5A-3.7A pin-dependent rated current.
· Durable & Sturdy Build: High-strength aluminum alloy housing, bayonet/threaded connection for stable locking, 1.0mm precision contact diameter.
· Anti-misplug Design: Multi-keyway structure prevents wrong mating, ensuring connection safety and accuracy.
Diverse Configurations: 4/7/10/19/32/50 pin options, male/female genders, with/without tail attachment versions available.
· Certified Quality: Complies with EU standards, CE/RoHS/IP67/IP68/ISO/SGS certified, strict quality testing system.
Full Customization: Supports OEM/ODM (drawing/sample-based, cable/logo/mold customization), gold-plated contact option available.
· Professional Technical Support: 7*24h engineer-led online service, free detailed size drawings on request.
· Flexible Supply: MOQ 10 sets, free samples (freight excluded), 1-3 days for samples, 5-7 days for mass production.
· Reliable Supplier: 10+ years of export experience, 3000+ daily production, multiple payment/logistics options, exported to 100+ countries.

Product details

The OHS metal connector offers six different pin types for free selection according to your requirements

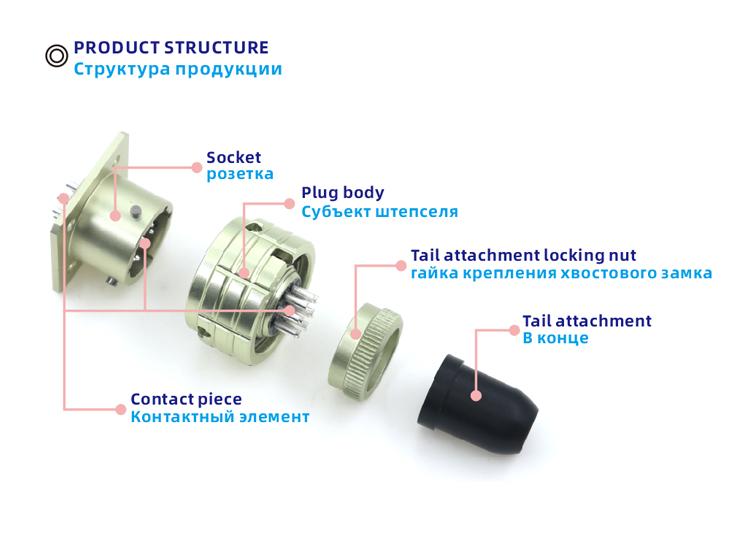

The OHS metal connector consists of socket, plug body, tail attachment locking nut, tail attachment and contact piece

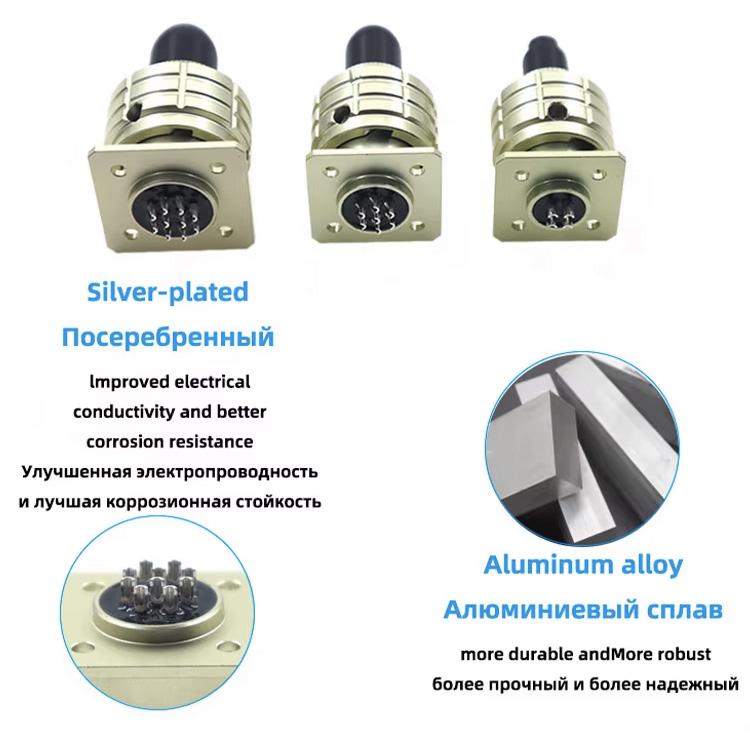

The OHS metal connector features silver-plated contacts and an aluminum alloy housing

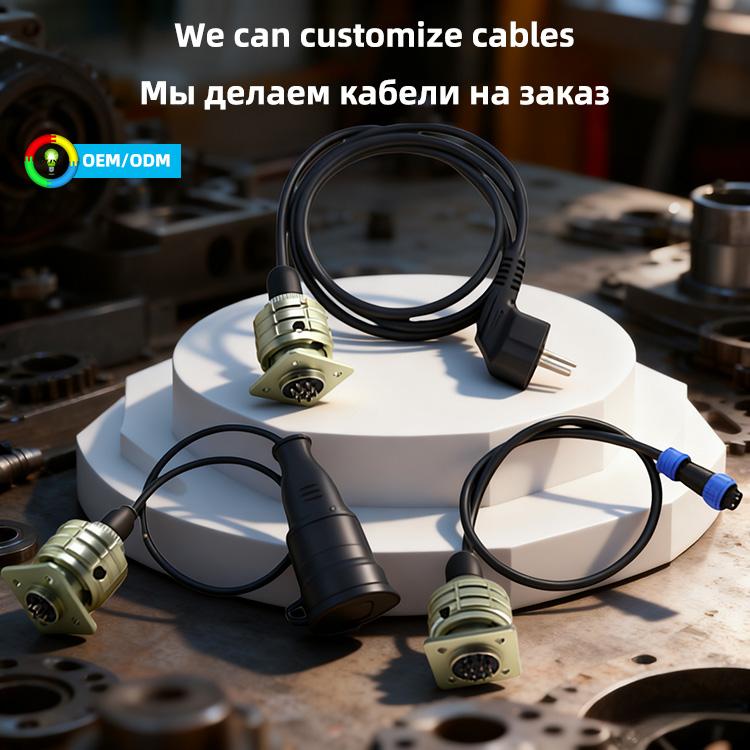

OHS metal connector supports customized wiring harnesses, saving wiring time and ready for use upon receipt

Application Scenarios

The OHS metal connector can be applied to tanks / armored vehicles, UAV power distribution systems, engineering vehicles, and oil drilling.

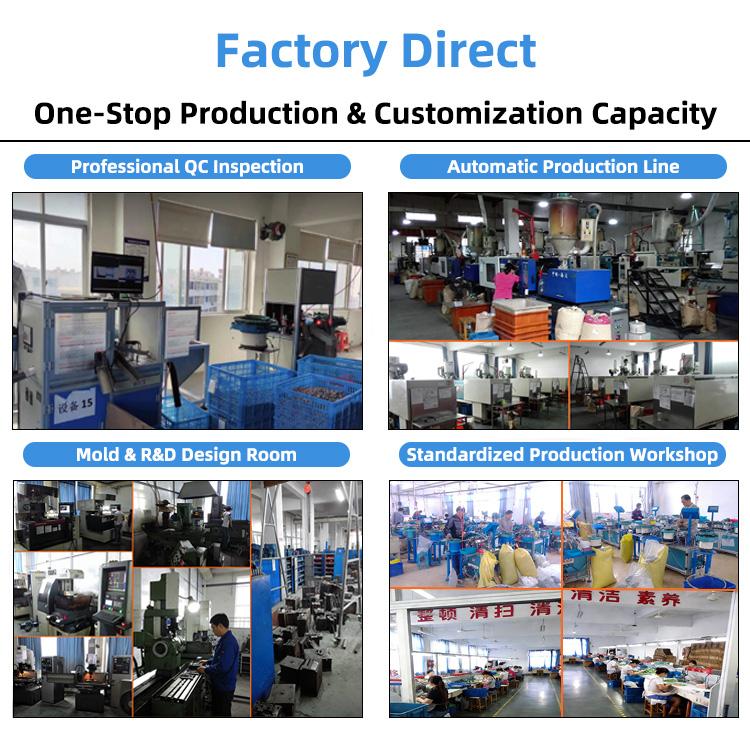

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
