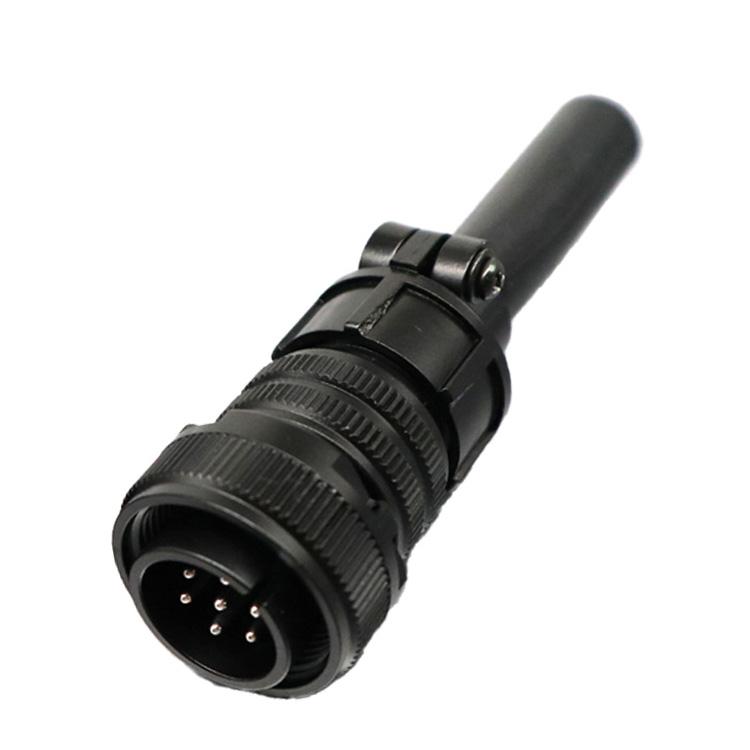

MS5015 IP65 4-Pin Automotive Waterproof Connector

Fzolink MS5015 is an IP65 waterproof Mil Spec circular connector designed as a heavy‑duty automotive power adapter connector with exceptional environmental adaptability. Operating stably from -55℃ to +125℃ and withstanding over 500 mating cycles, this industrial circular connector features gold/silver‑plated copper alloy contacts and nickel‑plated zinc alloy housing, delivering superior electrical performance with wide voltage (300/750/1500VAC) and current (10/25/50/100A) options, plus 5000MΩ insulation resistance.
Offering 3‑61 pin configurations, male/female, straight/90° bend and panel mount styles, it uses threaded coupling for secure cable and metal conduit connections. CE/RoHS certified and EU standard compliant, this vibration‑resistant industrial connector excels in harsh environments for automotive, new energy, rail transit, aerospace and medical equipment, supporting OEM/ODM customized wiring for diverse applications.

Item no.:
MS5015
Payment:
Wire transer, West Union, Paypal

Inquiry now

product introduction

Technical Specifications

Rated Current:	10A/25A/50A/100A
Rated Voltage:	300V/750V/1500V
Pin Count:	3,4,5,7,10,11,13,15,17,19,26,27,31,38,40,42,53,61
Contact Material:	Copper alloy, gold or silver plated
Shell Material:	Zinc alloy with nikelplate
IP Rating:	IP65
Cable OD:	8-12mm/5.5-7mm
Flammability:	UL94-V0
Wire range:	2-4P :14-12AWG/5P, 7P : 18-16AWG/9P, 12P : 26-24AWG
Temperature:	-40℃~80°C
Assembly wire:	Pressure & Solder
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· Gold-Plated Copper Alloy Pin: Enhances conductivity and durability for reliable connections.

· IP65/IP68 Waterproof: Sealed to protect against dust and water ingress, ensuring longevity.

· High-Performance Engineering Plastics: Durable and reliable housing material for robust performance.

· Multiple Durability Tests: Ensures longevity and reliability for consistent use.

· 3000+ Daily Production Quantity: High production capacity for quick delivery.

· Customizable Cables: Tailored solutions for specific requirements.

· Pressure & Solder Connection: Secure and robust assembly.

Product details

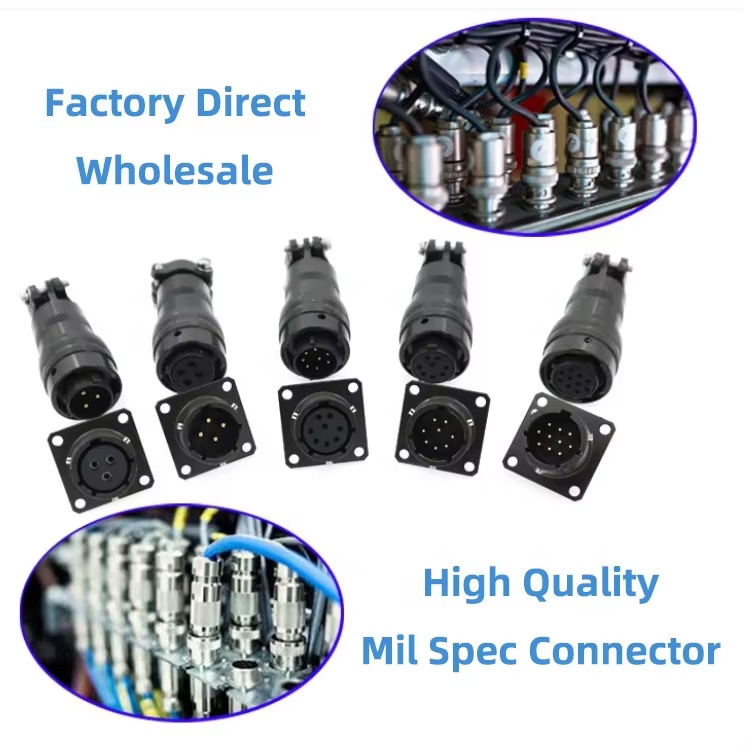

MS5015 is a high-spec military-grade connector sold directly from the factory

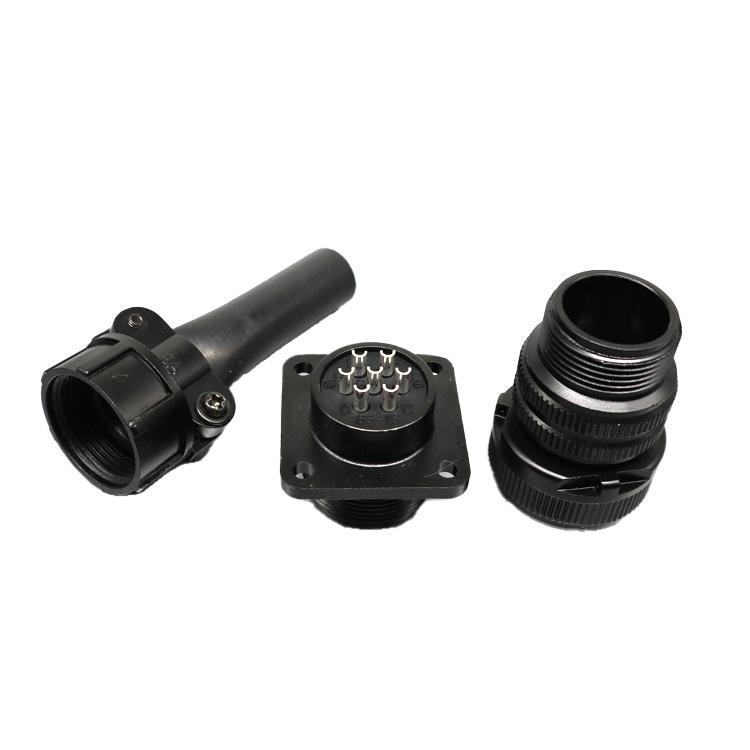

MS5015 consists of a cable protection cover, solder pin, plug body, cable clamp, lock nut, and socket.

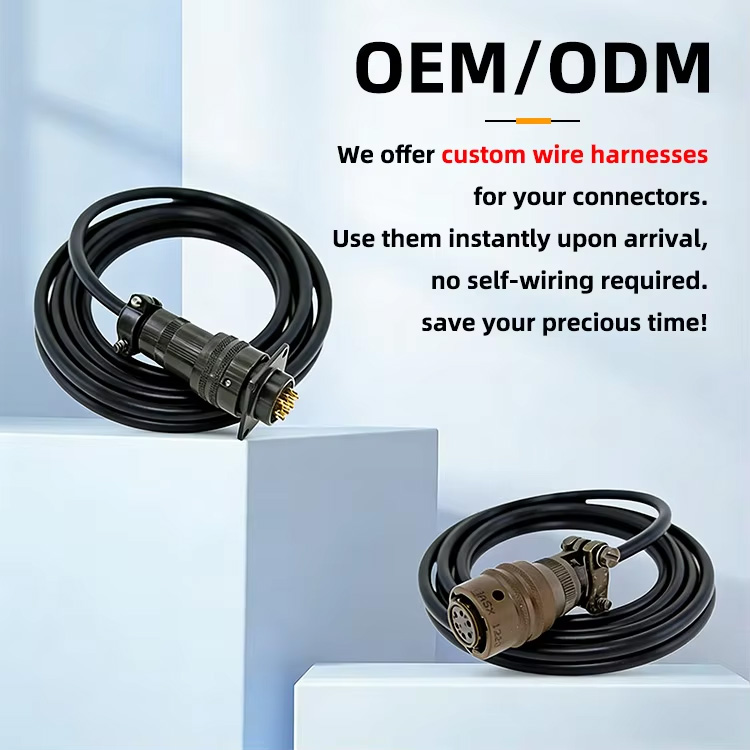

We offer custom wire harnesses for your connectors. Use them instantly upon arrivalno self-wiring required. save your precious time!

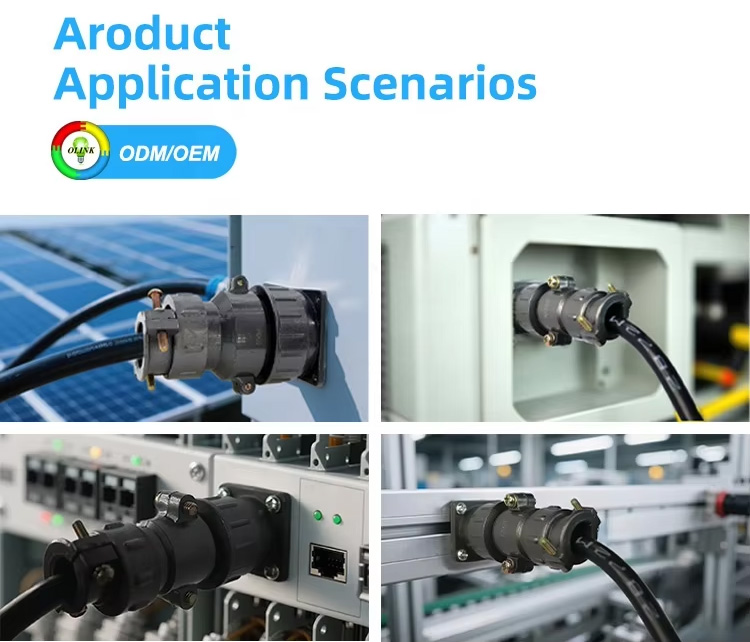

Application Scenarios

MS5015 can be applied to petrochemical, aerospace, new energy, and automotive industries.

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
