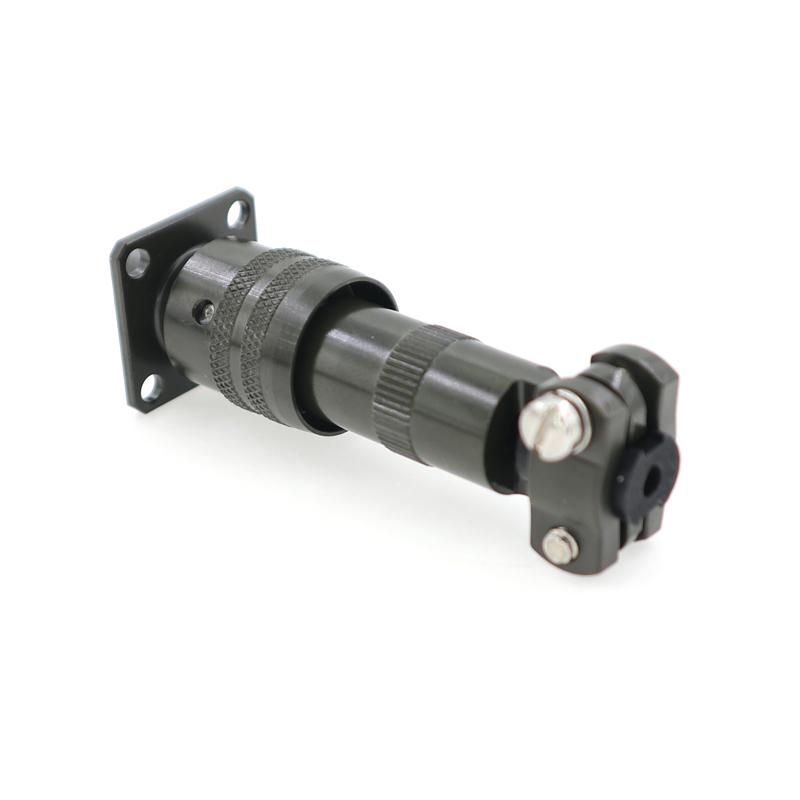

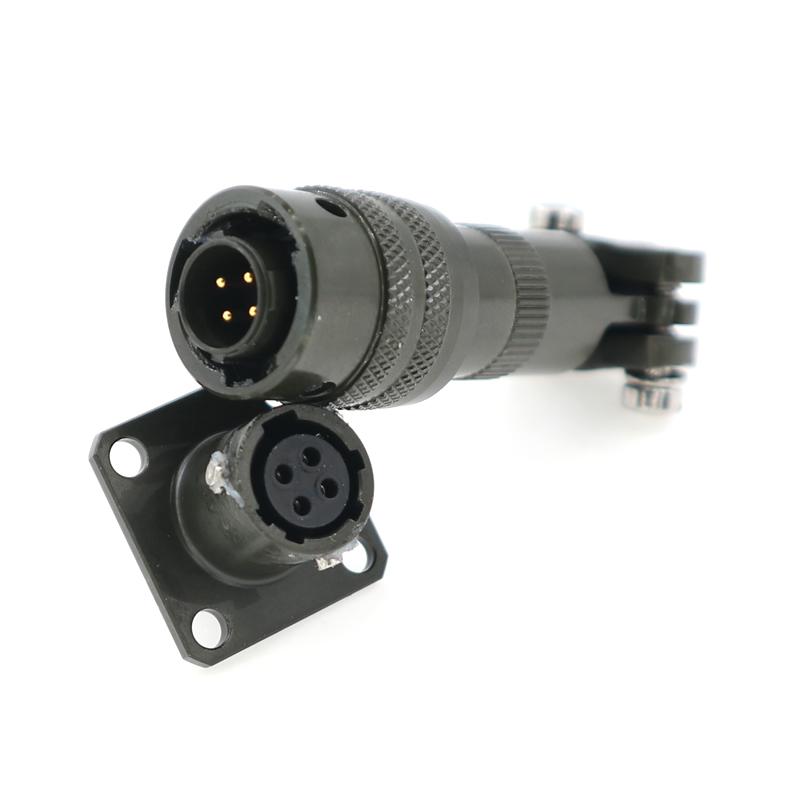

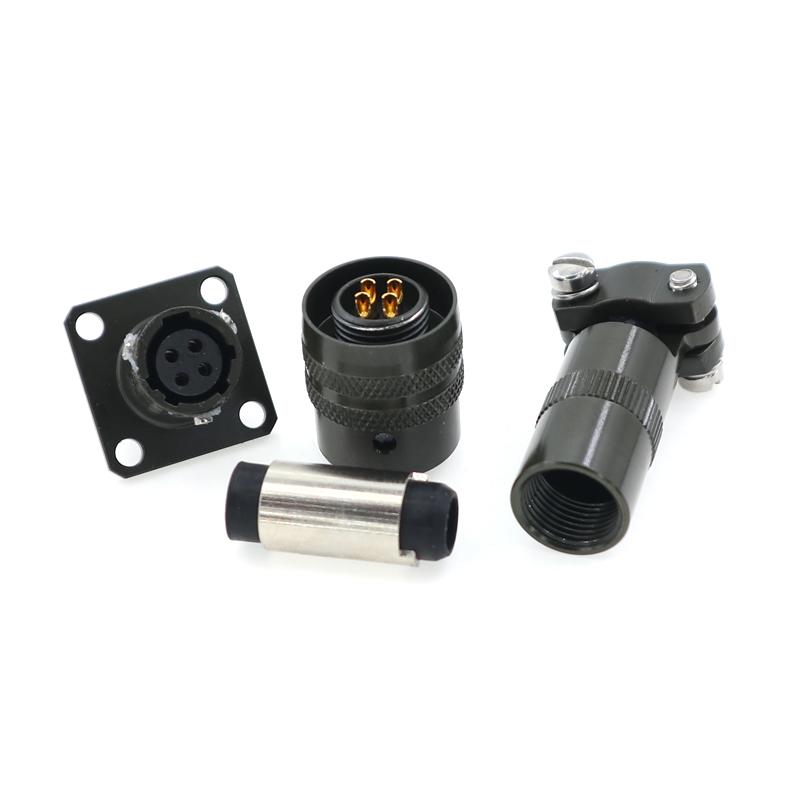

MS3111 Solder Type circular air straight plug panel mount socket

The Amphenol Mil-Spec Connector MS26482 is a high-performance military-grade circular bent air plug designed to provide stable and reliable electrical connections in harsh environments.
  • Brand:

    OLINK
  • Item no.:

    MS3116/3112-8
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days


MS3116/3112 connectors have the following features:


1. Electrical performance: Electrical performance parameters meet high standards.

2. Environmental adaptability: Waterproof connectors have adaptability in a variety of harsh environments.

3. Size and weight: The size and weight of the connector ensure easy installation and use.

4. Mechanical properties: Our connectors have good mechanical properties, such as vibration resistance, impact resistance, plug resistance, etc.

5. Environmental sealing performance: Waterproof connectors have excellent sealing performance.

6. Life: The life of the high-specification connector can ensure that good performance and reliability can be maintained during a long time of use.





Technical Data

Standard Materials and Finishes
Description
Materials and Finishes
Shell
Aluminum alloy, conductive olive drab chromate over cadmium or Zinc finish QQ-P-416
Insulator
Polychloroprene
Grommet
Polychloroprene
Contacts
Copper alloy, gold plate per MIL-G-45204 Type II
Electrical Data
Wire Range Accommodations
Insulation O.D. Limits
Contact Rating
Contact Size
AWG Wire Size
Min
Max
Contact Size
Rated Amps
Test Current
Millivolt Drop
20
24, 22, 20
1.52
2.11
20
7.5
7.5
55
16
20, 18, 16
1.68
2.77
16
22.0
13.0
49
12
12, 14
2.46
3.61
12
23.0
20.0
42


Operating Temperature Range
-55℃~125℃
Insulation Resistance
5000MΩ Min. (at 25℃)
Durability
500 cycle, mate and unmate
Shell Size
8, 10, 12, 14, 16, 18, 20, 22

Dlelectric Withstanding Voltage
Service Rating
Operating Voltaire Max.
Test Voltage. AC(rms), 60cps
AC(rms)
DC
Sea Level
50,000(ft)
70,000(ft)
110,000(ft)
I
600
850
1500
500
375
200
II
1000
1275
2300
750
500
200



Our MS connectors can be widely used in the following areas:

1.Industrial automation: Our connectors enable equipment in factories and industrial facilities to work in wet, dusty environments;

2.Energy field: Wind power, solar power and other new energy facilities usually need to face a variety of harsh environments, you can use our high-specification waterproof electrical connectors;

3.Rail transit: Our waterproof and dust-proof connectors can play a role in the electrical systems of subway, light rail and other rail transit facilities;

4.Communication facilities: Our high-quality electrical connectors guarantee the stable operation and safety of communication base stations, telecommunications facilities and other equipment;




Thank you for taking the time to familiarize yourself with ourMS waterproof connectorproducts. We understand the importance of selecting the appropriate connector for your project, and we are delighted by your interest in our offerings. Please do not hesitate to reach out to us as we have a wider range of similar products available. We firmly believe that these products will effectively meet your requirements while enhancing convenience and efficiency in your work.
