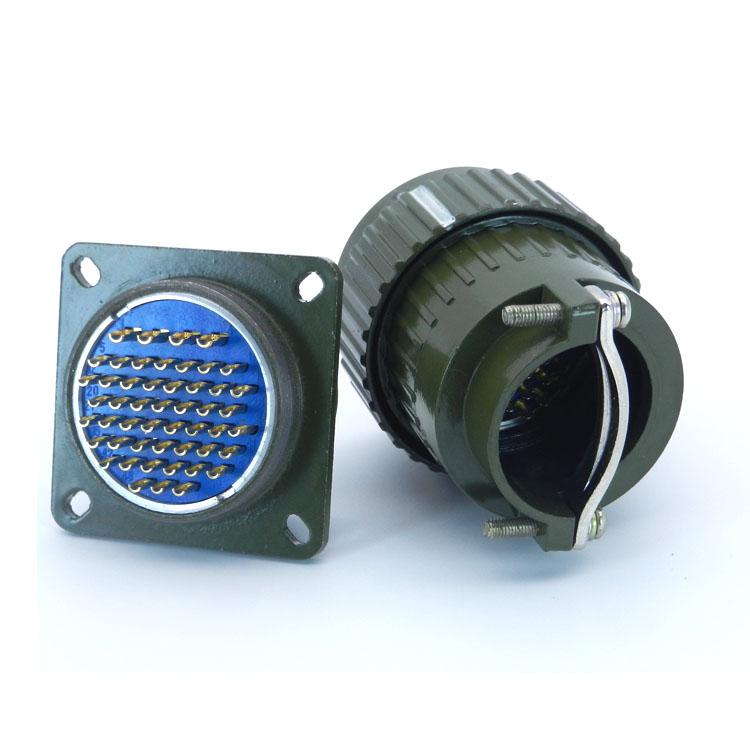

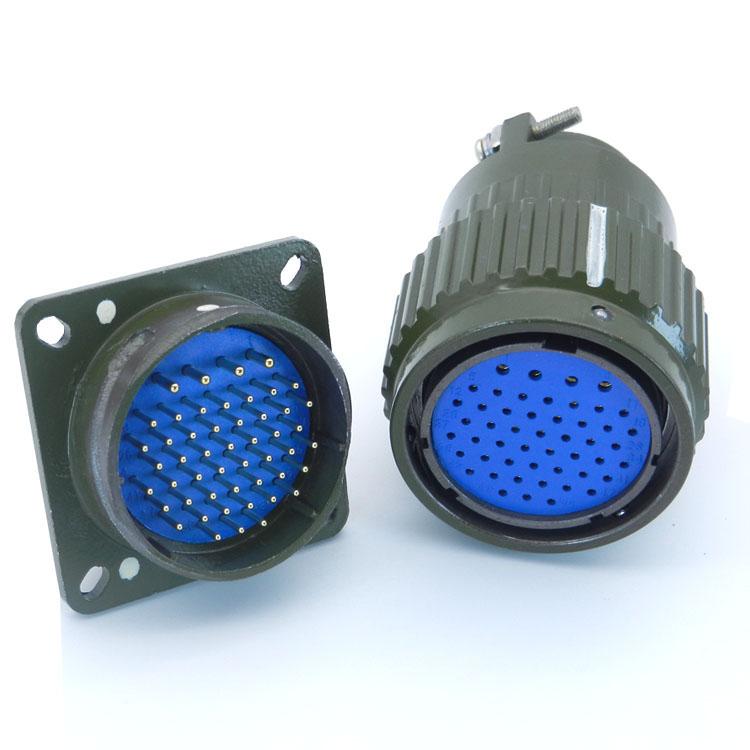

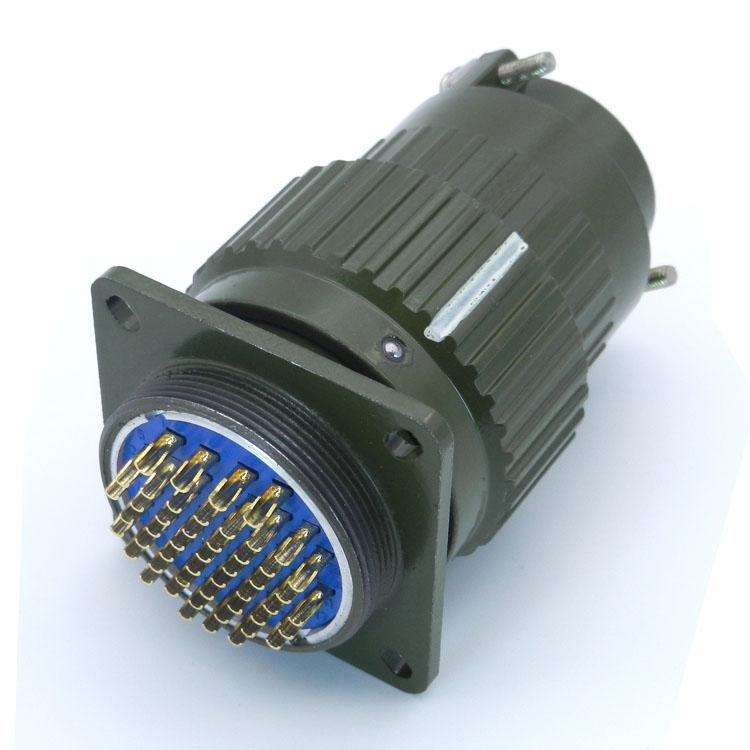

Metal Panel Mount Socket and Plug

YP circular mil spec connector is widely used in circuit connection between various electronic and electrical equipment

  • Brand:

    OLINK
  • Item no.:

    YP21
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Shipping port:

    Xiamen
  • Lead Time:

    7

                                          YP series Military round bayonet connector

metal connector


temperature range
-40~+85℃
shock
Acceleration 735m/s2
humidity
40±2℃ 95±3%
inpact
Acceleration 196m/s2
pressure
99.99kpa
constant acceleration
Acceleration 245m/s2
vibration
10~2000Hz Acceleration147m/s2
the number of pins
2-120P


pin diameter
1mm
1.5mm
2.5mm
3.5mm
5mm
current
5A
10A
25A
50A
100A
resistance(mΩ)
6
4
1
0.5
0.3

YP connector

HOW TO CHOOSE:
1、CUTOUT SIZE FOR PANEL: YP21  YP28 YP36 YP50
2、THE NUMBER OF PINS:
YP21: 2-16P
YP36: 3-65P
YP28: 2-37P
YP50: 20-120P
3、CONNECTION METHOD:
1. Wire to wire connection
2. Wire to board connection
