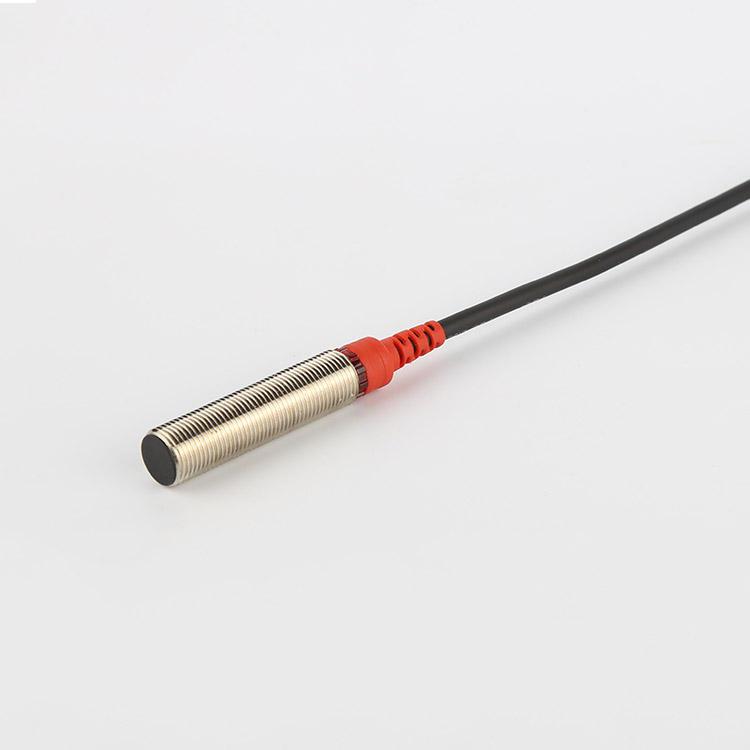

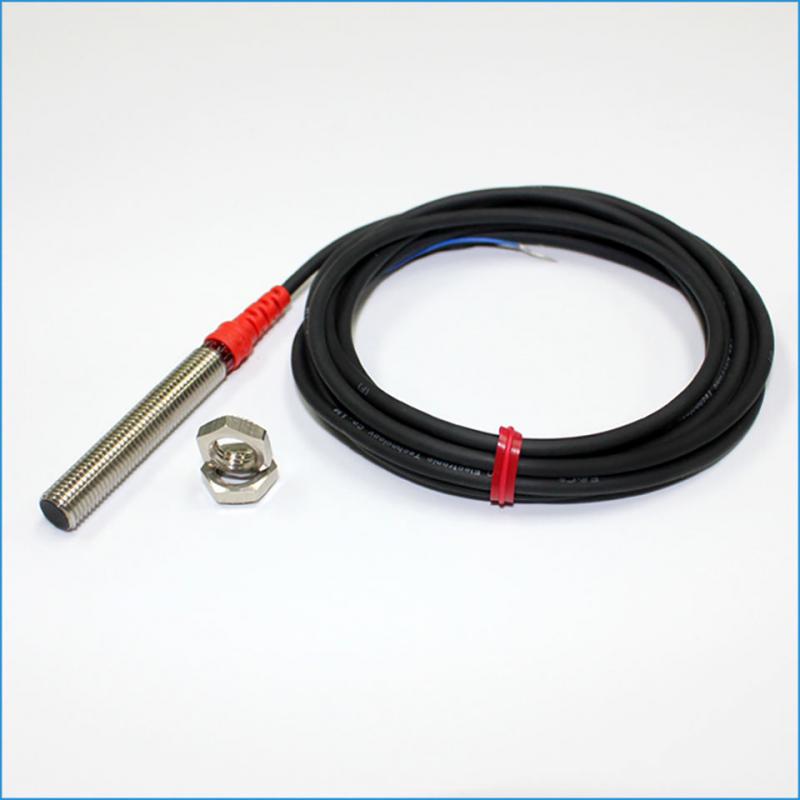

F3L-08KS02-N R2M M8 Circular proximity switch sensor

M8 NPN/PNP 3mm range, flushed shielded type inductive proximity sensor


  • Brand:

    F&C
  • Item no.:

    F3L-08KS02-N/P/N2/P2
  • Product origin:

    China







Overview
Quick Details
Model Number:
F3L-08KS02-N R2M
Type:
Inductive Proximity Sensor
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Metals detection, Position Sensor
Theory:
Inductive proximity sensor, Inductance Sensor
Output:
NPN or PNP
Description:
proximity sensor
Certificate:
CE,ROHS
Install method:
3 Wires proximity sensor 2m cable
Output::
Switching Transducer
Operating Temperature:
-25-70℃
Output Type:
NPN/PNP
Sensing Object:
8*8*1mm(iron)
Voltage - Supply:
12-24VDC
Frequency:
1000HZ


M8 Inductive Switch has wide application . M8 inductive switch with

2mm sensing or 8 mm sensing can use on

Dairy machine,farming machine, lift truck etc. we have 25+ years

expereince in sensor field. just let advise your

application, we will custom the solutions for you.






Product details
NPN NO
F3L-8KS03-N R2M
NPN NC
F3L-8KS03-N2 R2M
PNP NO
F3L-8KS03-P R2M
PNP NC
F3L-8KS03-P2 R2M
Detection Distance
3mm
Mounting Method
Flush
Hysteresis
Less than 10% of sensing distance
Standard Sensing Object
8*8(Iron)
Operating Voltage
12-24 VDC
Current Consumption
Less than 8mA (No Load)
Load current
100mA Max at 24 VDC
Residual Voltage
Less than 1.5VDC (No Load)
Leakage Current
Less than 0.01mA
Protection Degree
IP67
Operating Temperature
-25℃-70℃ (No Icing)
Reverse Polarity Protection
Yes
Short Circuit Protection
Yes
Material
ABS/PBT
Wire Method
Dia 3mm*2M/-3wires
