F3C-30 series F3C-18KN/EN/18ES15-N R2M M30 Proximity sensor

inductive DC 12V M30 15mm metal detecting proximity sensor, dc current sensors


  • Brand:

    F&C
  • Item no.:

    F3C-30KN/EN/ES15-N/P
  • Product origin:

    China

Overview
Quick Details
Model Number:
F3C-30EN15-N R2M
Type:
Inductive Proximity Sensor
Place of Origin:
HUNAN
Brand Name:
F&C
Usage:
Metals detection, Position Sensor
Theory:
Inductive sensor, Inductance Sensor
Output:
NPN or PNP, Switching Transducer
Description:
Inductive proximity sensor
Keywords:
metal detecting sensor
Certificate:
CE,RoHS
Detection mode:
NPN.NO NC/ PNP.NO NC
Voltage:
12-24VDC 10%; 5V customizable
Name:
inductance DC 3-wire 12V M30 15mm metal detector proxim

inductance DC 3-wire 12V M30 15mm metal detector proximty sensor with CE

Product Description

Specifications for metal detecting sensor:

Model F3C-30EN15-N
Output Method NPN/PNP
Maximum detection 15mm
Standard sensing object 45*45*1(iron)
Outputing Way NPN.NO.NC
Response Frenquency standard 800Hz
Opearting voltage 12-24VDC, 5V customizable
Loard current 24V 100mA max
operating temperature -25 to +70 degree
Material PBT
Protection degree IP67

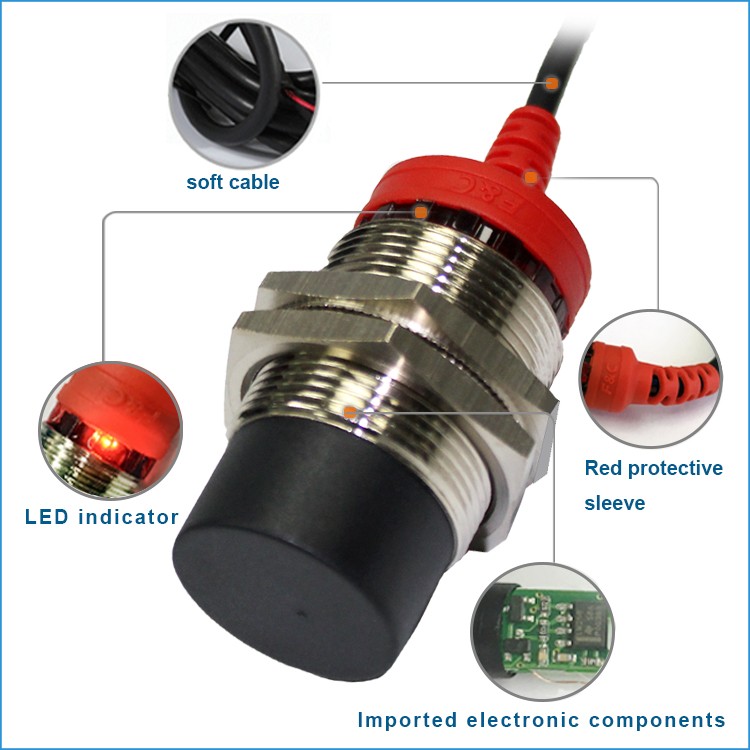

Features and advantages for metal detecting sensor:



1. Red protective sleeve designed, to protected it better.



2. High performance 12-24VDC Built-in amplifier.



3. All round LED indicator.



4. 0.1ms high speed response time



5. OEM order accepted.

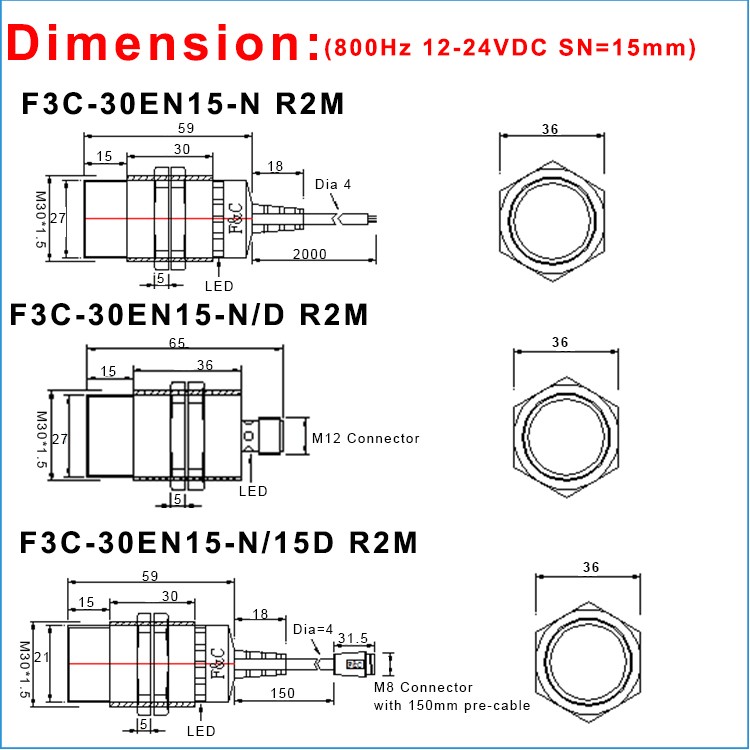

product drawing

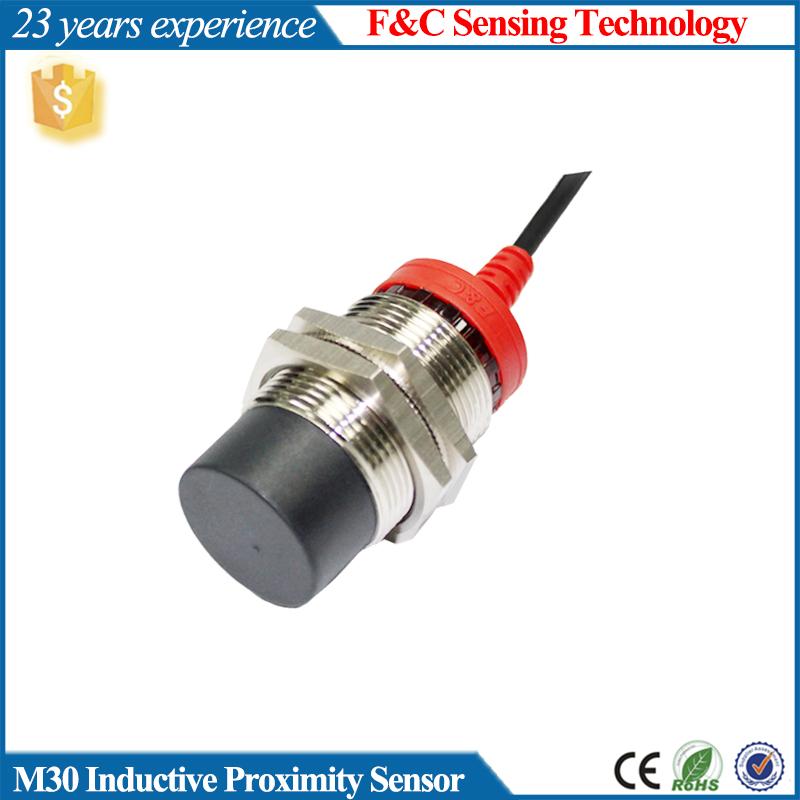

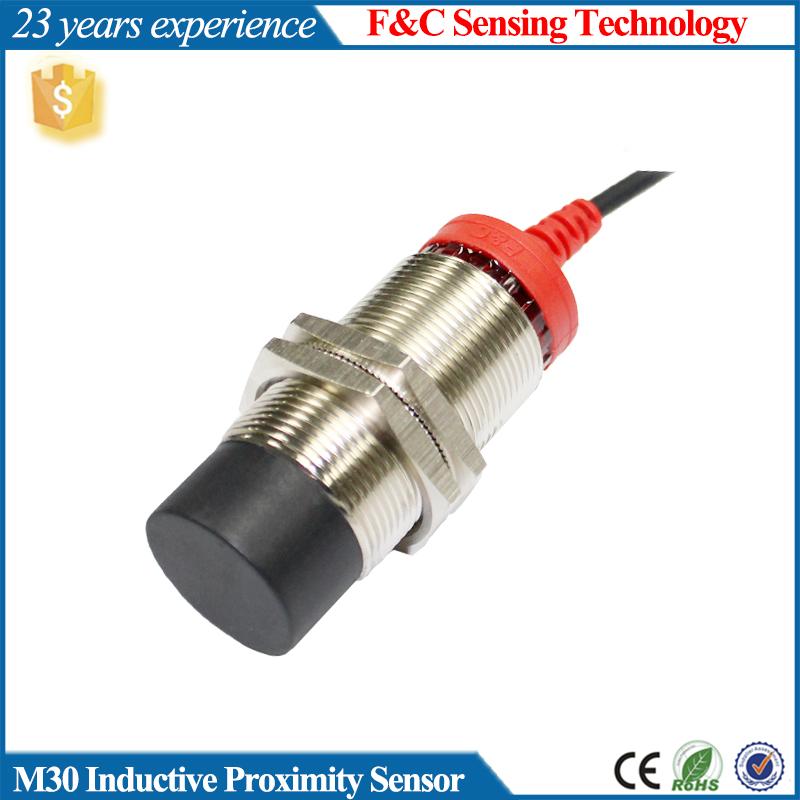

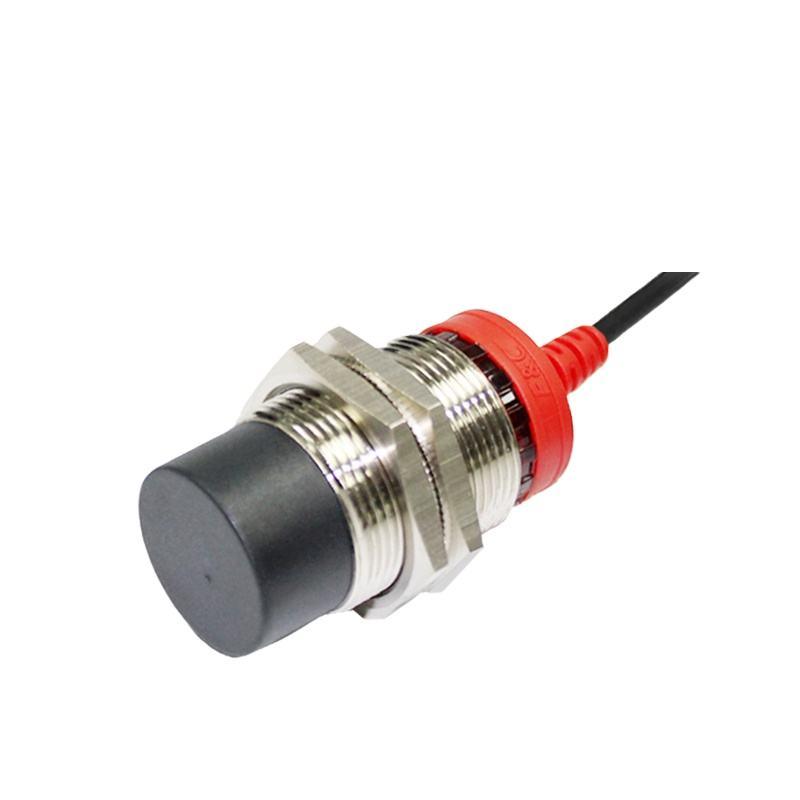

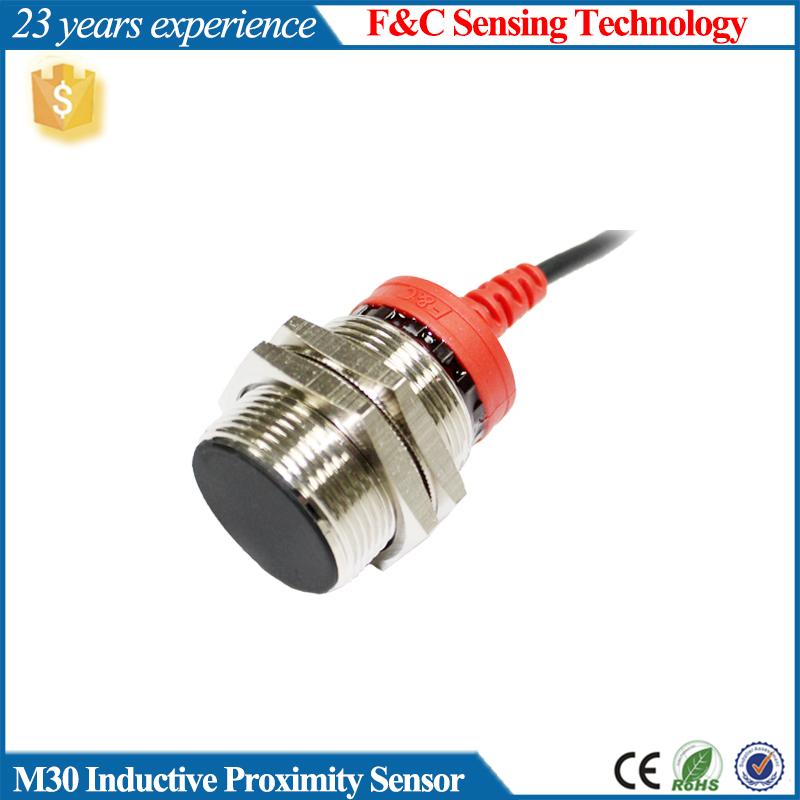

Photos for metal detecting sensor:
inductive DC 12V M30 15mm metal detecting proximity sensor, dc current sensors

inductive DC 12V M30 15mm metal detecting proximity sensor, dc current sensors

inductive DC 12V M30 15mm metal detecting proximity sensor, dc current sensors
