Overview

Quick Details

Model Number:

F3C-10WSM02-N R2M

Type:

Inductive Proximity Sensor

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Metals detection, Position Sensor

Theory:

Inductive sensor, Inductance Sensor

Output:

NPN or PNP, Switching Transducer

Description:

Inductive proximity sensor

Product name:

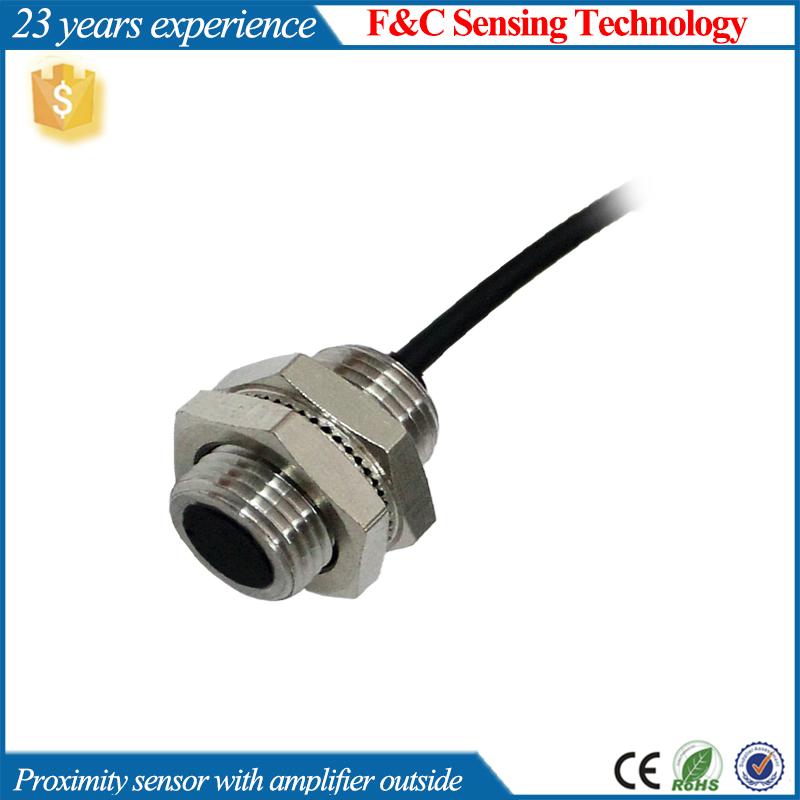

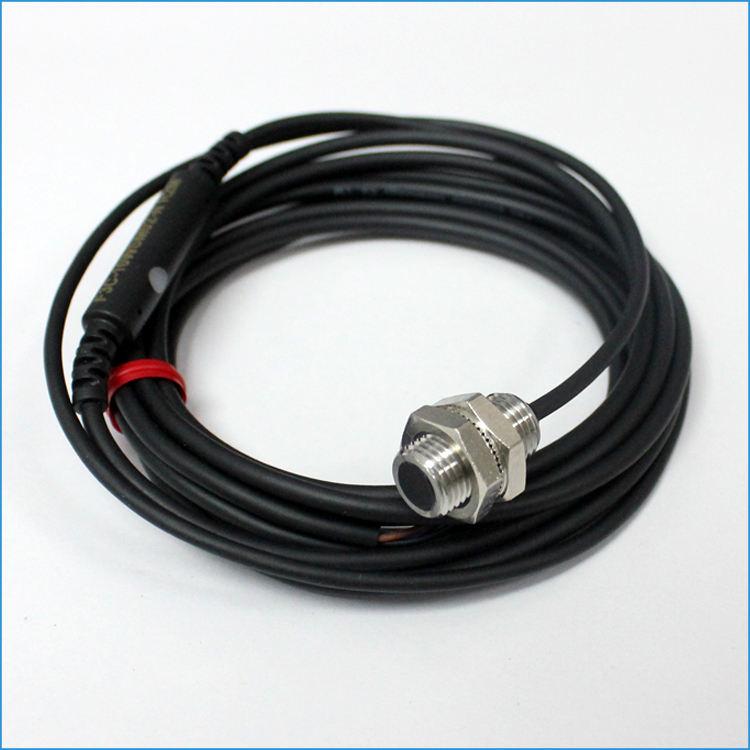

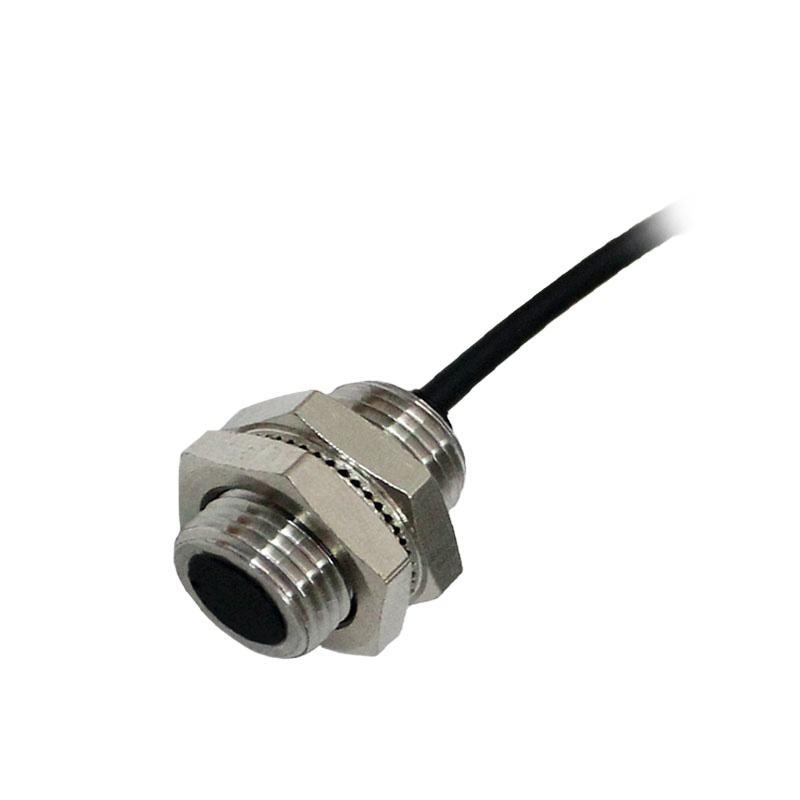

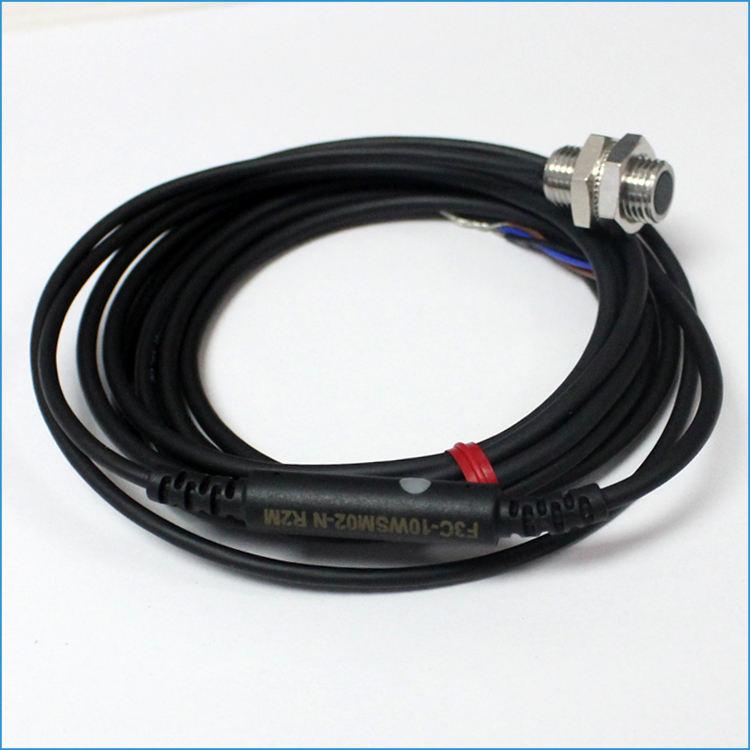

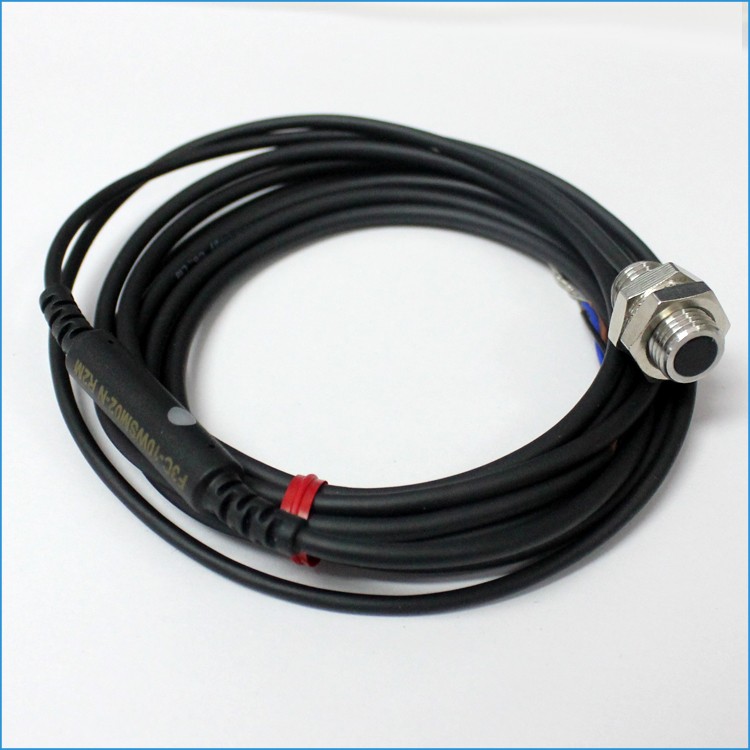

Metal detector PNP NPN induction proximity sensor M10

Detection mode:

NPN.NO NC/ PNP.NO NC

Voltage:

12-24VDC 10%; 5V customizable

Detection distance:

2mm

Frequency:

800Hz

Certificate:

CE,RoHS

Material:

PBT & SUS304

Model	F3C-10WSM02-N
Output Method	NPN/PNP
Maximum detection	2mm
Repeat accuracy	0.005mm
Outputing Way	NPN.NO.NC
Response Frenquency	standard 800Hz
Opearting voltage	12-24VDC, 5V customizable
Loard current	24V 100mA max
operating temperature	-25 to +70 degree
Material	PBT and SUS304
Protection degree	IP67

Features and advantages for induction proximity switch:



1. Low price, small space to install.



2. High performance 12-24VDC proximity sensor with amplifier outside  .



3. All round LED indicator.



4. 0.005mm repeation accuracy.



5. OEM order accepted.
