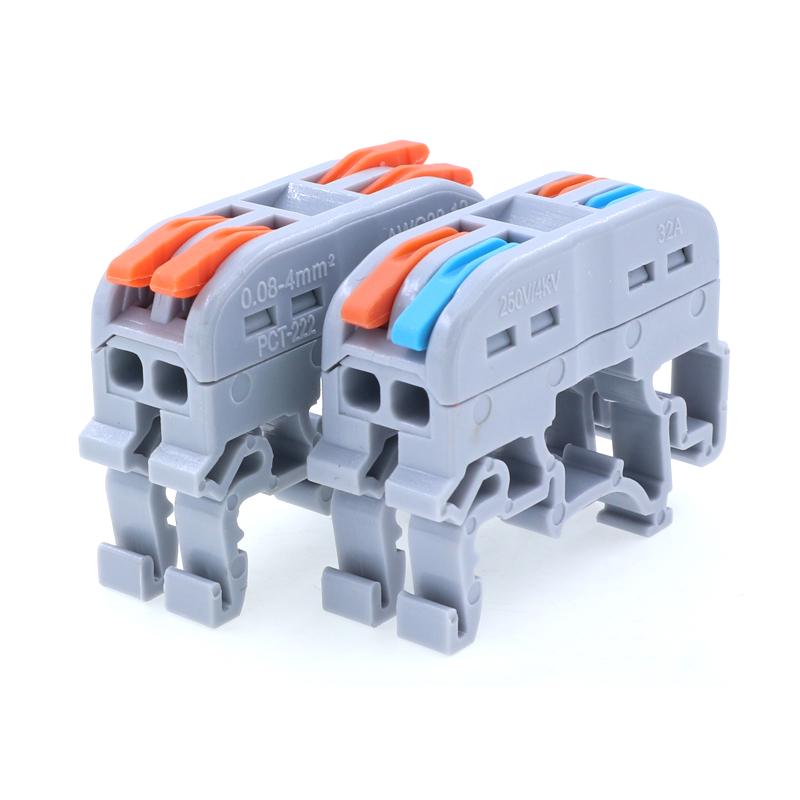

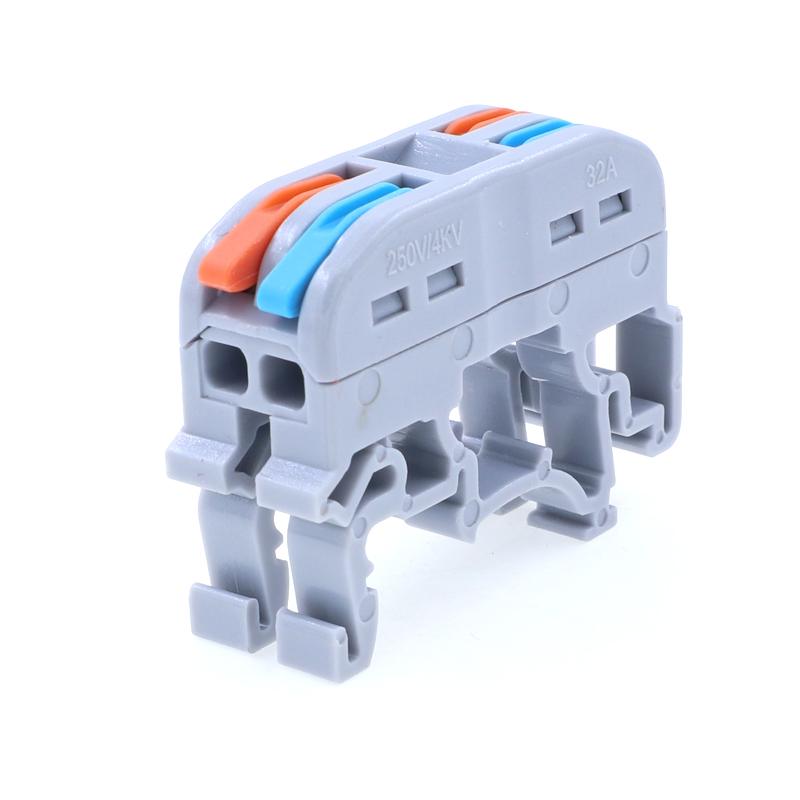

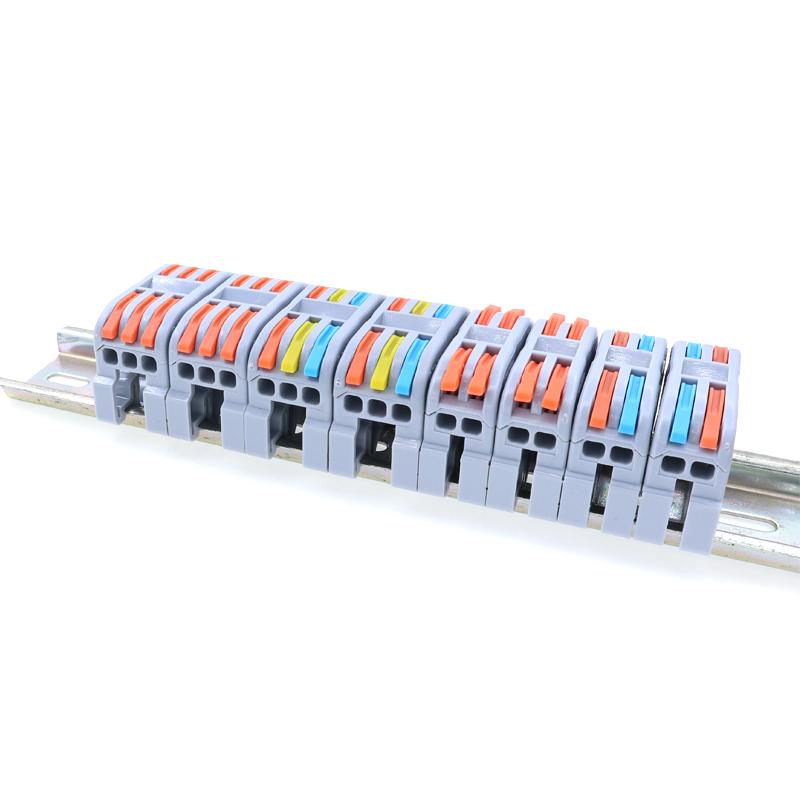

Din Rail Mounted UK Series Terminal Block

Din rail connector: screwless design. There are 2 to 2P, 3 to 3P and 4 to 4P. Lever color can be customized.
  • Brand:

    OLINK
  • Item no.:

    PCT-222D/223D/224D
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Black
  • Goods stock:

    500000
  • Min order:

    100
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Rail type lever quick wiring 3 port push in wire connectors


Features of din rail connectors

  • Use standard 3.5mm (1.38 inch) width guide rail
  • Handle color can be customized
  • Quick connection, multiple poles available

Specifications:

Product Name:   wire to wire connectors
Product model:    PCT-222D/223D/224D
Wiring method:   Insert Crimp
Wire type:   Hard/Flexible wire
Strip length:   9-10mm/0.39in
Cross section:   0.08 - 2.5(4.0) mm2
Voltage:   250V
Rated Current:   32A
Shell material:   nylon PA
Conductive material:   Copper Nickel plated/Tinned
Spring:   301 steel Application:   Controller/electric power


Dimensions and models:




PCT-223D PCT-223D-C PCT-223D-B


Application of din rail connector

  • Electrical cabinet junction box
  • Power equipment wiring device
  • There are circuits that require fast wire connections
