221 series4 5 2 3 pin female electric quick wire connector

6mm2 221 series connector, easy to use, handle color can be customized.solid wire accepts 10AWG or 6mm2 wire, ideal for branching off building power wires.
  • Brand:

    OLINK
  • Item no.:

    221-614
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

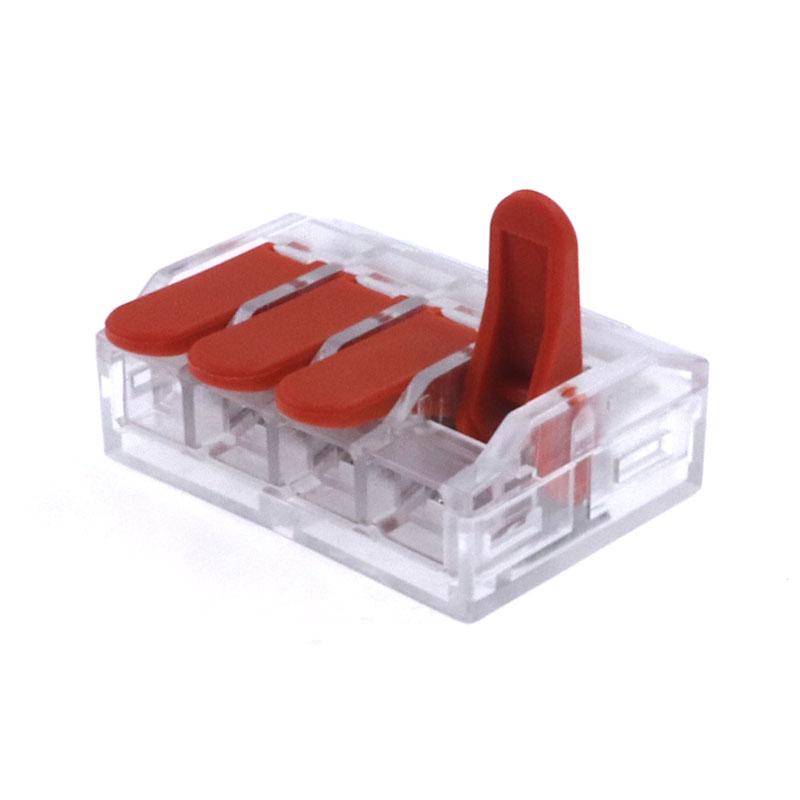

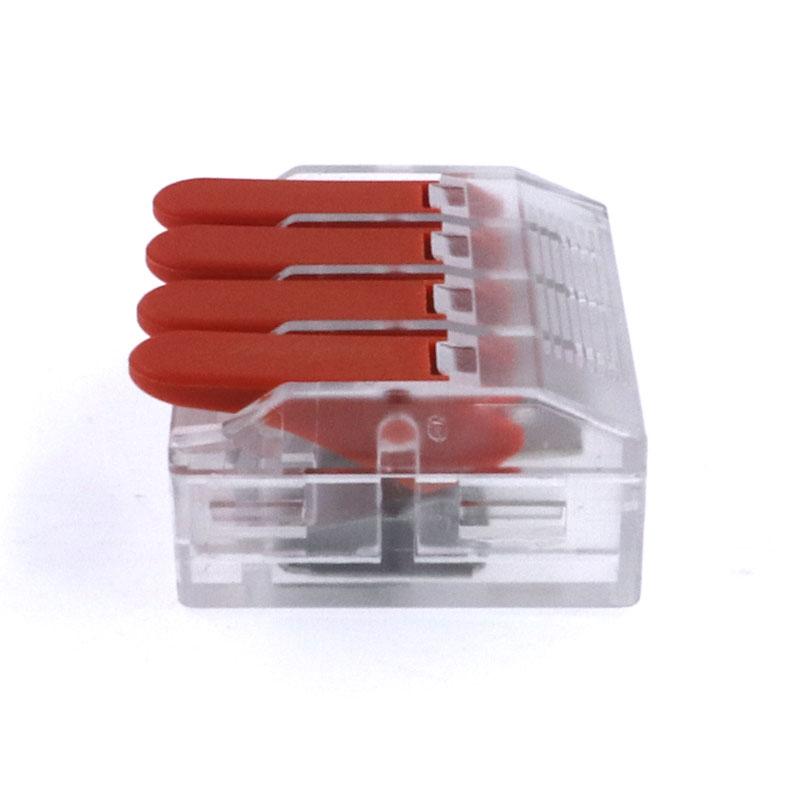

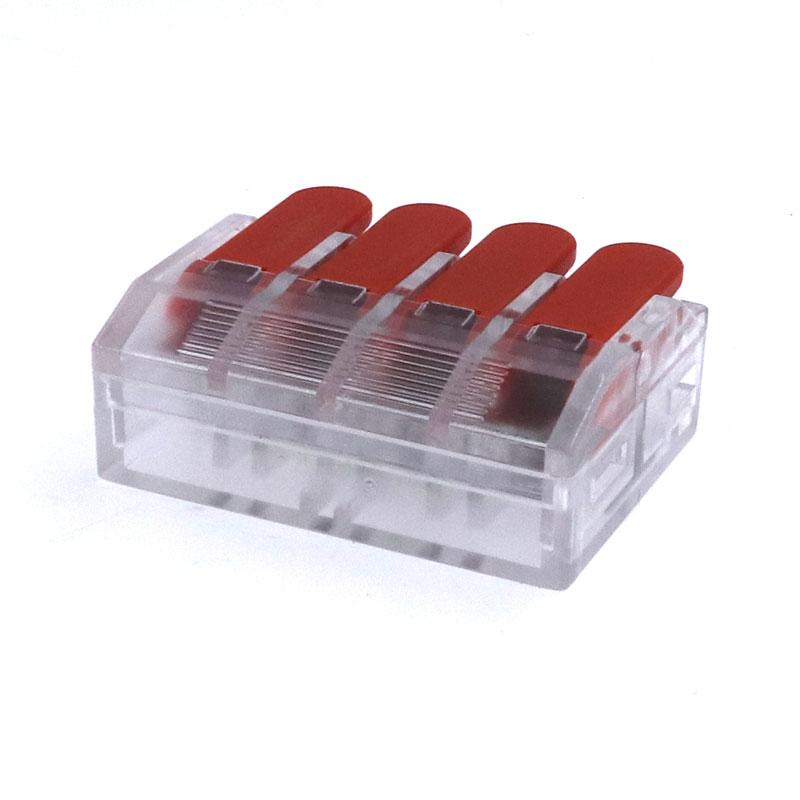

221 series wire connector 6mm 4way 221-614 terminal block connector

  Features of 221 terminal block connectors

  • Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
  • The shell is made of PC, and the flame retardant grade is UL94 V-0;
  • The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
  • The color of the handle of this wire-to-wire connector can be customized to distinguish incoming wires.


  Specifications of 6mm electrical crimp connectors

Model     221-614 Rated Voltage
  450V
Rated Current
  40A Strip Length
  13-15mm/0.59in
Wiring Size
  Solid Wire: 0.5-6mm2     Stand Wire: 0.4-4.0mm2
Wiring Method
  Lever Crimp Shell
  PC
Contact     Copper Sping
  High-Perfomance Spring Steel
Temperature
  -25℃~85℃ Applications
  Building Wire Branch and Connection

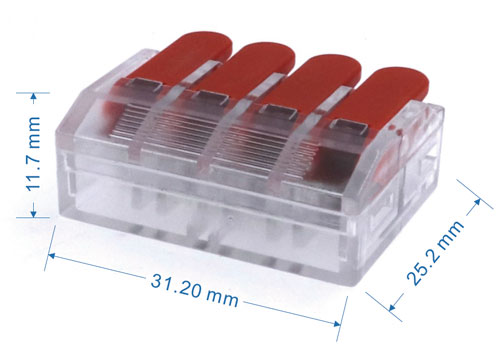

  Size and Description

The lever crimp wire connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。


  How To Use
Easy Operation,Easy To Insert,Convenient, Fast,Safe And Reliable



1)Stip The Wire Length 13-15mm/0.59in

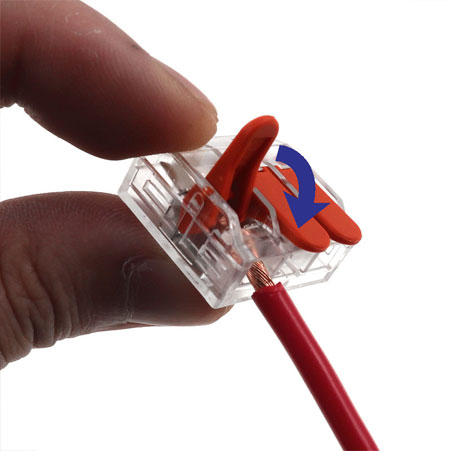

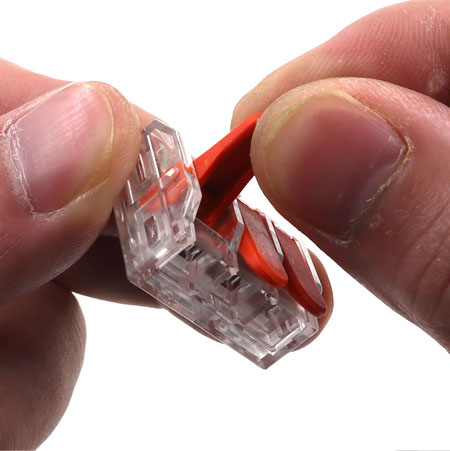

2)Open The Connectors Handle

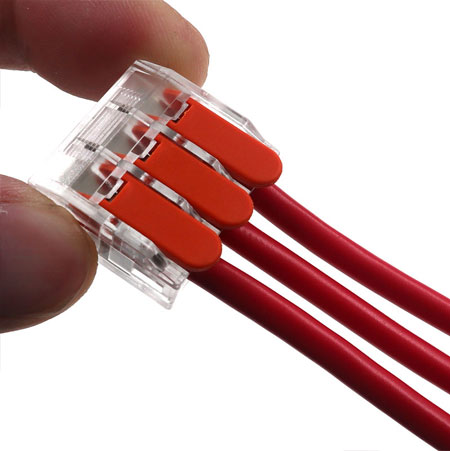

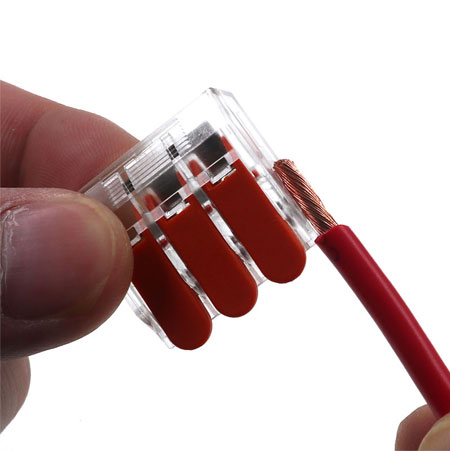

3)Insert The Wire Hole and Close The Handle
4)Installation Is Complete

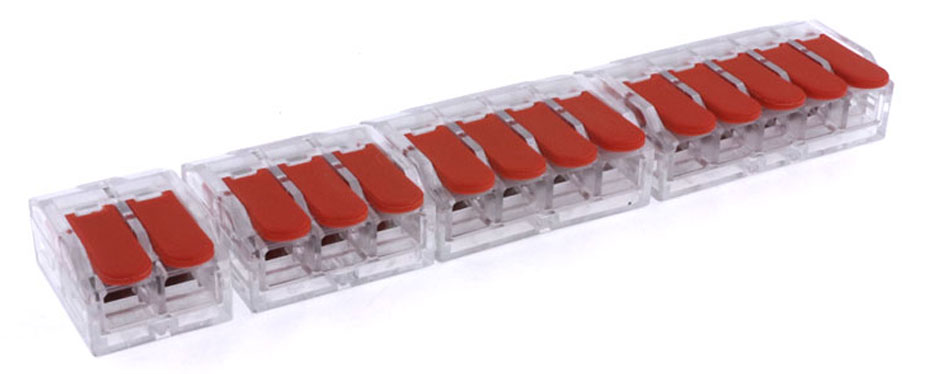

 Other needle count products

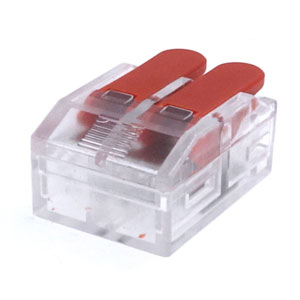

221-612

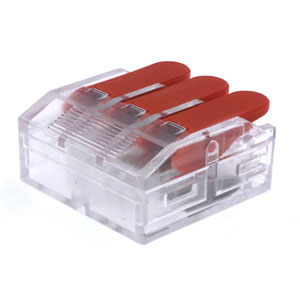

221-613

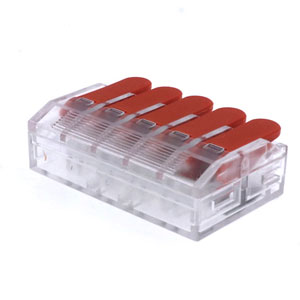

221-615

  More Push In Wire Connector

*For more information, please contact us by email or through any contact information on the webpage.

Related products
wire connector types
Building junction box electrical wiring connectors
A professional wire connector provider with large supply capacity, short delivery time and favorable prices.
221 wire connectors
221-612 6mm wire connectors Building power line branch
Can replace 221 series connector, easy to use, handle color can be customized.
wago 222 connectors
Wire to wire connectors type Chinese manufacturer
Can replace 222 series connector, easy to use, handle color can be customized.
222-413 wire connector
Equivalent 222-413 Series 3 Pin Lever Small Wire Connector
Can replace 222 series connector, easy to use, handle color can be customized.They are used for junction box
Electrical crimp connectors
Push In Fast Terminal Block 222-415 Wire Connectors
222-415 Wire Connectors is durable, insulated, safe, reusable. Widely used in a variety of electrical products, lighting, junction box, control board early warning system, lighting equipment, renovation and home wiring wiring equipment and other fields.
Wire to wire connector
SPL-2 wire to wire connector PCT-2-2 compact connecting terminal
SPL-2 wire to wire connector are widely used in lighting fixtures.With fast connect and disconnection solution
Wire to wire connector
SPL-3 two way 6 ports quick push-in wire connector
SPL-3 inline cable connectors are widely used in home appliances, building wiring and machinery wire connecting parts
push in wire connector

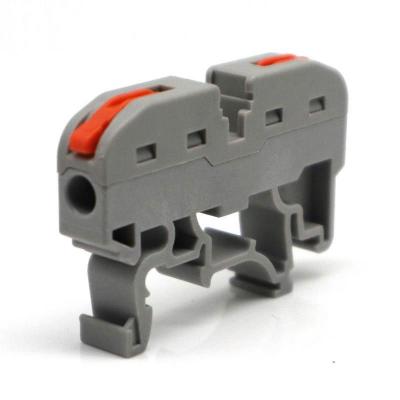

Push in wire to wire connector din rail types PCT-211
