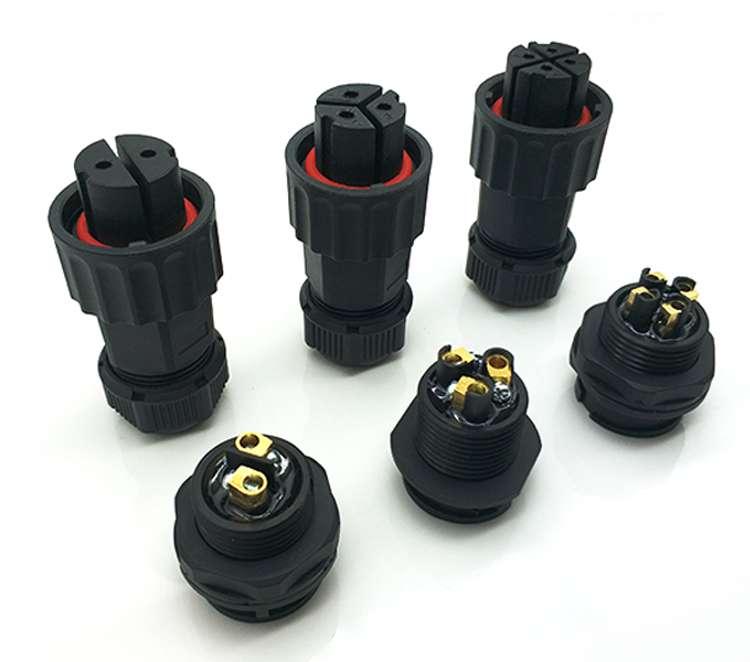

M20 panel mount waterproof electrical connector

M20 connector is screw type IP68 waterproof electrical connector.The user can attach the wires to the connector by screw.

  • Brand:

    OLINK
  • Item no.:

    OL-JH-M20
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black&Blug
  • Min order:

    10
  • Product weight:

    2
  • Shipping port:

    Xiamen
  • Lead Time:

    7

M20 panel mount waterproof electrical connector

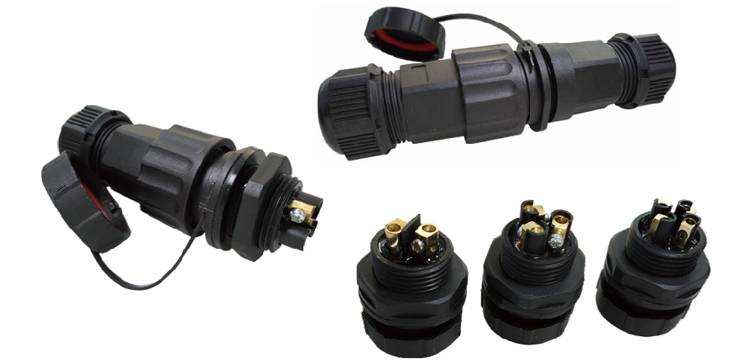

  Description Of M20 Bayonet Connector

M20 waterproof electrical connector is widely used in outdoor and underwater wire connection.

  • Contact: 2 poles, 3 poles and 4 poles
  • Wire to wire connection
  • Wire to board connection
  • Current:20A
  • Cable OD:8-12(mm)
  • Shell material:Nylon66,Fire resistance:V-0
  • Insert material: PPS max temperature 260
  • Contact material:Brass with gold plating


  Drawing of M20 Connectors


The M20 panel mount waterproof connector has a larger shell and a higher current range. It is a rugged and durable connector designed for indoor/outdoor IP67 environments. It is designed for bayonet docking and is an ideal choice for any waterproof connection conditions that require quick plug-in.

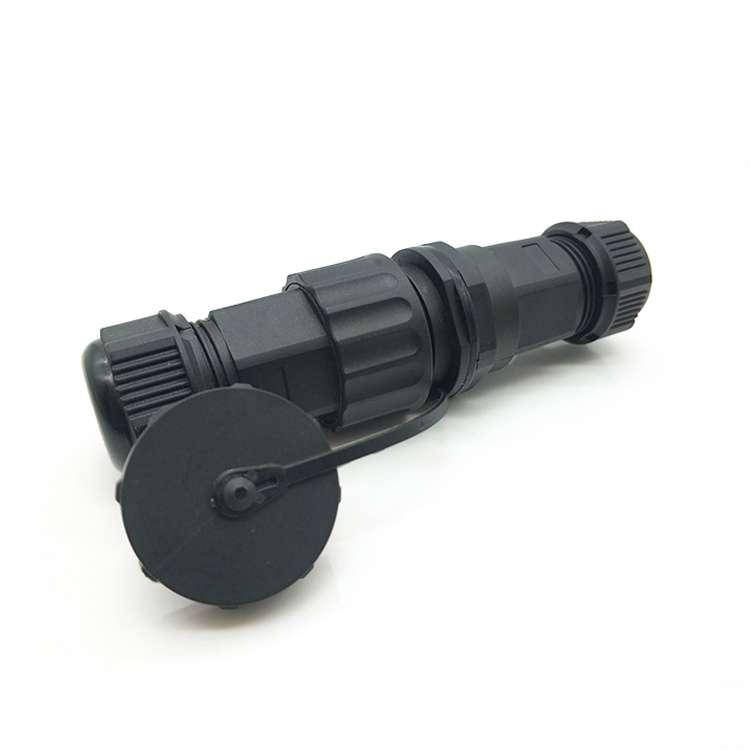

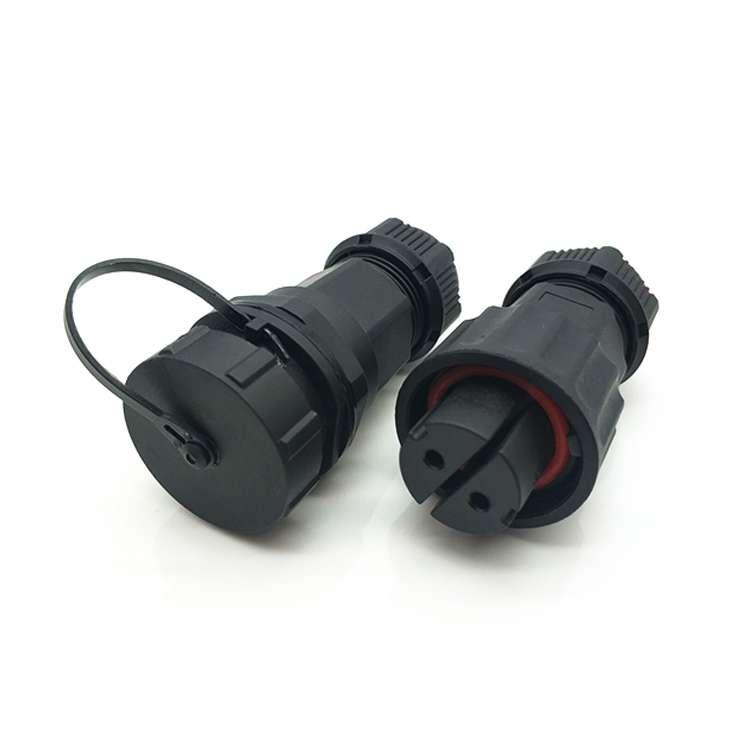

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP67 Sealing caps are available for both cable connector and panel connector.


FAQ:

What are electrical connectors called?

Electrical connectors generally refer to connecting devices that connect two circuits. There are single-potential and multi-potential connections, as well as different levels of waterproof electrical connectors.


*If you need more information, you can find customer service through the contact information on the right side of this page.
