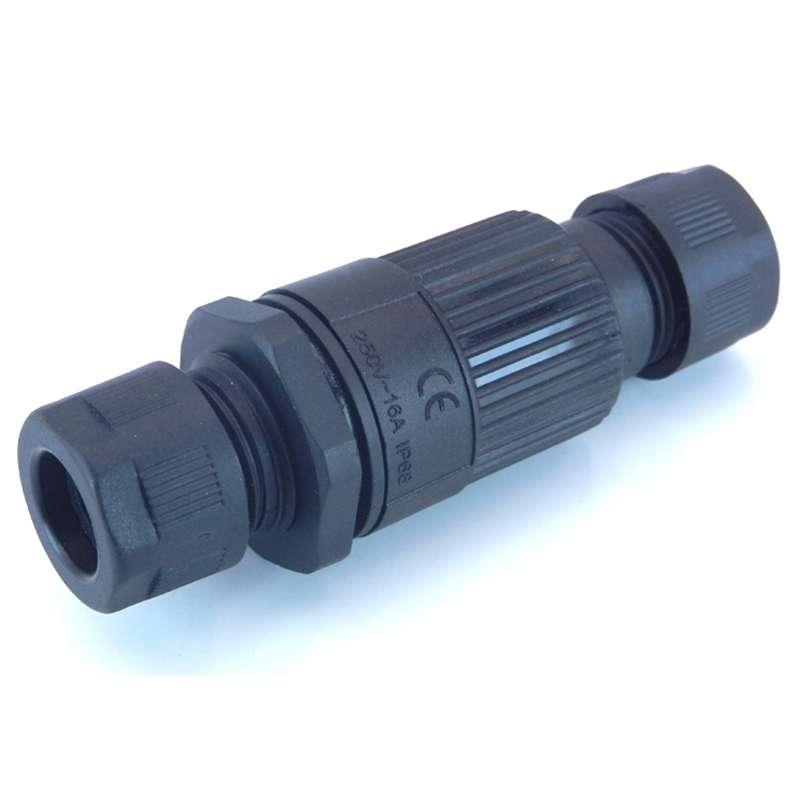

Wire quick 3 pin ip68 waterproof aviation connector for outdoor use

Waterproof aviation connector: Wire to wire type, screw connection, easy to install. With wide range of application scenarios.
  • Brand:

    OLINK
  • Item no.:

    JH22
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

Wire quick 3 pin ip68 waterproof aviation connector for outdoor use


Feature of 3 pin connector waterproof


  • Thickened waterproof rubber ring: can play an effective sealing effect
  • Double-layer clamping rubber parts: large clamping range, good cable fixing resistance and good air tightness
  • Nylon material: The product has a wide range of uses, and is a good material to replace steel, iron, copper and other metals with plastic

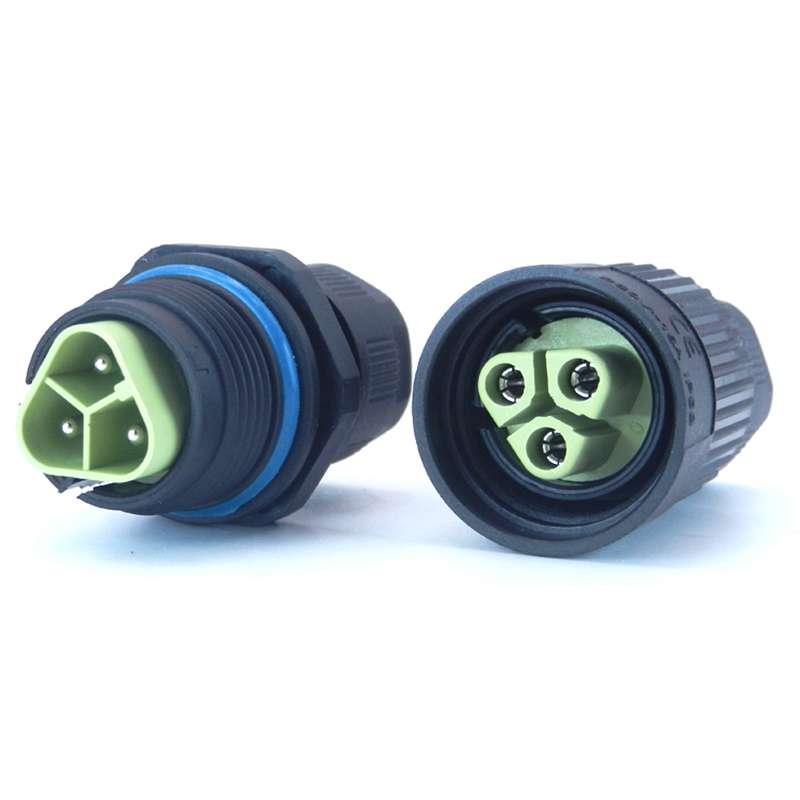

  • Can be panel mounted

Specification of Waterproof aviation connector



Product name:   Waterproof aviation connector Product model:
 JH22
Number of cores:   3P Cable OD.:   φ11 mm
Rated voltage:   250V Rated current:   16A
Mating cycles:   ≥ 500 Rated impulse voltage:   2500V
Sealing body:   Silicone rubber Waterproof level:   IP68
Contact/plating:   Copper alloy/Nickel plated Housing material:   PA
Environmental temperature:   -40℃ to +85℃ Contact attachment:   Screw
Contact resistance:   ≤ 10mΩ Insulation resistance:   ≥500MΩ

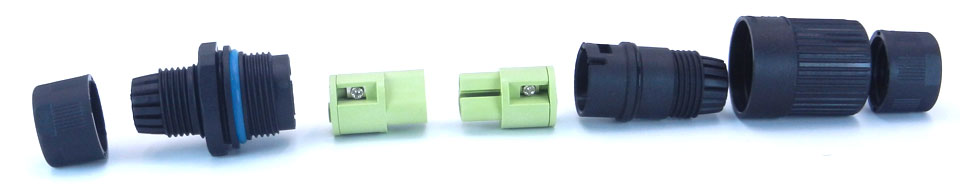

Internal structure of Waterproof aviation connector



Application of Waterproof aviation connector

Wide range of application scenarios: it can be used in outdoor waterproof equipment, street lights, geographic lights, garden lights, outdoor flood lights and other products are used
