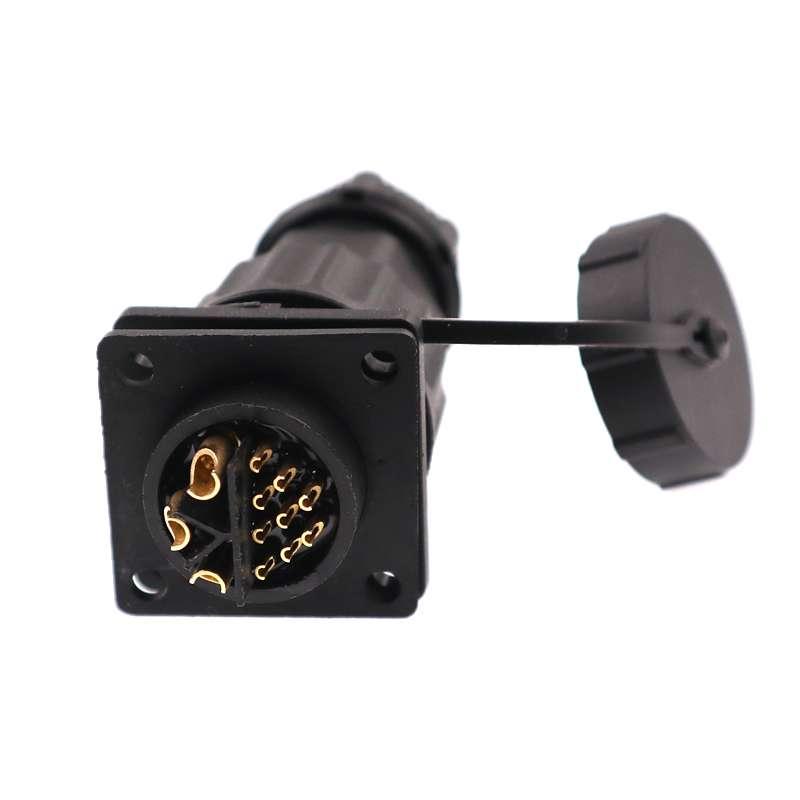

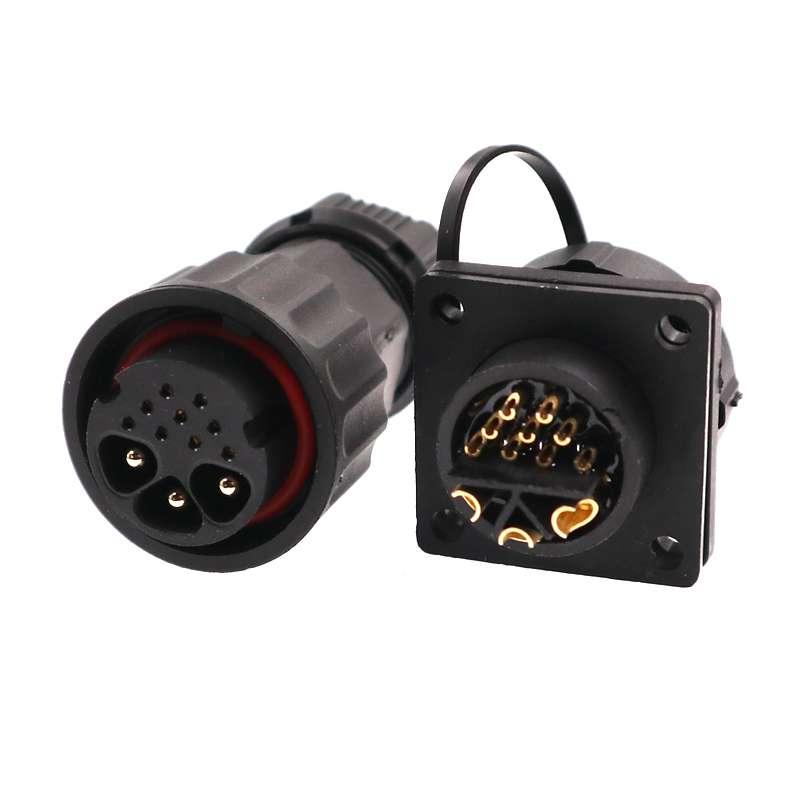

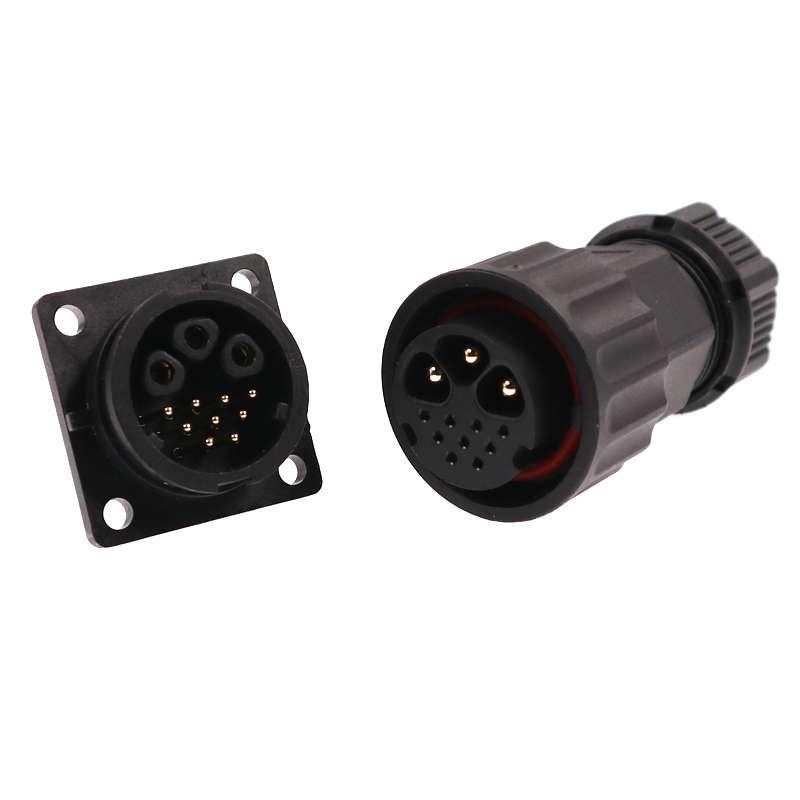

12 pin M20 panel mount waterproof electrical connector

12 pin M20 connector is screw type IP67 waterproof electrical connector.

The user can attach the wires to the connector by screw.

Brand:
OLINK
Item no.:
OL-20-CJ3-PSE-1
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Min order:
10
Product weight:
2
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

12 pin M20 panel mount waterproof electrical connector

Description

M20 waterproof electrical connector is widely used in outdoor and underwater wire connection.

Contact:12 pins
Wire to board connection
Current:30A
Cable OD:8-12(mm)
Shell material:Nylon66,Fire resistance:V-0
Insert material: PPS max temperature 260℃
Contact material:Brass with gold plating

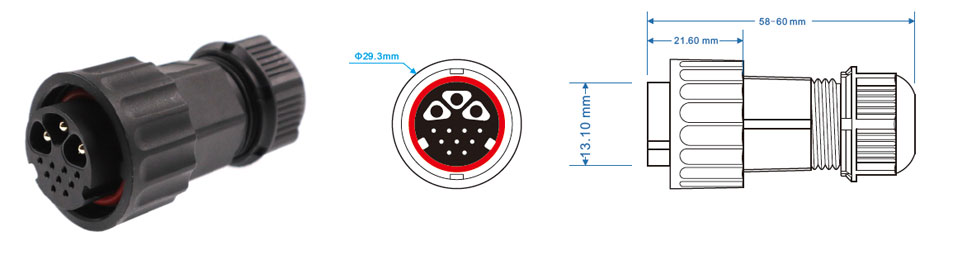

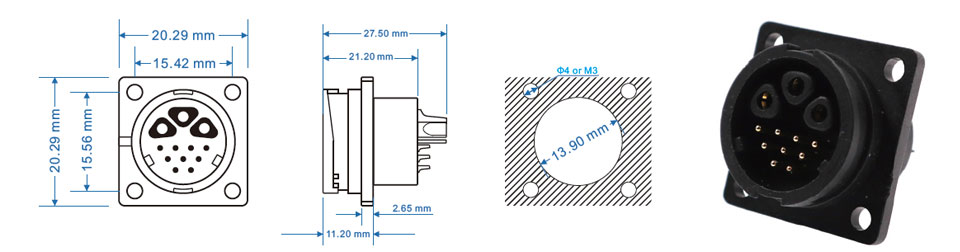

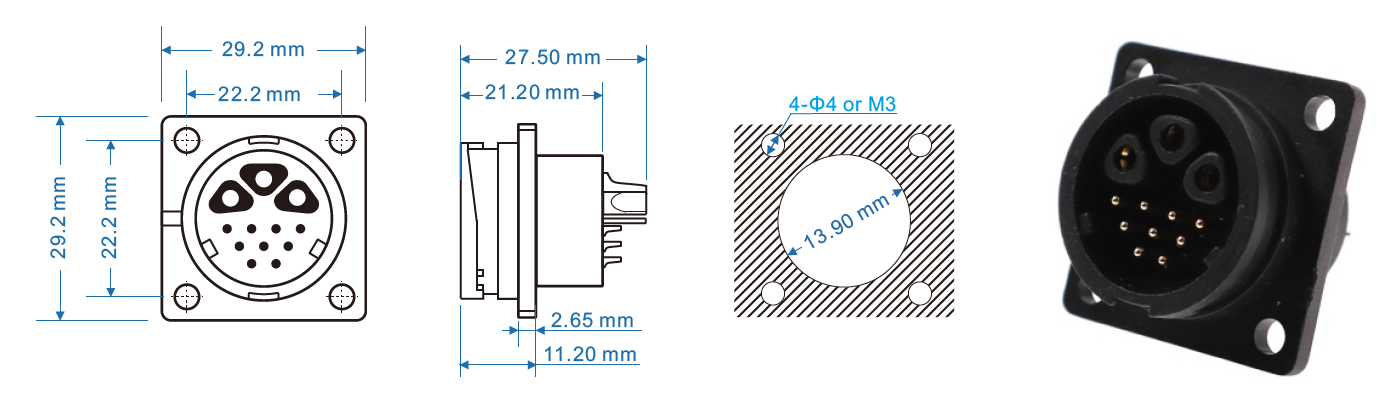

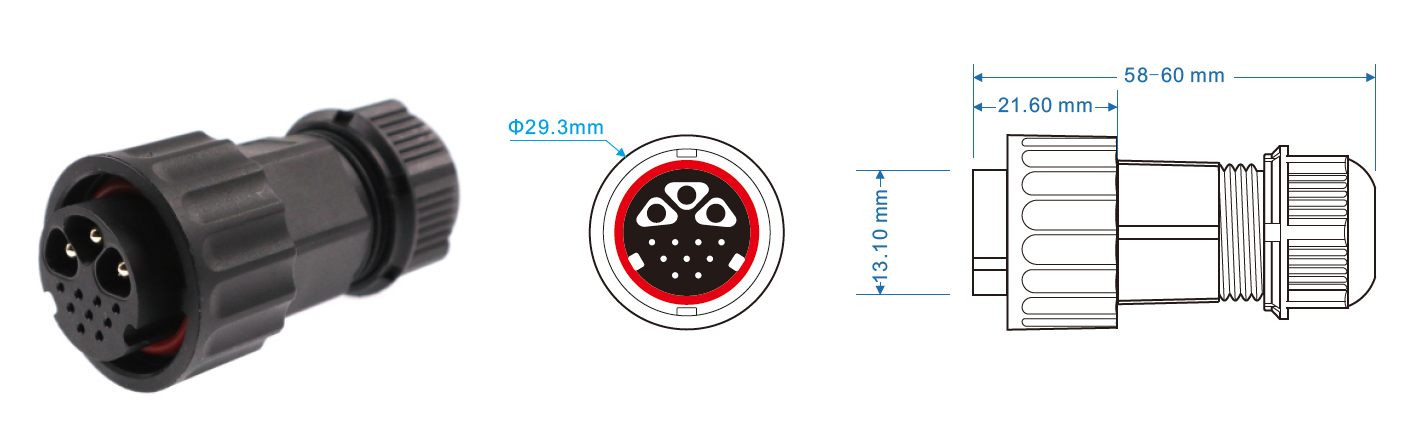

Drawing of M20 Connectors

The M20 panel mount waterproof connector has a larger shell and a higher current range. It is a rugged and durable connector designed for indoor/outdoor IP67 environments. It is designed for bayonet docking and is an ideal choice for any waterproof connection conditions that require quick plug-in.

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP67 Sealing caps are available for both cable connector and panel connector.

FAQ:

What are electrical connectors called?

Electrical connectors generally refer to connecting devices that connect two circuits. There are single-potential and multi-potential connections, as well as different levels of waterproof electrical connectors.
