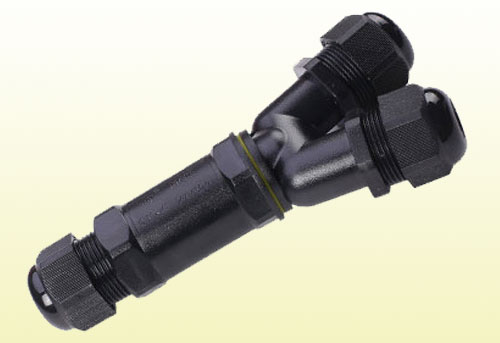

Y Type Waterproof Connector 3 Way Outdoor Wiring IP68 Waterproof

Y Type Waterproof Connector Possesses IP68 waterproof Rating,3-Way Incoming And Outgoing Wires, Wiring Size From 0.5mm² To 4mm², Screw Crimping. It Can Be Adapted To Cables With a Diameter Of 4-14mm.The Ductility Of Branch Wiring In The Same Direction Is More Convenient And Beautiful Than T-type Waterproof Connectors

Brand:
OLINK
Item no.:
OL-M685Y
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
50
Product weight:
98
Shipping port:
Xiamen
Lead Time:
5

Inquiry now

product introduction

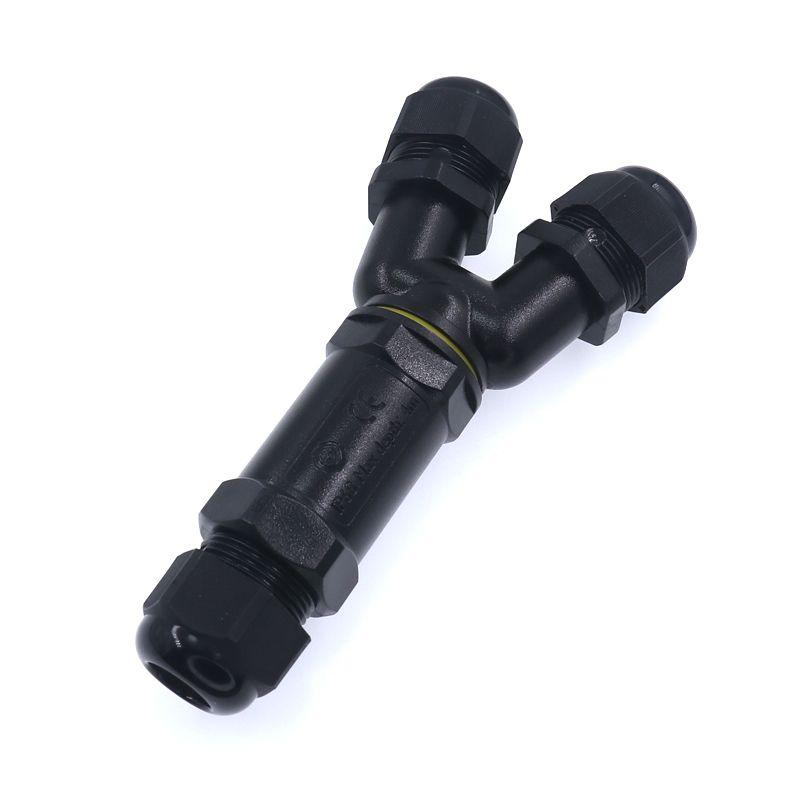

Y Type Waterproof Connector 3 Way Outdoor Wiring IP68 Waterproof

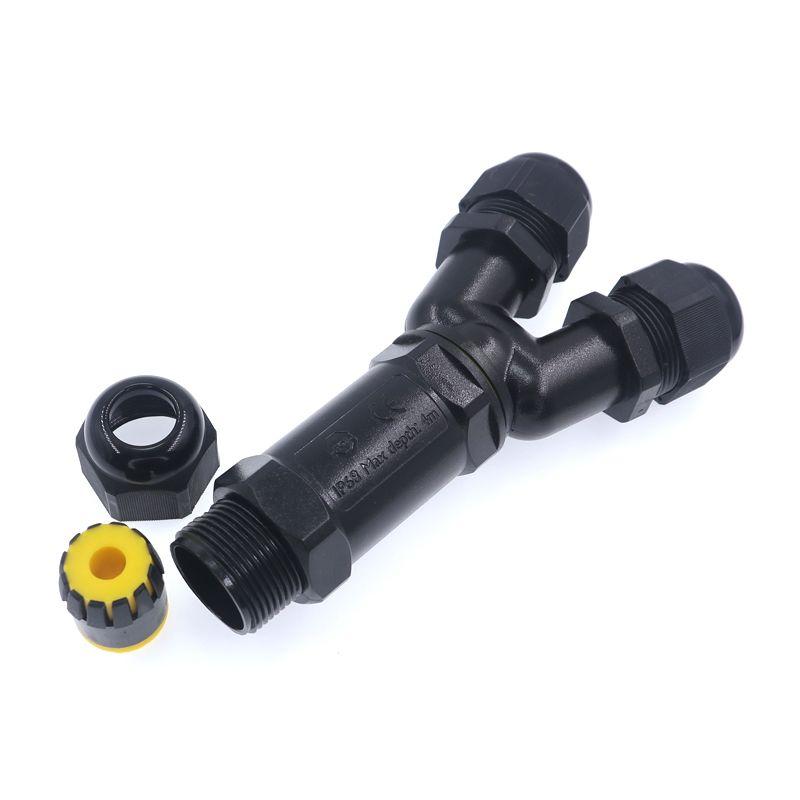

*Y Type Waterproof Connectors

*Wiring range:0.5-4.0mm²

*Available cable diameter:4-8mm, 8-12mm, 10-14mm

*IP68 waterproof level

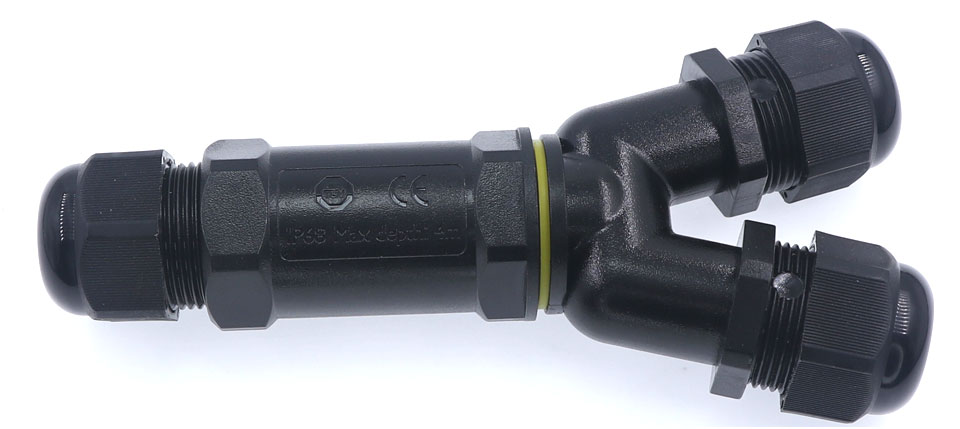

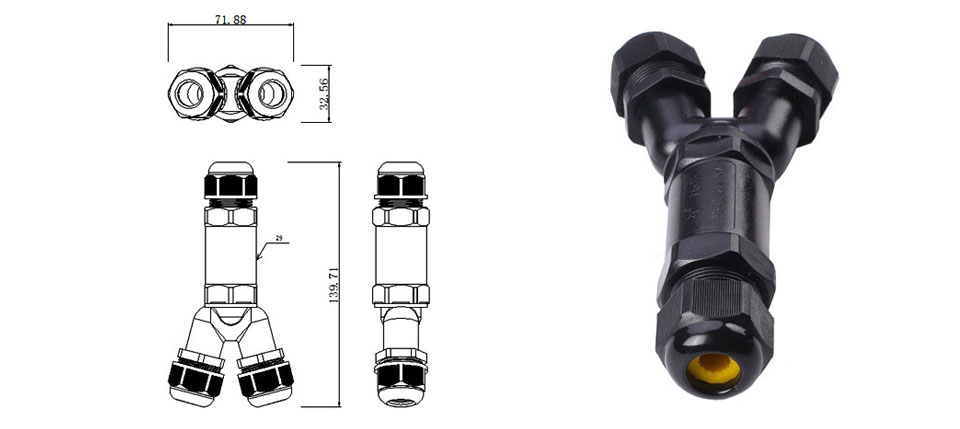

Size Of Y Type Connectors

Y Connectors Product Size Is : 139.7mm*71.88mm*32.56mm, The outer diameter of the main casing is 29mm.

Product Parameter Of Y Connectors
Model	M685Y	Housing Material	Nylon
Contact Material	Brass	Rated Voltage	450V AC
Rated Current	32A	Waterproof Level	IP68
Wiring Core	2P 3P 4P 5P	Wiring Range	0.5-4.0mm2/24-12AWG
Adapter Cable Diameter	4-8mm,8-12mm,10-14mm	Fire-Proof Level	UL94 V-0

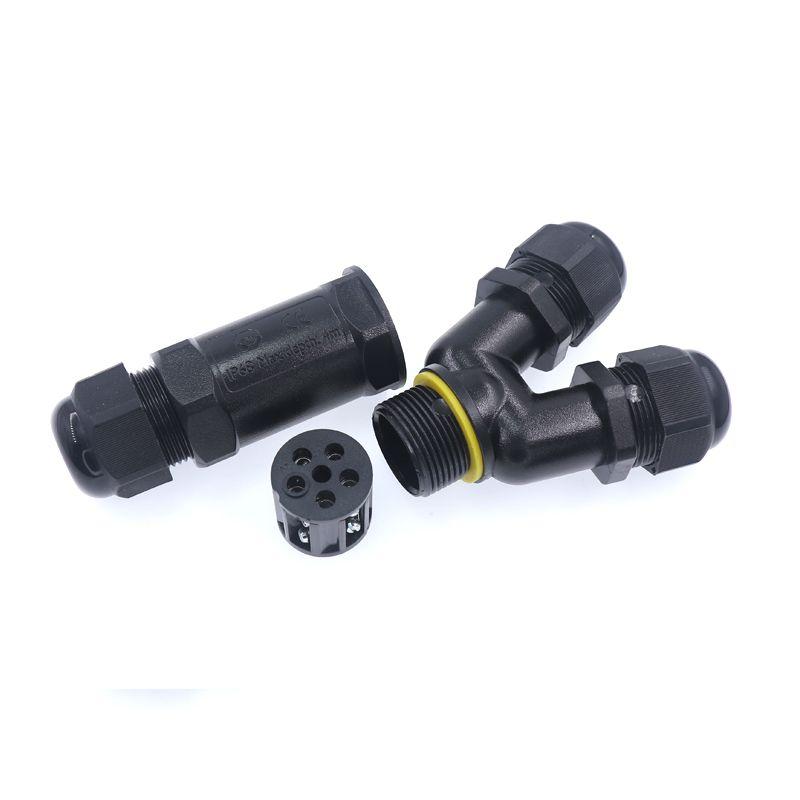

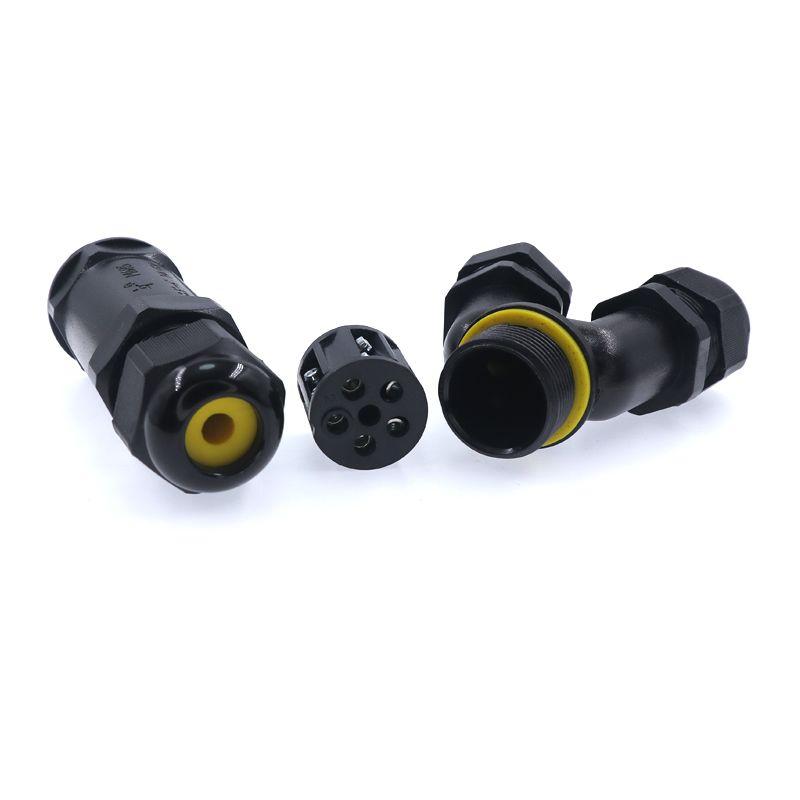

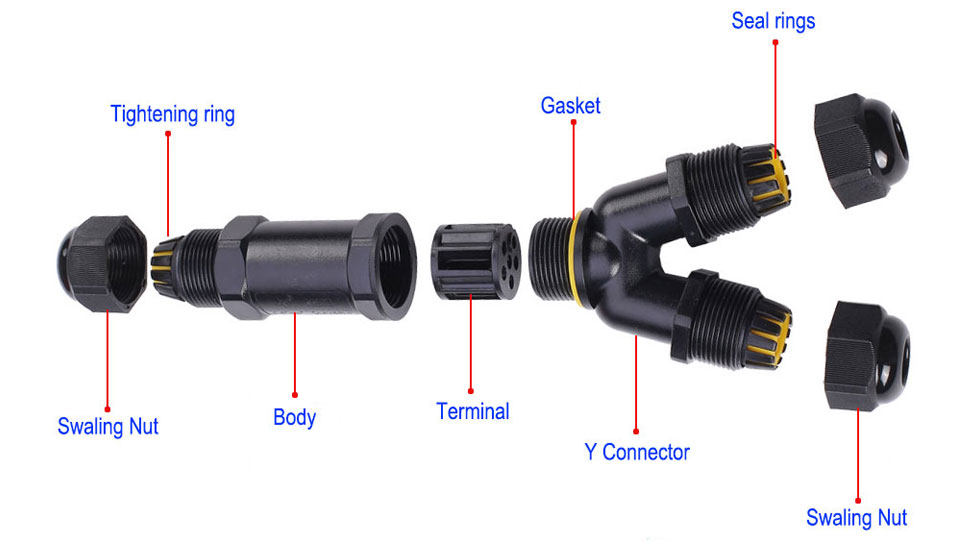

Y Connectors Composition

Product Details of Y Connectors

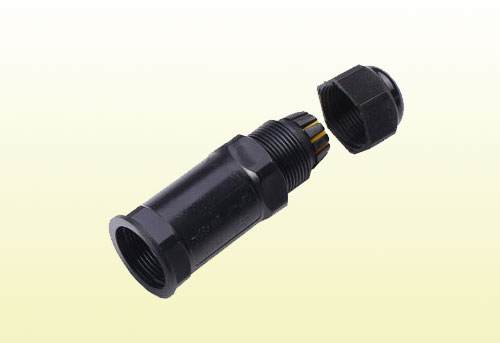

	High waterproof level: IP68 Water depth: 4m; Test time: 72 hours; No water leakage

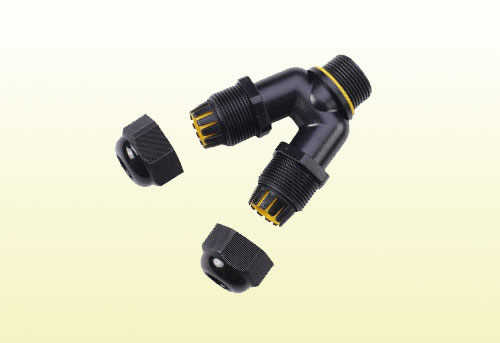

The sealant core has three diameters that can be replaced: 4-8 mm 8-12 mm 10-14 mm

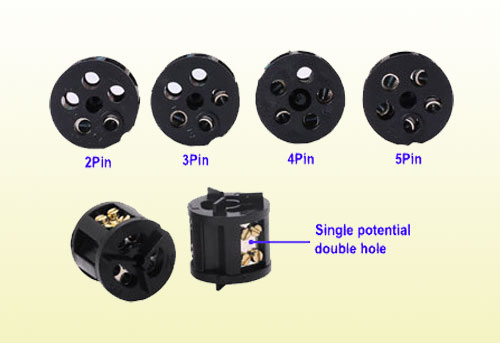

	A variety of wiring inner cores are available: Have 2pin, 3pin, 4pin, 5pin, And there is a single potential double hole position wiring core
shell plastic: Nylon material, fire and high temperature resistance, waterproof rating UL94 V-0

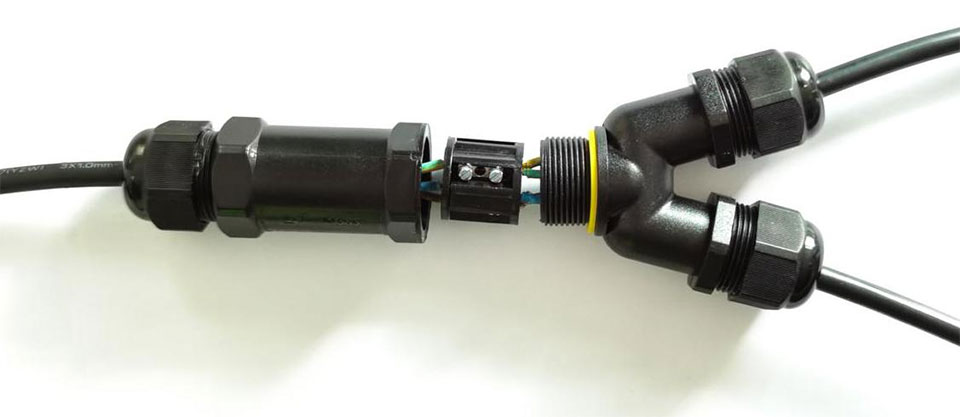

Wiring Style

Y Type Connectors Mainly used in the circuit connection of various outdoor lamps and electrical appliances, such as: outdoor lamps, power supply equipment, connection of construction sites and tunnel lights, etc.

*If you need more information, you can find us through the contact information on the right side of this page.
