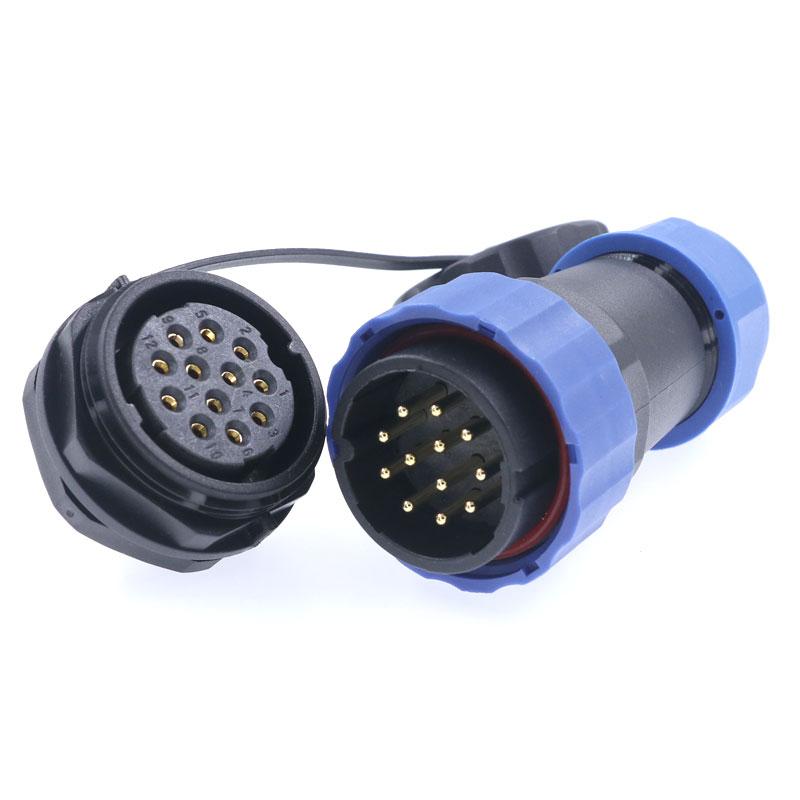

IP67 plastic Waterproof power connector

SD28 waterproof plug connectors is  a large sized plastic shell IP68 waterproof wire connector.The user can attach the wires to the connector by solering & screw.

  • Brand:

    OLINK
  • Item no.:

    SD28
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black&Blue
  • Min order:

    10
  • Product weight:

    2
  • Shipping port:

    Xiamen
  • Lead Time:

    7

  IP67 plastic Waterproof power connector


 Description of SD28 connector

waterproof wire quick connectors is widely used in outdoor and underwater wire connection.

  • Shell diameter (the panel hole cutout diameter): 28mm
  • Number of contacts : 2 - 26 gold plated contacts
  • Rated current and V : 45A-5A , 380V-250V .
  • Cable outer diameter acceptance: type 15-12mm
  • CE , ROHS approval

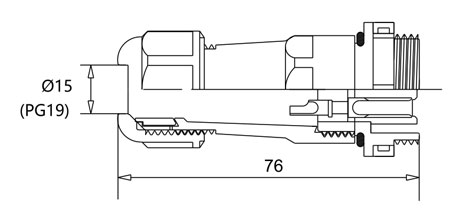

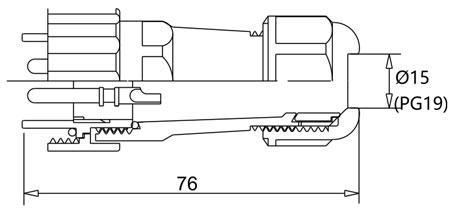

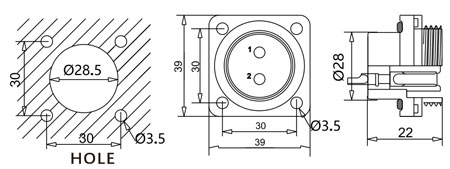

  Drawing of Waterproof solder wire connectors

weipu connectors


 SD28 Connector   SD28 Plu

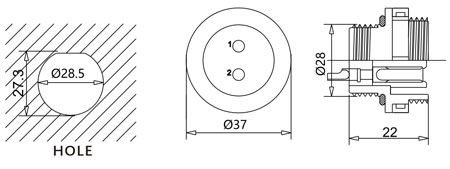

 SD28 Rear mount socket   SD28 Square socket

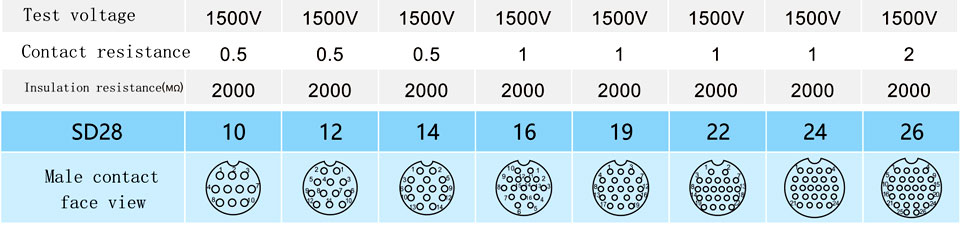

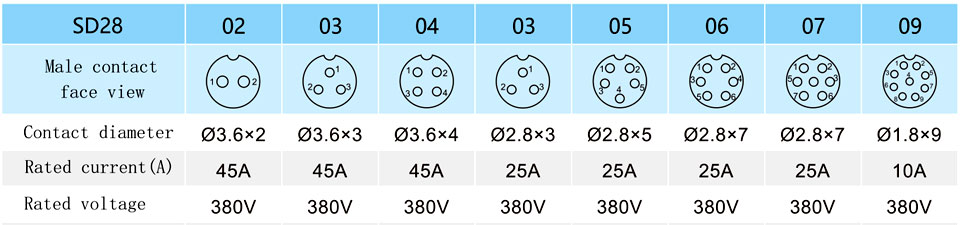

  Pin Arrangement Of SD28 Waterproof Connector

SD28 IP67 wire connector has a larger shell and higher current range, it is a strong and tough connector designed for indoor/outdoor and underwater IP68 environments. It is ideal for any application which needs watertight connection conditions.

The connectors can be used for both cable to cable (in-line) and cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions), the IP68 Sealing caps are available for both cable connector and panel connector.

*If you need more information, you can find customer service through the contact information on the right side of this page.
