Plastic Waterproof Connector

 /CDF-200 Outdoor Power Street Light Landscape IP68 Waterproof Brass Contact 32A 400V Electrical Connector

waterproof cable connector ip68
waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68 waterproof cable connector ip68

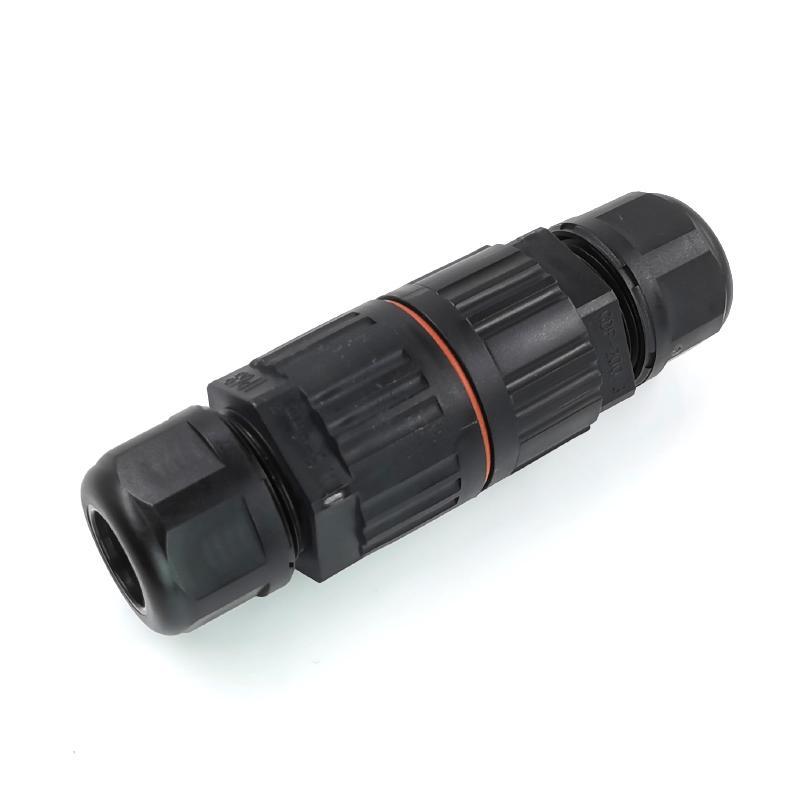

CDF-200 Outdoor Power Street Light Landscape IP68 Waterproof Brass Contact 32A 400V Electrical Connector

OLINK CDF-200 is an IP68 watertight cable connector engineered for outdoor street light and landscape lighting applications, boasting 4m water resistance with dual rubber ring sealing for full dust and moisture protection. It features nickel-plated brass contacts, delivering stable low-loss power transmission with 400V rated voltage and 32A rated current. The round connector offers flexible 2P/3P/5P pin options and screw/lever crimp termination, fitting 0.5-4.0mm²/24-12AWG wires and 4-6/6-8/8-12mm cable OD for diverse wiring needs. Its flame-retardant PA66 nylon housing is anti-corrosion and wear-resistant, adapting to a wide temperature range of -40℃~+95℃. With tool-free rotary nut wiring for easy assembly and upgraded dual-diameter seal structure, it’s CE and RoHS certified, ideal for outdoor power, communication and illumination waterproof wiring scenarios.

  • Item no.:

    CDF-200

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Shipping port:

    Xiamen
Inquiry now

Technical Specifications

Rated Current:
 32A
Rated Voltage:
 400V
Pin Count:
 2P/3P/5P
Contact Material:
 Brass nickel pltaed
Shell Material:
 Nylon PA66
IP Rating:
 IP68
Termination:
 screw/lever crimp
Color:
 Black
wire gague(max):
 0.5mm²-4.0mm²/24-12AWG
Temperature range:
 -40℃ ~ +95℃
Cable OD:
 4-6mm/6-8mm/8-12mm
OEM/ODM:
 YES
Technical Support:
 7*24h Online Service

Product selling points

· IP68 Superior Waterproof: Dual rubber ring sealing, withstands 4m water depth; full protection against moisture/dust for extreme wet environments.

· High Power Capacity: Brass nickel-plated copper alloy contacts; 32A rated current, 400/450V rated voltage for stable low-loss power transmission.

· Wide Cable Compatibility: Fits 0.5-4.0mm²/24-12AWG wires; 3 cable OD ranges (4-6/6-8/8-12mm) for diverse wiring needs.

· Flexible Configuration: 2P/3P/5P pin options; screw/lever crimp termination (2P/3P quick connector optional) for easy operation.

· Durable & Flame-retardant: Flame-retardant nylon housing (smooth burr-free); works in -40℃~+95℃, anti-corrosion for long outdoor service life.

· Easy Tool-free Wiring: Threaded rotary nut design for fast assembly; insert core wire and tighten nut, no professional tools required.

· Upgraded Sealing Design: Dual-diameter seal structure (vs old superimposed ring) for better waterproof and airtight performance.

· Broad Application: Ideal for waterproof wiring in power, network, communication and illumination systems.

· Cost-effective & Fast Delivery: 5-day lead time for 1-5000 sets; tiered bulk pricing; customized packaging available (MOQ 1000 sets).

· Certified & Customizable: CE, RoHS, IP68/IP67 certified; OEM/ODM supported for LOGO, molds and cable harnesses; 7*24h online technical support.

Product details

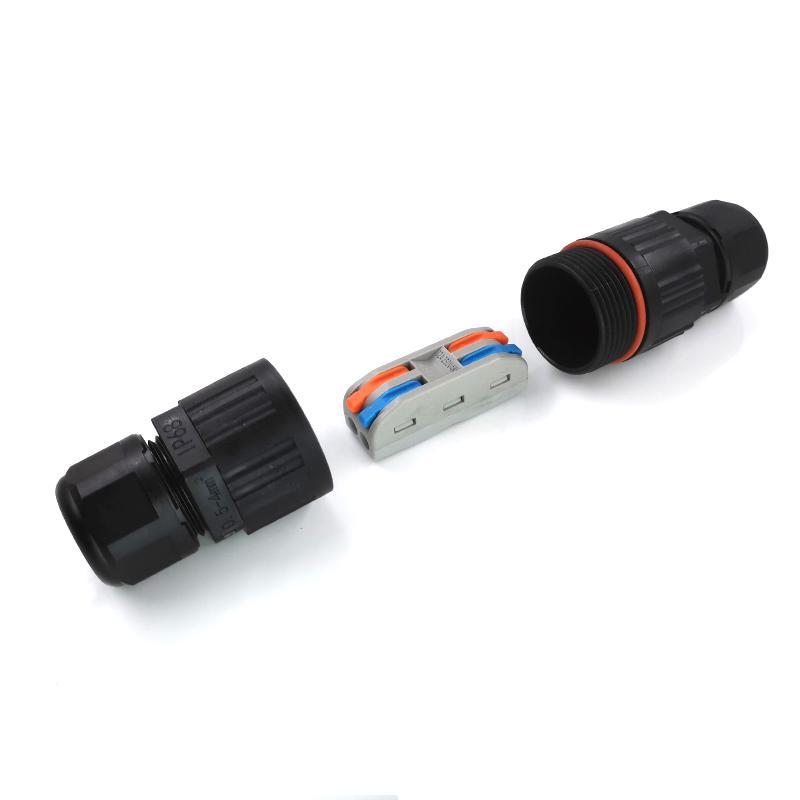

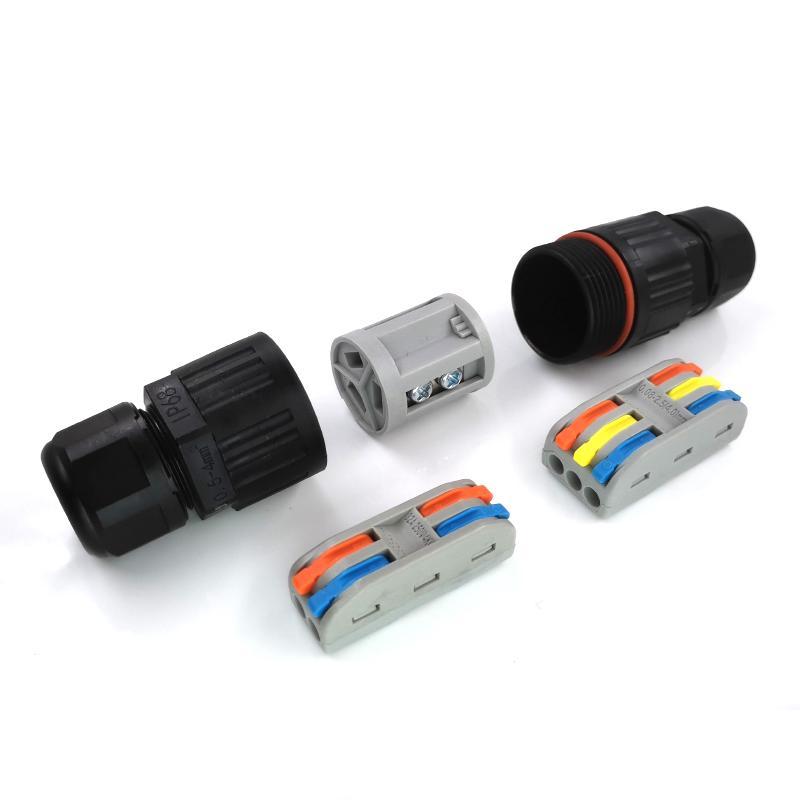

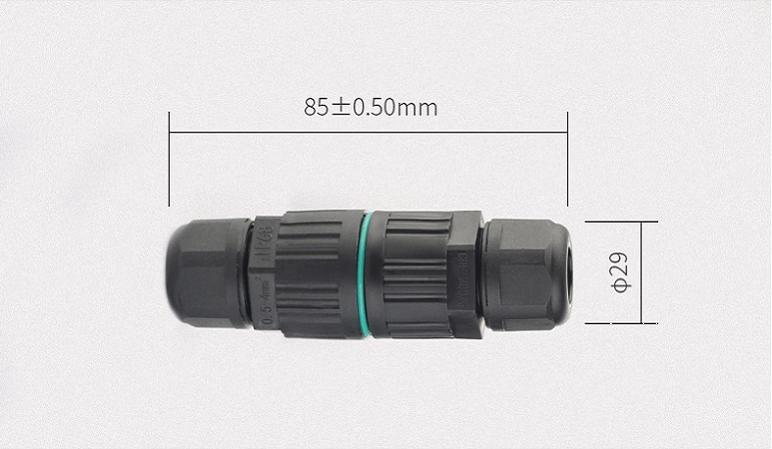

CDF-200 Dimension Drawing, Detail Images, Exploded View and Wiring Method

Application Scenarios

CDF-200 is used in outdoor lighting equipment, outdoor electrical equipment, new energy equipment and automation equipment

Factory Display

All-in-one production and customization factory

Certificate Display

CE / IP67 / IP68 / ISO Certificates
