Large Current 2 In 2 Out Push In 6mm Square Wire Lever Nut Connector KV226B

KV226B series has many poles can be chosen. Lever color can be customized. It can used with 6mm² (10AWG) cable.

Brand:
OLINK
Item no.:
KV226B
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Grey & Orange
Goods stock:
30000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

Large Current 2 In 2 Out Push In 6mm Square Wire Lever Nut Connector KV226B

Features of Push in wire connector

Lever color can be customized
You can choose it with fixing hole or without fixing hole
Multiple specification wiring digits, freely selectable
Insulated flame retardant shell

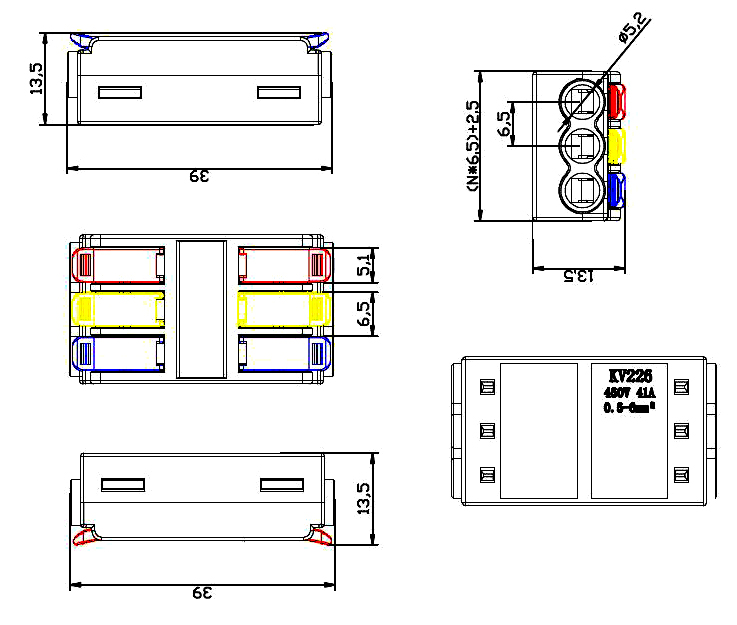

Dimensions

Specification of Quick connection terminal

Product Name:	KV226B-*P
Pole:	2, 3, 4, 5, 6, 8, 10, 12	Strip Length:	10mm
Wire Range:	Solid wire: 0.5-6mm² Strand wire: 0.5-4mm²	Material:	Housing: PC or nylon PA66 Conductor: Brass tin plated Spring: Stainless steel 301
Rated Voltage:	450V/600V	Rated Current:	41A
Application:	Power/Junction box

Wiring style

	Stripping: Strip the wire insulation jacket About 10mm
Open handle: Pull the operating handle to open the cable entry hole
	Wiring: Insert the wire into the hole and close the handle
Complete: Repeat the above operation to connect the wires
	Hole: Fixing screw hole M3 screw Fastening is not losse

More Similar Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
