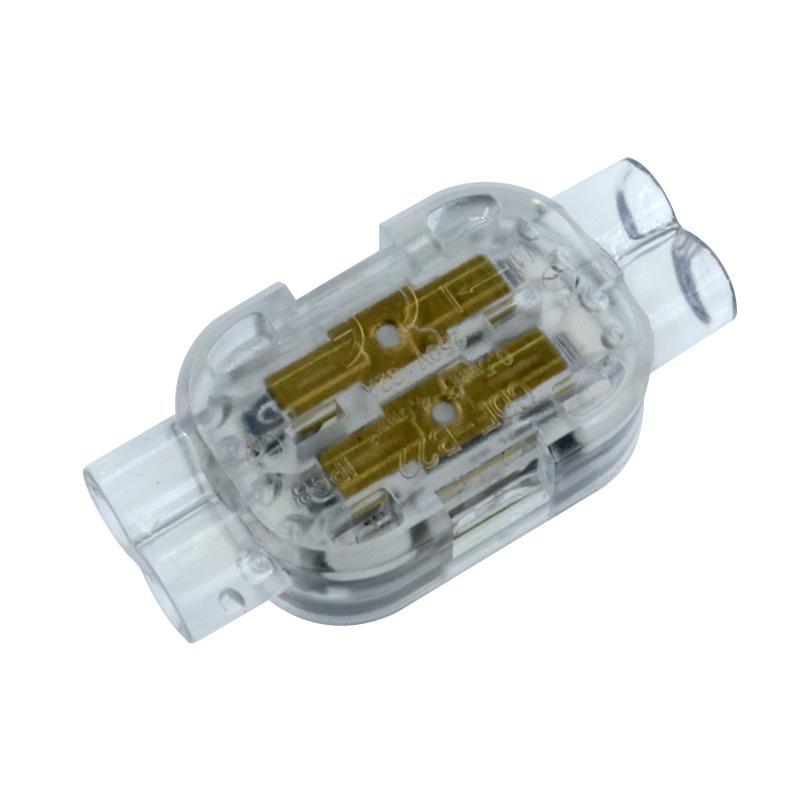

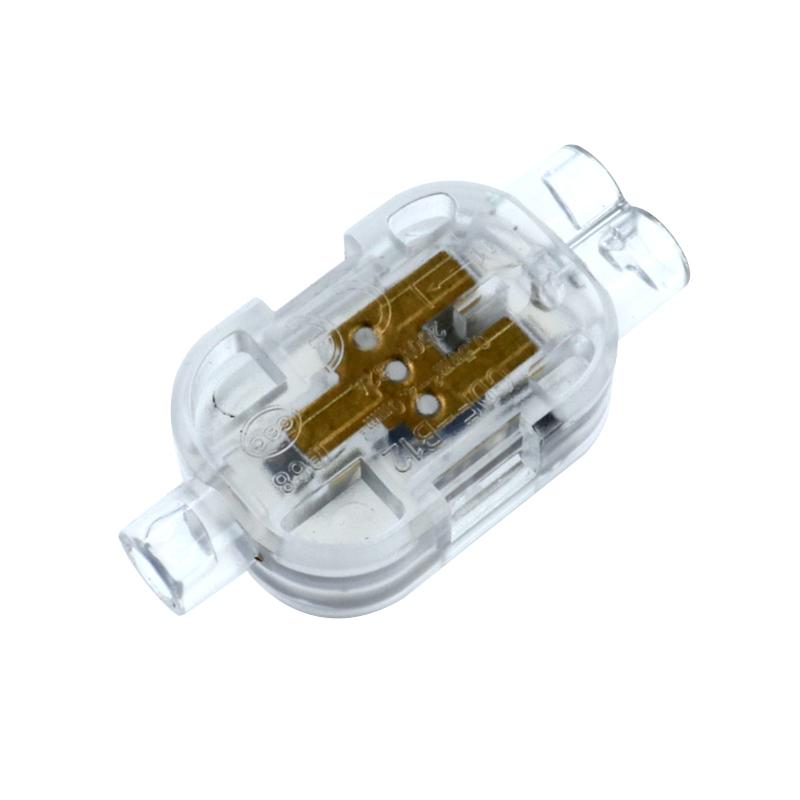

IP68 Glue-filled Waterproof Terminal connector 1 to 2/1 to 3

Gel-filled wire connectors have 1 to 2, 1 to 3, 2 to 2 and 3 to 3 poles. It's widely used in swimming pool, fountain, courtyard and other outdoor scenes.

  • Brand:

    OLINK
  • Item no.:

    CDF-B12/B13/B22/B33
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Transparent
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7


IP68 Glue-filled Waterproof Terminal connector 1 to 2/1 to 3

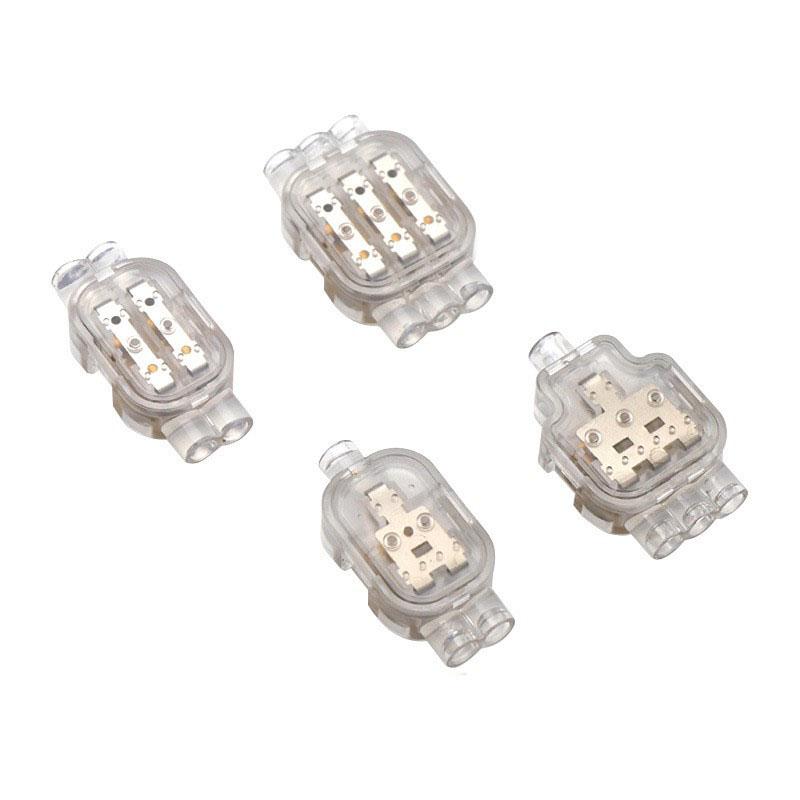

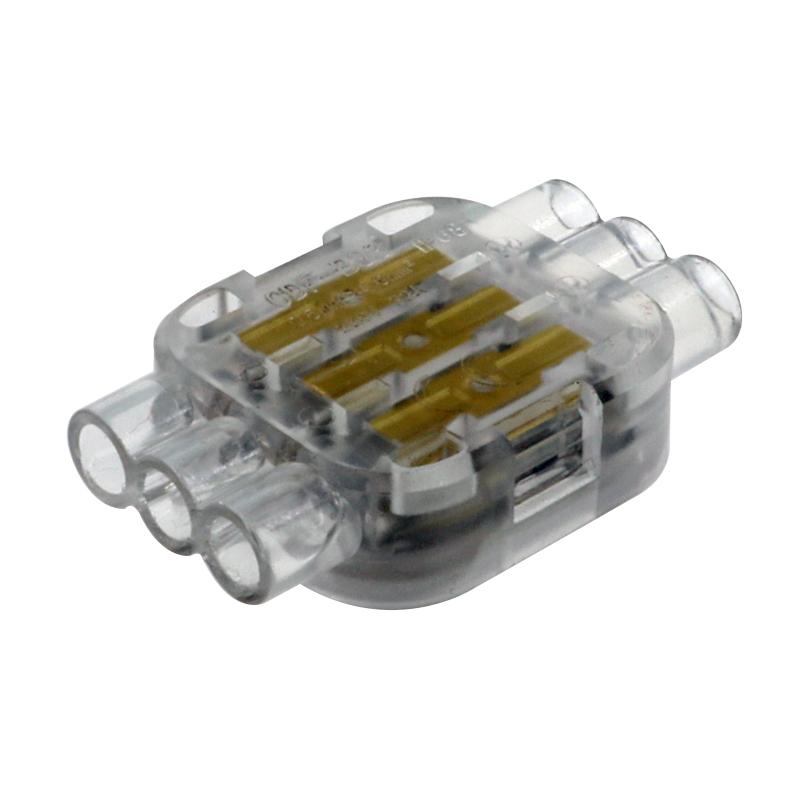

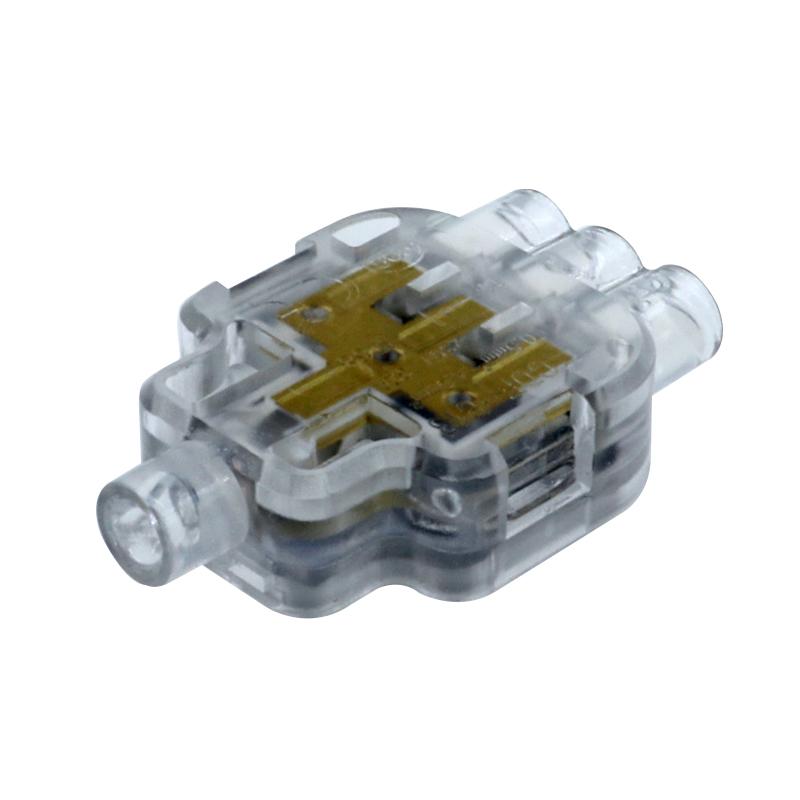

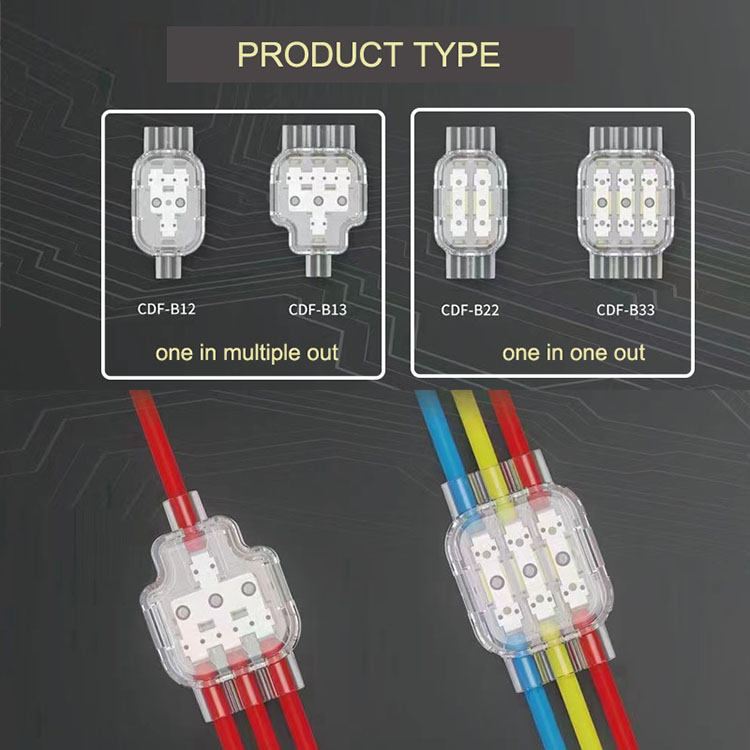

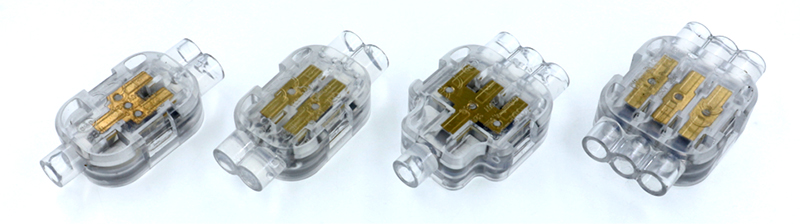

                CDF-B12                 CDF-B22                  CDF-B13                CDF-B33


  Features of Gel filled wire connector

  • Split design at both ends for more free wiring

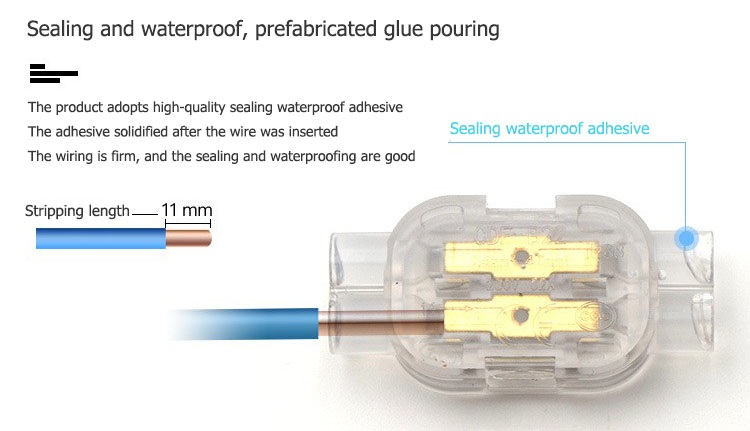

  • Waterproof with glue and good sealing performance

  • Multiple specification wiring digits, freely selectable

  • Insulated flame retardant shell

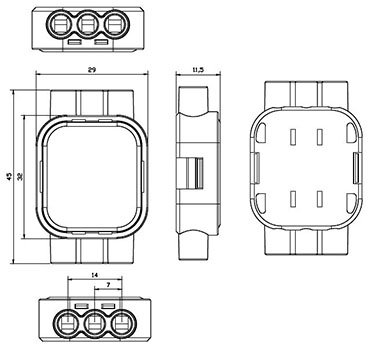

 Dimensions

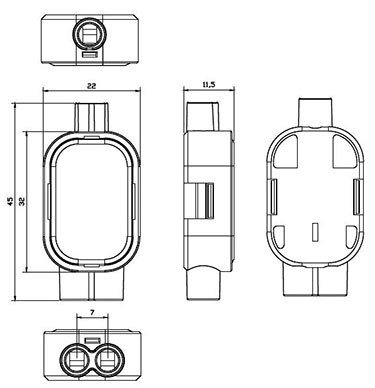

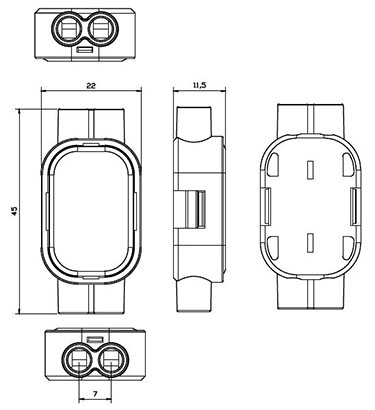

CDF-B12(1 to 2) CDF-B22(2 to 2)

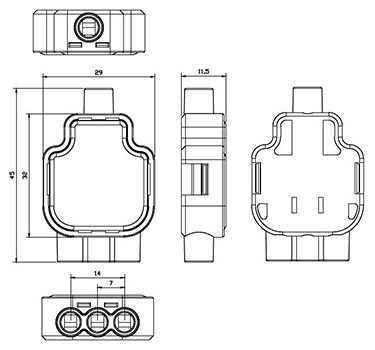

CDF-B13(1 to 3) CDF-B33(3 to 3)


 Specification of Fast connect wire connector

Product Name:
 Glue-filled waterproof terminal
Pole:  1 to 2, 1 to 3, 2 to 2, 3 to 3
Strip Length:

 11mm

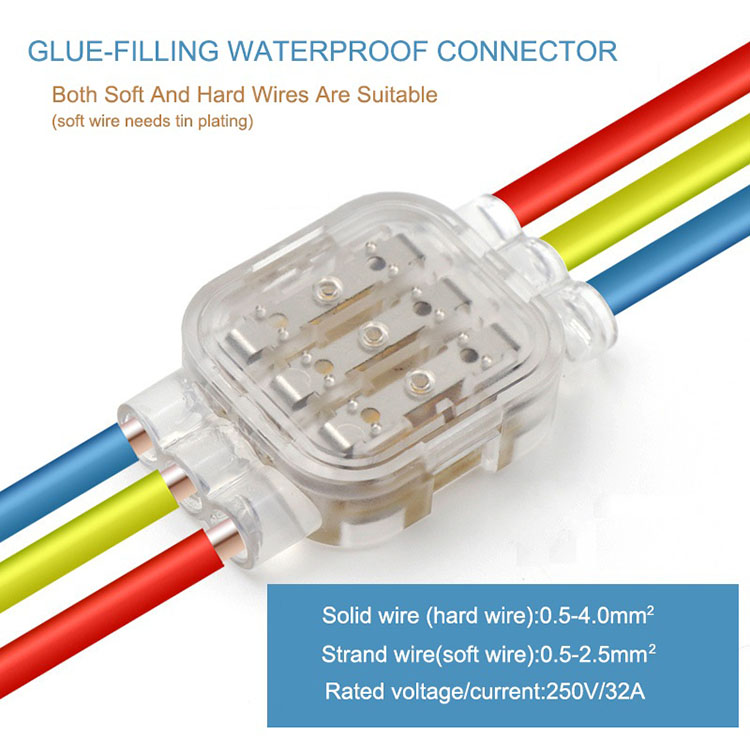

Wire Range:

 Solid wire: 0.5-4mm²

 Strand wire: 0.5-2.5mm² (need tin plating)

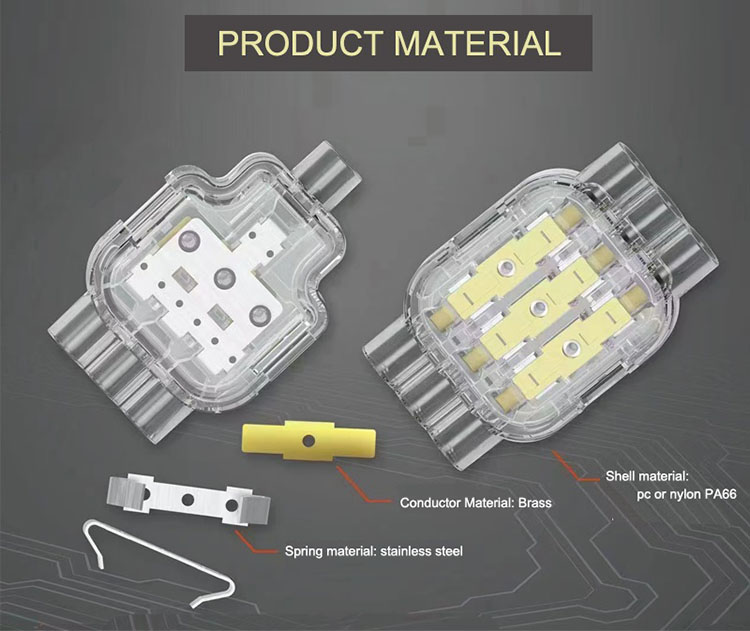

Material:

 Housing: PC or nylon PA66

 Conductor: Brass

 Spring: Stainless steel

Rated Voltage:   250V Rated Current:   32A
        Application:

Swimming pool, fountain, courtyard and other outdoor scenes


 Design

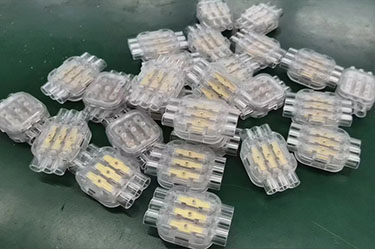

 * Product In Fiels Test

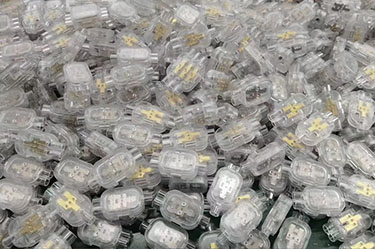

 * The producr is already in mass production

  Application

 Swimming pool, fountain, courtyard and other outdoor scenes


 More Similar Wire Connectors


*For more information, please contact us by email or through any contact information on the webpage.
