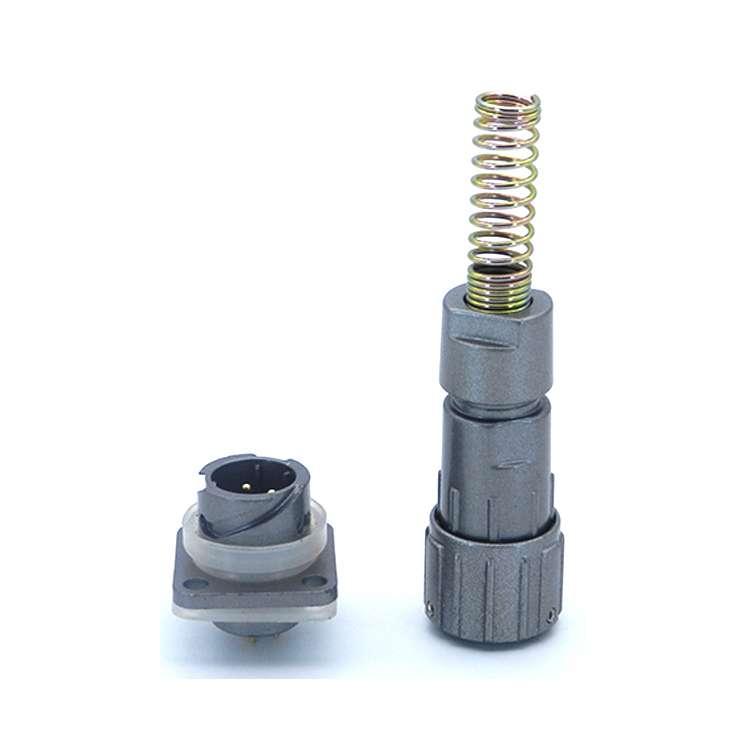

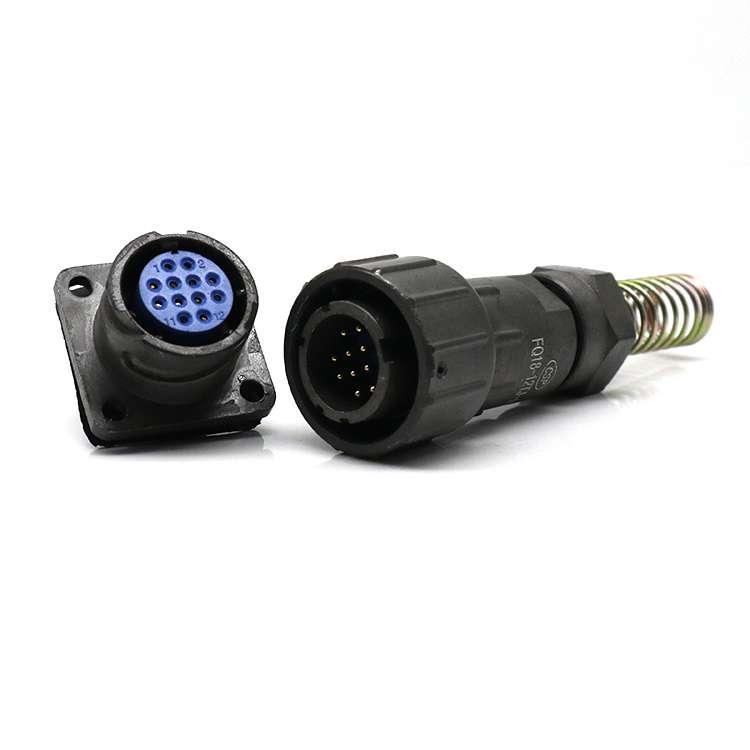

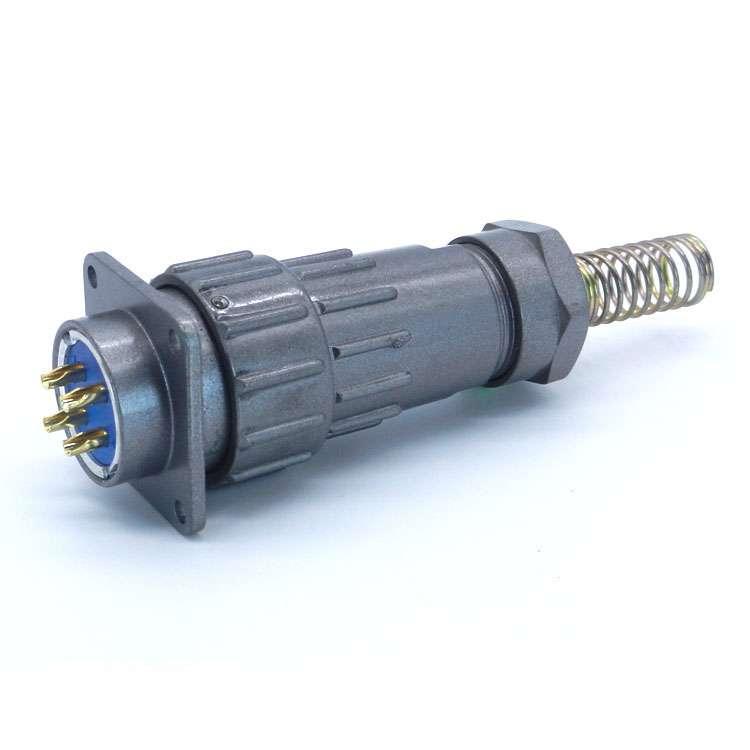

FQ series bayonet type waterproof round connector

FQ military circular connectors are complied with the standards of component industry administration of the Ministry of electronic industry D24Q/RE008-84.

They are widely used in electrical connection between electronic equipment.

  • Brand:

    OLINK
  • Item no.:

    FQ14,FQ18, FQ24,
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray
  • Goods stock:

    7000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

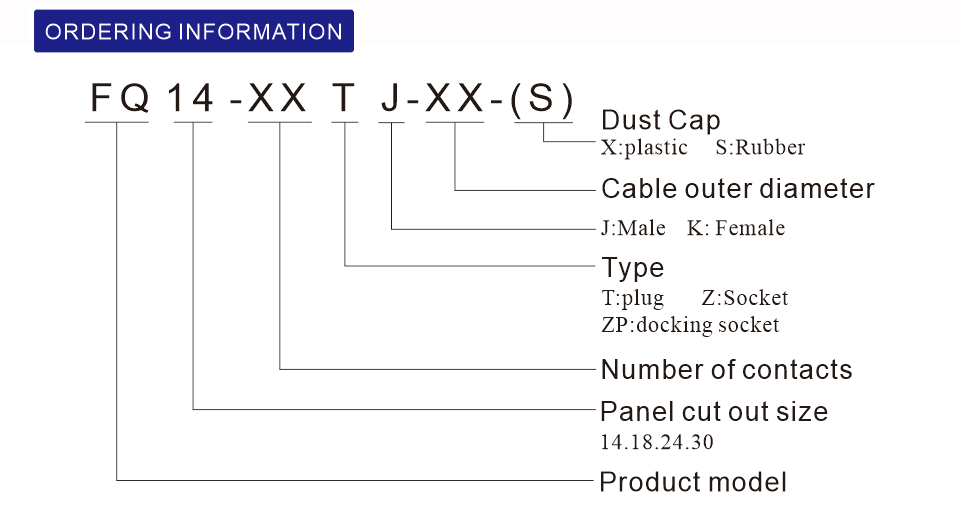

                               FQ series bayonet type waterproof round connector


The socket contact of FQ connector adopts reliable elastic products to replace the traditional Hu coil spring structure
The product has the characteristics of small contact resistance, anti vibration, impact resistance and strong sealing.  their plug and socket are bayonet quick connection, simple to use and convenient to operate.

Working tempereture range:
  -55~100°C
Humidity:
  40℃  98±3%
Vibration:
  20-2000HZ Acceleration150m/
Pressure:
  4.4Kpa
The number of pins:
  2-55p
Shock:
  Acceleration 490m/
Mechanical life:
  500 times
Constant Acceleration:
  Acceleration 245m/


Dimensions of FQ connector


Plug Type D1 D2 L1 L2 Cable aperture
D3 L2 L3

FQ14
Φ21
Φ12.2
21
5.4 Φ5
Φ5
31.5 39.5
Φ6
Φ6
35 60
Φ7
Φ7
35 60
Φ8
Φ8
35 65
FQ18
Φ27
Φ16.6
21
5.4 Φ6
Φ6
38 64
Φ9
Φ9
38 69
Φ10
Φ10
38 69
FQ24
Φ33
Φ22.6
21
5.4 Φ6
Φ6
46 72
Φ10
Φ10
46 77
Φ12
Φ12
46 77
FQ30
Φ39.5
Φ28.6
21
5.4
Φ14
Φ14
51 92.5
Φ16
Φ16
51 92.5

Socket
Type a b D1 D2 D3

FQ14 17±0.2 24 Φ14
Φ12.2
Φ16.8
FQ18 20±0.2 27 Φ18
Φ16.6
Φ21.2
FQ24 26±0.2 33 Φ24
Φ22.6
Φ27
FQ30 31±0.2 38 Φ30
Φ28.6
Φ33.2

Connector Type D3 a b L1 Cable aperture
L2

FQ14
17.8
17
27
21
Φ5
31.5
Φ6
35
Φ7
35
Φ8
35
FQ18
21.2
22
27
21
Φ6
38
Φ9
38
Φ10
38
FQ24
27.2
26
33
21
Φ6
46
Φ10
46
Φ12
46
FQ30
33.2
31
38
21
Φ14
51
Φ16
51

The Hole Place Srranges of Waterproof circular connectors




*For more information, please contact us by email or through any contact information on the webpage.
