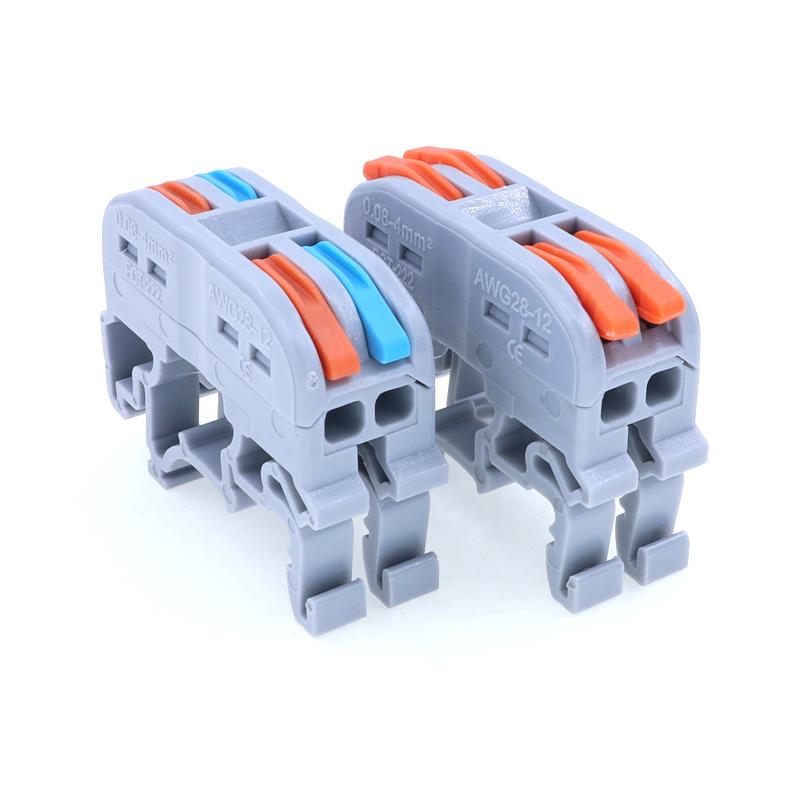

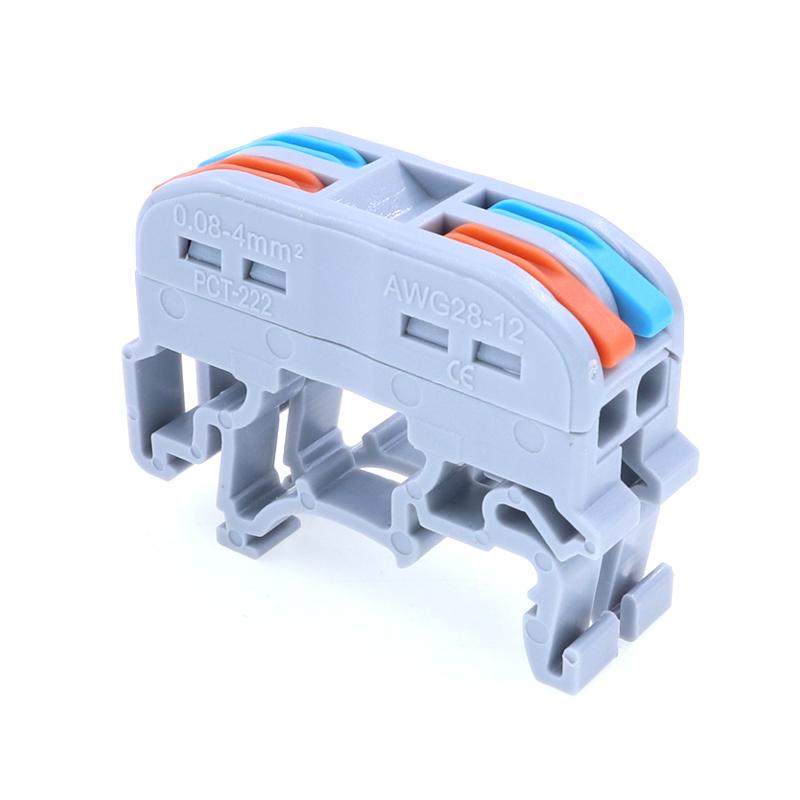

Female Spring Lever Connectors Rail Type

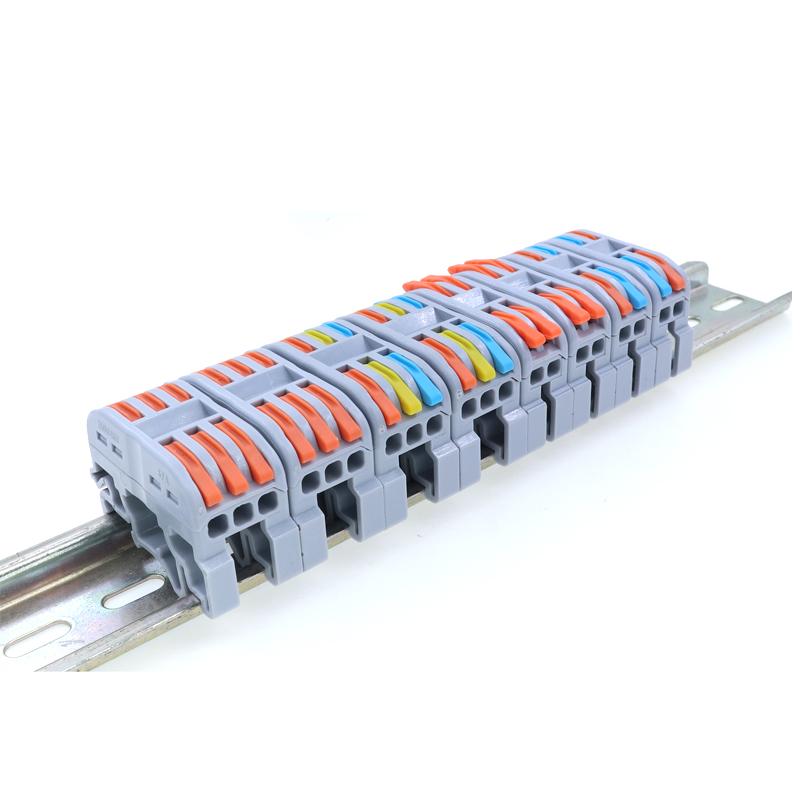

Din rail connector: screwless design. There are 2 to 2P, 3 to 3P and 4 to 4P. Lever color can be customized.

Brand:
OLINK
Item no.:
PCT-222D/223D/224D
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Gray/Black
Goods stock:
500000
Min order:
100
Shipping port:
Xiamen, Ningbo,shenzhen,shanghai
Lead Time:
7

Inquiry now

product introduction

Rail type lever quick wiring 3 port push in wire connectors

Features of din rail connectors

Use standard 3.5mm (1.38 inch) width guide rail
Handle color can be customized
Quick connection, multiple poles available

Specifications:

Product Name:	wire to wire connectors	Product model:	PCT-222D/223D/224D
Wiring method:	Insert Crimp	Wire type:	Hard/Flexible wire
Strip length:	9-10mm/0.39in	Cross section:	0.08 - 2.5(4.0) mm²
Voltage:	250V	Rated Current:	32A
Shell material:	nylon PA	Conductive material:	Copper Nickel plated/Tinned
Spring:	301 steel	Application:	Controller/electric power

Dimensions and models:


PCT-223D	PCT-223D-C	PCT-223D-B

Application of din rail connector

Electrical cabinet junction box
Power equipment wiring device
There are circuits that require fast wire connections
