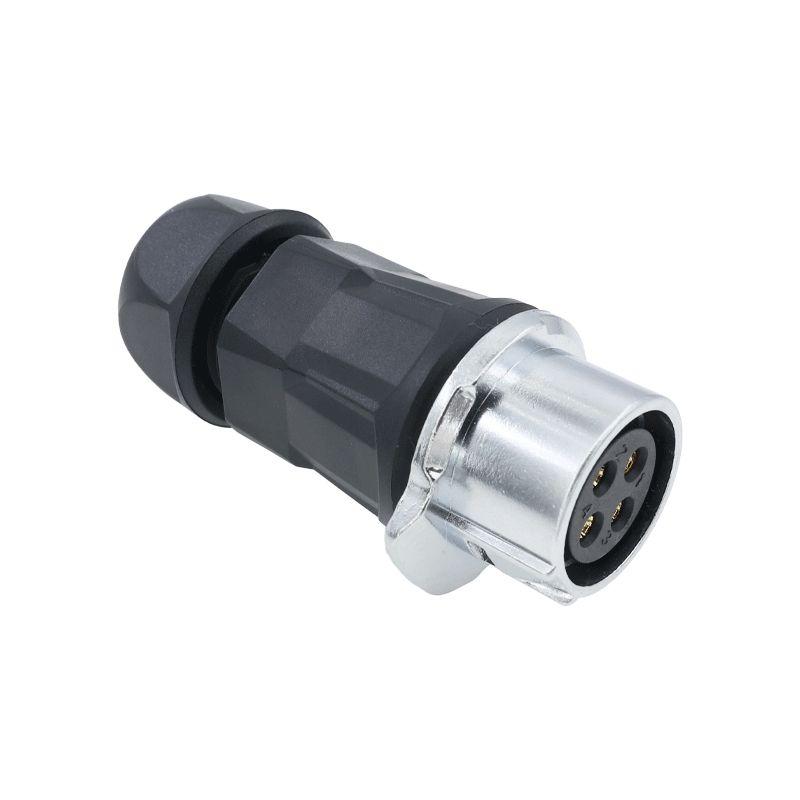

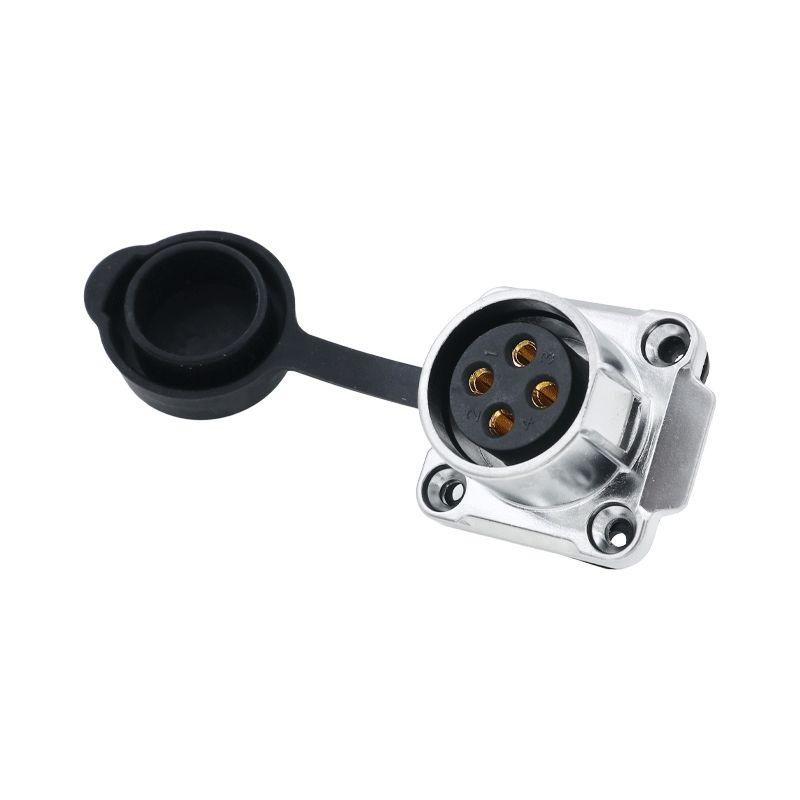

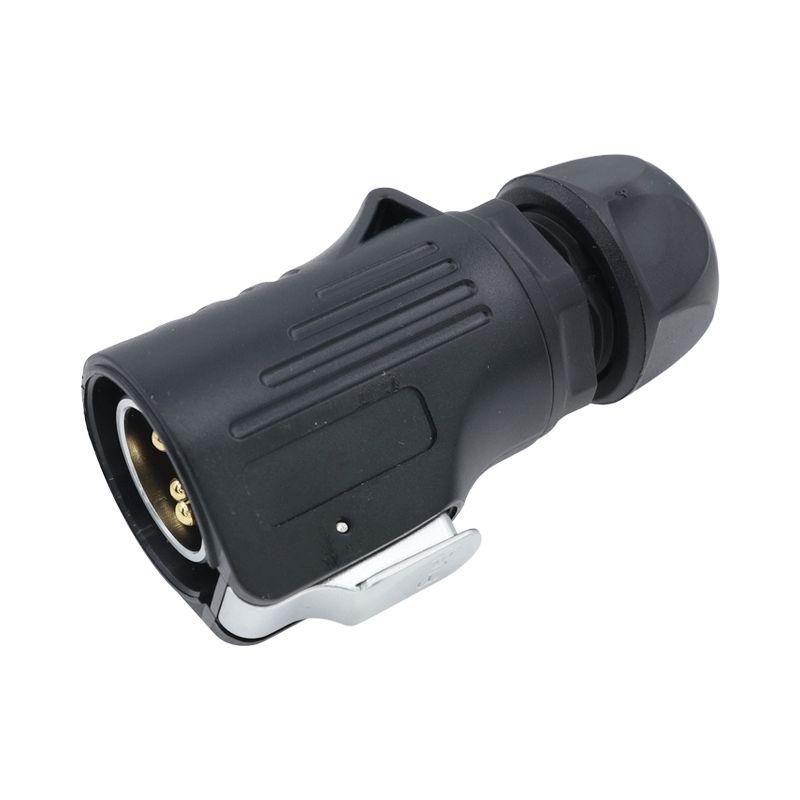

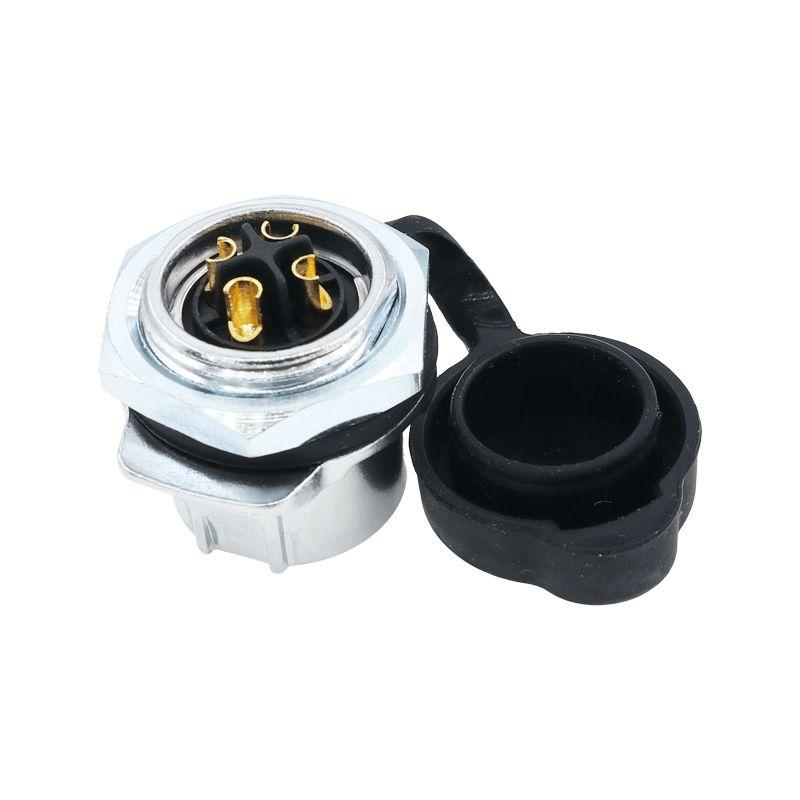

Fast Locking Electrical Connectors No Welding Needed 2P 3P 4P 5P 7P 9P 12P Pins Connecting Plugs

FP20 series there are many poles can choose. Widely used in power and signal.

  • Brand:

    OLINK
  • Item no.:

    FP20
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

Waterproof Aviation Plug Connector Multi-poles Signal 2 Pin Plastic Connector LP20



Description of IP67 waterproof connector


Model:    FP20 Type:    waterproof connector
Cable OD:    Φ8-Φ12mm/Φ5.5-Φ7mm
Rated current/voltage:

  2-4P: 20A 500V

  5P, 7P: 12A 500V

  9P, 12P: 5A 400V

Wire range:

  2-4P: 14-12 AWG (2.5-4.0mm²)

  5P, 7P: 18-16 awg (2.5-4.0mm²)

  9P, 12P: 26-24 AWG (2.5-4.0mm²)

Material:

  Housing: High-prefermance engineering    plastic

  Hardware: Zinc Alloy(pearl hard chrome)

  Copper pin: Copper alloy(gold-plated)

  Waterproof circle: Silica gel

IP level:    IP65/IP68 Connection:    Plug/unplug
Assembly wire:    Pressure & solder Temperature:    -40℃~80℃
Durability:    ≥500 times Flammability:    UL94-V0

Drawings:



Sealing Rings For Two Cable Diameters:
 I: 8-12mm     II: 5-7mm

Product structure



Product feature






Customize cable



Plug with cable Socket with single electronic wire


*For more information, please contact us by email or through any contact information on the webpage.
