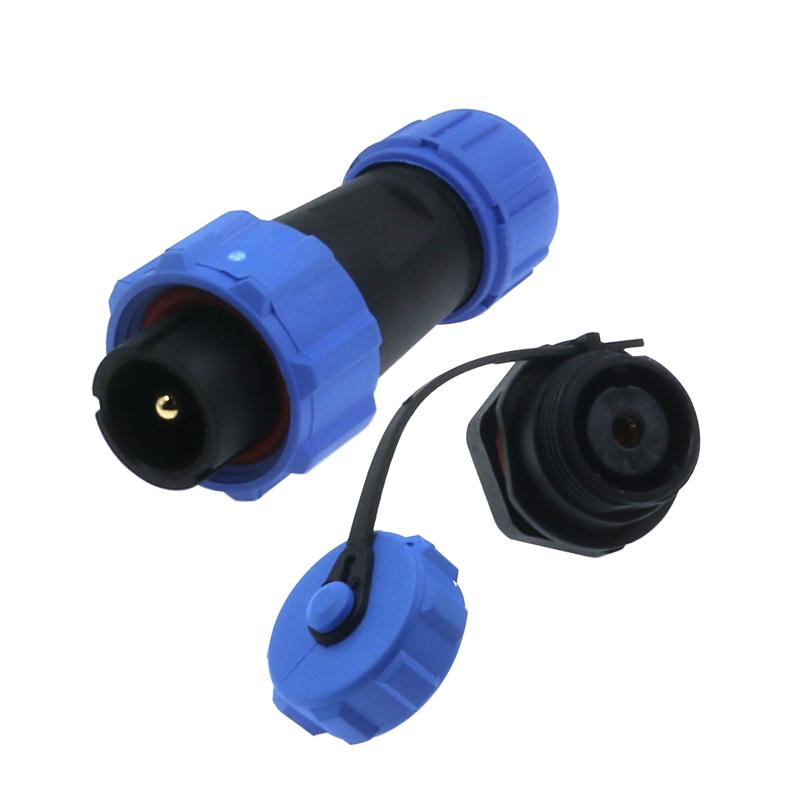

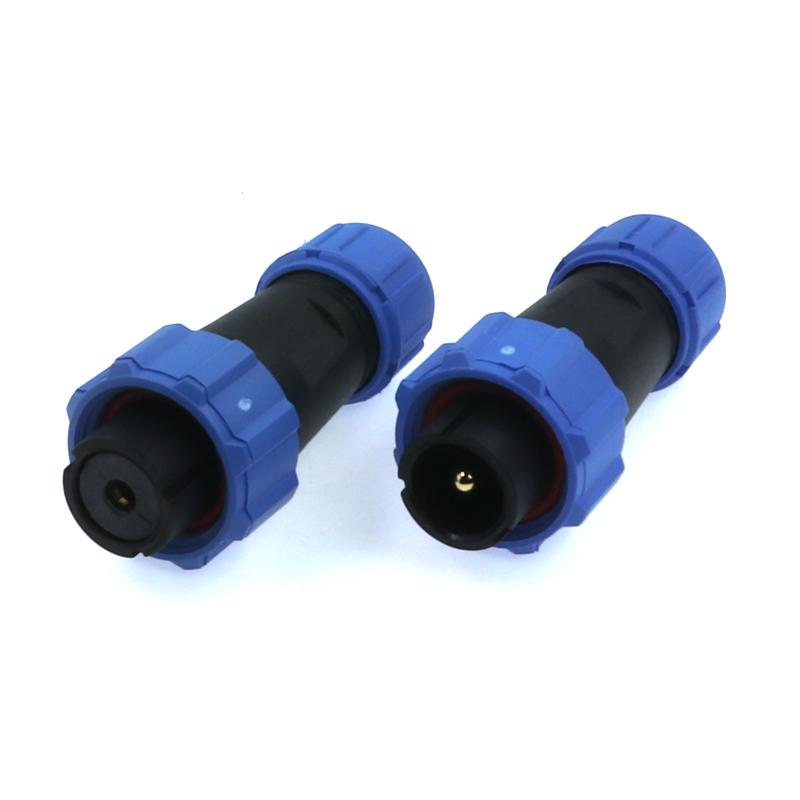

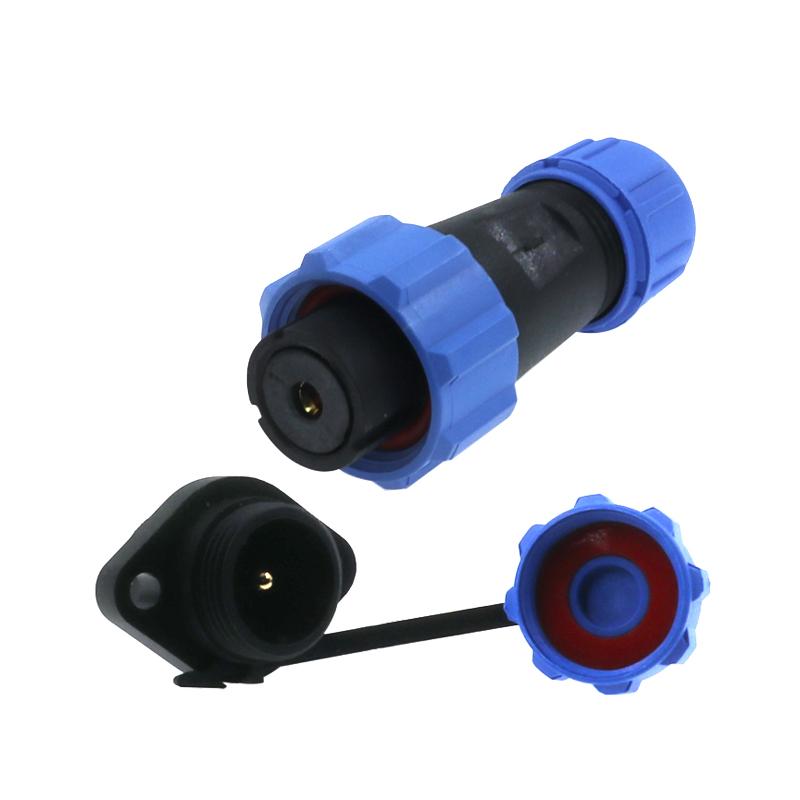

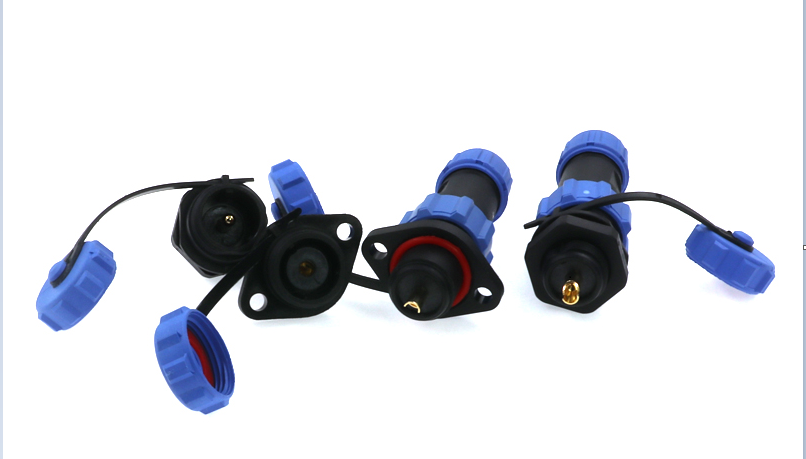

OL13 IP68 Waterproof RV Cable Aviation Connector 1Pin 250V Male Female Gold Plated Contacts

OL13 IP68 Waterproof Electrical Connector is a high-performance round adapter connector engineered for reliable power transmission in harsh environments, boasting IP68 waterproof rating and UL94-V0 flammability grade for uncompromising safety and durability. Crafted with corrosion-resistant nylon housing and brass gold-plated contacts, it delivers stable conductivity with a rated current of 3A-25A and rated voltage of 125-400AC.V, perfectly suited for power inverter boxes, battery conversion and various industrial power supply setups.

Available in 1-9P pins and 1-7 cores with blue/black color options, this male/female connector fits cable outer diameters of 4mm-8mm (max 14AWG) and features dual seal ring designs (flat sealing ring/ordinary O-ring seal) plus high-performance PPS MAX insulation material for enhanced moisture and dust resistance. Fully customizable with support for drawing-based, sample-based and full customization of cables and wiring harness terminals, it meets diverse application needs. Backed by 7*24h online technical support and flexible OEM/ODM services, this China-made connector offers fast lead times (7 days for 1-1000 sets) and reliable performance for global industrial power connection demands.

Item no.:
OL13
Payment:
Wire transfer, Paypal, Western Union, Alipay

Inquiry now

product introduction

Technical Specifications

Rated Current:	3A-25A
Rated Voltage:	250V
Pin Count:	1P-9P
Contact Material:	Brass With Gold Plating
Shell Material:	Nylon
IP Rating:	IP67/IP68
Flame Retardant Grade:	UL94-V0
Color:	Blue/Black
Insulation Material:	PPS Max
Application Scenario:	Power inverter box/Battery conversion
Seal Ring:	flat sealing ring/Ordinary o-ring seal
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· Super IP68 Waterproof Rating: Excellent sealing performance, protects against moisture infiltration for wet/outdoor use, IP67 compatible.

· High-performance Conductivity: Brass contacts with gold plating (1.5-3u); 3A-25A rated current, 250V rated voltage, stable power transmission.

· Durable High-quality Materials: Nylon housing, PA66 fire-resistant back shell (V-0), PPS insulation (max 260℃); >500 mating cycles, 2000MΩ insulation resistance.

· Flexible Configuration: 1-9 pin options, 2 cable OD ranges (4-6.5mm/5-8mm); solder/screw termination, threaded coupling, 2 docking methods available.

· Complete Standard Accessories: Comes with dust cover, rubber ring and two types of sealing rings (random delivery); no extra purchase needed.

· Broad Application: Ideal for power supply connections (inverter/battery converter) and outdoor electronics (billboards, street lamps).

· Certified & Reliable: CE, IP68/IP67, ZRC certified; works in -25℃~+85℃, suitable for harsh environments.

· Customizable Solutions: OEM/ODM supported; all-black shell and cable harness customization available for diverse demands.

· Efficient Service & Cost-effective: 7*24h online technical support; 7-day lead time for 1-100 sets; tiered pricing for bulk orders with factory-direct supply.

Product details

OL13 Connector Exploded View

OL13 Connector Details

Application Scenarios

OL13 Connector Applications

Full OL Series Plastic Waterproof Connectors

Full Range of Waterproof Connectors Display

Factory Display

All-in-one production and customization factory

Certificate Display

CE / IP67 / IP68 / ISO Certificates
