Overview

Quick Details

Model Number:

F3C series

Type:

Inductive Proximity Sensor

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

position sensor, Position Sensor

Theory:

Inductive sensor, Inductance Sensor

Output:

NPN or PNP, Switching Transducer

Description:

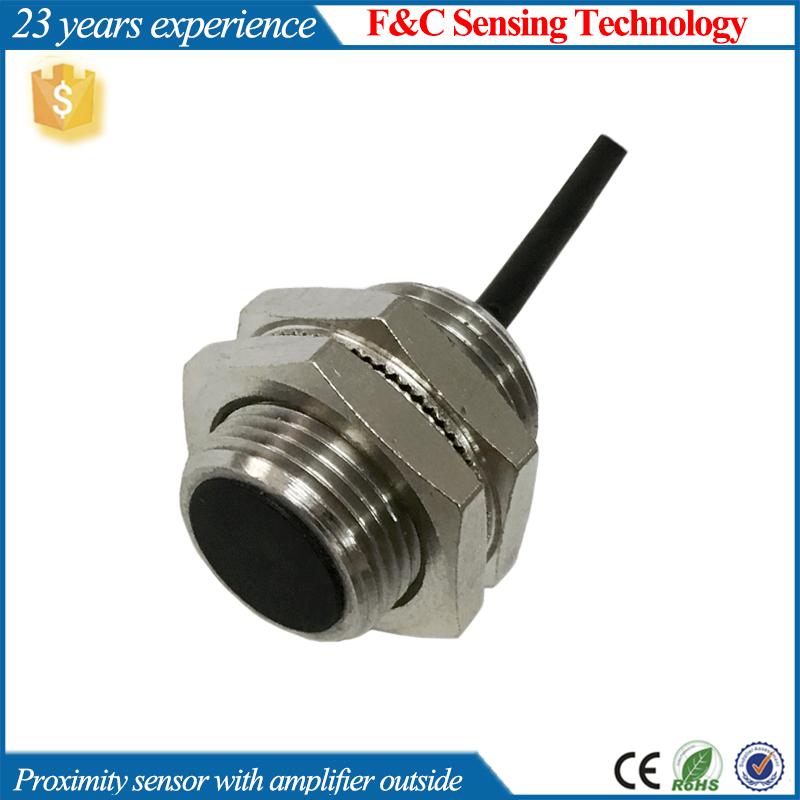

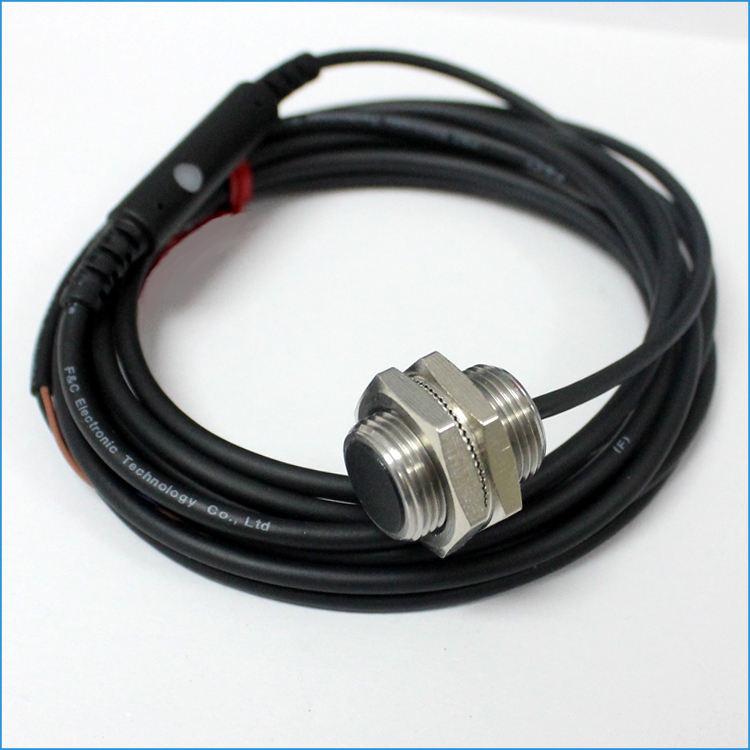

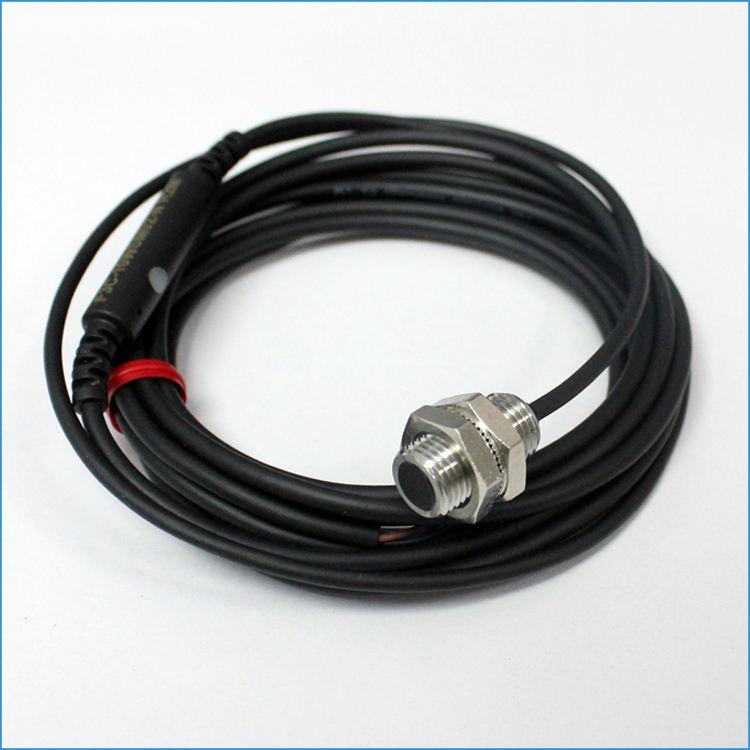

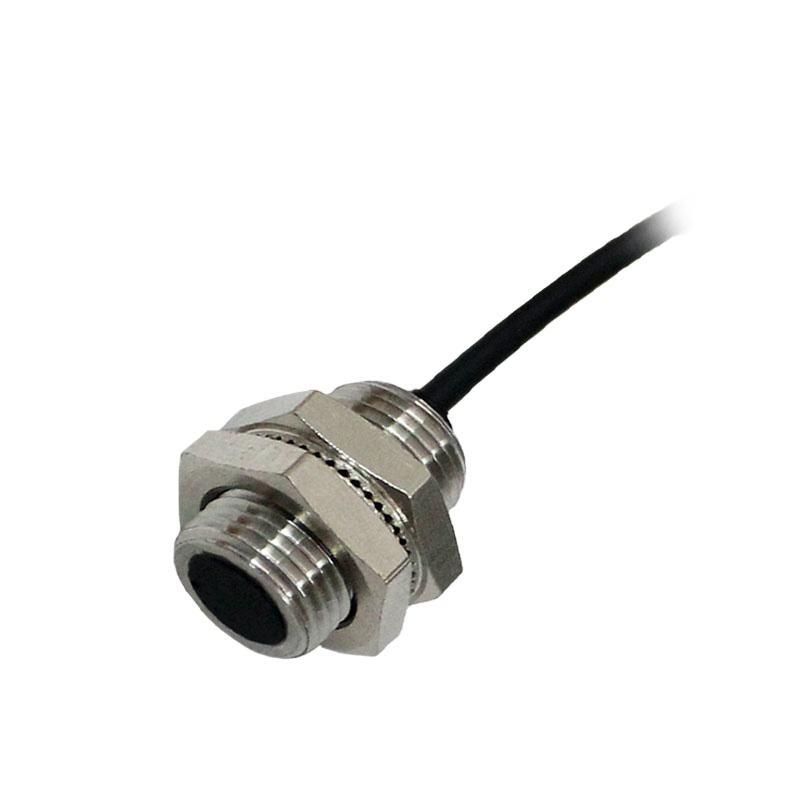

Inductive proximity sensor

	F3C-14WSM04-N R2M	NPN.NO	▆▆▆ 4mm	14×14×1(iron)
	F3C-14WSM04-N2 R2M	NPN.NC
	F3C-14WSM04-P R2M	PNP.NO
	F3C-14WSM04-P2 R2M	PNP.NC

Part Number:   F3C-14WSM04-N    R2M       NPN.NO F3C-14WSM04-N2  R2M       NPN.NC F3C-14WSM04-P    R2M       PNP.NO F3C-14WSM04-P2  R2M       PNP.NC   Can be offered 150mm cable with a male connector type

Models F3C-14WSM04 Series Standard sensing object metal Response friquency DC:600Hz Hysteresis within 1O% sensing distance Operating voltage DC:12~24VDC±10% Current consumption DC:<8mA No—Load Load currents DC:30V 200mA Max Leakage currents DC:≤1.1mA no-Load Residual votage DC:≤1.5VDC No-load Operating temperature -20°C~+70°C Material ABS and SUS304 Wiring method φ3×2M/3-wires Protection degree IP66
