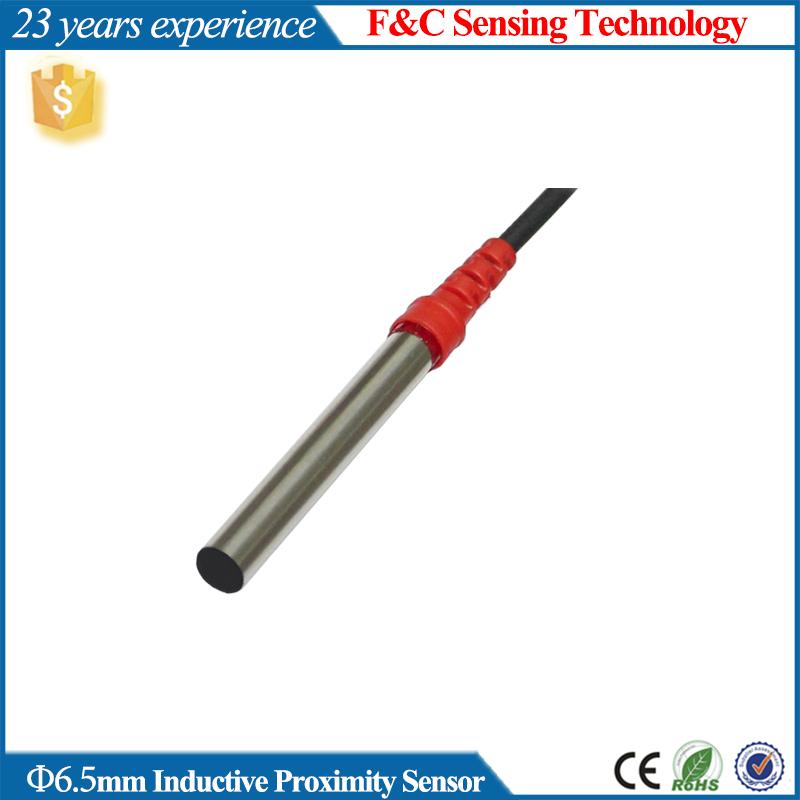

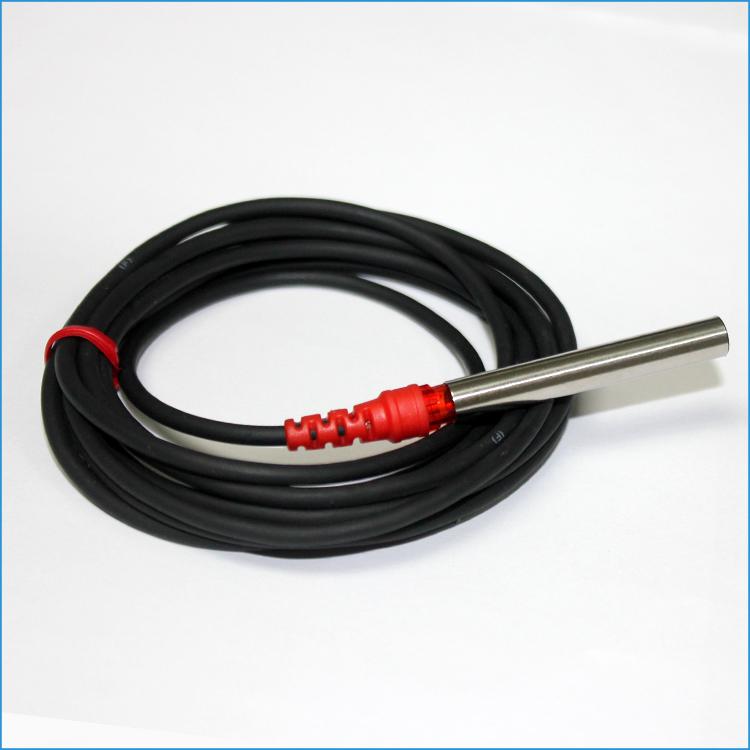

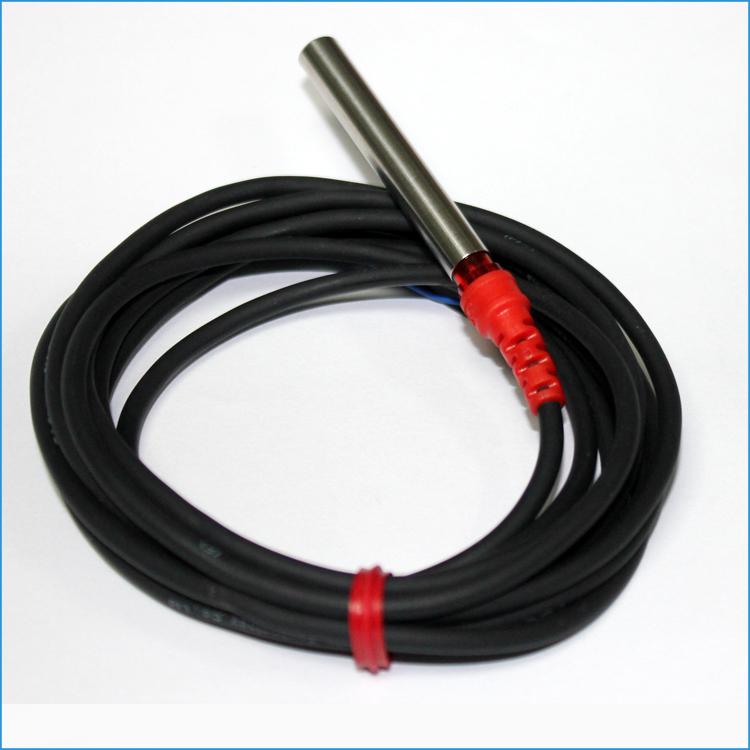

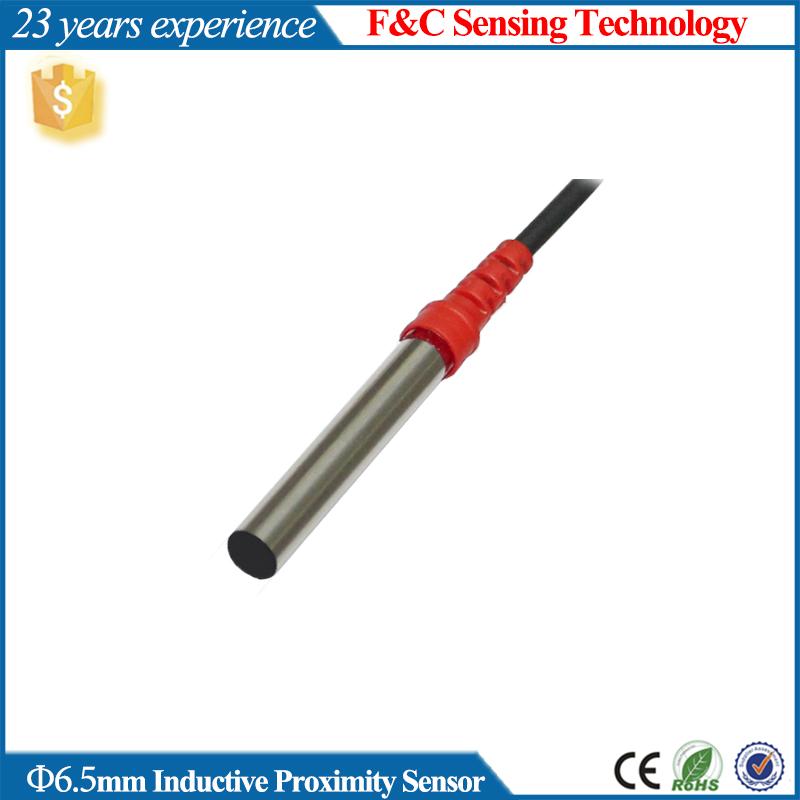

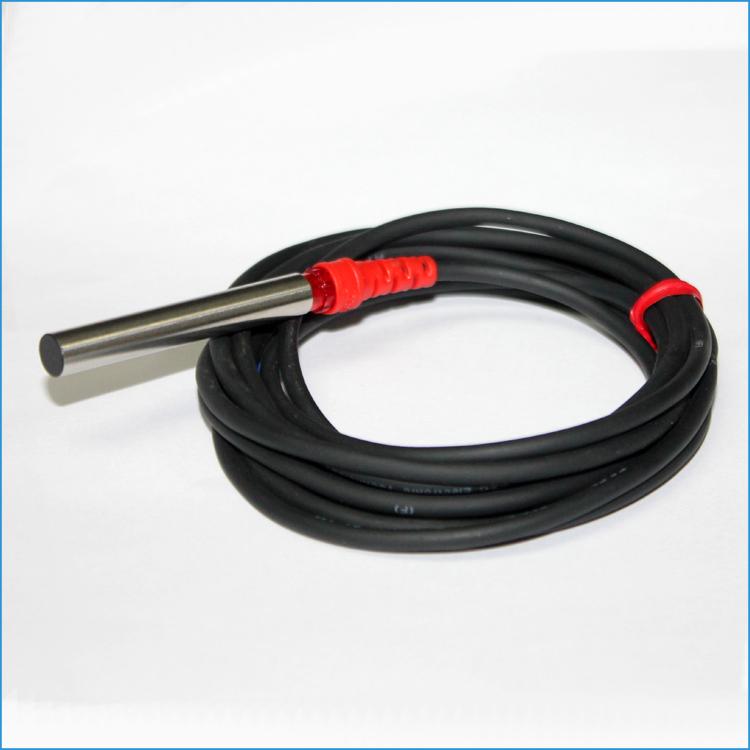

F3C-06 series F3C-06KS/ES01-N/N2/P/P2 Micro Proximity Sensor

M12 PNP NPN Complete Metal Housing Inductive Proximity Sensor Switch

Brand:
F&C
Item no.:
F3C-06KS/ES01-N/N2/P
Product origin:
China
Color:
black
Shipping port:
Xiamen

Inquiry now

product introduction

Overview

Quick Details

Model Number:: F3C-06 series

Type:: Inductive Proximity Sensor

Place of Origin:: Hunan, China

Brand Name:: F&C

Usage:: Metals detection, Position Sensor

Theory:: Inductive sensor

Output:: PNP.NO

Description:: Inductive proximity sensor

Keywords:: Shield type inductive sensor

Detection mode:: PNP NO inductive sensor

Voltage:: 12-24VDC 10%; 5V customizable

Detection distance:: 1mm Inductive Sensor

Frequency:: 600Hz

Sensing Object:: Ferrous proximity sensor

Certificate:: CE, RoHS Inductive Sensor

Product name:: 6.5mm PNP-NO 1mm Shield type Inductive Sensor Ferr

	F3C-06KS01-P R2M
Detection distance	1mm
Recommand distance	0.8mm
Standard sensing object	551(iron)
Response frequency	600Hz
Hysteresis	no more than 10% Detection distance
Operating voltage	12-24VDC 10%
Current consumption	less than 10mA
Load current	24V 100mA Max
Leakage current	less than 0.01mA No-load
Protection circuit	Power anti-received protection and short circuit protection
Residual voltage	less than 1.0VDC
Operating Temperature	-25 to +70
Waterproof degree	IP67
Material	PBT and SUS304
Wiringmethod	φ3.2×2M/3-wires φ3.2×2M/2-wires

F3C-06KS01-P R2M

Detection distance 1mm

Recommand distance 0.8mm

Standard sensing object 5*5*1(iron)

Response frequency 600Hz

Hysteresis no more than 10% Detection distance

Operating voltage 12-24VDC 10%

Current consumption less than 10mA

Load current 24V 100mA Max

Leakage current less than 0.01mA No-load

Protection circuit Power anti-received protection and short
circuit protection

Residual voltage less than 1.0VDC

Operating Temperature -25 to +70

Waterproof degree IP67

Material PBT and SUS304

Wiringmethod φ3.2×2M/3-wires
φ3.2×2M/2-wires

Miniautre Inductive Sensor Diameter 4mm, 5mm and 6.5mm.

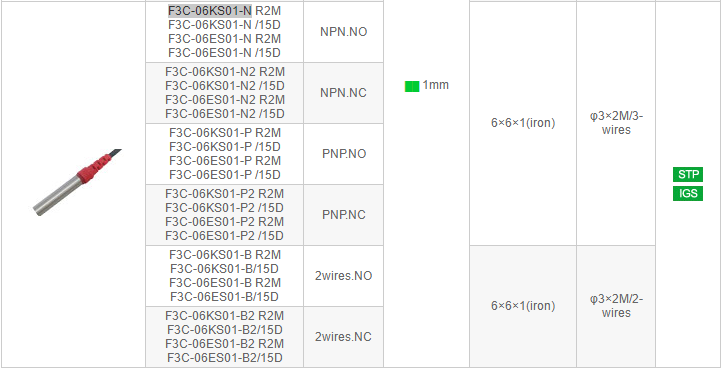

Model	Head	Sensing Distance	Shield	Output
F3C-04KS0.8-P R2M	4mm*30mm smooth head	0.8mm	Yes	PNP NO
F3C-05KS01-N R2M	5mm*30mm thread head	1mm	YES	NPN NO
F3C-06KS01-P R2M	6.5mm*45mm smooth head	1mm	YES	PNP NO
