Circuit Inline Splice Connector push wire connector

The Newly Designed Lever Crimp Connector Of The Internal Structure Can Be Spliced In Multiple Positions. A Single Product Can Have 1-In, 1-Out And 1-In And Multiple-Out Structures At The Same Time, And Can Be Used With Rail Brackets.

  • Brand:

    OLINK
  • Item no.:

    222-2608
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue Orange
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    5
  • Safe and efficient】 It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing thermal cycling release of wires connected together.If you are a DIY person these guys will make you sleep better at night when doing your own wiring projects.

  • 【Universal compatibility】The connector for joining braided and solid wire and wires of differing sizes. They work with most every gauge of normal household wiring: ceiling fans, sockets, switches, cars, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more
  • 【Convenient and practical】 Just lift up the lever, insert the stripped wire, and press the lever closed,holds tight and makes a solid connection.These are a good purchase for those of people that are doing electrical projects or work where you need to connect lots of wires. Sometimes you need to jumper something or run tests on a circuit .they do not mess up the wire ends nearly as much,keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.


Specification of Inline Splice Connectors

Model Number:
  DF-2068
Type:
  junction box wire connector
Rated Current:
  32A
Rated voltage:
  450V
Wire range:
  28-12AWG/
Use:
  Power/Junction box
Stripping length:
  10-12mm
Handle Color:
  Customizable,Default orange
Contact material:
  Copper alloy
Housing material:
  PC
Payment terms:
  Ali Assurance/ T/T
  Western Union/paypal
Logistics:
  By Sea/By air/Express
New products in 2022
【Sliced bread】 Two-way wire nut, which can connect multiple sets of wires, freeing up a good amount of spacea and times, They are
compact, super easy, reliable and reusable.

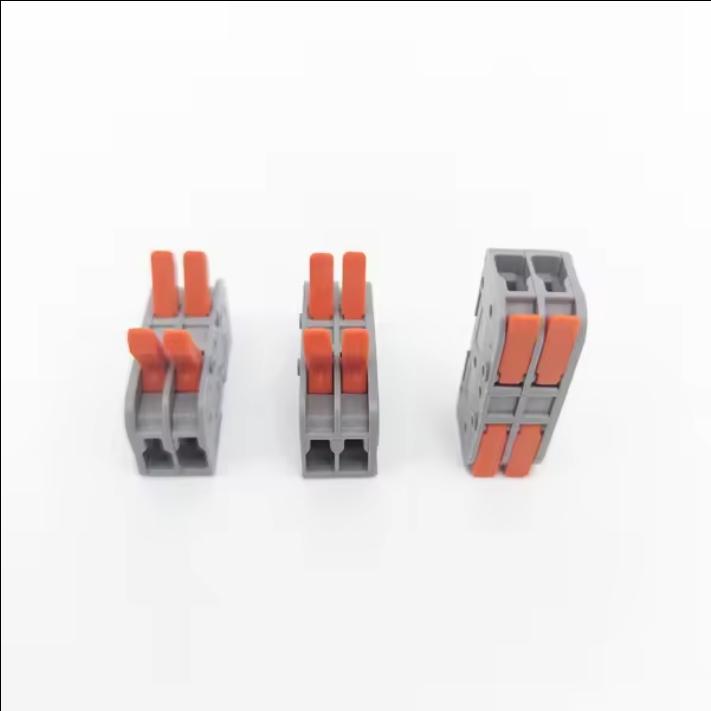

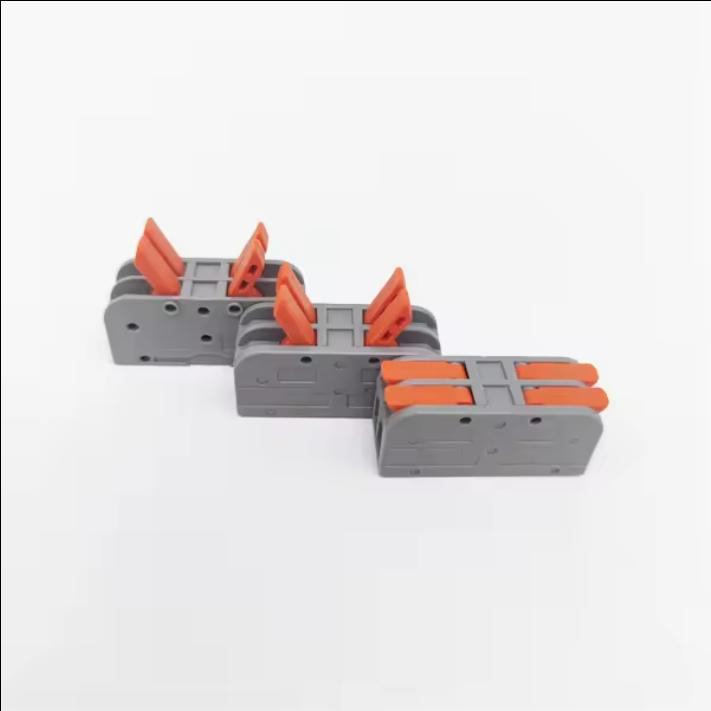

Structural Features Of Spring Lever Terminal Block



The Holes Can Be Spliced Indefinitely


New Mechanical Structure,

No Resistance For Lever Opening And Closing




Thickened Conductive Strips Have Better Conductivity

Adding Parallel Strips Can Make One Input Multiple Outputs




A Single Product Can Be Made Into 1-In 1-Out

Or 1-In And Multiple-Out, And Differentiated By Lever Color


The Tested Pulling Force Value Is About 200N,

The Clamping Force Is Better Than The Old Product


More Similar Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
