75a signal auxiliary power charging battery connector

75A/600V lithium battery connector with 4 signal communication auxiliary power charging heads.


  • Brand:

    OLINK
  • Item no.:

    SHS75X
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    BK, GN, BN
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

75a signal auxiliary power charging battery connector


Features of Ebike battery connectors

  • There are multiple colors, each color has a different interface;
  • There is no distinction between male and female, SHS75 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
  • Copper-plated silver terminal block, with card slot design, better conductivity;
  • Two-pole design, can be connected to the "+" and "-" poles at the same time.

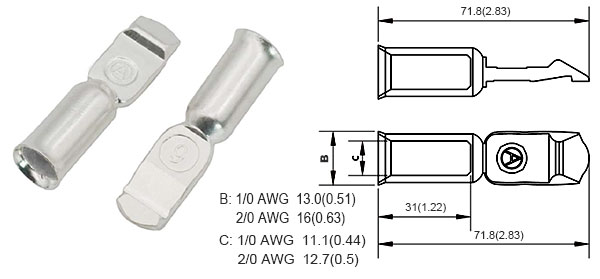

Drawing for SHS75X Connectors

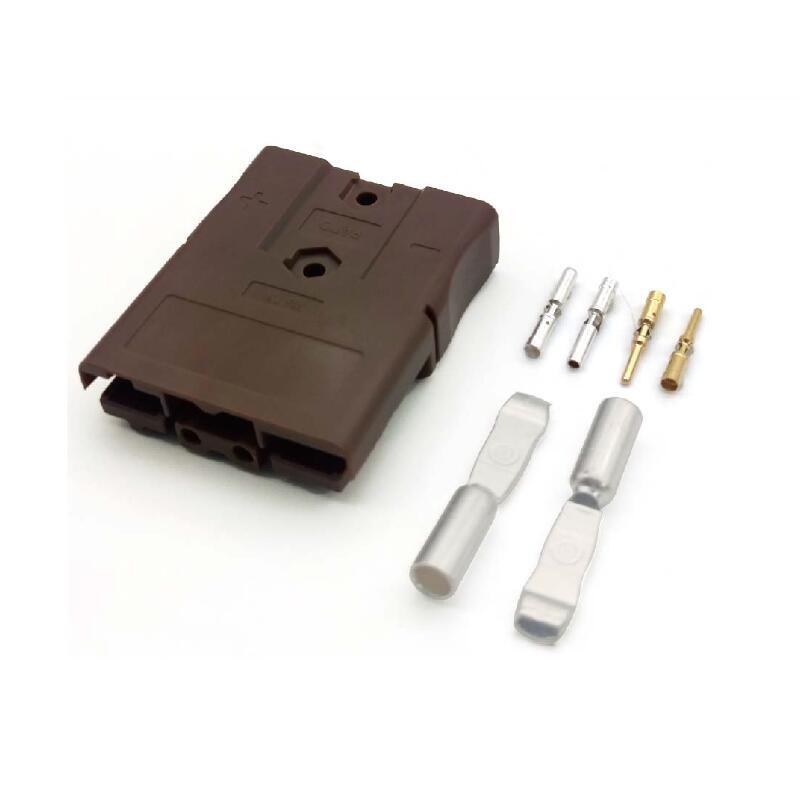

Note:A set of SHS75X Connector

contains a shell, two crimp terminals and four auxiliary terminals



Parameter of 75 amp connector

Product name
   75a signal auxiliary power charging battery connector
Rated Current       75A Rated Voltage       600V
Wire Size

   Chief terminal: 6, 10~12 AWG

   Signal terminal: 20~14AWG

Contact Material       Copper Plate With Silver
Insulation Material       PC Flammability
   UL94 V-0
Contact Resistance
   <140mΩ Insulation Resistance       5000MΩ
Average.Connection       85N Connector Holding Force       450N Min
Shell Optional Color
   Black, Grey, Brown

Use occasion of Electric forklift battery connectors

The SHS75X  connector is mainly used in the following industries:

  • Machinery industry: cutting machine, electric vehicle controller, etc.
  • Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
  • Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
