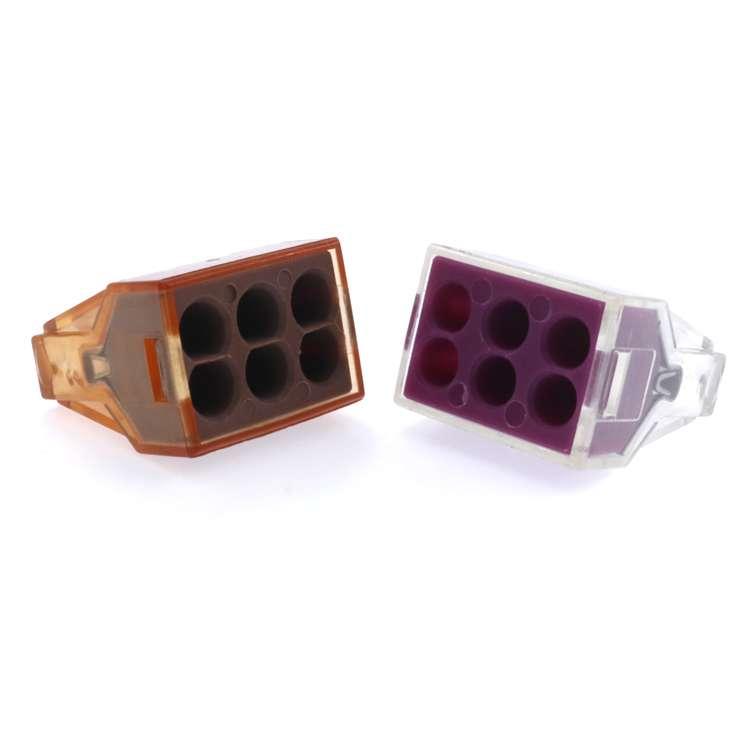

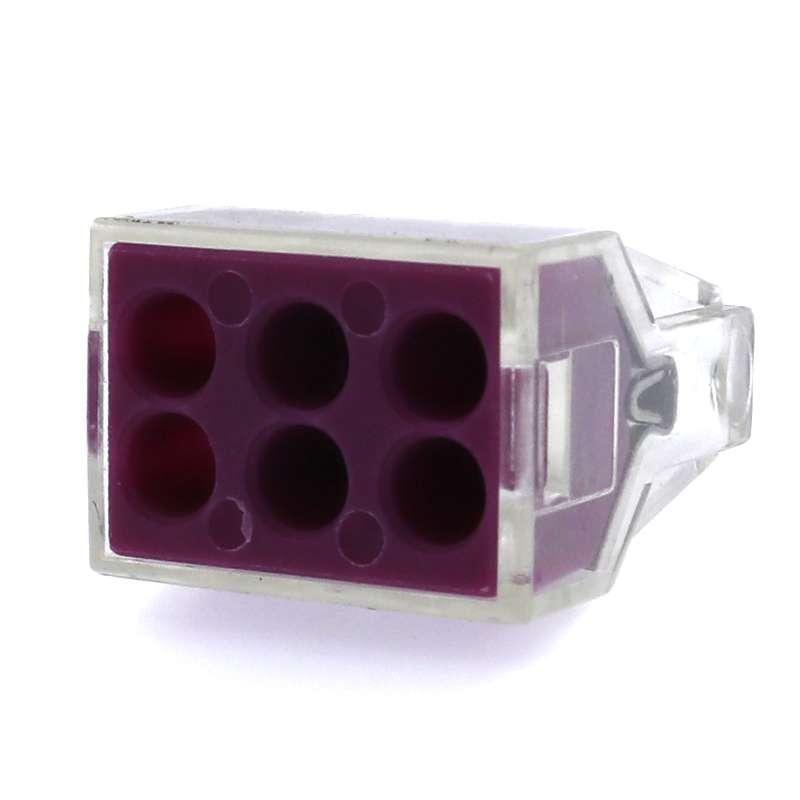

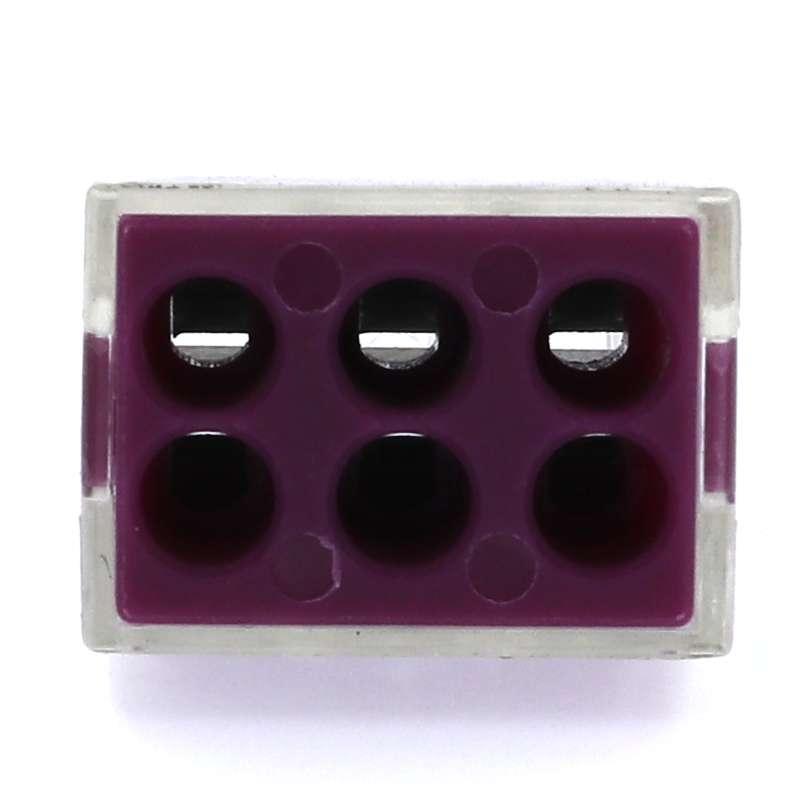

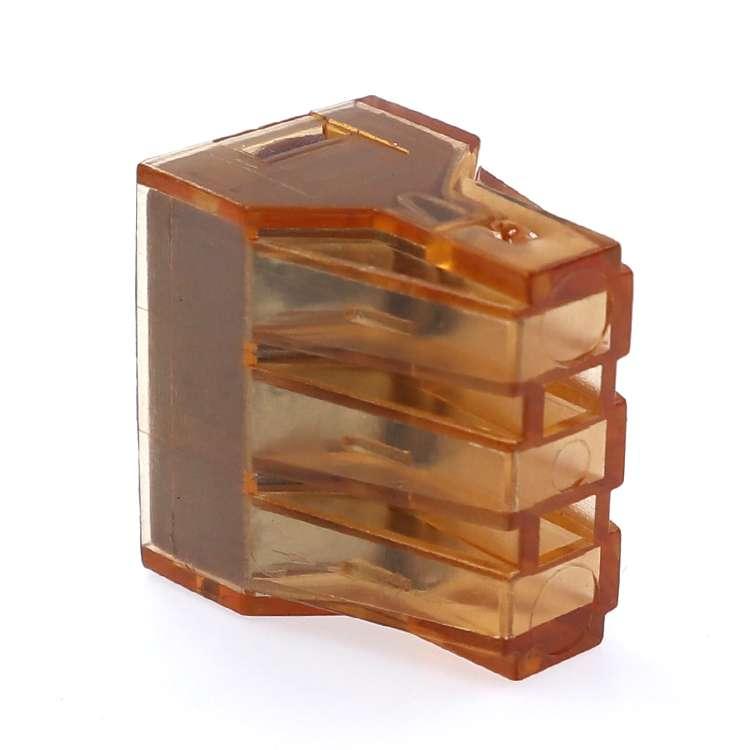

6 way electrical push in wire to wire connector 773 series

773 series wire connector, it's easy to plug in during use, and very popular in the construction and decoration industries. Different poles can be chosen.


  • Brand:

    OLINK
  • Item no.:

    PCT-106/606
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Transparent/Purple
  • Goods stock:

    500000
  • Min order:

    100
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

6 way electrical push in wire to wire connector 773 series

Description of Push in electrical connectors


Most of the annual electrical fires are caused by the aging of wire connectors or poor contact. Traditional wiring generally uses electrical tape or crimping caps. These products cannot ensure the firmness and contact force of the connection part, and it is easy to cause the wire connector to fall off and ignite. Thereby increasing the heat, causing great safety hazards. The new construction wire connector can effectively prevent the above phenomenon, and it is more convenient and safer to use.


Features of Push in electrical connectors


  • Plug-in installation, convenient and time-saving;
  • It is small in size and can be installed even in a small space;
  • The shell is made of flame-retardant material, which is resistant to high pressure, anti-aging, and has good flame retardancy;
  • Tinned copper (nickel-plated) conductive strips have better conductivity;
  • The solid parts are nickel-chromium spring steel, which has strong elasticity and good wire fastening ability;
  • There are 2.5mm2 and 4mm2 apertures to choose from.


Specifications of 6 way connector



Product Name:   Push in electrical  connectors
Application:   Junction box/electric power
Wiring method:   Insert
Wire type:   Hard wire
Strip length:   12 mm/0.47in
Cross section:   0.75(1.5) - 2.5 mm2
Voltage(max.):   250V
Rated Current:   24A
Shell material:   Nylon/PC
Conductive material:   Tinned phosphor bronze

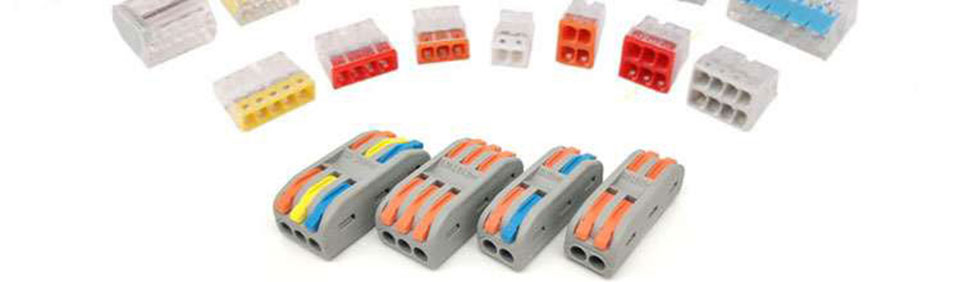

More wire connectors

*For more information, please contact us by email or through any contact information on the webpage.
