32 amp 2 way split wire to wire connector

32 amp 2 way split wire to wire connector

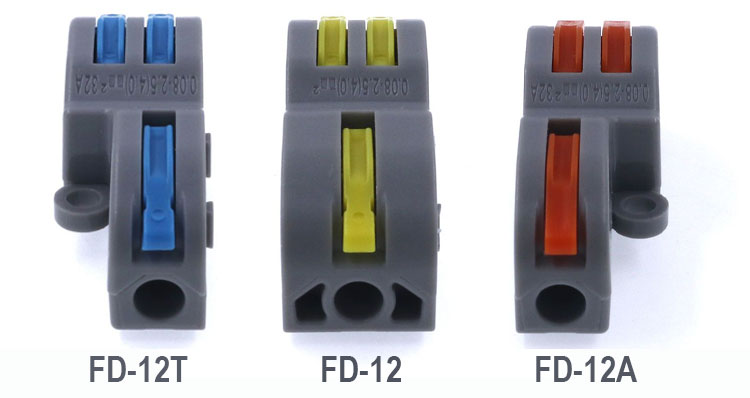

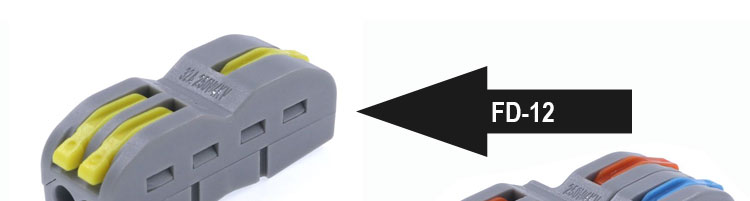

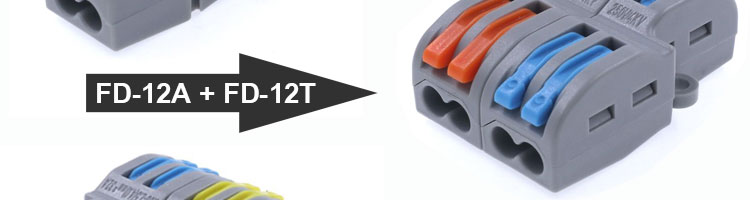

This push in connector is 1 in 2 out, which is different from 222 series connector. It can be combined into 2 in 4 out, 3 in 6 out, 4 in 8 out and also 5 in 10 out etc. Easy to setup.

Brand:
OLINK
Item no.:
FD-12
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Gray/Orange (handle color can be customized)
Goods stock:
500000
Min order:
1000
Shipping port:
Xiamen, Ningbo,shenzhen,shanghai
Lead Time:
7

Inquiry now

product introduction

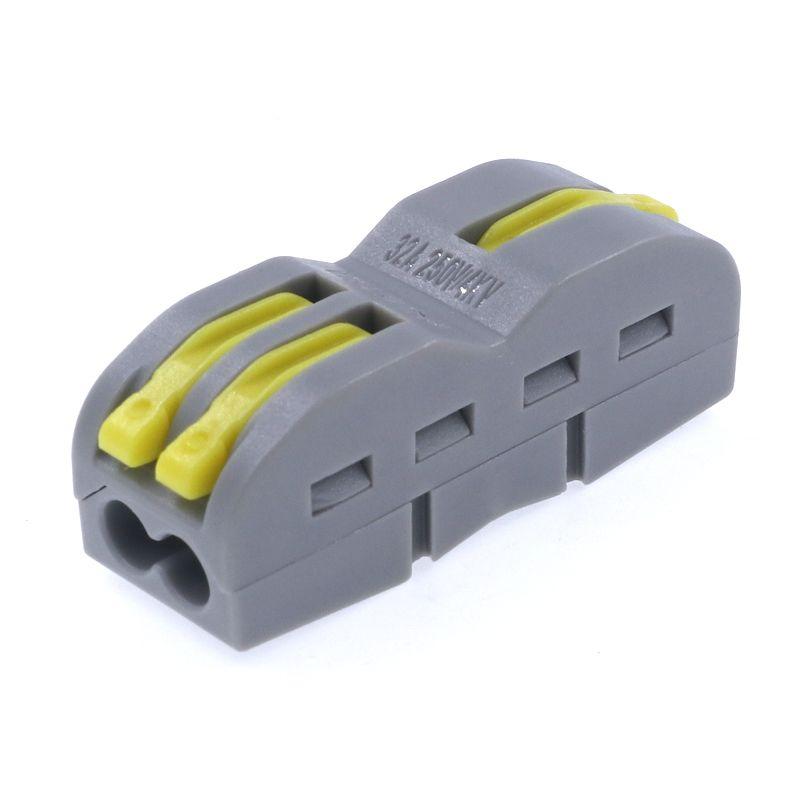

32 amp 2 way split wire to wire connector

Description of push in connectors

The cage spring universal connector of our company is an ideal connector between various types of conductors, which can connect single hard conductor or multiple soft conductors at will.

Features of wire connector

Small size and reusable;
Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
The shell is made of nylon or PC, and the flame retardant grade is UL94 V-0;
The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
The color of the handle of this push in wire connector can be customized to distinguish incoming wires.

Specifications:

Product Name:	push in wire connectors	Application:	Junction box/electric power
Wiring method:	Insert Crimp	Wire type:	Hard/Flexible wire
Strip length:	9-10 mm/0.39 in	Cross section:	0.08 - 2.5(4.0) mm²
Voltage(max.):	250V	Rated Current:	32A
Shell material:	Nylon/PC	Conductive material:	Tinned phosphor bronze

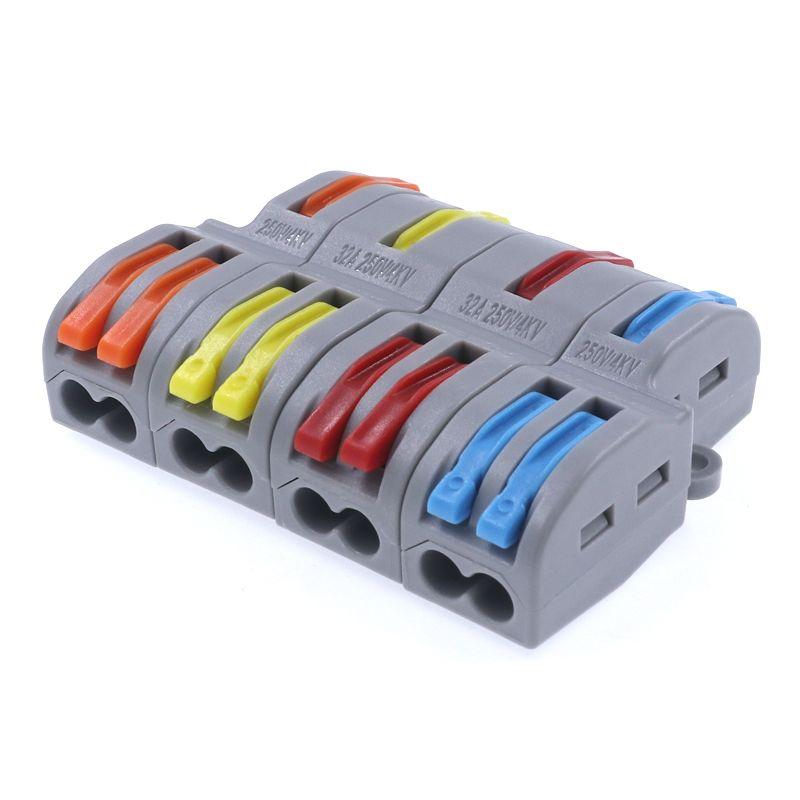

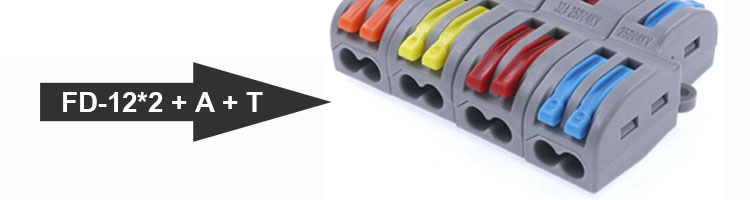

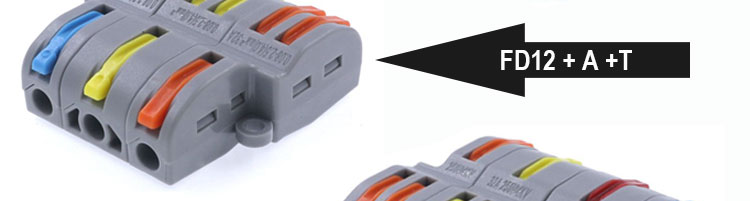

The electrical wire connectors can be used singly or in multiple combinations, which is simple and fast
