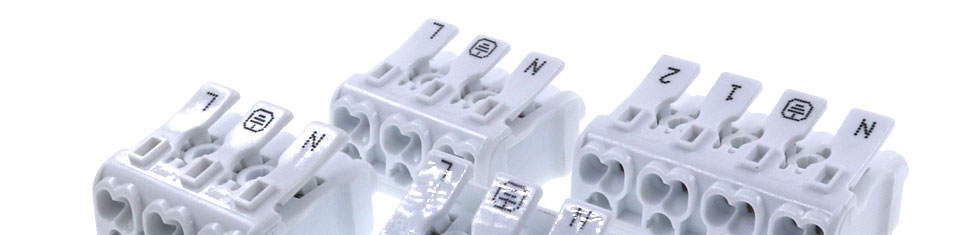

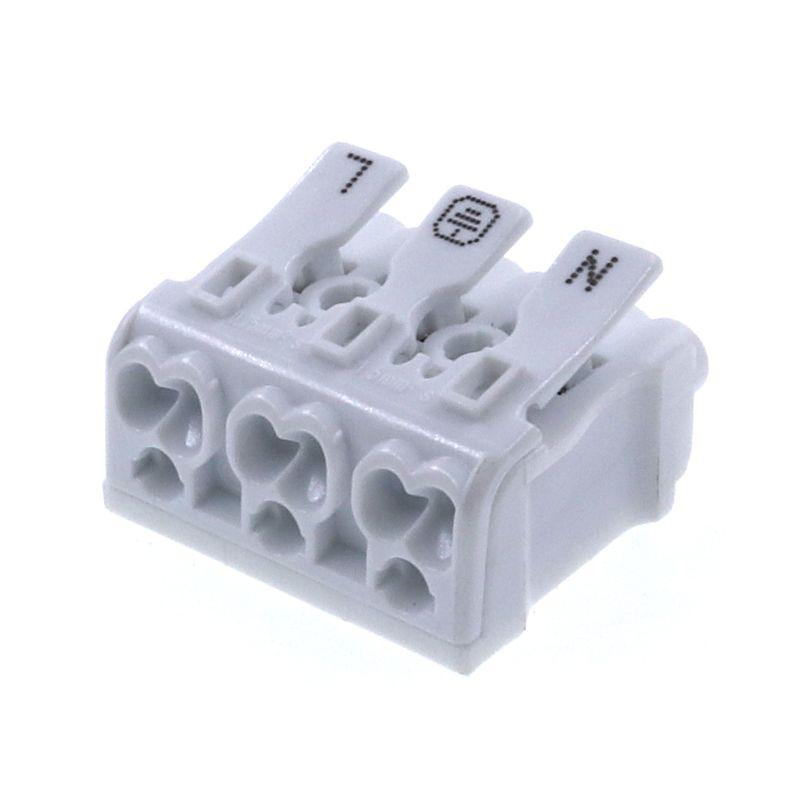

3 pin push wire joint connector for led lights

B06 connector can replace of 923 series wire connector. There are 4 kinds of specifications are available to meet different wiring needs, labor-saving and convenient, and reliable quality.



  • Brand:

    OLINK
  • Item no.:

    B06-3P
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Buff
  • Goods stock:

    500000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

3 pin push wire joint connector for led lights


Features of Wire joint connector


  • A variety of specifications can be selected arbitrarily, home wiring can be done at one time
  • Flame-retardant insulation shell, copper tinned guide strip, safe and durable
  • It is not easy to age, the wiring is convenient and fast, and the durable wiring is more stable
  • Can replace 923 series wire connector


Specifications of Multi wire connector



Product Name:   Wire joint connectors
Model:   B06
Wire range:   0.5-2.5 mm²
Rated Current:   16 A
Rated voltage:   450 V
Contact material:   Copper
Insulation material:   PA 66, UL94-V0 Contact material:   Tin-plated


Push wire connector installation There are two types of options

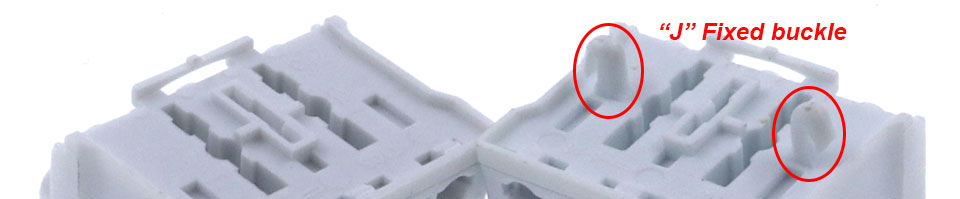

Connector Without "J" buckle at the bottom and with "J" buckle at the bottom

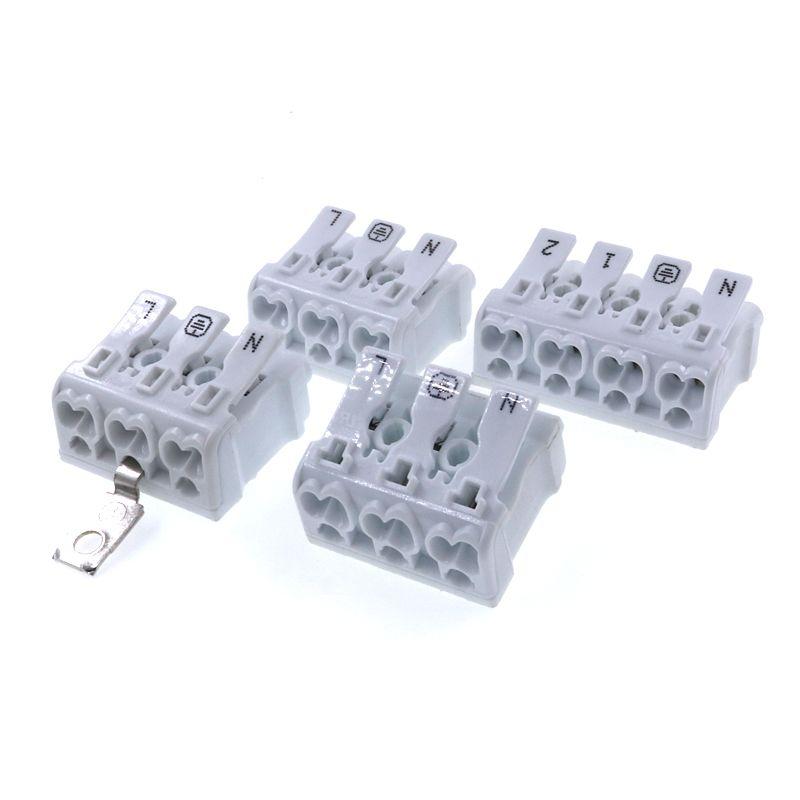

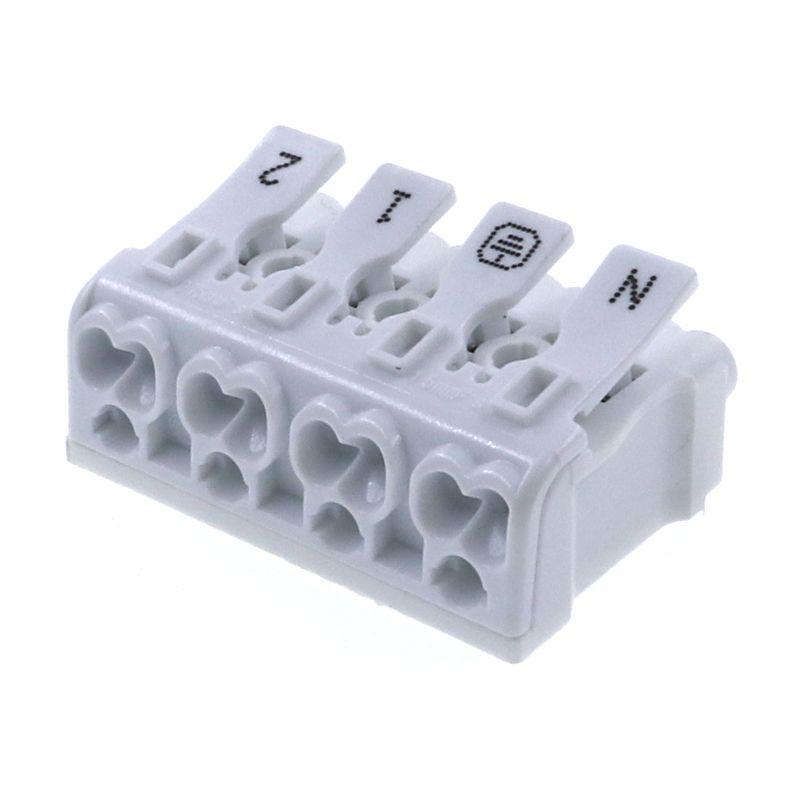

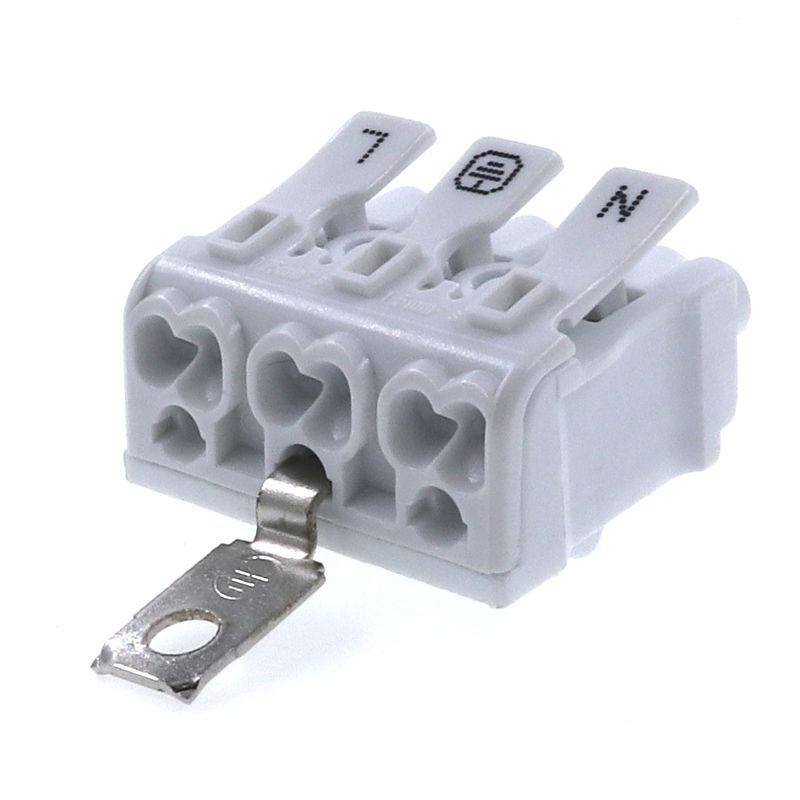

More poles are available of Wire joint connector,There are 2pole 3pole 4pole 5pole and optional grounding plate according to practical needs.

More wire connectors



*For more connector information, please contact us via email or any contact information on the web page.
