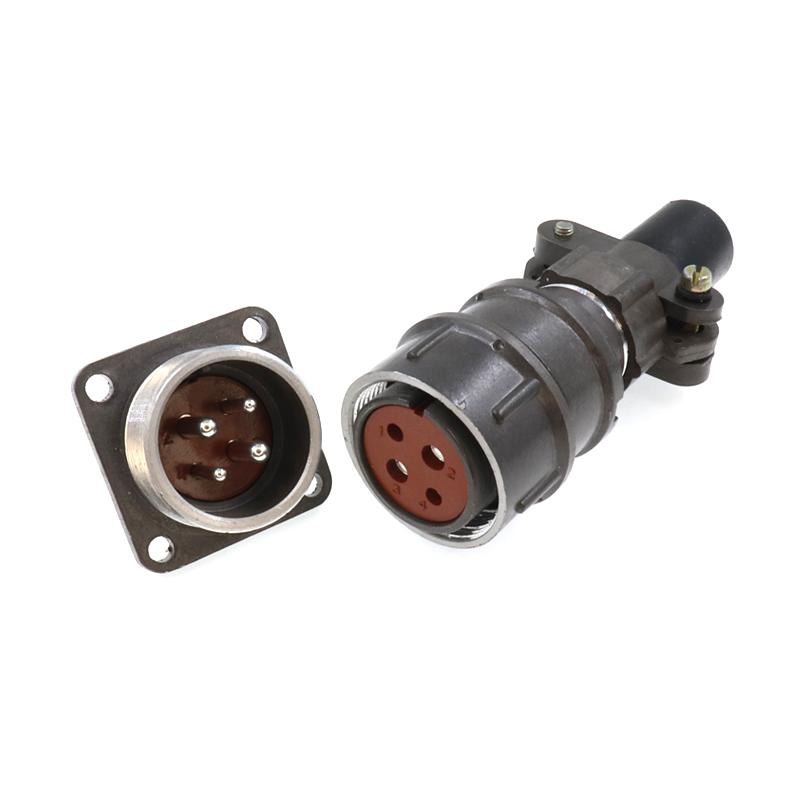

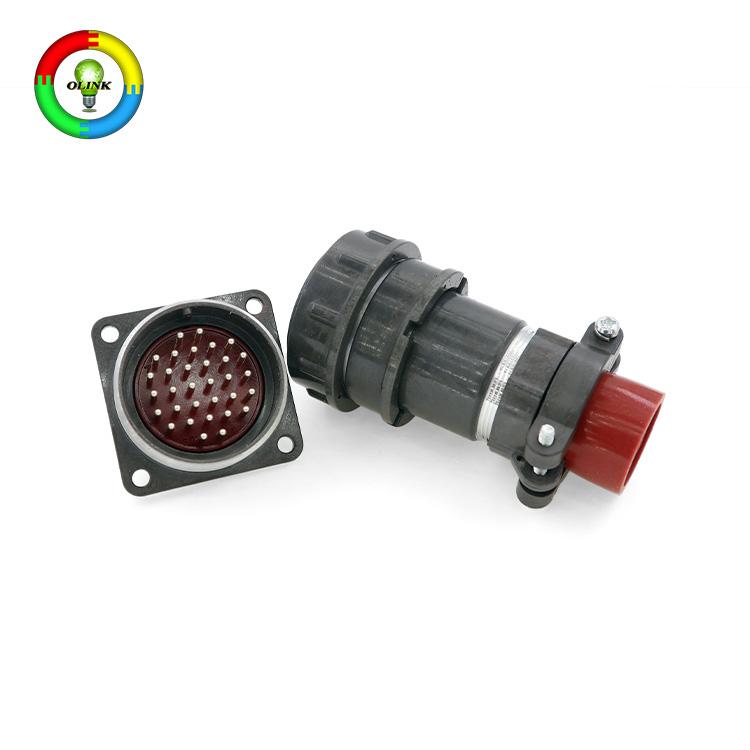

2PM Russian Connector MIL Connector Circular 2PM22 for Electrical and Radio Electronic Equipment

2pm Russia type circular connector, which is made according to the Russian Military Standard, Widely used for the electricity connection and signal transfer
  • Brand:

    OLINK
  • Item no.:

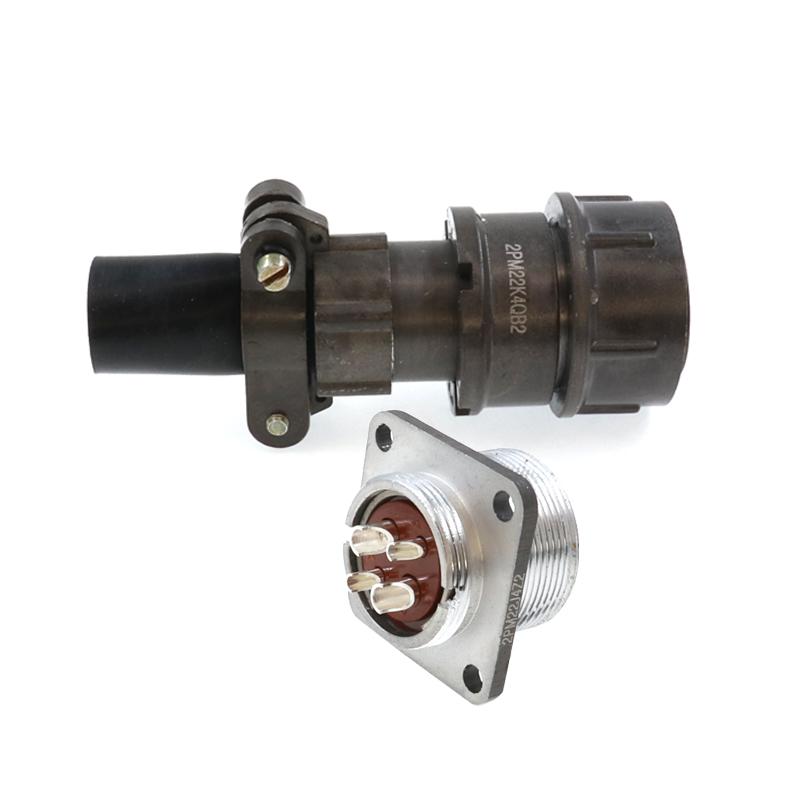

    2PM22K4QB2 &2PM22J4Z
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

            2PM Russian Connector MIL Connector Circular 2PM22 for Electrical and Radio Electronic Equipment

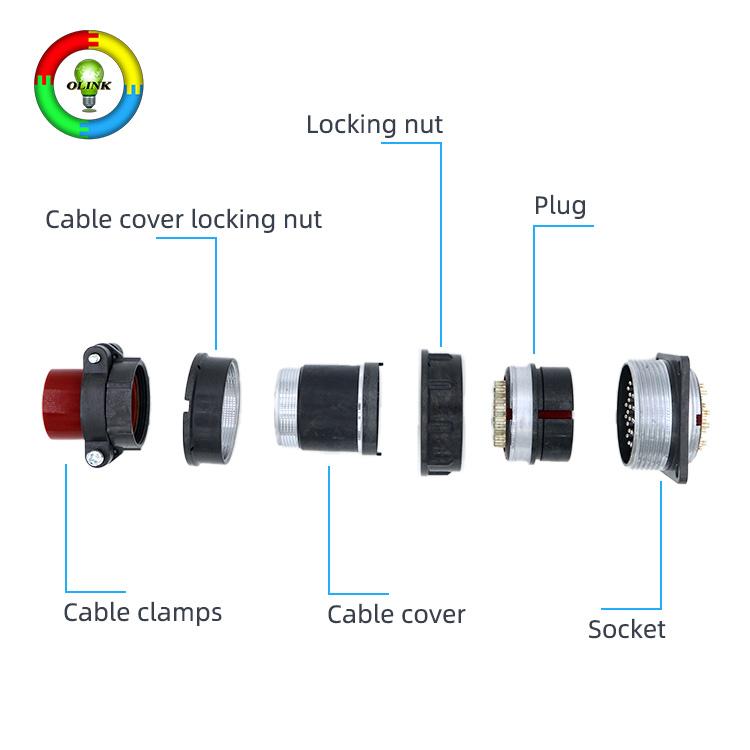

 2pm circular connector, which is special structure and design can avoid the shortage of other similar connectors. For example, the screw&hle for the wire on the outer shell. It can used more convenient. The inner insulation and pins structure are also enhance its stability and reliability. This series of connectors can also be waterproof, so it can used on outdoor equipments. Its special design and characteristics have got good reputation from the market.

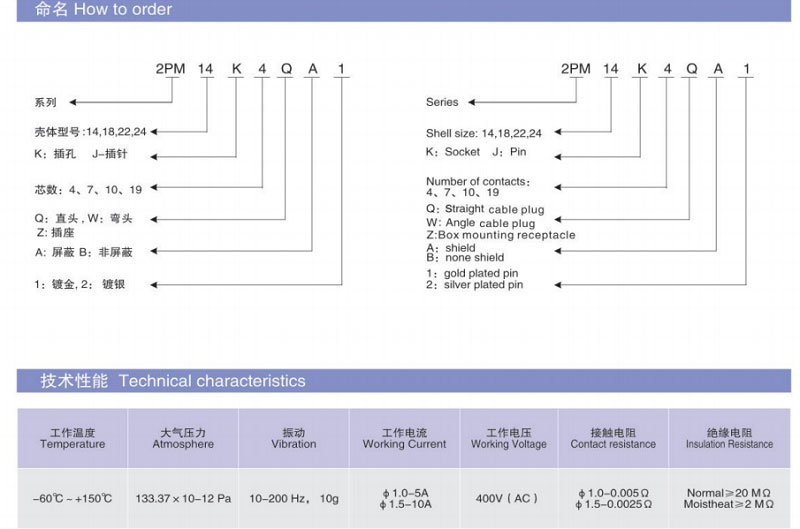

Product name
2pm circular connector
Material
Die-cast aluminum, surface oxidation treatment
Shell size
2PM14/18/22/24
Termaination
solder

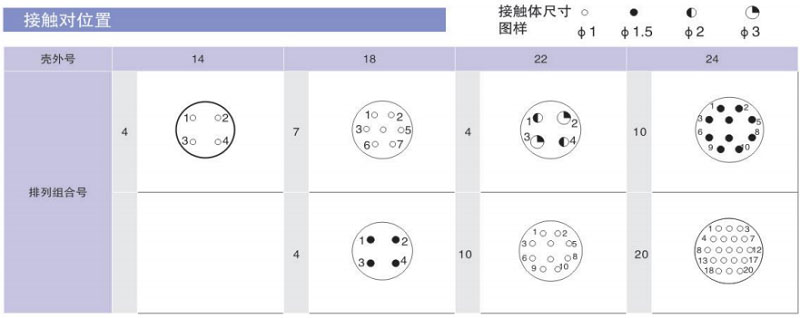

Number of contacts
4. 7. 10.19
Rate current
5-10A

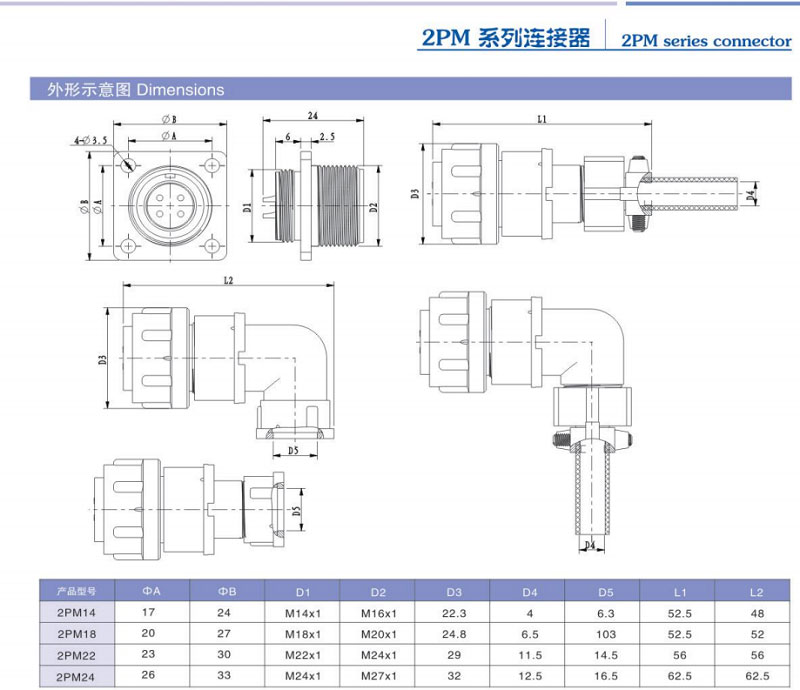

Installation size
14.5mm
Certificate
CE, Rohs
