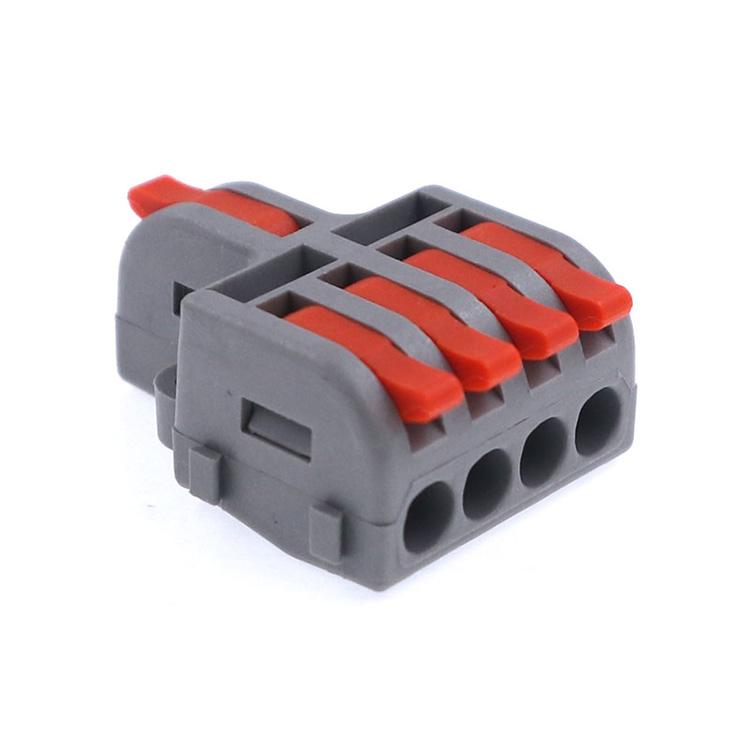

222-T Series Junction Box Wire Connector

This power push-in wire connector is a professional tool-free electrical wiring terminal designed for fast, secure and efficient connections in all types of electrical projects. Supporting both solid and stranded wires, this quick connect push-in terminal ensures stable conductivity and reliable long-term performance.
Made of flame-retardant insulating housing and high-precision conductive parts, it features excellent high-temperature resistance, high safety and long service life. Widely used in household wiring, junction boxes, power distribution, lighting and electrical equipment, this universal electrical quick connector is an efficient and practical solution for modern electrical installation.

Item no.:
222-T
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China

Inquiry now

product introduction

Technical Specifications

Rated Current:	32A
Rated Voltage:	250 V
Contact Material:	Phosphor Bronze
Shell Material:	PA66/PC
Elastic material:	Spring steel
Pins:	3.4.5.6
Cross Section:	AWG28-12/0.08-4mm2
Din Rail:	3.5mm
Application:	Building junction box
OEM/ODM:	yes
Technical Support:	7*24h online service

Product selling points

· Quick Push-In Installation: Tool-free wiring with lever design, time-saving and efficient.

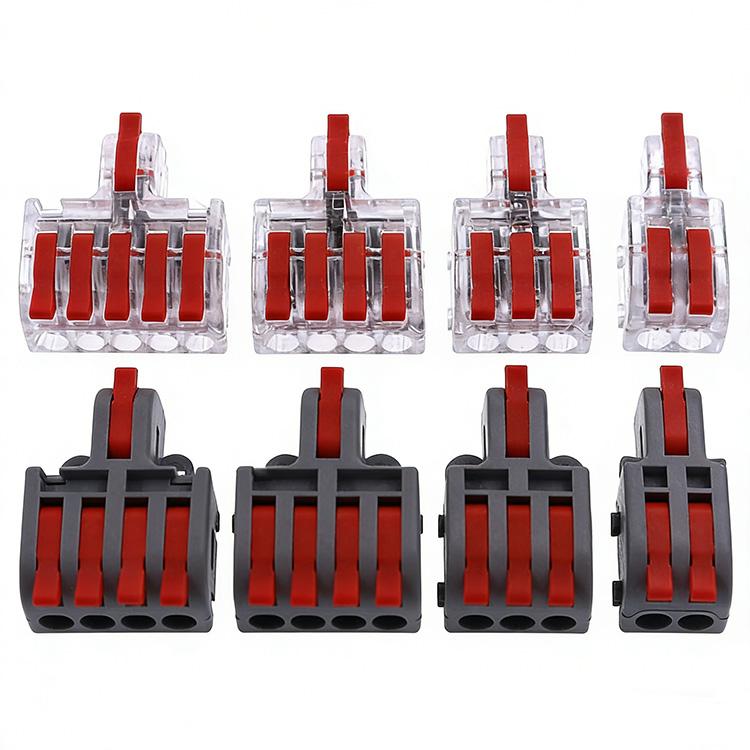

· Multiple Connection Options: 2-5 pins available (1in2out to 1in5out), supports multi-position splicing.
· High Power Capacity: 32A rated current, 250V/400V voltage, meets building power needs.
· Wide Wire Compatibility: Fits 18-12AWG/0.08-4mm² solid wires & 0.08-2.5mm² stranded wires; stripping length 9-10mm.
· Premium Conductivity: Nickel-plated copper alloy contacts for stable transmission and anti-corrosion.
· Fire-Resistant & Durable: PA66 housing (UL94 V-0 flame-retardant); optional transparent PC material.
· Customizable Design: Wrench color customizable (orange/yellow/blue, MOQ 3000pcs); OEM/ODM supported.
· Certified Quality: CE, RoHS, UL certified; ISO9001 compliant; SGS assessed.
· Cost-Effective Bulk Pricing: Factory-direct with competitive rates; discounts for ≥50,000pcs.
· Fast Delivery: 5-day lead time for 1-3000pcs; annual capacity 10,000,000pcs.
· Lightweight & Compact: Only 6.6g, space-saving for junction box installation.
· Practical Application: Ideal for power distribution and building junction box wiring.

Product details

The 222-T features a multi-functional buckle, is compatible with various wires, and supports one‑click release for easier wiring.

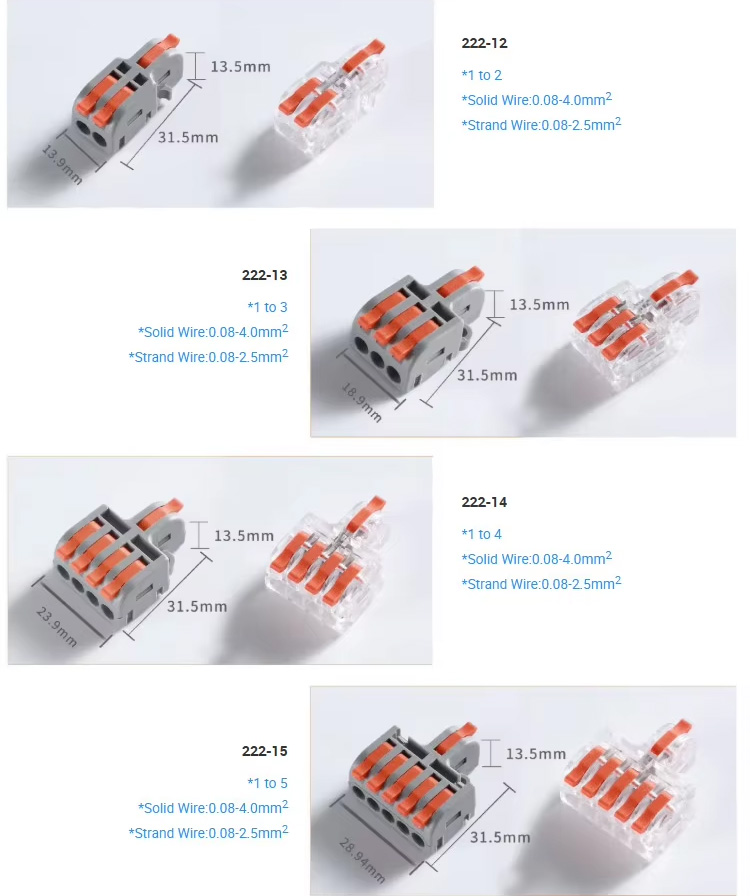

All models of 222-T have a height of 13.5 mm and a length of 31.5 mm, and are available in 1-to-2, 1-to-3, and 1-to-4 types.

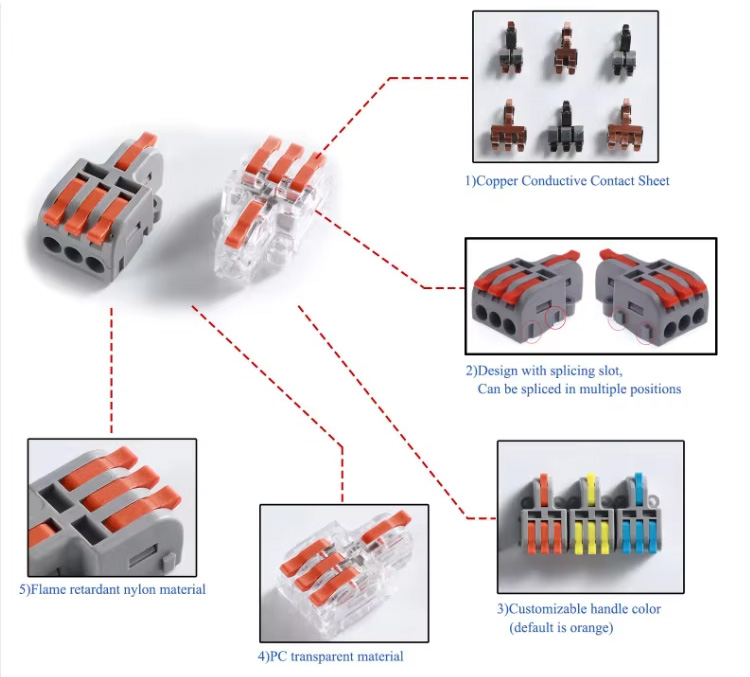

The 222-T is equipped with copper conductive contact plates, features a groove and protrusion docking design, and supports customized handle colors.

Compared with traditional tape wiring, the 222-T offers the advantages of simplicity, speed, safety and flame retardancy.

Application Scenarios

The 222-T wire connector can be used for outdoor lighting wiring, outdoor camera wiring, various distribution boxes, and various machine tool wiring.

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
