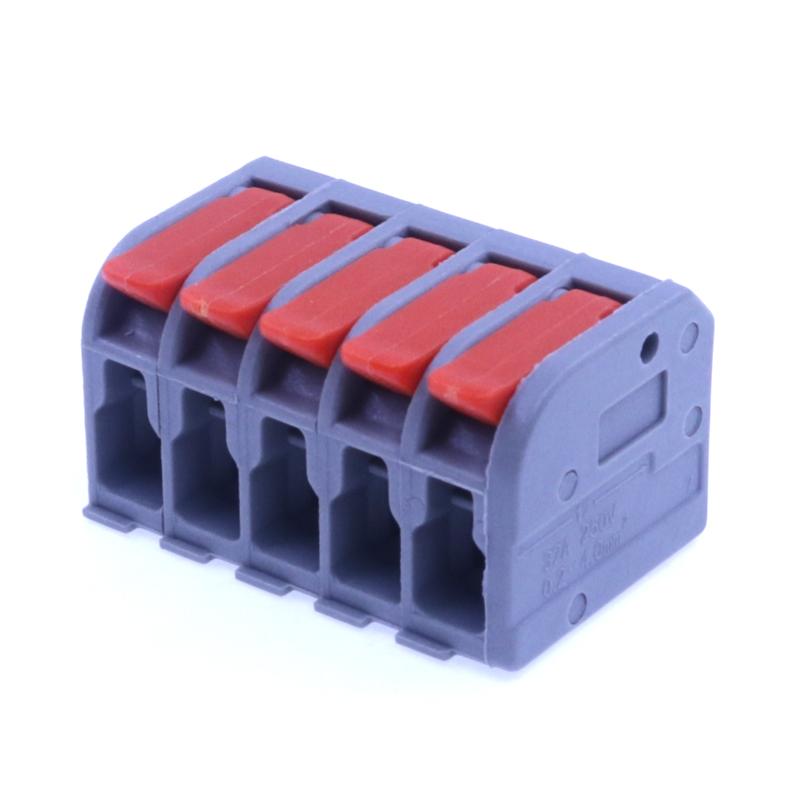

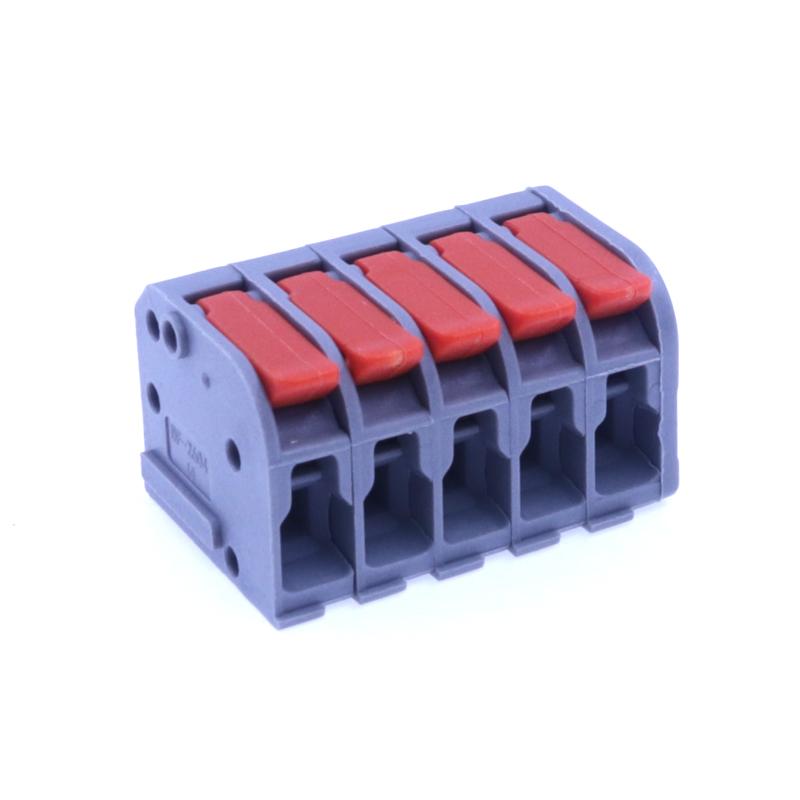

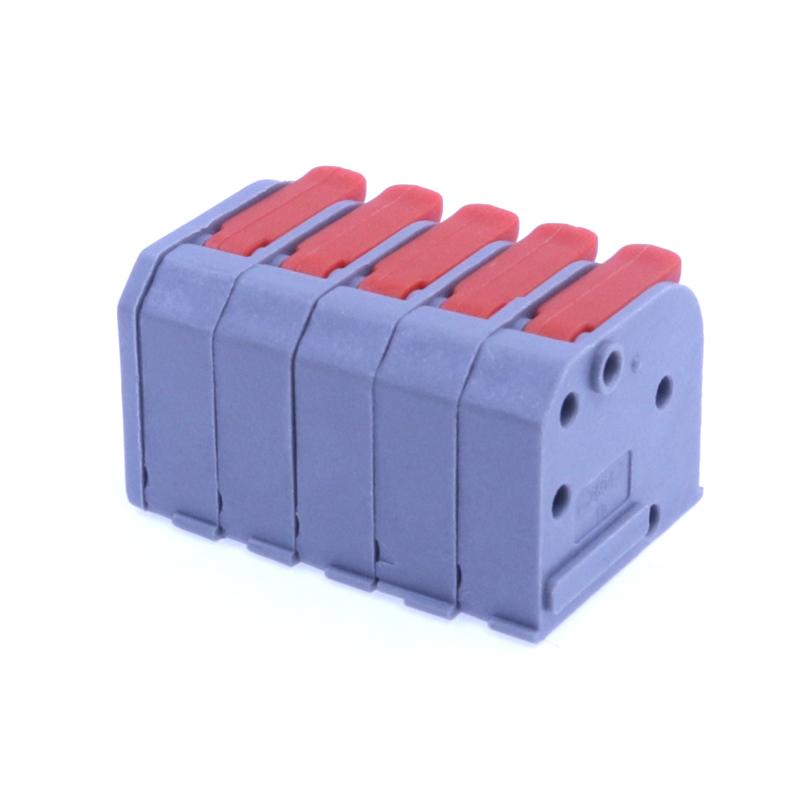

222- 412 413 415 butt connector terminal fast releasable lever lock nut connectors

Micro Resistance Painless Lever Crimp Wire Connectors With The Latest Design Inside The Product, Lever Has Minimal Opening And Closing Resistance, And Frequent Use Will Not Bring Pain To The Fingertips. After The Wire Is Connected, The Tension Is Large And It Is Not Easy To Loosen. The Number Of Connector Holes Can Be Spliced Infinitely According To Requirements.
  • Brand:

    OLINK
  • Item no.:

    222-2604-5
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    5

Micro Resistance Painless Lever Crimp Wire Connectors With The Latest Design Inside The Product, Lever Has Minimal Opening And Closing Resistance, And Frequent Use Will Not Bring Pain To The Fingertips. After The Wire Is Connected, The Tension Is Large And It Is Not Easy To Loosen. The Number Of Connector Holes Can Be Spliced Infinitely According To Requirements.


  Features

  • This Lever Connectors Single Pole Can Be Spliced With Infinite Hole Positions;

  • Lever Has A Slight Resistance, Which Can Be Opened And Closed Without Effort, And Will Not Cause Fingertip Pain When Used In Large Quantities;
  • The Wiring Size Is 0.2-2.5(4)mm2/24-12(14)AWG;
  • Lever Color Can Be Customized
  • 250V32A


  Specifications

Roduct Name:   Painless Lever Wire Connectors
Application:   Junction box/electric power
Wiring method:   Insert Lever Crimp
Wire type:   Solid/Flexible wire
Number of electrodes:
 1 Number of holes:
 1~
Strip length:   10-12mm/0.47in
Cross section:   0.2 - 2.5(4.0) mm / 24-12AWG
Voltage:   250V
Rated Current:   32A
Shell material:   Nylon
Conductive material:   Tinned phosphor bronze


 Details Of Push In Connector

Carefully Crafted,Focused On Detail

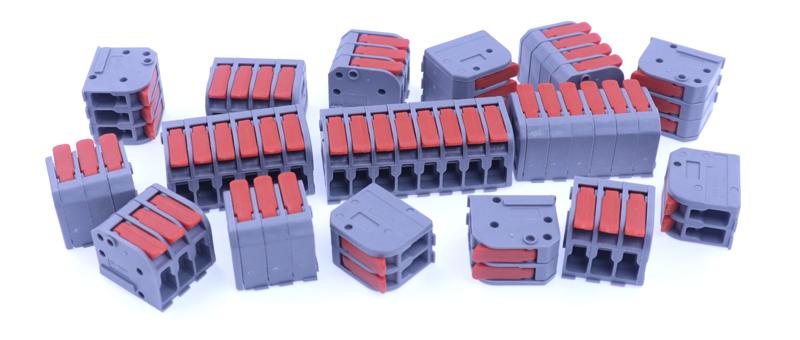

The Number Of Holes Can Be Spliced From 1P To Unlimited Positions

0.8mm Thickness Of Conductive Strip, Better Conductivity

New Internal Structure Design, No Resistance To Opening And Closing

Can Withstand Greater Tensile Test, About 200n Without Loosening


  More Lever Wire Connector
