2 to 2 Waterproof Pre Gel Filled terminal solderless wire connector B series

Gel-filled wire connectors have 1 to 2, 1 to 3, 2 to 2 and 3 to 3 poles. It's widely used in swimming pool, fountain, courtyard and other outdoor scenes.

Brand:
OLINK
Item no.:
CDF-B12/B13/B22/B33
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Transparent
Goods stock:
30000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

2 to 2 Waterproof Pre Gel Filled terminal solderless wire connector B series

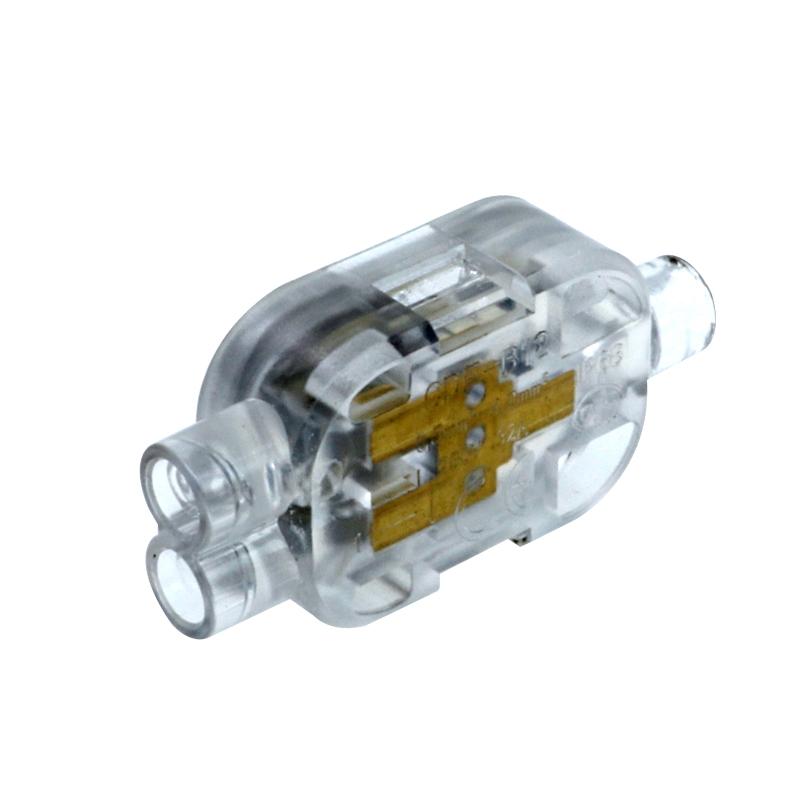

CDF-B12

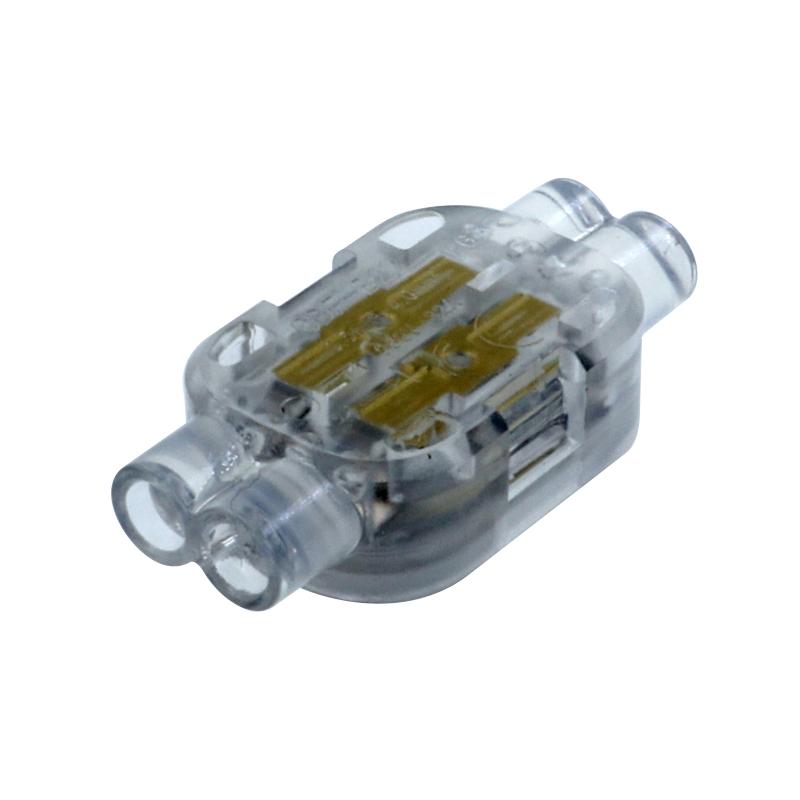

CDF-B22

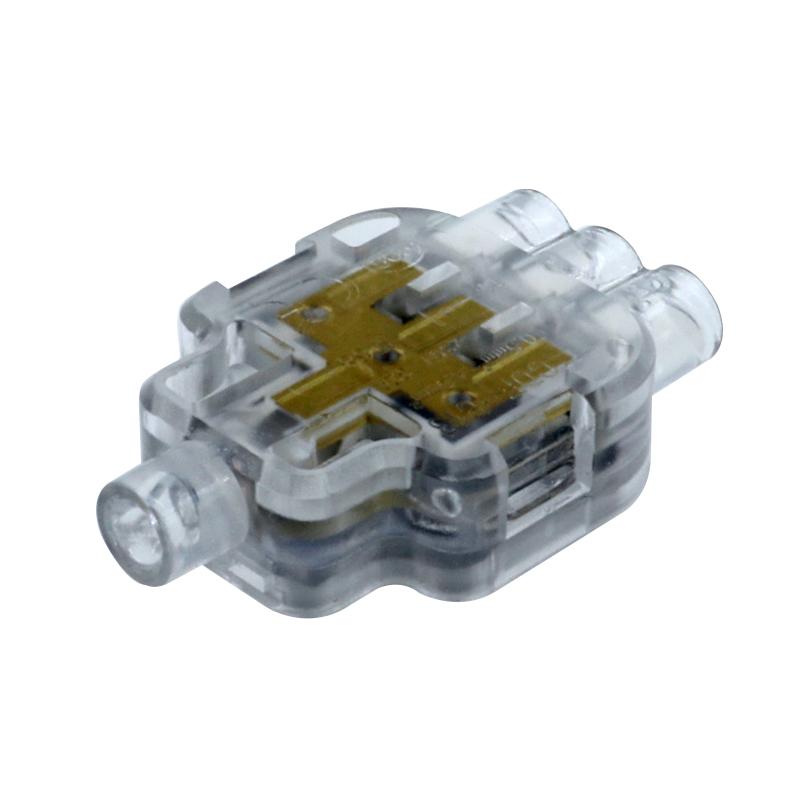

CDF-B13

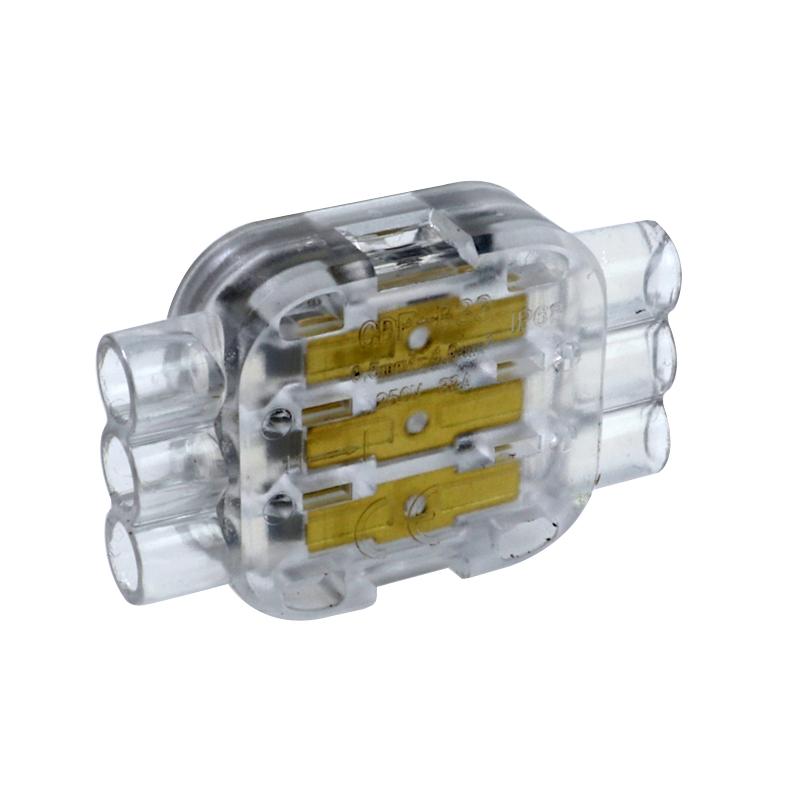

CDF-B33

Features of Pre gel filled wire connector

Split design at both ends for more free wiring
Waterproof with glue and good sealing performance
Multiple specification wiring digits, freely selectable
Insulated flame retardant shell

Dimensions


CDF-B12(1 to 2)	CDF-B22(2 to 2)

CDF-B13(1 to 3)	CDF-B33(3 to 3)

Specification of Waterproof terminal connector

Product Name:	Glue-filled waterproof terminal
Pole:	1 to 2, 1 to 3, 2 to 2, 3 to 3	Strip Length:	11mm
Wire Range:	Solid wire: 0.5-4mm² Strand wire: 0.5-2.5mm² (need tin plating)	Material:	Housing: PC or nylon PA66 Conductor: Brass Spring: Stainless steel
Rated Voltage:	250V	Rated Current:	32A
Application:	Swimming pool, fountain, courtyard and other outdoor scenes

Design

* Product In Fiels Test

* The producr is already in mass production

Application

Swimming pool, fountain, courtyard and other outdoor scenes

More Similar Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
